Atlas RIV938 Operating Instructions Manual

RIV938

PULL-TO-PRESSURE TOOL

FOR RIVET NUTS FROM #4-40 TO 3/8” aNd M3 TO M10

aNd RIVET STUdS #8-32 TO 5/16” aNd M4 TO M8

OPERaTINg INSTRUcTIONS

Instruction Manual - RIV938

2 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

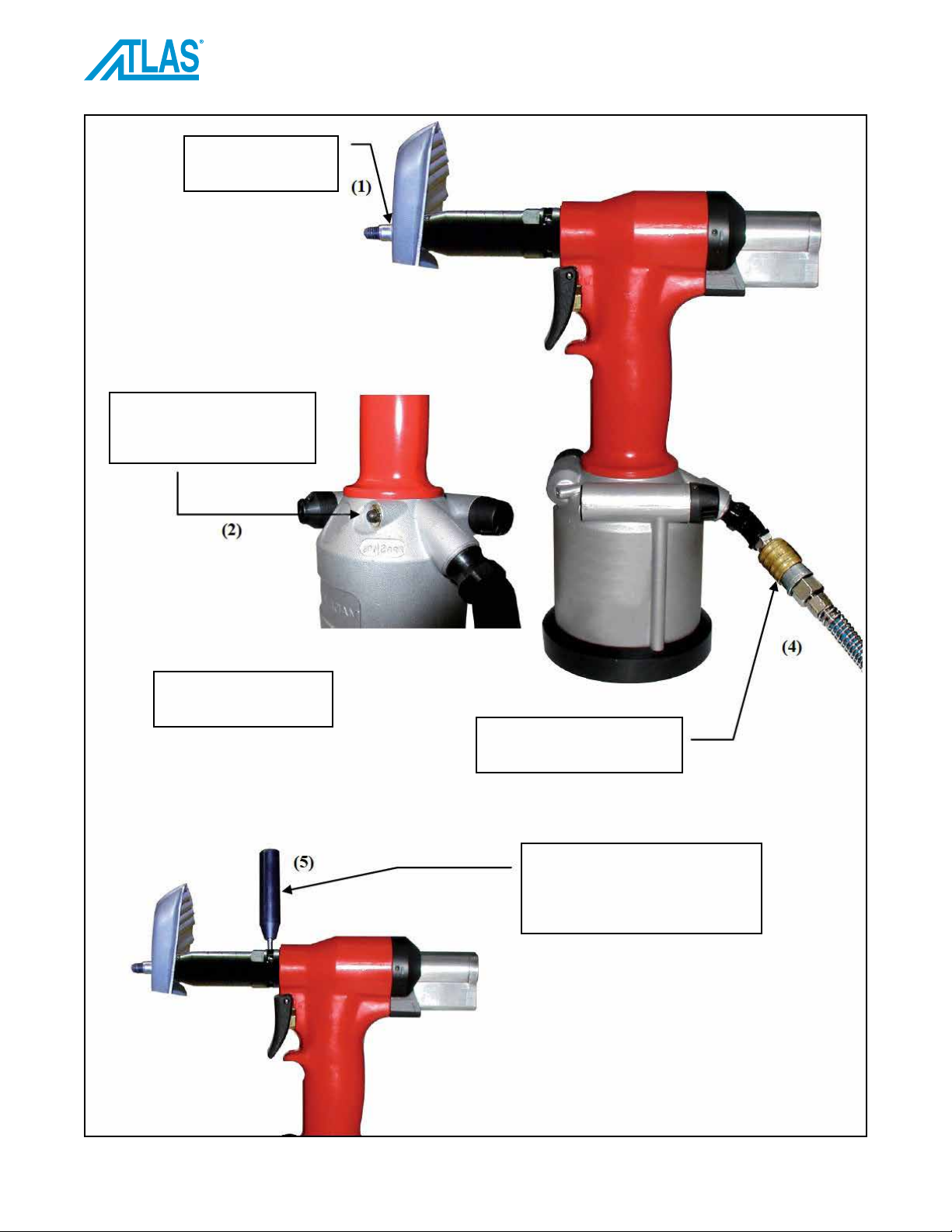

NOTE: THE RIV938 TOOL COMES WITHOUT NOSE ASSEMBLY KITS.
NOSE ASSEMBLY KITS HAVE TO BE ORDERED SEPARATELY ACCORDING TO THE USER NEEDS.

1. Air piston return (without spring).

2. Power piston air outwardly, not through the piston.

3. Kit assembly with toothed ring nut (wrench no longer necessary).

4. Tie rods are now replaced by commercial screws.

5. Additional unscrewing in case the user installs the wrong insert, or in case it gets stuck due to an improper
regulation.

6. One position trigger mechanism.

7. No adjustments are needed when there is a thickness change in materials.

8. No damages occurs to mandrel (or tie rod) if operations are repeated.

9. Lightweight.

10. Small dimensions.

PennEngineering • www.pemnet.com 3

RIV938 AND RIV938S

PROTECTIVE WING

(optional accessory)

Instruction Manual - RIV938

Protective wing

Remove standard protection

Together with the rubber base, it creates a support for the tool, avoiding any contact of the surface with
the metal part of the tool body.

Install the protective wing into the
standard protection housing

4 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

GENERAL INFORMATION

MANUFACTURER

Rivit S.r.l. was born in 1973, it produces and distributes in Fasteners and Tools for Fixings (tools for rivets and rivet
nuts). The Company boasts much technical experience and offers a wide range of products related to fastening
systems.

ASSISTANCE

In case you need any assistance concerning the use and the maintenance of the tool, or in case you need to order
any spare parts, you shall contact your local authorised dealer (or Rivit S.r.l. directly) specifying the identification/
serial numbers of the tool, written on its outer casing.

CERTIFICATION AND EC MARKING

The tool is manufactured in compliance with the European Directives, which are in force when the tool itself is put
on the market. As the tool is not included in ENCLOSURE IV of DIRECTIVE 2006/42/EC, Rivit S.r.l. issues a self­certification to apply the EC marking.

WARRANTY

The warranty has a validity of 12 months, as of the date indicated on the invoice.
The warranty only covers replaced parts; labor is not included.
The following are not covered by warranty: standard accessories (see section 2.5) and tool damages caused by:

• transport and/or handling, user’s mistakes,

• failed servicing/maintenance, as indicated in section 7 of this manual,

• faults and/or breakages that are not attributable to tool anomalies,

• normal consumption of consumables.

The warranty is invalidated both in case of unauthorized tampering/replacements of tool components and in case of
use of accessories, tools or consumables different to those recommended by the manufacturer, which could even

cause injuries to the tool’s user.

Rivit S.r.l. assumes responsibilities only if the tool is originally defective, but declines all forms of responsibility if
the user fails to follow the instructions given.

OPERATING SYSTEM

The hydro-pneumatic RIV938 tool, with oil pressure regulation, is designed to place female threaded inserts (from
#4-40 to 3/8” and M3 to M10) and male threaded inserts (from #8-32 to 5/16” and M4 to M8). The hydro-pneumatic
system and the mechanical components used inside the RIV938, when compared with other riveting tools, are more
reliable. There is less wear and tear of the components, consequently the tool will last much longer and work better.
The technical solutions adopted make the RIV938 more compact and lighter.

MANUAL STRUCTURE

This instruction manual must be read with particular attention by the Customer, as the correct pre-arrangement,
installation and use of the tool, are the correct basis for a good relationship between Manufacturer and Customer.

PURPOSE AND CONTENTS

The manual herein has the purpose of providing the Customer with all the information needed not only to use the
tool correctly, but also to manage it self-sufficiently and safely. It includes information concerning technical aspects,
operation, maintenance, spare parts and safety.

Users and Qualified Technicians must read the instructions given herein thoroughly before starting to use the
tool. If you have any doubts on the meaning of the instructions given, please do not hesitate to contact Rivit S.r.l.

for further explanations.

PennEngineering • www.pemnet.com 5

Instruction Manual - RIV938

RECEIVERS

The manual herein has been written for both the operators and the technicians enabled to service the tool.
Operators must not carry out jobs reserved to service and/or qualified technicians.
Rivit S.r.l. is not liable for any damage deriving from the failed observance of this rule.

PLACING OF THE MANUAL

This instruction manual must be kept near the tool, inside a dedicated container and, above all, away from liquids or
anything else that may compromise its legibility.

OPERATING SYSTEM

The hydro-pneumatic RIV938 tool, with oil pressure regulation, is designed to place the following fasteners:

• Female threaded rivet nuts (from #4-40 to 3/8” and M3 to M10)

• Male threaded rivet studs (from #8-32 to 5/16” and M4 to M8)

The hydro-pneumatic system and the mechanical components used in the inside structure of the RIV938, when
compared with other riveting tools, result to be much more reliable. A tool feature is a reduction of the problems
caused by the wear and tear of the components, and consequently the tool will last much longer and work better.
The technical solutions adopted make the RIV938 more compact and lighter: the result is a very handy tool.

VIBRATION

When used correctly, the tool does not produce any dangerous vibration.

NOISE LEVEL

The tool is designed and manufactured in such a way that the noise level is very low. The weighed equivalent continu­ous acoustic pressure level A in the operator position is indeed below 80 dB (A).
This information can allow the tool user to better evaluate the possible risks of danger.

TECHNICAL DATA

The following table provides the technical data and features of the tool, to which you must refer when contacting the

®

ATLAS

Technical Assistance Department at PennEngineering.

TECHNICAL DATA AND FEATURES

AIR WORKING PRESSURE 90 PSI / 6 BAR
MAX AIR PRESSURE 70 to 100 PSI / 5 to 7 BAR
AIR CONSUMPTION 305 cu. in.

PER CYCLE AT 6 BAR 5 liter
MAX STROKE .256” / 6.5 mm
MAX. AXIAL PULLING LOAD 4271 lbs. @ 90 PSI
19 kN @ 6 BAR
MOTOR SPEED (SPIN ON) 1600 rpm
MOTOR SPEED (SPIN OFF) 2000 rpm
WEIGHT 4 lbs. / 1.8 kg
VIBRATIONS < 2.5 m/s2
NOISE LEVEL 76 dB (A)

6 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

SPECIAL EXTENDED HEAD

Part number 3531800

REF. PART NUMBER QTY DESCRIPTION

A/1 3446600 1 90 MM EXTENDED SLEEVE
A/2 3446900 1 90 MM INTERNAL EXTENDED SLEEVE

NOSE ASSEMBLIES AND STANDARD ACCESSORIES

The nose assemblies stated hereafter refers to standard tools.
Any special tool could consequently require special parts, different than those listed.

REF. PART NUMBER QTY DESCRIPTION

1 4143400 1 RIV938-HYDRO-PNEUMATIC TOOL FOR INSERTS (IN CASE)
2 3064400 1 HYDRAULIC OIL TYPE ISO VG 32 100CC
3 0369800 1 PLASTIC CASE
4 0207300 1 UNIVERSAL KEY
5 2533800 1 EMERGENCY AND STROKE REGULATION PIN
6 4154200 1 REGULATION WRENCH MM. 3,0
– – 1 INSTRUCTION MANUAL

Hook for balancer
Part Number 4229800

PennEngineering • www.pemnet.com 7

OPTIONAL TOOLING

For Blind Threaded Insert Installation.

NOSE ASSEMBLY PART NUMBERS

Instruction Manual - RIV938

Nose Assembly SHCS / Mandrel

#4-40 4326700
#6-32 3755100 IN-14328 (100/box)
#8-32 3755500 IN-03190 (100/box)
#10-24 — IN-08823 (100/box)
#10-32 3755900 IN-07085 (100/box)
1/4-20 3756100 IN-05336 (100/box)
1/4-28 — IN-08057 (100/box)
5/16-18 3756300 IN-04153 (100/box)
5/16-24 — IN-10834 (100/box)
3/8-16 3756700 IN-15776 (100/box)
3/8-24 — IN-16488 (50/box)
M3 3441100 IN-06219 (200/box)
M4 3441200 IN-03023 (200/box)
M5 3441300 IN-03038 (200/box)
M6 3441400 IN-13128 (200/box)
M8 3441500 IN-21070 (100/box)
M10 3441600 IN-03088 (100/box)

(1) Replacement mandrels sold in box quantities shown above.

Part No. For Part No. For

Thread

Complete Insert Replacement

Size

MC-91251A078 (50/box)

(1)

Nose assembly
screws into here

Insert Nose Assembly

HEAD RING NUT

Can be ordered separately. Part number 0327700.

SPECIAL HEAD

Head and holes can be ordered in different
diameters. Part number 4281000.

8 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

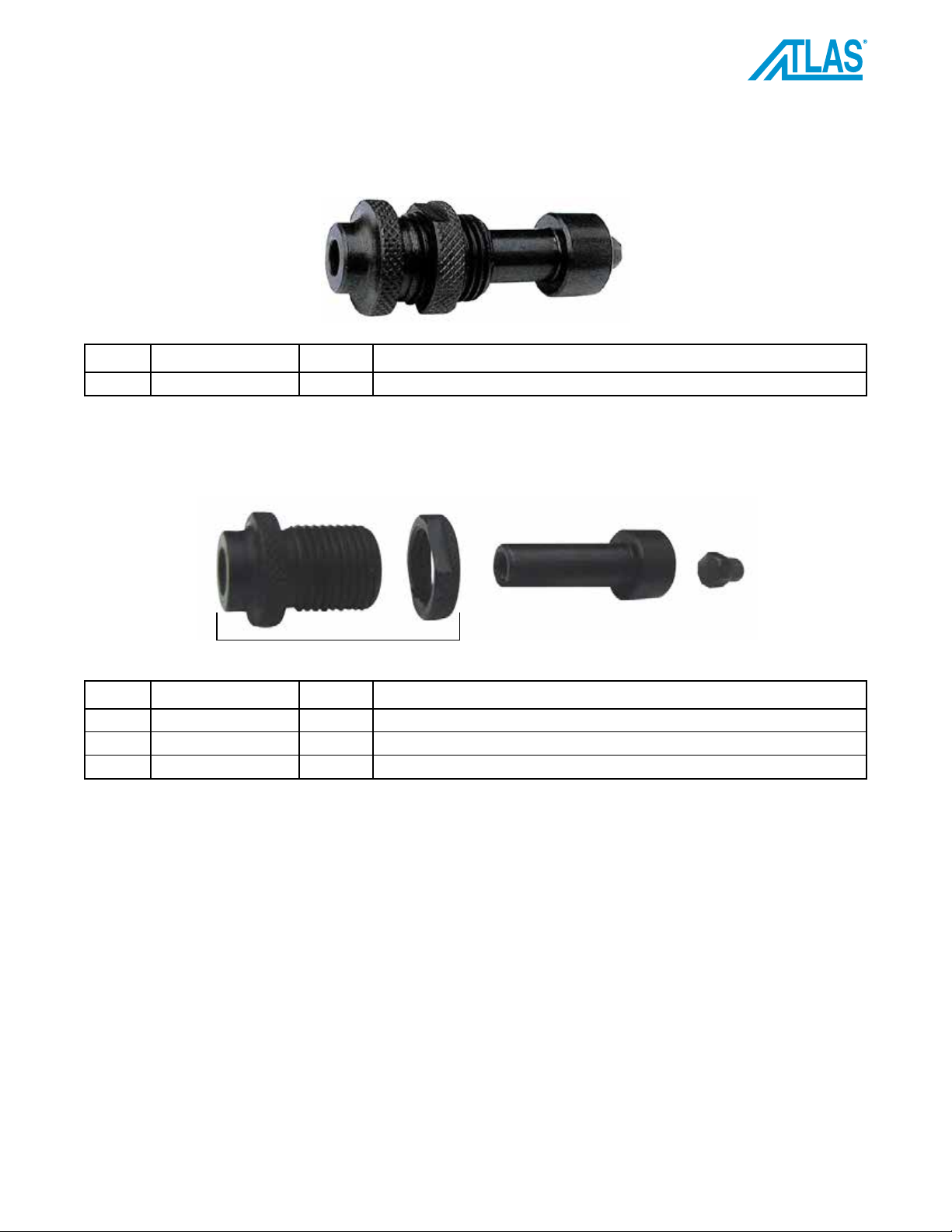

KIT FOR BLIND THREADED INSERT #4-40

1

REF. PART NUMBER QTY DESCRIPTION

1 4326700 1 KIT FOR BLIND THREADED INSERT #4-40 SOCKET HEAD CAP SCREW

KIT COMPOSITION

4 5

3

2

REF. PART NUMBER QTY DESCRIPTION

2 4326300 1 HEAD WITH RING NUT FOR #4-40 SCREW
3 4326400 1 ADAPTER FOR #4-40 SCREW (HOLE Ø 3.0)
4 MC-91251A078 (50/box) 1 SOCKET CAP SCREW #4-40 X 1.5”
5 4326500 1 HEXAGONAL JOINT WITH SPRING FOR #4-40 SCREW

PennEngineering • www.pemnet.com 9

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT #6-32

1

REF. PART NUMBER QTY DESCRIPTION

1 3755100 1 KIT FOR BLIND THREADED INSERT #6-32 SOCKET HEAD CAP SCREW

KIT COMPOSITION

4 5

3

2

REF. PART NUMBER QTY DESCRIPTION

2 3755200 1 HEAD WITH RING NUT FOR #6-32 SCREW
3 3753300 1 ADAPTER FOR #6-32 SCREW (HOLE Ø 3.6)
4 IN-14328 (100/box) 1 SOCKET CAP SCREW #6-32 X 1.5”
5 3753400 1 HEXAGONAL JOINT WITH SPRING FOR #6-32 SCREW

10 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT #8-32

1

REF. PART NUMBER QTY DESCRIPTION

1 3755500 1 KIT FOR BLIND THREADED INSERT #8-32 SOCKET HEAD CAP SCREW

KIT COMPOSITION

4 5

3

2

REF. PART NUMBER QTY DESCRIPTION

2 3755600 1 HEAD WITH RING NUT FOR #8-32 SCREW
3 3753800 1 ADAPTER FOR #8-32 SCREW (HOLE Ø 4.2)
4 IN-03190 (100/box) 1 SOCKET CAP SCREW #8-32 X 1.5”
5 3753900 1 HEXAGONAL JOINT WITH SPRING FOR #8-32 SCREW

PennEngineering • www.pemnet.com 11

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT #10-32

1

REF. PART NUMBER QTY DESCRIPTION

1 37555900 1 KIT FOR BLIND THREADED INSERT #10-32 SOCKET HEAD CAP SCREW

KIT COMPOSITION

4 5

3

2

REF. PART NUMBER QTY DESCRIPTION

2 3755600 1 HEAD WITH RING NUT FOR #10-32 SCREW
3 3471700 1 ADAPTER FOR #10-32 SCREW (HOLE Ø 5.0)
4 IN-07085 (100/box) 1 SOCKET CAP SCREW #10-32 X 2.25”
4 IN-08823 (100/box) 1 SOCKET CAP SCREW #10-24 X 2.25”
5 3472000 1 HEXAGONAL JOINT FOR #10-32 SCREW

12 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT 1/4-20

1

REF. PART NUMBER QTY DESCRIPTION

1 3756100 1 KIT FOR BLIND THREADED INSERT 1/4-20 SOCKET HEAD CAP SCREW

KIT COMPOSITION

4 5

3

2

REF. PART NUMBER QTY DESCRIPTION

2 3756200 1 HEAD WITH RING NUT FOR 1/4-20 SCREW
3 3754600 1 ADAPTER FOR 1/4-20 SCREW (HOLE Ø 6.5)
4 IN-05336 (100/box) 1 SOCKET CAP SCREW 1/4-20 X 2.25”
4 IN-08057 (100/box) 1 SOCKET CAP SCREW 1/4-28 X 2.25”
5 3754700 1 HEXAGONAL JOINT FOR 1/4-20 SCREW

PennEngineering • www.pemnet.com 13

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT 5/16-18

1

REF. PART NUMBER QTY DESCRIPTION

1 3756300 1 KIT FOR BLIND THREADED INSERT 5/16-18 SOCKET HEAD CAP SCREW

KIT COMPOSITION

3

2

4 5

REF. PART NUMBER QTY DESCRIPTION

2 3756400 1 HEAD WITH RING NUT FOR 5/16-18 SCREW
3 3755300 1 ADAPTER FOR 5/16-18 SCREW (HOLE Ø 8.1)
4 IN-04153 (100/box) 1 SOCKET CAP SCREW 5/16-18 X 2.25”
4 IN-10834 (100/box) 1 SOCKET CAP SCREW 5/16-24 X 2.25”
5 3755000 1 HEXAGONAL JOINT FOR 5/16-18 SCREW

14 PennEngineering • www.pemnet.com

Instruction Manual - RIV938

KIT FOR BLIND THREADED INSERT 3/8-16

1

REF. PART NUMBER QTY DESCRIPTION

1 3756700 1 KIT FOR BLIND THREADED INSERT 3/8-16 SOCKET HEAD CAP SCREW

KIT COMPOSITION

3

2

REF. PART NUMBER QTY DESCRIPTION

2 3756800 1 HEAD WITH RING NUT FOR 3/8-16 SCREW
3 IN-15776 (100/box) 1 SOCKET CAP SCREW 3/8-16 X 2.5”
3 IN-16488 (50/box) 1 SOCKET CAP SCREW 3/8-24 X 2.5”
4 3755700 1 HEXAGONAL JOINT FOR 3/8-16 SCREW

4
