Display Speakerphone Key System US
Atlas
Display Speakerphone
Easy Reference Guide
KEY SYSTEM US
The features and functions described herein are presented in condensed
form, enabling you to easily understand the operation of the Atlas KDX
system. It is important, however, that your installer provide you with some
introductory training to familiarize you with feature explanations and the
specific parameters of the system.
Display Speakerphone Key System US
April 2000

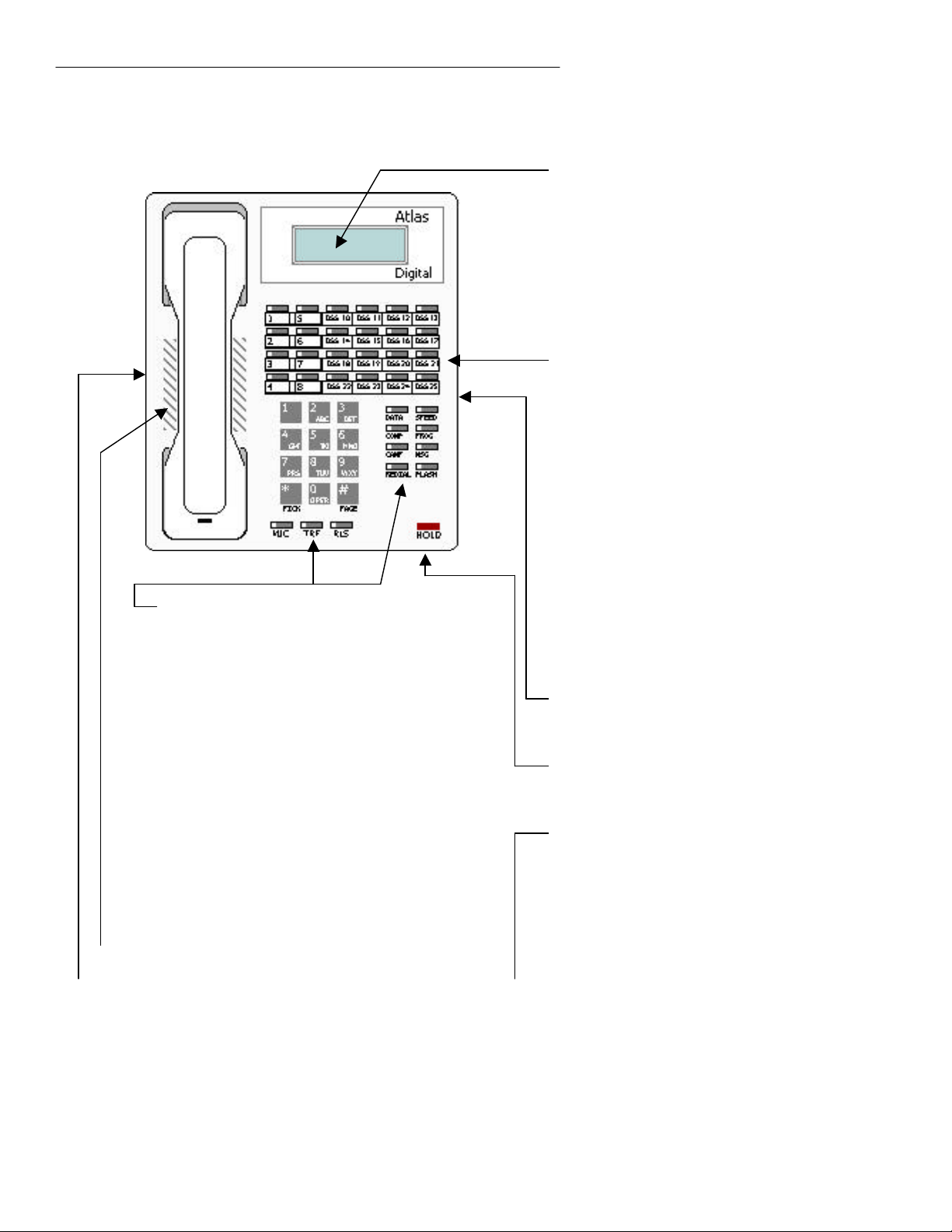

KEYPHONE LAYOUT
DEDICATED FEATURE KEYS
• DATA Programming; Activate Station Display
• CONF Conference; Privacy Release
• CAMP Emergency Call; Pause
• PROG Programming; Changing Signal Type
• SPEED Speed Dialing
• REDIAL Redial; Auto Redial
• MSG Setting Message; Message Waiting
Indication; Reply to a Station Message
• FLASH Disconnect a call without losing dial
tone using Centrex type features
• MIC Call Monitor; Speaker Phone
• TRF Transfer Key; Exclusive Hold
• RLS Release Key; terminating the call
• HOLD Holding a Trunk or Intercom Call
• PAGE Paging; Answering a Page Call
• PICKUP Picking up Incoming Calls; Answering
ringing phones
Display Speakerphone Key System US
SPEAKER
LIQUID CRYSTAL DISPLAY
Shows date, time, number dialed, duration of call, calling station or trunk,
call forwarding information, LCD messages, etc.
PROGRAMMABLE KEYS
All of the keys may be programmed to do one of the following functions:
• Direct Station Selection / Busy Lamp Field
• Direct Trunk Selection
• Trunk Hunting Group Access
• Station Hunt Group Access
• Speed Dial (Personal / System)
• Call Park
• Call Forwarding
• Automatic Wake-up *
• Check-in / check-out *
• Record *
* May be optional features
RINGER VOLUME CONTROL
Located on the bottom of the telephone (ET 36 set)
MICROPHONE
Located on the front of the telephone
SLIDE SWITCH (ET 36 set)
Speaker Volume
ROCKER SWITCH (DT 36 set)
Controls volume of handset, speaker and ringer
Display Speakerphone Key System US
TABLE OF CONTENTS
KEYPHONE FUNCTIONS
GENERAL INFORMATION
Handsfree Operation……………………………. 1
Automatic Trunk Selection……………………… 1
Programmable Keys…………………………….. 1
LED (Lights) Indications………………………… 1
INTERNAL (INTERCOM) CALLS
To place an intercom call……………………….. 2
To receive an intercom call……………………… 2
OUTSIDE CALLS
To access an outside line………………………. 2
To make an outside call………………………… 3
To answer an incoming call……………………. 3
Call pick-up………………………………………. 3
Mute………………………………………………. 4
To put a call on hold…………………………….. 4
To retrieve a call put on hold…………………… 4
Hold recall………………………………………… 5
To transfer a call…………………………………. 5
SPEED DIAL
System speed dial……………………………….. 6
Personal speed dial……………………………… 6
Program personal speed dial…………………… 6
Speed dial directory……………………………… 6
REDIAL
Display Speakerphone Key System US
Last number redial………………………………. 7
Saved number redial……………………………. 7
On-line saved number speed dial……………… 7
Auto redial………………………………………... 8
CALL PARK
To park a call…………………………………….. 8
To retrieve a parked call………………………… 8
CONFERENCE CALLS
Conference………………………………………. 9
Privacy release………………………………….. 9
PAGING
Page a group of keyphones……………………. 9
Page all keyphones……………………………… 9
External page……………………………………. 10
Page all external zones…………………………. 10
Page all internal & external zones……………… 10
Answering a paging call…………………………. 10
Music over external paging……………………… 10
CALL FORWARDING
Call forwarding – All Calls……………………….. 11
Call forwarding – Busy / No Answer…………… 11
To cancel call forwarding……………………….. 12
Call forward – Follow Me……………………….. 12
MESSAGES (MESSAGE WAITING)
To set a message……………………………….. 12
To clear a message……………………………… 12
To respond to a message………………………. 13
Message scroll…………………………………… 13
STATION HUNT GROUPS
To call a station hunt group…………………….. 13
To transfer a call to a station hunt group……… 14
WAKE-UP / REMIND CALLS
Set wake-up / remind call……………………….. 14
Display Speakerphone Key System US
KEYPHONE DISPLAY MESSAGES
Set display messages…………………………… 15
ADDITIONAL FEATURES
Automatic Outside Line…………………………. 16
Reserve an Outside Line……………………….. 16
Reserve a Busy Station…………………………. 16
Volume Control…………………………………… 16
SMDR Account Code……………………………. 17
Voice Announce / Signal Calling……………….. 17
To Call an OHVA / SOHVA Keyphone………… 17
Emergency Call………………………………….. 17
Do-Not-Disturb…………………………………… 18
Automatic Route Selection……………………… 18
Microphone Default……………………………… 18
Background Music………………………………. 18
Warning Tone……………………………………. 19
Toll Restriction Override Password……………. 19
Shift Key………………………………………….. 19
Barge-In…………………………………………... 19
Executive Monitoring……………………………. 20
Lock Your Keyphone……………………………. 20
Call a Door Phone………………………………. 20
ATTENDANT FUNCTIONS
Assign Alternate Operator………………………. 21
To set Date and Time…..……………………….. 21
Program Auto Redial….…………………………. 21
Program System Speed Dial.…………………… 22
Day Service / Night Service.……………………. 22
Check In / Check Out…………...……………….. 23
Set Wake-Up / Remind Calls.…………………… 23
Display Speakerphone Key System US
SINGLE LINE TELEPHONE FUNCTIONS
INTERNAL (INTERCOM) CALLS
To place an intercom call……………………….. 24
To receive an intercom call……………………… 24
OUTSIDE CALLS
To access an outside line………………………. 24
To make an outside call………………………… 24
To answer an incoming call……………………. 25
Call pick-up………………………………………. 25
To put a call on hold…………………………….. 25
To retrieve a call put on hold…………………… 25
Hold recall………………………………………… 26
To transfer a call…………………………………. 26
SPEED DIAL
System speed dial……………………………….. 26
Personal speed dial……………………………… 27
Program personal speed dial…………………… 27
REDIAL
Last number redial………………………………. 27
CALL PARK
To park a call…………………………………….. 27
To retrieve a parked call………………………… 28
Display Speakerphone Key System US
CONFERENCE CALLS
Conference………………………………………. 28
PAGING
Page a group of keyphones……………………. 28
Page all keyphones……………………………… 28
External page……………………………………. 29
Page all external zones…………………………. 29
Page all internal & external zones……………… 29
Answering a paging call…………………………. 29
Music over external paging……………………… 29
CALL FORWARDING
Call forwarding – All Calls……………………….. 30
Call forwarding – Busy / No Answer…………… 30
To cancel call forwarding……………………….. 31
Call forward – Follow Me……………………….. 31
MESSAGES (MESSAGE WAITING)
To set a message……………………………….. 31
To clear a message……………………………… 31
To respond to a message………………………. 32
STATION HUNT GROUPS
To call a station hunt group…………………….. 32
To transfer a call to a station hunt group……… 32
WAKE-UP / REMIND CALLS
Set wake-up / remind call……………………….. 33
ADDITIONAL FEATURES
Automatic Outside Line…………………………. 33
Reserve an Outside Line……………………….. 33
Reserve a Busy Station…………………………. 34
Display Speakerphone Key System US
Voice Announce / Signal Calling……………….. 34
To Call an OHVA / SOHVA Keyphone………… 34
Emergency Call………………………………….. 34
Do-Not-Disturb…………………………………… 35
Automatic Route Selection……………………… 35
Warning Tone…..………………………………… 35
Lock Your Phone...………………………………. 36
Call a Door Phone………………………………. 36
FLEXIBLE KEY ASSIGNMENTS
DEFINITIONS…………………….…………….. 37
To Check the Current Key Assignment………. 38
To Delete the Current Key Assignment………. 38
To Program the Key with a New Function……. 38
DSS / BLF………………………………. 38
Station Hunt Group…………………….. 38
Individual Trunk………………………… 39
Trunk Hunt Group……………………… 39
Speed Dial Bin…………………………. 39
Call Park Bin……………………………. 39
Call Forward…………………………….. 39
Automatic Wake-up…………………….. 40
Check In / Check Out…………………… 40
Record (Outside Call)…………………… 40
24 ALTERNATE FLEXIBLE KEYS
Programming Alternate Flexible Keys…………. 41
DEFAULT FEATURES & DIAL CODES
DEFAULT FEATURES & DIAL CODES…….. 42
Display Speakerphone Key System US
GENERAL INFORMATION
HANDSFREE OPERATION
(All Keyphones can operate Handsfree)
Throughout this guide (*) indicates where handsfree can be used
For handsfree operation, the Speaker and Microphone will turn on
automatically to allow conversation, if the handset has not been lifted.
To activate handsfree operation during a call, press the MIC key and
replace the handset.
To end handsfree operation simply lift the handset and continue the
conversation. The speaker and microphone will turn off when the
handset is lifted.
Handsfree operation is not available for paging calls (Internal or External)
or for Barge-In (Outside Line or Station).
AUTOMATIC TRUNK SELECTION
If an Outside Line has not already been accessed for Redial and Speed
Dial, the system will access an Outside Line automatically. This feature
must be programmed to operate on your phone.
The Outside Line is selected from the Trunk Hunt Group assigned to the
station.
PROGRAMMABLE KEYS
Pressing the programmable keys can access some of the features of the
Atlas system. Your installer must program these keys. All features can
be used by dialing access codes. Default access codes can be found at
the end of this guide.
LED (LIGHTS) INDICATIONS
LEDs for Trunks and Stations you are connected to or have on HOLD
will show Green. LEDs for Trunks and Stations in use by other stations
will show Red.
Page 1
INTERNAL (INTERCOM) CALLS
Display Speakerphone Key System US
OUTSIDE CALLS
TO PLACE AN INTERCOM CALL
• Dial an Extension Number (either on or off hook) ( * )
(Dial “0” for the Attendant)
• If the call goes through handsfree to the called keyset’s
speaker, speak after you hear the tone
• If you hear ringing, wait for the call to be answered
• When finished hang up or press RLS if you placed the
call handsfree
TO RECEIVE AN INTERCOM CALL
• If the call comes through your speaker (handsfree) you may
respond handsfree…
or
• Lift the handset for privacy
or
• If your phone is ringing you may lift the handset (for privacy)
to answer the call…
or
• Press MIC to answer the call handsfree
TO ACCESS AN OUTSIDE LINE
• Press a Trunk Key
or
• Dial Trunk Hunt Group access code (8, 9, 91 – 98)
or
• Dial 77 then dial trunk number
or
• Press Trunk Hunt Group (Pool) Key
Page 2
Display Speakerphone Key System US
TO MAKE AN OUTSIDE CALL
• Lift the Handset (Hear Intercom Dial Tone) ( * )
Then Access an Outside Line
or
• Access an Outside Line with the handset on hook
This will automatically turn on your speakerphone
• Dial your number
• Hang up the handset when finished
or
• If in handsfree mode then press RLS key when finished
TO ANSWER AN INCOMING CALL
For a call ringing on your phone:
• Lift the handset (you will be automatically connected to the
ringing line)
or
• Press the MIC key to answer handsfree
For a call ringing on another phone:
• Use Call Pickup
CALL PICKUP
Directed Call Pickup: Answer a specific ringing phone
• Call the ringing station
• Press the * key
Group Call Pickup: Answer any ringing phone in a
Station group
• Dial the Station Group Number ( 1 – 7 )
• Press the * key
System Call Pickup: Answer any ringing phone
• Press the * key
Page 3
Display Speakerphone Key System US
MUTE
To turn the microphone on or off: (While on a call)
(works in handsfree mode only)
• Press the MIC key
The microphone will turn off
Press the MIC key again to turn the microphone on
TO PUT A CALL ON HOLD
System Hold: (Outside Lines and Station Calls)
• Press the HOLD key
(The appropriate Trunk or Station DSS key will
flash green at a steady rate – it can be retrieved
from any station)
Exclusive Hold: (Outside Lines only)
• Press the HOLD key
(The appropriate Trunk key will flash green
at a steady rate)
• Press the TRF key
(The appropriate Trunk key will flash green on your phone
but will be lit steady (red) on all other phones – it can only
be retrieved from your station)
TO RETRIEVE A CALL PUT ON HOLD
When your phone is idle:
• Press the flashing green key
(if it appears on your phone)
or
• Press the HOLD key
You will be connected to whichever Trunk or Station
you put on HOLD
Page 4
Display Speakerphone Key System US
HOLD RECALL
When a call has been on hold too long, it will recall (ring) the station
which put it on hold.
To answer the recall:
• Lift the handset
or
• Press the MIC key ( * )
To speak handsfree
TO TRANSFER A CALL
To an idle Station:
• Put the call on HOLD or Press TRF
• Dial the station number
• Announce the call (optional)
• Press the TRF key
or
• Press the station DSS key
• Announce the call (optional)
• Press the TRF key
To a busy Station:
• Put the call on HOLD
• Dial the station number (hear busy tone)
• Press the TRF key
When transferring a call to a busy station, the call will be camped on.
The station will get an alert tone and when the handset is replaced
the phone will ring. When the ringing phone is answered, it will be
connected to the transferred Trunk.
Page 5
Display Speakerphone Key System US
SPEED DIAL
SYSTEM SPEED DIAL
• Press the SPEED key
• Enter Speed Dial Storage Location (100-499)
PERSONAL SPEED DIAL
• Press the SPEED key
• Enter Speed Dial Storage Location (01-09)
PROGRAM PERSONAL SPEED DIAL
• Press the PROG key
• Press the SPEED key
• Dial Speed Dial Storage Location (01-09)
• Dial number or press the FLASH key to clear
• Press the HOLD key
To insert a pause in the number sequence press the
CAMP key. To switch between Pulse and DTMF dialing
press PROG key.
SPEED DIAL DIRECTORY (Programmable)
To preview a Speed Dial number before dialing
• DO NOT access an Outside Line
• Press the SPEED key
• Enter Speed Dial Storage Location (01-09, 100-499)
• Press the TRF key to scroll forward
or
• Press the MIC key to scroll backward
• Press the SPEED key or the REDIAL key to access
An outside line and auto dial
Page 6
Display Speakerphone Key System US
REDIAL
LAST NUMBER REDIAL
• Access an Outside Line
• Press the REDIAL key
or
• Just Press the REDIAL key
Outside Line will be automatically accessed
SAVED NUMBER REDIAL
To save the number already dialed, while on an Outside Line:
• Press the SPEED key
• Press the * key
To call the number again:
• Press the SPEED key
• Press # key
ON-LINE SAVED NUMBER SPEED DIAL
To save a number while on an Outside Line:
• Press the DATA key
• Enter the number to be saved
To call the number again:
• Press the SPEED key
• Press the DATA key
Page 7
Display Speakerphone Key System US
AUTO REDIAL (Programmable)
• Do not lift the handset
• Make an Outside Call (number is busy)
• Press the REDIAL key
• System will auto redial up to 99 times
• Lift handset when your call is ringing
If Auto Redial has not been programmed, the system will
Redial only once.
CALL PARK
TO PARK A CALL
• Put Call on Hold
• Dial 76
• Dial the Call Park bin number (0-9)
• If bin is occupied you will hear an interrupted tone
• If bin is unoccupied you will hear silence and
may park the call
• Press the TRF key to park the call
If the Park bin is occupied dial another Call Park bin number
If you have a Park key programmed you may press it instead of
Dialing 76 and the bin number
TO RETRIEVE A PARKED CALL
• Dial 76
• Dial the Call Park bin number (0-9)
• If the bin is occupied you will hear an interrupted tone
• Press the * key to retrieve the call
Page 8
Display Speakerphone Key System US
CONFERENCE
• Make first call (internal or external)
• Press the HOLD key
• Make second call (internal or external)
• Press the CONF key
PRIVACY RELEASE
• Make initial call (internal or external)
• Press the CONF key
• The next station calling your station will
join the conference
• Press the CONF key again for each additional station
PAGE A GROUP OF KEYPHONES
• Lift the handset
• Dial the Station Group number (1-7)
• Press the # key
• Pause (for tone)
• Announce your Page
PAGE ALL KEYPHONES
• Lift the handset
• Press the # key
• Dial 9
• Pause (for tone)
• Announce your Page
CONFERENCE CALLS
PAGING
Page 9
Display Speakerphone Key System US
EXTERNAL PAGE
(Through External Speakers)
• Lift the handset
• Press the # key
• Dial External Zone number (1-8)
• Pause (for tone)
• Announce your Page
PAGE ALL EXTERNAL ZONES
• Lift the handset
• Press the # key
• Dial 0
• Pause (for tone)
• Announce your Page
PAGE ALL INTERNAL & EXTERNAL ZONES
• Lift the handset
• Press the # key
• Press the * key
• Pause (for tone)
• Announce your Page
ANSWERING A PAGING CALL
(Meet-Me Page)
• Lift the handset
• Press the # key twice
MUSIC OVER EXTERNAL PAGING
To turn the music on or off:
• Page External Zone 8
Can also Page All External & Page All
External and Internal
• Press the 1 key
Page 10
CALL FORWARDING
Display Speakerphone Key System US
CALL FORWARDING – ALL CALLS
To Call Forward to another Station:
• Dial 71
• Dial Station Number
To Call Forward to an External Number:
• Dial 71
• Press the SPEED key
• Enter the Speed Dial bin number (01-09, 100-499)
To Call Forward to a Station Hunt Group:
• Dial 71
• Dial 78
• Dial the Station Hunt Group number (1-8)
The DND lamp flashes when Call Forward – All Calls is set
CALL FORWARD – BUSY / NO ANSWER
To Call Forward to another Station:
• Dial 72
• Dial Station Number
To Call Forward to an External Number:
• Dial 72
• Press the SPEED key
• Enter the Speed Dial bin number (01-09, 100-499)
To Call Forward to a Station Hunt Group:
• Dial 72
• Dial 78
• Dial the Station Hunt Group number (1-8)
Calls will be forwarded when not answered after the Call Forward No
Answer Time. Only stations will be forwarded to an External number
when the forwarding station is busy.
Page 11
Display Speakerphone Key System US
TO CANCEL CALL FORWARDING
• Dial 71 or 72
• Press the FLASH key
Call Forwarding can only be cleared from the forwarding station.
CALL FORWARD – FOLLOW ME
To forward calls from another station:
• Dial 71
• Press the * key
• Dial the Station Number
This sets Call Forwarding – All Calls for the Station number dialed to
The Station doing the setting.
MESSAGES (MESSAGE WAITING)
TO SET A MESSAGE
• Call the Station
• Press MSG key
The MSG Lamp on a Keyphone will flash when there is a
Message Waiting
TO CLEAR A MESSAGE
• Call the Station
• Press the FLASH key
This can only be done from the Station that set the message
Page 12
Display Speakerphone Key System US
TO RESPOND TO A MESSAGE
• Press the flashing MSG key
The Station that set the message will be automatically called
MESSAGE SCROLL
To preview the Station(s) which set the message:
• Press the CAMP key
To preview the next Station (if any):
• Press the CAMP key again
To call the Station:
• Press the REDIAL key or the MSG key
STATION HUNT GROUPS
TO CALL A STATION HUNT GROUP
To call one available station in the Hunt Group:
• Lift the handset ( * )
• Dial 78
• Dial the Station Hunt Group Number (1-8)
or
• Lift the handset ( * )
• Press the Station Hunt Group key (if programmed)
Page 13
Display Speakerphone Key System US
WAKE-UP / REMIND CALLS
TO TRANSFER A CALL TO A STATION HUNT GROUP
To transfer a call to one available station in the Hunt Group:
• Put the Outside Call on Hold
• Dial 78
• Dial the Station Hunt Group Number (1-8)
• Announce the call (optional)
• Press the TRF key
To transfer a call and ring all idle stations in the Hunt Group:
• Put the Outside Call on Hold
• Dial 73
• Dial the Station Hunt Group Number (1-8)
• Press the TRF key
SET WAKE-UP / REMIND CALL
Daily Wake-Up / Remind Call:
• Dial 741
• Enter Time (HHMM)
Once only Wake-Up / Remind Call:
• Dial 742
• Enter Time (HHMM)
To Cancel:
• Dial 741 or 742
• Press the FLASH key
Page 14
Display Speakerphone Key System US
KEYPHONE DISPLAY MESSAGES
SET DISPLAY MESSAGES
Messages: (The numbers in parentless following each alpha
Message is a variable that is input by the station –
e.g. time or date or ext. number or telephone number)
1) Call (4329988)
2) Call ST: (24)
3) Meeting (5:30)
4) Be Back (4:30 or 7/19)
5) Day Off (7/30)
6) Lunch (12:00)
7) Vacation (7/23)
8) Off Duty (5:00)
9) (Personal Message)
For personal message: Press 1 for “QqZz”, press 2 for
“AaBbCc”, press 3 for “DdEeFf”, etc. The * key moves one
space to the left and the # key one space to the right.
To Set:
• Press the PROG key
• Press the MSG key
• Dial the Message number (1-9)
(Press the FLASH key to cancel)
• Enter Date or Time ( * for “:” or # for “/” )
• Press the RLS key
The message you set on your phone will appear on the display of
any keyphone that calls your phone.
Page 15
Display Speakerphone Key System US
ADDITIONAL FEATURES
AUTOMATIC OUTSIDE LINE (Programmable)
• Lift handset
• An Outside Line is automatically accessed
Keyphones with this feature will have to press the RLS key after
lifting the handset to access some features such as paging.
RESERVE AN OUTSIDE LINE
• Access an Outside Line (Line is busy)
• Press REDIAL key
• System will ring your phone when line is available
• Lift handset or press the MIC key (for handsfree)
The callback will automatically cancel if not answered
RESERVE A BUSY STATION (Automatic Callback)
• Call Station (Station is busy)
• Press the REDIAL key
• System will ring your phone when Station is available
• Lift handset or press the MIC key (for handsfree)
• The Station will be automatically called
The callback will automatically cancel if not answered
VOLUME CONTROL
Adjust volume of handset, ringer, speaker and music
• Press Rocker Switch (DT 36 sets)
Increase or decrease the volume of your set’s speaker
• Adjust Slide Switch (ET 36 sets)
Increase handset volume while on an outside call
• Press MSG key twice
There are only two volume levels and the volume is reset
To normal when the call is terminated.
Page 16
Display Speakerphone Key System US
SMDR ACCOUNT CODE
To enter an account code while on an outside call. The account
Code may include 0 – 9, *, #
• Press the MSG key
• Dial account code (up to 8 digits long)
VOICE ANNOUNCE / SIGNAL CALLING
When an Intercom Call is made to a Keyphone, the caller can
switch between Voice Announce and Signal Calling (ringing).
To switch between Voice Announce and Signal Calling:
• Press the # key
TO CALL AN OHVA / SOHVA KEYPHONE
OHVA (Off-Hook Voice Announce) (ET 36 sets)
SOHVA (Secure Off-Hook Voice Announce) (DT 36 sets)
• Lift handset ( * )
• Dial Station number (station is busy)
• Press the # key
• Announce call
OHVA / SOHVA phone must be off-hook on a call
EMERGENCY CALL
• Call station (station is busy)
• Press the CAMP key
• Wait for station to respond
To respond to an emergency call:
• Press the HOLD key
• You will be connected to the calling station
• When finished – Press the RLS key
• Press the HOLD key – you will be connected to your
original call
Page 17
Display Speakerphone Key System US
DO-NOT-DISTURB
To set or clear Do-Not-Disturb:
• Press the PROG key
• Press the DATA key
The DND lamp flashes when set
AUTOMATIC ROUTE SELECTION (Programmable)
• Lift handset ( * )
• Dial Trunk Access Code (8 or 9)
or
• Press the Trunk Hunt Group (pool) key
or
• Press the SPEED key
• Dial number
The system will determine which Trunk to access and then
dial the number.
MICROPHONE DEFAULT
To set your Keyphone to automatically turn on (or off) the
microphone when receiving a Voice Announce Call:
• Press the PROG key
• Press the MIC key
• Press the MSG key to set the default to ON
or
• Press the FLASH key to set the default to OFF
BACKGROUND MUSIC
To play or cancel Background Music:
• Press the # key
Page 18
Display Speakerphone Key System US
WARNING TONE (Programmable)
When activated, a tone will be received at programmed
Intervals while talking on an Outside Line
TOLL RESTRICTION OVERRIDE PASSWORD
• Access an Outside Line
• Press the MSG key
• Dial the Toll Override password
• Press the FLASH key
• Dial your number
SHIFT KEY (Programmable)
To access an alternate Softkey Plan with different Trunk
keys or DSS keys programmed:
• Press the FLASH key
• Press the DSS key or Trunk key
To return to normal Softkey Plan:
• Press the FLASH key again
The Softkey Plan can only be changed when the Keyphone is
idle. The Shift Key is used only when the Keyphone has an
alternate Softkey Plan programmed.
BARGE-IN (OUTSIDE LINE OR STATION) (Programmable)
• Lift handset
• Access an Outside Line (Line is busy)
or
• Dial a station (station is busy)
• Press the CONF key
• You can now converse on the call
Page 19
Display Speakerphone Key System US
EXECUTIVE MONITORING (Programmable)
• DO NOT lift handset
• Access an Outside Line (Line is busy)
or
• Dial a station (station is busy)
• Press the CONF key
• You can now monitor the call
If the handset is lifted, the Barge-In feature will be in effect
LOCK YOUR KEYPHONE
To lock your Keyphone: (Outgoing Trunk calls
cannot be placed)
• Press the PROG key
• Press the FLASH key
• Dial your code ( 1-6 Digits )
• Press the HOLD key
To unlock your Keyphone: Repeat the same procedure
CALL A DOOR PHONE
• Dial 791 (First Door Phone)
• Dial 792 (Second Door Phone)
CALL A DEDICATED DOOR PHONE (KSX 32I only)
• Dial 79
To unlock the door while talking to the door phone:
• Dial 0
Page 20
Display Speakerphone Key System US
ATTENDANT FEATURES
Attendant features can only be used at a Keyphone that has been set as
an Attendant.
ASSIGN ALTERNATE OPERATOR
This will transfer all operator functions to the Station designated
• Press PROG key
• Press # key
• Dial the Station number
To return Operator functions to the original or another Station follow
the same procedure
TO SET DATE AND TIME
• Press PROG key
• Dial 9
• Enter Date (YYMMDD)
• Enter Time (HHMM)
• Enter the Day of the Week
(0 = Sun, 1 = Mon, 2 = Tues,……6 = Sat)
• Press HOLD key
PROGRAM AUTO REDIAL
• Press the PROG key
• Press the REDIAL key
• Enter the number of attempts (2 – 9999)
• Press the HOLD key
• Enter the number of seconds to ring (2 – 9999)
• Press the HOLD key
• Enter the number of seconds between attempts (2 – 9999)
• Press the HOLD key
Press the FLASH key to clear any item
Page 21
Display Speakerphone Key System US
PROGRAM SYSTEM SPEED DIAL
System Speed Dial (numbers 100 – 499) are Twenty-Four Digit
• Press the PROG key
• Press the SPEED key
• Dial Speed Dial Bin number (100 – 499)
• Dial Telephone Number-or- press FLASH key to clear
• Press the HOLD key
To insert a pause in the number sequence press the CAMP key.
To insert a flash in the number sequence press the CONF key.
To switch between Pulse and DTMF dialing press the PROG key.
DAY SERVICE / NIGHT SERVICE
The Attendant Telephone Display will indicate whether manual or
automatic Day / Night service is in effect. The second line of the
display will show an “a” for automatic or an “m” for manual.
**The DND lamp is on when system is in the Night Mode**
In Automatic Mode the system will automatically switch between
the day mode and night mode at the times programmed.
To see the current mode (Day or Night):
• Press the PROG key
• Press the TRF key
To switch between the Day and Night Mode:
• Press the TRF key again
To switch between Automatic and Manual Mode:
• Press the FLASH key
To set Day and Night Mode automatic transfer times:
• Enter Day Mode start time (HHMM)
• Enter Night Mode start time (HHMM)
To exit:
• Press the RLS key
Page 22
Display Speakerphone Key System US
CHECK IN / CHECK OUT
• Press the PROG key
• Press the CONF key
• Dial Station number or press DSS key
(Display will show current status)
• Press the MSG key to Check In
(Display will show OCCUPIED)
or
• Press the FLASH key to Check Out
(Display will show CLEAN ROOM – indicating that the
room needs to be cleaned)
(Pressing the FLASH key again will change the display
to VACANT – indicating that room is cleaned and ready
to be rented)
or
• Press the DATA key to set / remove Do-Not-Disturb
(Display will show D.N.D)
(Pressing the DND key again will remove D.N.D.)
Check In / Check Out can be assigned to a Softkey
SET WAKE-UP / REMIND CALLS
• Press the PROG key
• Press the CAMP key
• Dial the Station number or Press DSS key
• Enter the Wake-Up time (HHMM)
(Press the FLASH key to cancel
• Press the RLS key
Wake-Up Call can be assigned to a Softkey
Page 23
Display Speakerphone Key System US
SINGLE LINE TELEPHONE FEATURES
INTERNAL (INTERCOM) CALLS
TO PLACE AN INTERCOM CALL
• Lift the handset
• Dial an Extension Number (Dial “0” for the Attendant)
TO RECEIVE AN INTERCOM CALL
• Your phone will be ringing
• Lift the handset to answer
TO ACCESS AN OUTSIDE LINE
• Dial Trunk Hunt Group access code (8, 9, 91 – 98)
or
• Dial 77 then dial trunk number
TO MAKE AN OUTSIDE CALL
• Lift the Handset (Hear Intercom Dial Tone)
• Access an Outside Line
• Dial your number
OUTSIDE CALLS
Page 24
Display Speakerphone Key System US
TO ANSWER AN INCOMING CALL
For a call ringing on your phone:
• Lift the handset (you will be automatically connected to the
ringing line)
For a call ringing on another phone:
• Use Call Pickup
CALL PICKUP
Directed Call Pickup: Answer a specific ringing phone
• Call the ringing station
• Press the * key
Group Call Pickup: Answer any ringing phone in a
Station group
• Dial the Station Group Number ( 1 – 7 )
• Press the * key
System Call Pickup: Answer any ringing phone
• Press the * key
TO PUT A CALL ON HOLD
• Hookflash (press and release the hookswitch )
or
• Press the Flash key (if equipped)
TO RETRIEVE A CALL PUT ON HOLD
• Hookflash again
or
• Press the Flash key again
Page 25
Display Speakerphone Key System US
HOLD RECALL
When a call has been on hold too long, it will recall (ring) the station
which put it on hold.
To answer the recall:
• Lift the handset
TO TRANSFER A CALL
To an idle Station:
• Put the call on HOLD
• Dial the station number
• Announce the call (If not busy) (optional)
• Replace the handset
To a busy Station:
• Put the call on HOLD
• Dial the station number (hear busy tone)
• Replace the handset
When transferring a call to a busy station, the call will be camped
on. The station will get an alert tone and when their handset is
replaced their phone will ring.
Or
• Put the call on HOLD
• Dial the station number (hear busy tone)
• Hookflash cancel the transfer and return to the original call
SPEED DIAL
SYSTEM SPEED DIAL
• Lift handset
• Dial 70
• Enter Speed Dial Storage Location (100-499)
Page 26
Display Speakerphone Key System US
PERSONAL SPEED DIAL
• Lift handset
• Dial 70
• Enter Speed Dial Storage Location (01-09)
PROGRAM PERSONAL SPEED DIAL
• Lift handset
• Dial 746
• Dial Speed Dial Storage Location (01-09)
• Replace handset
LAST NUMBER REDIAL
• Lift handset
• Dial 70
• Press # key or dial 00
TO PARK A CALL
• Put Call on Hold
• Dial 76
• Dial the Call Park bin number (0-9)
• If bin is occupied you will hear an interrupted tone
• If bin is unoccupied you will hear silence and
may park the call
• Press the # key to park the call
If the Park bin is occupied dial another Call Park bin number
REDIAL
CALL PARK
Page 27
Display Speakerphone Key System US
TO RETRIEVE A PARKED CALL
• Dial 76
• Dial the Call Park bin number (0-9)
• If the bin is occupied you will hear an interrupted tone
• Press the * key to retrieve the call
CONFERENCE
• Make first call (internal or external)
• Hookflash or press FLASH key
• Make second call (internal or external)
• Hookflash or press FLASH key
• Dial 748
PAGE A GROUP OF KEYPHONES
• Lift the handset
• Dial the Station Group number (1-7)
• Press the # key
• Pause (for tone)
• Announce your Page
PAGE ALL KEYPHONES
• Lift the handset
• Press the # key
• Dial 9
• Pause (for tone)
• Announce your Page
CONFERENCE CALLS
PAGING
Page 28
Display Speakerphone Key System US
EXTERNAL PAGE
(Through External Speakers)
• Lift the handset
• Press the # key
• Dial External Zone number (1-8)
• Pause (for tone)
• Announce your Page
PAGE ALL EXTERNAL ZONES
• Lift the handset
• Press the # key
• Dial 0
• Pause (for tone)
• Announce your Page
PAGE ALL INTERNAL & EXTERNAL ZONES
• Lift the handset
• Press the # key
• Press the * key
• Pause (for tone)
• Announce your Page
ANSWERING A PAGING CALL
(Meet-Me Page)
• Lift the handset
• Press the # key twice or dial 745
MUSIC OVER EXTERNAL PAGING
To turn the music on or off:
• Page External Zone 8
Can also Page All External & Page All
External and Internal
• Press the 1 key
Page 29
Display Speakerphone Key System US
CALL FORWARDING
CALL FORWARDING – ALL CALLS
To Call Forward to another Station:
• Dial 71
• Dial Station Number
To Call Forward to an External Number:
• Dial 71
• Press the # key
• Enter the Speed Dial bin number (01-09, 100-499)
To Call Forward to a Station Hunt Group:
• Dial 71
• Dial 78
• Dial the Station Hunt Group number (1-8)
CALL FORWARD – BUSY / NO ANSWER
To Call Forward to another Station:
• Dial 72
• Dial Station Number
To Call Forward to an External Number:
• Dial 72
• Press the # key
• Enter the Speed Dial bin number (01-09, 100-499)
To Call Forward to a Station Hunt Group:
• Dial 72
• Dial 78
• Dial the Station Hunt Group number (1-8)
Calls will be forwarded when not answered after the Call Forward No
Answer Time. Only stations will be forwarded to an External number
when the forwarding station is busy.
Page 30
Display Speakerphone Key System US
TO CANCEL CALL FORWARDING
• Dial 71 or 72
• Replace the handset
Call Forwarding can only be cleared from the forwarding station.
CALL FORWARD – FOLLOW ME
To forward calls from another station:
• Dial 71
• Press the * key
• Dial the Station Number
This sets Call Forwarding – All Calls for the Station number dialed to
The Station doing the setting.
MESSAGES (MESSAGE WAITING)
TO SET A MESSAGE
• Dial 743
• Dial the Station number
The MSG Lamp on a Keyphone will flash when there is a
Message Waiting
TO CLEAR A MESSAGE
• Dial 740
• Dial the Station number
This can only be done from the Station that set the message
Page 31
Display Speakerphone Key System US
TO RESPOND TO A MESSAGE
• Dial 744
The Station that set the message will be automatically called
A Message Waiting is indicated on a Single-Line Telephone by a
message waiting light or a double ring (programmable for
every 1 – 15 minutes)
STATION HUNT GROUPS
TO CALL A STATION HUNT GROUP
To call one available station in the Hunt Group:
• Lift the handset
• Dial 78
• Dial the Station Hunt Group Number (1-8)
TO TRANSFER A CALL TO A STATION HUNT GROUP
To transfer a call to one available station in the Hunt Group:
• Put the Outside Call on Hold
• Dial 78
• Dial the Station Hunt Group Number (1-8)
• Announce the call (optional)
• Replace the handset
To transfer a call and ring all idle stations in the Hunt Group:
• Put the Outside Call on Hold
• Dial 73
• Dial the Station Hunt Group Number (1-8)
• Replace the handset
Page 32
Display Speakerphone Key System US
WAKE-UP / REMIND CALLS
SET WAKE-UP / REMIND CALL
Daily Wake-Up / Remind Call:
• Dial 741
• Enter Time (HHMM)
Once only Wake-Up / Remind Call:
• Dial 742
• Enter Time (HHMM)
To Cancel:
• Dial 741 or 742
• Replace the handset
ADDITIONAL FEATURES
AUTOMATIC OUTSIDE LINE (Programmable)
• Lift handset
• An Outside Line is automatically accessed
RESERVE AN OUTSIDE LINE
• Access an Outside Line (Line is busy)
• Dial 7
• System will ring your phone when line is available
• Lift handset
The callback will automatically cancel if not answered within
the programmed time.
Page 33
Display Speakerphone Key System US
RESERVE A BUSY STATION (Automatic Callback)
• Call Station (Station is busy)
• Dial 7
• System will ring your phone when Station is available
• Lift handset The Station will be automatically called
The callback will automatically cancel if not answered within
the programmed time.
VOICE ANNOUNCE / SIGNAL CALLING
When an Intercom Call is made to a Keyphone, the caller can
switch between Voice Announce and Signal Calling (ringing).
To switch between Voice Announce and Signal Calling:
• Press the # key
TO CALL AN OHVA / SOHVA KEYPHONE
OHVA (Off-Hook Voice Announce)
SOHVA (Secure Off-Hook Voice Announce)
• Lift handset
• Dial Station number (station is busy)
• Press the # key
• Announce call
OHVA / SOHVA phone must be off-hook on a call
EMERGENCY CALL
• Call station (station is busy)
• Dial 1
• Wait for station to respond
Page 34
Display Speakerphone Key System US
To respond to an emergency call:
• Hookflash or press FLASH key
• You will be connected to the calling station
• When finished let emergency caller hang up
• Hookflash or press FLASH key - you will be connected to
your original call
DO-NOT-DISTURB
To set or clear Do-Not-Disturb:
• Dial 747
When the handset is lifted a special tone will be heard
AUTOMATIC ROUTE SELECTION (Programmable)
• Lift handset
• Dial Trunk Access Code (8 or 9)
or
• Dial 70 for speed dial (plus 01-09 / 100-499)
• Dial number
• Pause
The system will determine which Trunk to access and then
dial the number.
WARNING TONE (Programmable)
When activated, a tone will be received at programmed
Intervals while talking on an Outside Line
Page 35
Display Speakerphone Key System US
LOCK YOUR PHONE
To lock your phone: (Outgoing Trunk calls
cannot be placed)
• Lift handset
• Dial 749
• Dial your code ( 1-6 Digits )
• Replace the handset
To unlock your phone: Repeat the same procedure
CALL A DOOR PHONE
• Dial 791 (First Door Phone)
• Dial 792 (Second Door Phone)
CALL A DEDICATED DOOR PHONE (KSX 32I only)
• Dial 79
To unlock the door while talking to the door phone:
• Dial 0
Page 36
Display Speakerphone Key System US
There are 24 Flexible Keys on your Keyphone. Each of those keys may
individually programmed by the station user for one of the following
functions:
FLEXIBLE KEY ASSIGNMENTS
• STATION DSS / BLF
(Direct Station Selection / Busy Lamp Field)
• STATION HUNT GROUP
• INDIVIDUAL TRUNK
• TRUNK HUNT GROUP
• SPEED DIAL BIN
• CALL PARK BIN
• CALL FORWARD
• AUTOMATIC WAKEUP
(Hotel / Motel Front Desk Feature)
• CHECK IN / CHECK OUT
(Hotel / Motel Front Desk Feature)
• RECORD (Outside Call)
Page 37
Display Speakerphone Key System US
TO CHECK THE CURRENT KEY ASSIGNMENT
• Press the PROG key
• Press the KEY to be programmed
The upper right corner of the Keyset Display will show the current
function assigned to the key.
TO DELETE THE CURRENT KEY ASSIGNMENT
• Press the FLASH key to delete the existing function
If the upper right corner of the Keyset Display is blank then there is
nothing assigned to the key.
• Press the HOLD key to save the change
This will leave the key with no assignment
TO PROGRAM THE KEY WITH A NEW FUNCTION
• Press the PROG key
• Press the KEY to be programmed
• Then select one of the following functions:
DSS / BLF
• Press the flashing PROG key
The Display will show “ST: “
• Dial the Station Number
• Press the HOLD key to save the change
STATION HUNT GROUP
• Press the MSG key
The Display will show “STGP: “
• Dial the Station Hunt Group number
• Press the HOLD key to save the change
Page 38
Display Speakerphone Key System US
INDIVIDUAL TRUNK
• Press the MSG key TWICE
The Display will show “TK: “
• Dial the individual Trunk number
• Press the HOLD key to save the change
TRUNK HUNT GROUP
• Press the MSG key THREE times
The Display will show “TKGP: “
• Dial the Trunk Hunt Group number (1-8)
• Press the HOLD key to save the change
SPEED DIAL BIN
• Press the MSG key FOUR times
The Display will show “SD-> “
• Dial the Speed Dial Bin number (01-09, 100-499)
• Press the HOLD key to save the change
CALL PARK BIN
• Press the MSG key FIVE times
The Display will show “Park “
• Dial the Call Park Bin number (0-9)
• Press the HOLD key to save the change
CALL FORWARD
• Press the MSG key SIX times
The Display will show “FWRD “
• Dial “1” for all calls or “2” for busy/no answer
• Press the HOLD key to save the change
Page 39
Display Speakerphone Key System US
AUTOMATIC WAKE-UP
• Press the MSG key SEVEN times
The Display will show “WAKEUP “
• Press the HOLD key to save the change
CHECK IN / CHECK OUT
• Press the MSG key EIGHT times
The Display will show “CHKOUT “
• Press the HOLD key to save the change
RECORD (OUTSIDE CALL)
• Press the MSG key NINE times
The Display will show “RECORD “
• Press the HOLD key to save the change
When you have finished programming the key then press the RLS key
to terminate programming.
NOTE: Only one station can be programming keys at a time. If someone
else is programming and you press the PROG key and a Flexible Key,
the Flexible Key will perform its normal function (DSS, Trunk Access,
etc.). Wait a few minutes and try again.
Page 40
Display Speakerphone Key System US
24 ALTERNATE FLEXIBLE KEYS
The number of Flexible Keys can be increased from 24 to 48 through the
use of a “SHIFT” key. This “SHIFT” key will allow you to move between
the standard Flexible Key Assignments and the alternate Flexible Key
Assignments.
The “SHIFT” key is actually the FLASH key on your Keyphone. While
your keyphone is idle, press the FLASH key – the PROG key will flash
on and off indicating that you are working on the alternate set of
assignments for the 24 flexible keys. Pressing the FLASH key again
(the PROG key will stop flashing) will return you to the original 24 key
assignments
PROGRAMMING ALTERNATE FLEXIBLE KEYS
• Keyphone must be idle
• Press the FLASH key
• Make sure the LED on the PROG key is flashing
• Follow the same procedures for programming the Standard
Flexible Key assignments
Page 41
Display Speakerphone Key System US
DEFAULT FEATURES & DIAL CODES
DIAL: FEATURE:
10 – 69 Station Intercom Dialing
100 – 699
1000 – 6999
1 – 7 * Group Call Pickup
1 – 7 # Page a Group of Keyphones
71 * + Station No. Call Forward – Follow Me
71 + Station No. Call Forwarding – All Calls
72 + Station No. Call Forwarding – Busy / No Answer
73 + Station Hunt Group No. Transfer Call to all Stations in Station
Group (1-8) (Rings all idle stations)
741 + HHMM Daily Wake-Up / Remind Call
742 + HHMM Once only Wake-Up / Remind Call
743 + Station No. To Set a Message
744 To Respond to a Message
745 To Answer a Paging Call
746 + 01-09 Program Personal Speed Dial
747 Do-Not-Disturb
748 SLP Conference
749 + Lock Code To Lock / Unlock your phone
740 + Station No. To Clear a Message
75 + Station No. Hold Pickup
76 + 0-9 Access Call Park bin
77 + Trunk No. To Access an Outside Line
78 + Station Hunt Group No. Call station in Station Hunt Group (1-8)
79 + 1 or 2 Call the Door Phone 1 or 2
70 + Speed Dial Bin System / Personal Speed Dial
70 00 Redial
70 # Redial
8 Trunk Hunt Group 8
9, 91-98 Trunk Hunt Groups (1-8)
0 Call the Attendant
* System Call Pickup
# + 1-8 Page an External Zone (1-8)
# 8 + 1 Turn Music over External Page On/Off
# 9 Page All Internal
# 0 Page All External
# * Page All Internal & External
# # To Answer a Paging Call
Page 42
Loading...
