Wireless Broadband Router
INDEX
CHAPTER 1: INTRODUCTION 1
1.1 An Overview of the del Wireless Broadband Router 1
1.2 Package Contents 2
1.3 Technical Features 2
1.4 System Requirements 3
1.5 Setup 3
CHAPTER 2: USING WIRELESS BROADBAND ROUTER 4
2.1 Cautions for using the Wireless Broadband Router 4
2.2 The Front LEDs 4
2.3 The Rear Ports 5
2.4 Cabling 6
CHAPTER 3: CONFIGURATION 8
3.1 Before Configuration 8
3.1.1 Windows 95/98/ME 9
3.1.2 Windows NT4.0 10
3.1.3 Windows 2000 11
3.1.4 Windows XP 12
3.2 Factory Default Settings 13
3.2.1 Password 13
3.2.2 LAN and WLAN Ports 13
3.3 Accessing the Wireless Broadband Router Web Configurator 14
3.3.1 Setup Wizard 15
3.3.2 Navigating the Broadband Router Web Configurator 28
3.4 WAN 29
3.4.1 Connection Type 29
3.4.2 Dynamic DNS 34
3.5 Wireless 35
3.5.1 Basic 35
3.5.2 Security 36
3.5.3 Advanced 39
3.6 LAN 40
Wireless Broadband Router
3.6.1 Basic 40
3.6.2 DHCP 41
3.7 Access Control 42
3.7.1 Filter 42
3.7.1.2 MAC Filter 43
3.7.1.3 IP Filter 45
3.7.1.4 URL Blocking 46
3.7.1.5 Domain Blocking 47
3.7.1.6 Protocol Filter 48
3.7.2 Virtual Server 49
3.7.3 Special AP 52
3.7.4 DMZ 53
3.7.5 Firewall Rule 54
3.8 System 56
3.8.1 Password 56
3.8.2 Time 57
3.8.3 Device Information 58
3.8.4 Log 60
3.8.5 Log Settings 61
3.8.6 Statistics 62
3.8.7 Restart 64
3.8.8 Firmware 64
3.8.9 Configuration 65
3.8.10 UPnP 66
3.8.11 Ping Test 66
3.8.12 Remote Management 67
APPENDIX A: TROUBLESHOOTING 69
A.1 LEDs 69
A.1.1 LED Power 69
A.1.2 LED LAN 69
A.1.3 LED WLAN 70
A.2 WEB 70
A.3 Login 71
A.4 Remote Management 71
A.5 FAQ 72
APPENDIX B: REGULATIONS 77
Wireless Broadband Router
APPENDICE C: TECHNICAL FEATURES 78
APPENDICE D: SUPPORT 79
A02-RB-W54(V1.1)_ME01 (V1.0 January 2007)
Wireless Broadband Router
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, whether electronic, mechanical,
photocopying, recording or otherwise without the prior writing of the publisher.
Windows™ 98SE/2000/ME/XP are trademarks of Microsoft® Corp. Pentium is
trademark of Intel. All copyright reserved.
The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other
names mentioned mat be trademarks or registered trademarks of their respective
owners. Subject to change without notice. No liability for technical errors and/or
omissions.
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices.
The energy levels of these emissions however are far much less than the
electromagnetic energy emissions from wireless devices like for example mobile
phones. Wireless LAN devices are safe for use frequency safety standards and
recommendations. The use of Wireless LAN devices may be restricted in some
situations or environments for example:
·On board of airplanes, or
·In an explosive environment, or
·In case the interference risk to other devices or services is perceived or identified
as harmful
In case the policy regarding the use of Wireless LAN devices in specific
organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial
plants, private buildings etc.) is not clear, please ask for authorization to use
these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with
the instructions included in the user documentation provided with the product. Any
changes or modifications made to this device that are not expressly approved by
the manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by
unauthorized modification of this device, of the substitution or attachment.
Manufacturer and its authorized resellers or distributors will assume no liability for
any damage or violation of government regulations arising from failing to comply
with these guidelines.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause
radio interference, in which case the user may be required to take adequate
measures.
CE in which Countries where the product may be used freely:
Wireless Broadband Router
Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland,
Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland.
France: except the channel 10 through 13, law prohibits the use of other
channels.
CE/EMC Restriction of Liability
The product described in this handbook was designed, produced and approved
according to the EMC-regulations and is certified to be within EMC limitations.
If the product is used in an uncertified PC, the manufacturer undertakes no
warranty in respect to the EMC limits. The described product in this handbook
was constructed, produced and certified so that the measured values are within
EMC limitations. In practice and under special circumstances, it may be possible,
that the product may be outside of the given limits if it is used in a PC that is not
produced under EMC certification. It is also possible in certain cases and under
special circumstances, which the given EMC peak values will become out of
tolerance. In these cases, the user himself is responsible for compliance with the
EMC limits.
Declaration of Conformity
This equipment has been tested and found to comply with Directive 1999/5/CE of
the European Parliament and of the Council on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity. After assessment, the equipment has been found to comply with the
following standards: EN 300.328 (radio), EN 301 489-1, EN 301 489-17
(electromagnetic compatibility) and EN 60950 (safety). This equipment may be
used in all European Union contries and in all countries applying Directive
1999/5/CE, without restriction, with the exception of the following countries:
France:When this equipment is used outdoors, output power is limited to within
the frequency bans listed on the chart. For more info, consult the website
www.art-telecom.fr
Location Frequency Band
.
Power (EIRP)
(MHz)
Indoor (no restriction) 2400-2483,5 100mW(20dBm)
Outdoor 2400-2454
2454-2483,5
Italy: For more info, consult the website www.comunicazioni.it
100mW(20dBm)
10mW(10dBm)
Wireless Broadband Router
CHAPTER 1: Introduction
Congratulations on your purchase of Atlantis Land Wireless Broadband Router.
This integrated access device combines Internet gateway functions with wireless
LAN and Fast Ethernet switch. It provides a complete solution for Internet surfing
and office resources sharing, and it is easy to configure and operate for every
users.
This manual discusses how to install the IEEE 802.11g Wireless Broadband
Router.
1.1 An Overview of the del Wireless Broadband Router
With the explosive growth of the Internet, accessing information and services at
any time, day or night has become a standard requirement for most people. The
era of the standalone PC is waning. Networking technology is moving out of the
exclusive domain of corporations and into homes with at least two computers.
This integrated access device combines Internet gateway functions with wireless
LAN and Fast Ethernet switch. Designed for the business and home, it saves you
the cost of installing a separate modem and ISP line for each computer, while
providing ready connection for the users, with or without the network wires.
Broadband network access is also gaining ground. However, allowing more than
two computers to access the Internet at the same time means less affordable,
higher costs. Thus, there is a need to share one legal IP address over a single
Internet connection to link the home with the Internet.
The scarcity of IP addresses and using a shared Internet connection through an
Internet sharing device can solve high network access costs. All linked computers
can make full use of broadband capabilities over such a device.
This device not only comes equipped with a wide range of features, but also can
be installed and configured right out of the box. This device supports a simple
local area network and Internet access share, offering great cost savings.
The local area network connects up home computers while also allowing any of
the computers to access the Internet, share resources, or play online games—the
basis of the family computing lifestyle.
A02-RB-W54 Pag. 1
Wireless Broadband Router
1.2 Package Contents
Unpack the package and check all the items carefully. If any item contained is
damaged or missing, please contact your local dealer as soon as possible. Also,
keep the box and packing materials in case you need to ship the unit in the future.
The package should contain the following items:
• Wireless Broadband Router
• 2 dBi Antenna
• CDRom with online manual
• Quick Start Guide (English, French, Italian)
• AC/DC power adapter (7.5 V, 1A)
1.3 Technical Features
Wireless Broadband Router provides the following features:
• Compliant with IEEE 802.11g and 802.11b Devices
• Built-in 4 x 10/100Mbps Auto-MDIX LAN Ports
• Built-in 1 x 10/100Mbps Auto-MDIX WAN Port (Internet)
• Supports Cable/DSL Modems with Dynamic IP, Static IP, PPPoE, L2TP,
PPTP or BigPond Connection Types
• DHCP Server Feature Allocates up to 253 Client IP Addresses
• Supports 64/128-bit Wired Equivalent Privacy (WEP)
• Supports WPA, WPA2, WPA-PSK and WPA2-PSK Advanced Security
• Supports MAC Address, Protocol Filters and UPnP (Universal Plug &
Play)
• Traffic Control with Virtual Server, Virtual PC mapping and DMZ
• Provides Additional Security with SPI / NAT firewall and Attack Alert via
emails
• Provides Additional Security of Enable/Disable SSID, Password
Protection
• Flash Memory for Firmware Upgrade, Save/Restore Settings, and Traffic
Log
• Compliant with Windows 95/98/NT/2000/XP, Linux and Mac OS
• Easy Management and Remote Management via Web Browser (HTTP)
• Range for Indoor of 30 ~ 50 meters (depends on the environment)
• Range for Outdoor of 50 ~ 200 meters (depends on the environment)
A02-RB-W54 Pag. 2
Wireless Broadband Router
1.4 System Requirements
Before installing the device, your PC should meet the following:
• Intel® Pentium®III 600Mhz or compatible processor with TCP/IP stack
• Iinternet Explorer V6.0 on Netscape V6.0
• CDRom
1.5 Setup
The setup of the Wireless Broadband Router can be performed properly using the
following methods:
• The power outlet should be within 1.82 meters (6 feet) of the Broadband
Router.
• Visually inspect the DC power jack and make sure that it is fully secured
to the power adapter.
• Make sure that there is proper heat dissipation from and adequate
ventilation around the Broadband Router. Do not place heavy objects on
the Broadband Router.
Fix the direction of the antennas. Try to place the Wireless Router in a position
that can best cover your wireless network. Normally, the higher you place the
antenna, the better the performance will be. The antenna’s position enhances the
receiving
sensitivity.
A02-RB-W54 Pag. 3
Wireless Broadband Router
CHAPTER 2: Using Wireless Broadband Router
2.1 Cautions for using the Wireless Broadband Router
• Do not place this device under high humidity and high temperature.
• Do not use the same power source for Wireless Broadband Router with
other equipment.
• Do not open or repair the case yourself. If the Wireless Broadband
Router is too hot, turn off the power immediately and have a qualified
serviceman repair it.
• Place the Wireless Broadband Router on a stable surface.
• Only use the power adapter that comes with the package.
• Do NOT upgrade firmware on any Atlantis Land product over a wireless
connection. Failure of the device may result. Use only hard-wired network
connections.
2.2 The Front LEDs
LED MEANING
POWER
This indicator lights green when the hub is receives power,
otherwise it is off.
STATUS
WAN
This indicator blinks green means the Internet Broadband
Router is working successful. Otherwise, this indicator always
on or off means the function of the Internet Broadband Router is
fail.
The indicators light green when the WAN port was connected to
an xDSL/Cable modem successfully.
A02-RB-W54 Pag. 4
Wireless Broadband Router
The indicators blink green while the WAN port was transmitting
or receiving data on the xDSL/Cable modem.
WLAN
LAN (1-4)
This indicator lights green when there are wireless devices
connected and transmitting data to the Wireless Router.
These indicators light green when the LAN ports were
connected successfully.
These indicators blink green while the LAN ports were
transmitting data.
2.3 The Rear Ports
PORT USAGE
POWER Jack(2)
WAN(3)
LAN(4)
Reverse SMA(5)
Reset(1)
Plug the power adapter to this power jack
In the four port broadband router, there is an RJ-45
10/100Mbps Auto-MDIX port for the WAN that will fit
the xDSL/Cable modem’s specification need.
Four RJ-45 10/100Mbps Auto-MDIX ports for
connecting to either 10Mbps or 100Mbps Ethernet
connections.
There are one 2 dBi Gain Antenna in the rear panel for
wireless connection.
After the device has turned on, press it to reset the
device or restore to factory default settings. Use a pin-
A02-RB-W54 Pag. 5
Wireless Broadband Router
shape item to push to reset this device to factory
default settings. It will be useful too when the manager
forgot the password to login, but the setting will be
back to default setting.
2.4 Cabling
Plug in one end of the network cable to the WAN port of the Wireless Internet
Broadband Router.
Plug in the other end of the network cable to the Ethernet port of the xDSL or
Cable modem (E.G A02-RA141 or A02-RA111).
Use another network cable to connect to the Ethernet card on the computer
system; the other end of the cable connects to the LAN port of the Internet
Broadband Router. Since the Wireless Broadband Router has four ports, you can
connect up to four computers directly to the unit. There you do not have to buy a
switch to connect these computers since one Internet Broadband Router
functions both as a connection-sharing unit and as a switch.
The control LEDs of the Wireless Internet Broadband Router are clearly visible
and the status of the network link can be seen instantly:
• With the power source on, once the device is connected to the broadband
modem, the Power, LAN, WLAN and WAN port link LEDs of the Internet
Broadband Router will light up indicating a normal status. Led Status
blinks.
• While the WAN is link up to the ADSL/Cable modem, the WAN port’s
Link/ACT LED will light up.
• While the LAN is link up to the computer system, the LAN port’s Link/ACT
LED will light up.
A02-RB-W54 Pag. 6
Wireless Broadband Router
A02-RB-W54 Pag. 7
Wireless Broadband Router
CHAPTER 3: Configuration
The Wireless Broadband Router has a Web GUI interface for the configuration.
The device can be configured through the Web Browser. A network manager can
manage, control and monitor the Router from the local LAN. This section
indicates how to configure the AP to enable its functions.
3.1 Before Configuration
This section describes the configuration required by LAN-attached PCs that
communicate with the Wireless Broadband Wireless , either to configure the
device or for network access. These PCs must have an Ethernet interface
installed properly, be connected to the Router either directly or through an
external repeater hub, and have TCP/IP installed and configured to obtain an IP
address through a DHCP server or a fixed IP address that must be in the same
subnet of the Wireless Broadband Router. The default IP address of the Wireless
Broadband Router is 192.168.1.1 and subnet mask is 255.255.255.0. The best
and easy way is to configure the PC to get an IP address from the Wireless
Broadband Router. Also make sure you have UNINSTALLED any kind of
software firewall that can cause problems while accessing the 192.168.1.1 IP
address of the router.
Please follow the steps below for PC’s network environment installation. First of
all, please check your PC’s network components. The TCP/IP protocol stack and
Ethernet network adapter must be installed. If not, please refer to MS Windows
related manuals.
Any TCP/IP capable workstation can be used to communicate
with or through the Wireless Broadband Router to configure
other types of workstations, please consult the manufacturer’s
documentation.
A02-RB-W54 Pag. 8
Wireless Broadband Router
3.1.1 Windows 95/98/ME
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
choose the Configuration tab.
2. Select TCP / IP -> NE2000
Compatible, or the name of any
Network Interface Card (NIC) in
your PC.
3. Click Properties.
4. Select the IP Address tab. In
this page, click the Obtain an IP
address automatically radio
button.
A02-RB-W54 Pag. 9
Wireless Broadband Router
3.1.2 Windows NT4.0
1. Go to Start / Settings / Control
Panel. In the Control Panel, double-
click on Network and choose the
Protocols tab.
2. Select TCP/IP Protocol and click
Properties.
3. Select the Obtain an IP address
from a DHCP server radio button
and click OK.
A02-RB-W54 Pag. 10
Wireless Broadband Router
5. Click OK to finish the
configuration.
3.1.3 Windows 2000
1. Go to Start / Settings / Control
Panel. In the Control Panel,
double-click on Network and
Dial-up Connections.
2. Double-click LAN Area
Connection.
3. In the LAN Area Connection
Status window, click Properties.
4. Select the Obtain an IP address
automatically and the Obtain
DNS server address
automatically radio buttons.).
A02-RB-W54 Pag. 11
Wireless Broadband Router
3.1.4 Windows XP
1. Go to Start / Control
Panel (in Classic View). In
the Control Panel, doubleclick on Network
Connections.
2. Double-click Local Area
Connection
3. In the LAN Area
Connection Status window,
click Properties.
4. Select Internet Protocol
(TCP/IP) and click
Properties.
5. Select the Obtain an IP
address automatically
and the Obtain DNS
server address
automatically radio
buttons
6. Click OK to finish the
configuration.
A02-RB-W54 Pag. 12
Wireless Broadband Router
3.2 Factory Default Settings
Before configuring the Wireless Broadband Router through WLAN, make sure
that the SSID, Channel and the WEP was set properly.
The default setting of the Wireless Broadband Router that you will use:
• User: admin
• Password: admin
• IP Address: 192.168.1.1
• Subnet Mask: 255.255.255.0
• DHCP Server: enable (192.168.1.100-192.168.1.199)
• Wep Encryption: disable
• SSSID: default
• Channel: 6
3.2.1 Password
When there is a screen needs to enter the Network password, it means that there
is a password settle, type in the password you entered before.
3.2.2 LAN and WLAN Ports
The parameters of LAN and WLAN ports are pre-set in the factory. The default
values are shown below.
LAN WLAN
IP address
Subnet Mask
192.168.1.1
255.255.255.0
Channel=6
SSID=default
Encryption=none
A02-RB-W54 Pag. 13
Wireless Broadband Router
3.3 Accessing the Wireless Broadband Router Web
Configurator
Before you configure this device, note that when the Wireless Broadband Router
is configured through an Ethernet connection, make sure the manager PC must
be set on same the IP network. Open Internet Explorer 5.0 or above Web
browser.
Enter IP address http://192.168.1.1 (the factory-default IP address setting) to the
address location.
When there is a screen needs to enter the User name and Password, both of the
default Username and Password is admin. Click OK
The screen will show the station summary of the Wireless Broadband Router
when you login into that. A Wizard setup will be appear to configure the device
fastly and easily.
.
A02-RB-W54 Pag. 14
Wireless Broadband Router
3.3.1 Setup Wizard
Setup wizard is provided as the part of the web configuration utility. User can
simply follow the step-by-step process to get the wireless router configuration
ready to run in 6 easy steps by clicking on the “Wizard” button on the function
menu. The following screen will appear.
Please click Next to continue.
A02-RB-W54 Pag. 15
Wireless Broadband Router
Step 1: Setup New Password
User can change the password and then click Next to continue.
A02-RB-W54 Pag. 16
Wireless Broadband Router
Step2: Choose time zone
Select the time zone from the drop down list.
Please click Next to continue.
A02-RB-W54 Pag. 17
Wireless Broadband Router
Step 3: Set LAN and DHCP Server
Set user’s IP address and mask. The default IP is 192.168.1.1. If user likes to
enable DHCP, please click Enabled. DHCP enabled is able to automatically
assign IP addresses. Please assign the range of IP addresses in the fields of
Range start and Range end. Please click Next to continue.
Please click Next to continue.
A02-RB-W54 Pag. 18
Wireless Broadband Router
Step 4: Set Internet connection
The Wireless Broadband Router will attempt to auto detect your Internet
Connection.
A02-RB-W54 Pag. 19
Wireless Broadband Router
If the Wireless Broadband Router is unable to auto detect your Internet
connection, you will need to manually select the Internet connection type: Obtain
IP automatically, Fixed IP, PPPoE, PPTP, L2TP or BigPond.
Please click Next to continue.
A02-RB-W54 Pag. 20
Wireless Broadband Router
Obtain IP automatically (DHCP client):
If user has enabled DHCP server, choose Obtain IP automatically (DHCP
client) to have the router assign IP addresses automatically.
you to enter a specific host name or MAC address, please enter it in.
If your ISP requires
A02-RB-W54 Pag. 21
Wireless Broadband Router
Fixed IP:
If the Internet Service Providers assign a fixed IP address, choose this option and
enter the assigned IP address, subnet mask, gateway IP and DNS IP addresses
for your Broadband Router.
Please click Next to continue.
A02-RB-W54 Pag. 22
Wireless Broadband Router
PPPoE:
• Obtain IP Automatically: If connected to the Internet using a PPPoE
(Dial-up xDSL) Modem, the ISP will provide a Password and User Name,
and then the ISP uses PPPoE. Choose this option and enter the required
information.
Please click Next to continue.
A02-RB-W54 Pag. 23
Wireless Broadband Router
• Specify IP: If connected to the Internet using a PPPoE (Dial-up xDSL)
Modem, the ISP will provide a Password, User Name and a Fixed IP
Address, choose this option and enter the required information.
Please click Next to continue.
A02-RB-W54 Pag. 24
Wireless Broadband Router
PPTP/L2TP:
If connected to the Internet using a (PPTP/L2TP) xDSL Modem, enter the your IP
Address, Subnet Mask, Gateway, Server IP, PPTP/L2TP Account and
PPTP/L2TP Password, Your Subnet Mask required by your ISP in the appropriate
fields. If your ISP has provided you with a Connection ID, enter it in the
Connection ID field, otherwise, leave it to zero.
Please click Next to continue
.
A02-RB-W54 Pag. 25
Wireless Broadband Router
Step 5: Set Wireless LAN connection
Click Enable to enable wireless LAN. If user enables the wireless LAN, type the
SSID in the text box and select a communications channel. The SSID and
channel must be the same as wireless devices attempting communication to the
router.
Please click Next to continue
.
A02-RB-W54 Pag. 26
Wireless Broadband Router
Step 6: Restart
The Setup wizard is now completed. The new settings will be effective after the
Wireless router restarted. Please click Restart to reboot the router. If user does
not want to make any changes, please click Exit to quit without any changes.
A02-RB-W54 Pag. 27
Wireless Broadband Router
3.3.2 Navigating the Broadband Router Web Configurator

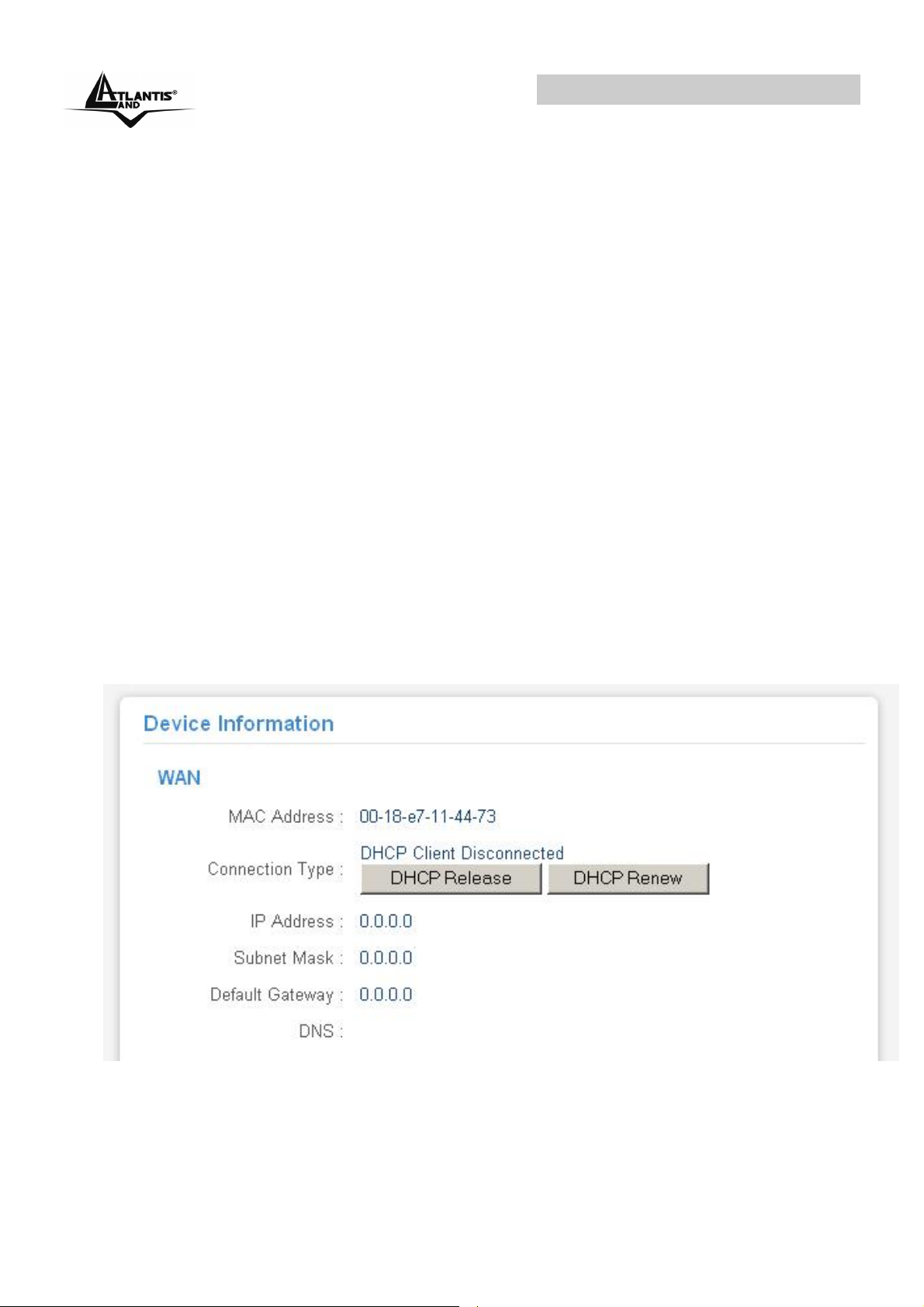

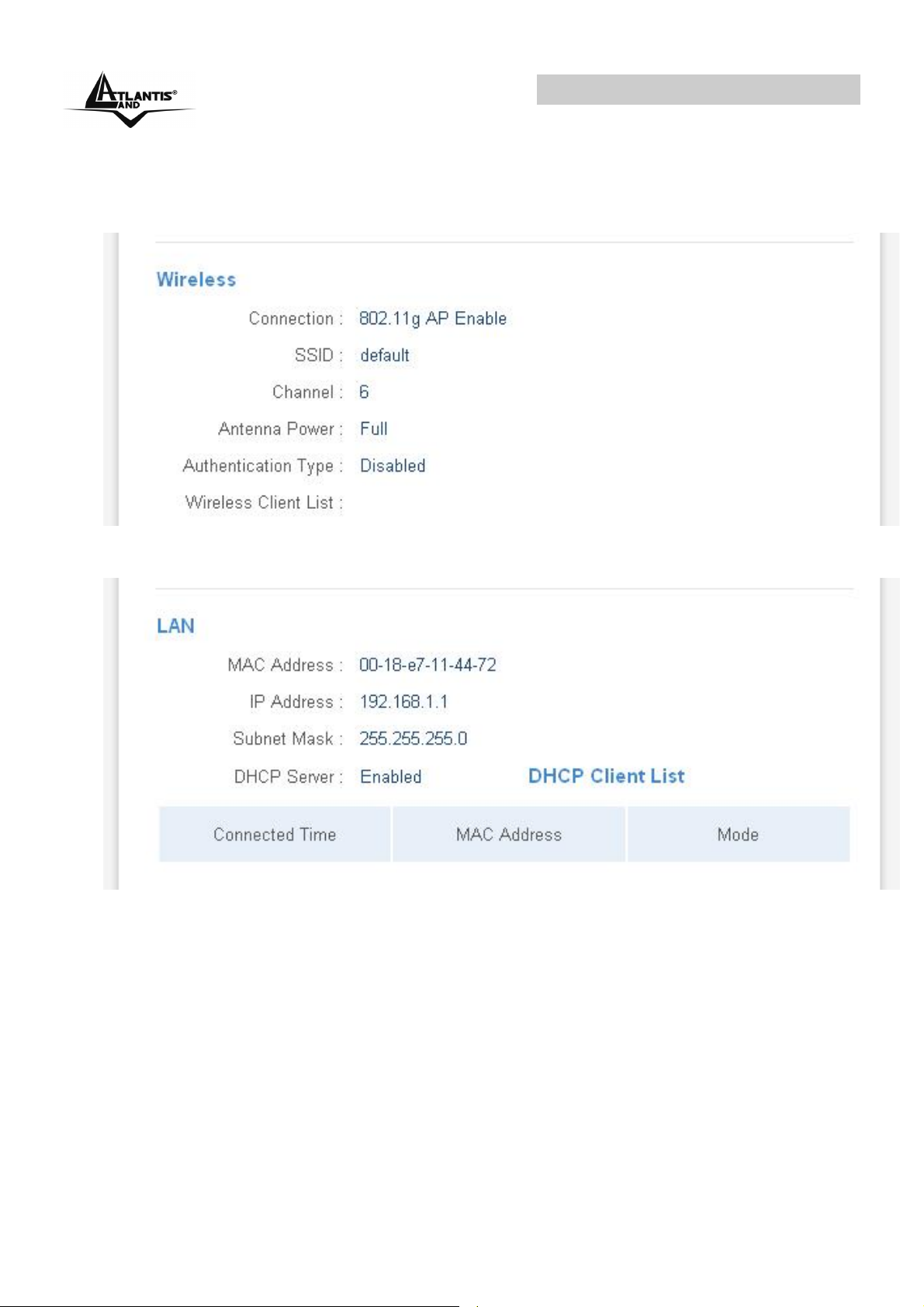

The screen will show the status of the Wireless Broadband Router when you login
to the device.
There are six main functions included in the left side of the main screen:
• WAN
• Wireless
• LAN
• Access Control
• System
• Wizard
A02-RB-W54 Pag. 28
Wireless Broadband Router
3.4 WAN
This function enables users to set up the Wireless Broadband Router WAN
connection, specify the IP address for the WAN, add DNS numbers, and enter the
MAC address.
3.4.1 Connection Type
Connection Type:
Select the connection type, either DHCP client, Fixed IP or PPPoE, PPTP, L2TP
or BigPond from the drop-down list
.
A02-RB-W54 Pag. 29
Wireless Broadband Router
• DHCP client or Fixed IP
If user has enabled DHCP server, choose Obtain IP automatically
(DHCP client) to have the router assign IP addresses automatically.
WAN IP Address: Select whether user wants to specify an IP address
manually, or want DHCP to obtain an IP address automatically. When
Specify IP is selected, type the IP address, subnet mask, and default
gateway in the text boxes. User’s ISP will provide with this information.
IP Address: For the Specify mode, enter the specific IP address that
provided by your ISP.
Subnet Mask: For the Specify mode, enter the specific subnet mask that
provided by your ISP.
Gateway: For the Specify mode, enter the specific gateway IP address
that provided by your ISP.
DNS 1/2: Manually specific DNS server IP address. For the Obtain IP
Automatically mode, leave 0.0.0.0 hear, the DHCP server will provides
DNS server automatically.
A02-RB-W54 Pag. 30
Wireless Broadband Router
Clone MAC Address: If your ISP requires you to enter a specific MAC
address, please enter it in. The Clone MAC Address button is used to
copy the MAC address of your Ethernet adapter to the Router.
Click Apply to save.
• PPPoE
Choose Obtain IP Automatically if connected to the Internet using a
PPPoE (Dial-up xDSL) Modem, the ISP will provide a Password and User
Name, and then the ISP uses PPPoE. Choose this option and enter the
required information.
Choose Specify IP if connected to the Internet using a PPPoE (Dial-up
xDSL) Modem, the ISP will provide a Password, User Name and a
Specify IP Address, choose this option and enter the required information.
A02-RB-W54 Pag. 31
Wireless Broadband Router
Click Apply to save.
A02-RB-W54 Pag. 32
Wireless Broadband Router
• PPTP/L2TP
Choose Obtain IP Automatically if connected to the Internet using a
PPTP/L2TP (Dial-up xDSL) connection, enter the your Server IP,
PPTP/L2TP Account and PPTP/L2TP Password, if your ISP has provided
you with a DNS IP address, enter it in the DNS field, otherwise, leave it
zero.
Choose Specify IP if connected to the Internet using a PPTP/L2TP (Dialup xDSL) connection, enter the your IP Address, Subnet Mask, Gateway
IP address, DNS IP address, Server IP address, PPTP Account and
PPTP Password.
Click Apply to save.
A02-RB-W54 Pag. 33
Wireless Broadband Router

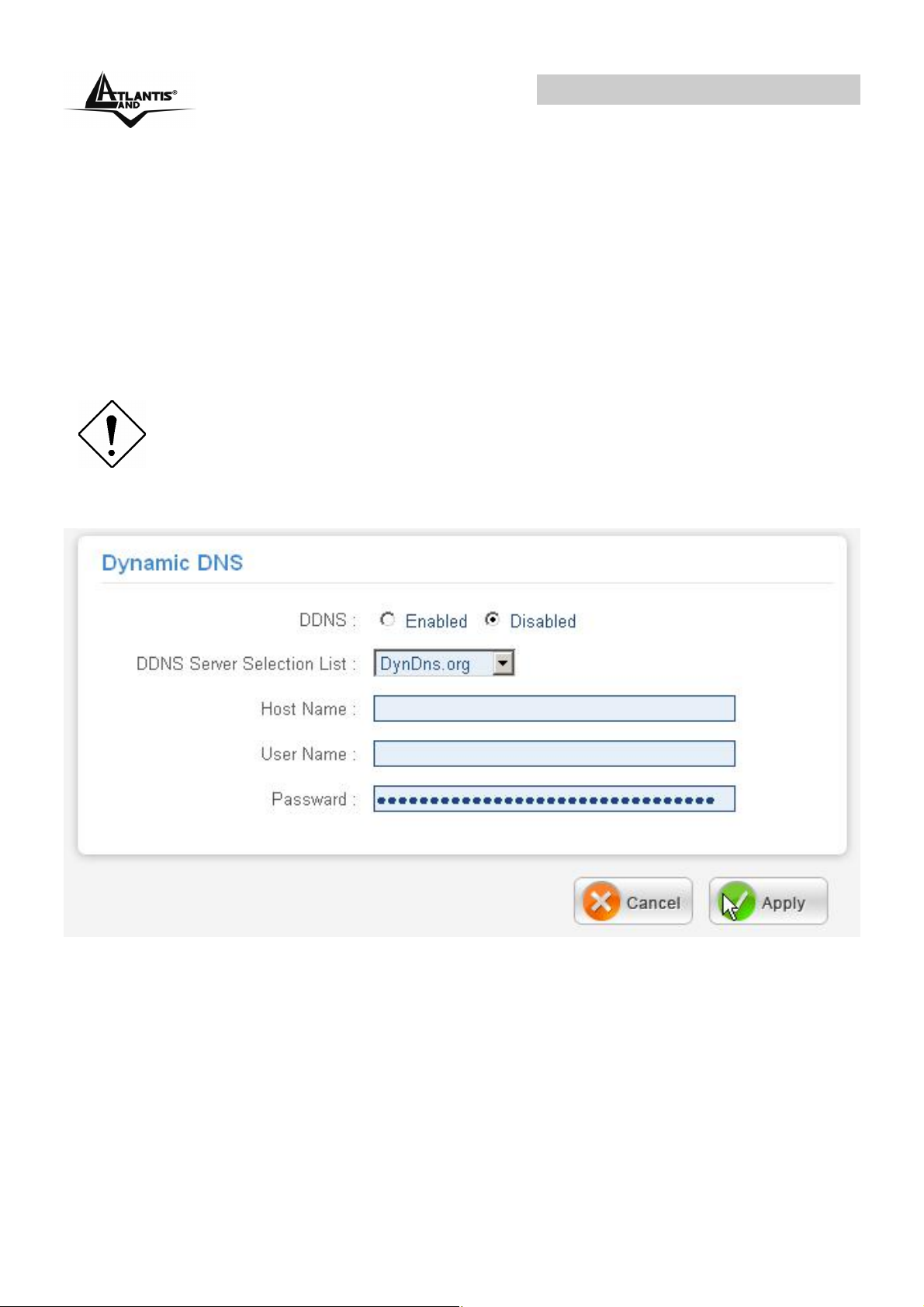

3.4.2 Dynamic DNS
This synchronizes the DDNS server with your current Public IP address when you
are online. First, you need to register your preferred DNS with the DDNS
provider. Then, please selected one of DDNS server than fill the related
information in the below fields: Host Name, User Name and Password.
To use DDNS client, you have to register a DDNS Account.
.
Click Apply to save.
A02-RB-W54 Pag. 34
Wireless Broadband Router
3.5 Wireless
This section enables user to set wireless communications parameters for the
router's wireless LAN feature.

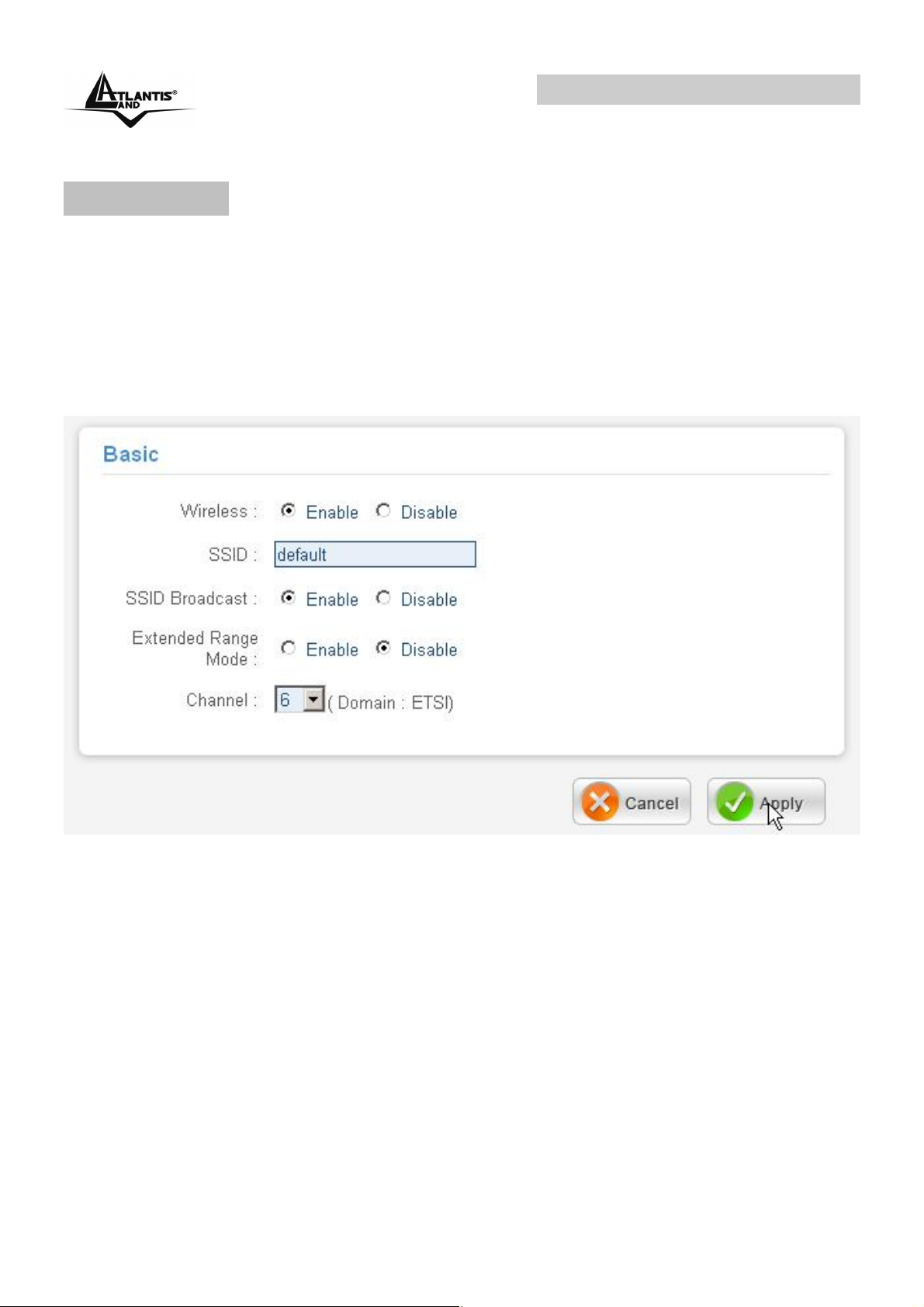

3.5.1 Basic
This page allow user to enable and disable the wireless LAN function, create a
SSID, and select the channel for wireless communications.
Wireless: Enables or disables the wireless LAN function of the Wireless
Broadband Router.
SSID: Type an SSID in the text box. The SSID of any wireless device must match
the SSID typed here in order for the wireless device to access the LAN and WAN
via the router.
Extended Range Mode: Enable and disable the wireless Extended Range
enhancement.
SSID Broadcast: While SSID Broadcast is enabled, all wireless clients will be
able to view the Wireless Broadband Router’s SSID. For security purposes, users
may want to disable SSID Broadcast to ensure only authorized clients have
access.
Channel: Select a transmission channel for wireless communications. The
channel of any wireless device must match the channel selected here in order for
the wireless device to access the LAN and WAN via the router.
A02-RB-W54 Pag. 35
Wireless Broadband Router
Click Apply to save.
The range of radio frequencies used by IEEE 802.11g wireless
devices is called a “channel”. Channels available depend on your
geographical area. You may have a choice of channels (for your
region) so you should use a different channel than an adjacent AP
(access point) to reduce interference. Interference occurs when
radio signals from different access points overlap causing
interference and degrading performance.
Adjacent channels partially overlap however. To avoid interference
due to overlap, your AP should be on a channel at least five
channels away from a channel that an adjacent AP is using. For
example, if your region has 11 channels and an adjacent AP is
using channel 1, then you need to select a channel between 6 or
11
3.5.2 Security
This function enables user to set authentication type for secure wireless
communications. Open System allows public access to the router via wireless
communications. Shared Key requires the user to set a WEP key to exchange
data with other wireless clients that have the same WEP key. This router also
supports WPA, WPA2 and WPA-PSK, WPA2-PSK..
Security: Enable or Disable the wireless LAN security.
A02-RB-W54 Pag. 36
Wireless Broadband Router

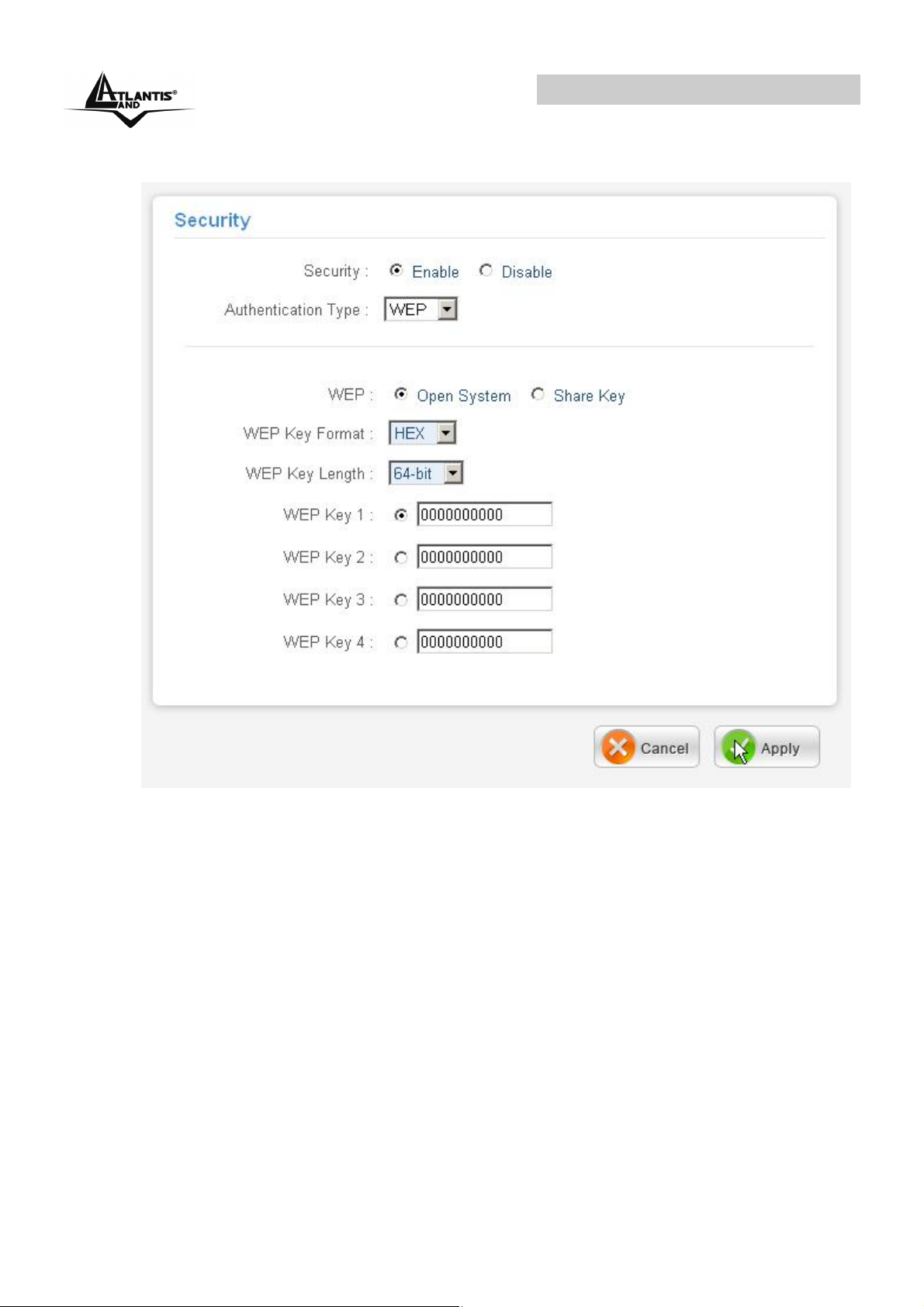

• WEP:
WEP: Open System and Shared Key requires the user to set a WEP key
to exchange data with other wireless clients that have the same WEP
key.
WEP Key Format: Select the key format from the drop-down list HEX or
ASCII.
WEP Key Length: Select the level of encryption from the drop-down list.
The Wireless Broadband Router supports, 64 and 128-bit encryption.
WEP Key 1 ~ 4: Enables users to create up to 4 different WEP keys.
Manually enter a set of values for each key. Select a key to use by
clicking the radio button next to the key. Click “Clear” to erase key values.
Click Apply to save.
A02-RB-W54 Pag. 37
Wireless Broadband Router
• WPA/WPA2:
If WPA or WPA2 PSK is selected, the above screen is shown.
Encryption Type: Select the encryption type for TKIP or AES encryption.
Passphrase: The length should be 8 characters at least.
If WPA or WPA2 EAP is selected, please set the length of the encryption
key and the parameters for the RADIUS server.
Encryption Type: Select the encryption type for TKIP or AES encryption.
RASIUS Server:
Radius Server 1: Enter the IP address, Port used and Shared Secret by
the Primary Radius Server.
Radius Server 2: Enter the IP address, Port used and Shared Secret by
the Secondary Radius Server. (optional)
Click Apply to save.
A02-RB-W54 Pag. 38
Wireless Broadband Router
3.5.3 Advanced
This function enables user to configure advanced wireless functions
Beacon Interval: Type the beacon interval in the text box. User can specify a
value from 20 to 1000. The default beacon interval is 100.
RTS Threshold: Type the RTS (Request-To-Send) threshold in the text box. This
value stabilizes data flow. If data flow is irregular, choose values between 256
and 2346 until data flow is normalized.
Fragmentation Threshold: Type the fragmentation threshold in the text box. If
packet transfer error rates are high, choose values between 1500 and 2346 until
packet transfer rates are minimized. (NOTE: set this fragmentation threshold
value may diminish system performance.)
DTIM Interval: Type a DTIM (Delivery Traffic Indication Message) interval in the
text box. User can specify a value between 1 and 255. The default value is 1.
TX Rates: Select one of the wireless communications transfer rates, measured in
megabytes per second, based upon the speed of wireless adapters connected to
the WLAN.
Antenna Transmit Power: Adjust the power of the antenna transmission by
selecting from the drop down list: full, half (-3dB), quarter (-6dB), eighth (-9dB) or
min.
Click Apply to save.
A02-RB-W54 Pag. 39
Wireless Broadband Router
3.6 LAN
The function enables user to configure the LAN port IP address & DHCP Server.
3.6.1 Basic
This page leads to set LAN port properties, such as the host name, IP address,
and subnet mask.
Host Name: Type the host name in the text box. The host name is required by
some ISPs. The default host name is "Wireless Router"
IP Address: This is the IP address of the router. The default IP address is
192.168.1.1.
Subnet Mask: Type the subnet mask for the router in the text box. The default
subnet mask is 255.255.255.0
Click Apply to save.
.
A02-RB-W54 Pag. 40
Wireless Broadband Router
3.6.2 DHCP
DHCP Server: Enables the DHCP server to allow the router to automatically
assign IP addresses to devices connecting to the LAN. DHCP is enabled by
default.
DHCP Server Start IP: Type an IP address to serve as the start of the IP range
that DHCP will use to assign IP addresses to all LAN devices connected to the
router.
DHCP Server End IP: Type an IP address to serve as the end of the IP range
that DHCP will use to assign IP addresses to all LAN devices connected to the
router.
Lease Time: The lease time specifies the amount of connection time a network
user be allowed with their current dynamic IP address.
Add Static DHCP: Selected Enable the Static DHCP allows you to assign a static
IP address to the PC that has the IP address and MAC address mapping set in
the Static DHCP List.
A02-RB-W54 Pag. 41
Wireless Broadband Router
Static DHCP List: The static DHCP mapping will list in the table, providing the
Host Name, MAC Address and IP Address.
Dynamic DHCP List: All dynamic DHCP client computers are listed in the table
and providing the Host name, IP address, and MAC address and Expired Time of
the client.
3.7 Access Control
This access control enables you to define access restrictions, set up protocol and
IP filters, create virtual servers, define access for special applications such as
games, and set firewall rules.
3.7.1 Filter
Using filter to deny or allow the users to access. Five types of filters to select:
MAC, IP Filter, URL blocking, Domain blocking and Protocol filter.
A02-RB-W54 Pag. 42
Wireless Broadband Router
3.7.1.2 MAC Filter
MAC Filter: Enables you to allow or deny Internet access to users within the LAN
based upon the MAC address of their network interface. Click the radio button
next to Disabled to disable the MAC filter.
• Disable: Disable the MAC filter function.
• Allow: Only allow computers with MAC address listed in the MAC Table.
• Deny: Computers in the MAC Table are denied Internet access.
A02-RB-W54 Pag. 43
Wireless Broadband Router
MAC Table: Use this section to create a user profile which Internet access is
denied or allowed. The user profiles are listed in the table at the bottom of the
page. (Note: Click anywhere in the item. Once the line is selected, the fields
automatically load the item's parameters, which you can edit.)
• Name: Type the name of the user to be permitted/denied access.
• MAC Address: Type the MAC address of the user's network interface.
Add: Click to add the user to the list at the bottom of the page.
Update: Click to update information for the user, if you have changed any of the
fields.
Delete: Select a user from the table at the bottom of the list and click to remove
the user profile.
Clear: Click to erase all fields and enter new information.
Click Apply to save.
A02-RB-W54 Pag. 44
Wireless Broadband Router
3.7.1.3 IP Filter
The IP filter function enables you to define a minimum and maximum IP address
range filter; all IP addresses falling within the range are not allowed Internet
access. The IP filter profiles are listed in the table at the bottom of the page.
(Note: Click anywhere in the item. Once the line is selected, the fields
automatically load the item's parameters, which you can edit.)
Enable: Click to enable or disable the IP address filter function.
Range Start: Type the minimum address for the IP range. IP addresses falling
between this value and the Range End are not allowed to access the Internet.
Range End: Type the minimum address for the IP range. IP addresses falling
between this value and the Range Start are not allowed to access the Internet.
Add: Click to add the IP range to the table at the bottom of the screen.
Update: Click to update information for the range if you have selected a list item
and have made changes.
Delete: Select a list item and click Delete to remove the item from the list.
Clear: Click to erase all fields and enter new information.
Click Apply to save.
A02-RB-W54 Pag. 45
Wireless Broadband Router
3.7.1.4 URL Blocking
You could enable URL blocking to deny the users from accessing the specified
URL. Add those specified URL in the text box.
Enable / Disable: Enable or Disable the URL blocking function of the WLAN
Router.
Add: Click to add the specific URL to the URL blocking list.
Delete: Selected a URL from the blocking list then click the Delete button to
remove the URL from the URL Blocking list. Click Apply to save.
A02-RB-W54 Pag. 46
Wireless Broadband Router
3.7.1.5 Domain Blocking
You could specify the domains that allow users to access or deny by clicking one
of the two items. Also, add the specified domains in the text box.
Disable: Disable the Domain Blocking function.
Allow: Allow users to access all domains except “Blocking Domains”.
Deny: Deny users to access all domains except “Permitted Domains”.
Blocked/Permitted Domains: List domains you will Blocked or Permitted.
Apply: Click to add domain to the Blocked/Permitted Domains list.
Del: Select a user from the table at the bottom of the list and click Del to remove
the user profile.
A02-RB-W54 Pag. 47
Wireless Broadband Router
3.7.1.6 Protocol Filter
This protocol filter enables you to allow and deny access based upon a
communications protocol list you create. The protocol filter profiles are listed in
the table at the bottom of the page.
Enable: Click to enable or disable the Protocol filter.
Name: Type the name of the user to be denied access.
Protocol: Select a protocol (TCP, UDP or ICMP) to use for the virtual server.
A02-RB-W54 Pag. 48
Wireless Broadband Router
Port: Type the port range of the protocol.
Add: Click to add the protocol filter to the table at the bottom of the screen.
Update: Click to update information for the protocol filter if user have selected a
list item and have made changes.
Delete: Select a list item and click Delete to remove the item from the list.
Clear: Click to erase all fields and enter new information.
3.7.2 Virtual Server
Being a natural Internet firewall, this Wireless Broadband Router protects your
network from being accessed by outside users. When it needs to allow outside
users to access internal servers, e.g. Web server, FTP server, E-mail server or
News server, this modem can act as a virtual server. You can set up a local
server with specific a port number that stands for the service, e.g. Web (80), FTP
(21), Telnet (23), SMTP (25), POP3 (110), When an incoming access request to
the router for a specified port is received, it will be forwarded to the corresponding
internal server.
For example, if you set the Service Port number 80 (Web) to be mapped to the IP
Address 192.168.1.2, then all the http requests from outside users will be
forwarded to the local server with IP address of 192.168.1.2. If the port is not
listed as a predefined application, you need to add it manually.
The Virtual Sever profiles are listed in the table at the bottom of the page.
Enable: Click to enable or disable the virtual server.
A02-RB-W54 Pag. 49
Wireless Broadband Router
Name: Type a descriptive name for the virtual server.
Protocol: Select a protocol (TCP or UDP) to use for the virtual server.
Private Port: Type the port number of the computer on the LAN that is being
used to act as a virtual server.
Public Port: Type the port number on the WAN that will be used to provide
access to the virtual server.
LAN Server: Type the LAN IP address that will be assigned to the virtual server.
Add: Click to add the virtual server to the table at the bottom of the screen.
Update: Click to update information for the virtual server if the user has selected
a listed item and has made changes.
Delete: Select a listed item and click “Delete” to remove the item from the list.
Clear: Click to erase all fields and enter new information.
If the DHCP server option is enabled, you have to be very careful in
assigning the IP addresses of the virtual servers in order to avoid
conflicts. The easy way is that the IP address assigned to each
virtual server should not fall into the range of IP addresses that are
to be issued by the DHCP server. You can configure the virtual
server IP address manually, but it is still in the same subnet with the
router.
Applicazione Settaggi connessioni
Uscenti
ICQ 98, 99a Nessuno Nessuno
NetMeeting 2.1 a 3.01 Nessuno 1503 TCP, 1720 TCP
VDO Live Nessuno Nessuno
MIRC Nessuno Nessuno
Cu-SeeMe 7648 TCP &UDP, 24032
UDP
PC AnyWhere 5632 UDP, 22 UDP,
5631 TCP, 65301 TCP
Edonkey Nessuno principalmente 4660-
MSN Messanger Nessuno TCP da 6891-6900
Servizio Numero di Porta / Protocollo
Settaggi connessioni
Entranti
7648 TCP &UDP, 24032
UDP
5632 UDP, 22 UDP,
5631 TCP, 65301 TCP
4662 TCP , 4665 UDP
TCP 1863
TCP 6901
UDP 1863, 6901 e 5190
File Transfer Protocol (FTP) Data 20/tcp
FTP Commands 21/tcp
A02-RB-W54 Pag. 50
Wireless Broadband Router
Telnet 23/tcp
Simple Mail Transfer Protocol (SMTP) Email 25/tcp
Domain Name Server (DNS) 53/tcp and 53/udp
Trivial File Transfer Protocol (TFTP) 69/udp
finger 79/tcp
World Wide Web (HTTP) 80/tcp
POP3 Email 110/tcp
SUN Remote Procedure Call (RPC) 111/udp
Network News Transfer Protocol (NNTP) 119/tcp
Network Time Protocol (NTP) 123/tcp and 123/udp
News 144/tcp
Simple Management Network Protocol (SNMP) 161/udp
SNMP (traps) 162/udp
Border Gateway Protocol (BGP) 179/tcp
Secure HTTP (HTTPS) 443/tcp
rlogin 513/tcp
rexec 514/tcp
talk 517/tcp and 517/udp
ntalk 518/tcp and 518/udp
Open Windows 2000/tcp and 2000/udp
Network File System (NFS) 2049/tcp
X11 6000/tcp and 6000/udp
Routing Information Protocol (RIP) 520/udp
Layer 2 Tunnelling Protocol (L2TP) 1701/udp
A02-RB-W54 Pag. 51
Wireless Broadband Router
3.7.3 Special AP
The special AP function enables users to specify special applications, such as
games which require multiple connections that are blocked by NAT. The special
applications profiles are listed in the table at the bottom of the page
.
Enable: Click to enable or disable the application profile. When enabled, users
will be able to connect to the application via the Wireless Broadband Router’s
WAN connection. Click Disabled on a profile to prevent users from accessing the
application on the WAN connection.
Name: Type a descriptive name for the application.
Trigger: Defines the outgoing communication that determines whether the user
has legitimate access to the application.
A02-RB-W54 Pag. 52
Wireless Broadband Router
• Protocol: Select the protocol TCP or UDP that can be used to access the
application, the “*” is meaning to both of TCP and UDP protocols.
• Port Range: Type the port range that can be used to access the
application in the text boxes.
Incoming: Defines which incoming communications users are permitted to
connect with.
• Protocol: Select the protocol TCP or UDP that can be used by the
incoming communication, the “*” is meaning to both of TCP and UDP
protocols.
• Port: Type the port number that can be used for the incoming
communication.
Add: Click to add the special application profile to the table at the bottom of the
screen.
Update: Click to update information for the special application if user have
selected a list item and have made changes.
Delete: Select a list item and click Delete to remove the item from the list.
Clear: Click to erase all fields and enter new information.
3.7.4 DMZ
The DMZ function enables users to create a DMZ for those computers that cannot
access Internet applications properly through the Wireless Broadband Router and
associated security settings.
Enable: Click to enable or disable the DMZ.
DMZ Host IP: Type a host IP address for the DMZ. The computer with this IP
address acts as a DMZ host with unlimited Internet access.
Click Apply to save.
A02-RB-W54 Pag. 53
Wireless Broadband Router
Any clients added to the DMZ exposes the clients to security risks
such as viruses and unauthorized access
.
3.7.5 Firewall Rule
The firewall rule function enables users to set up the firewall. The Wireless
Broadband Router provides basic firewall functions, by filtering all the packets that
enter the Wireless Broadband Router using a set of rules. The rules are listed in
sequential order--the lower the rule number, the higher the priority the rule has.
A02-RB-W54 Pag. 54
Wireless Broadband Router
Enable: Click to enable or disable the firewall rule profile.
Name: Type a descriptive name for the firewall rule profile.
Action: Select whether to allow or deny packets that conform to the rule.
Source: Defines the source of the incoming packet that the rule is applied to.
• Interface: Select which interface (WAN or LAN) the rule is applied to.
• IP Range Start: Type the start IP address that the rule is applied to.
• IP Range End: Type the end IP address that the rule is applied to.
Destination: Defines the destination of the incoming packet that the rule is
applied to.
• Interface: Select which interface (WAN or LAN) the rule is applied to.
• IP Range Start: Type the start IP address that the rule is applied to.
• IP Range End: Type the end IP address that the rule is applied to.
• Protocol: Select the protocol (TCP, UDP, or ICMP) of the destination.
• Port Range: Select the port range.
Add: Click to add the rule profile to the table at the bottom of the screen.
Update: Click to update information for the rule if the user has selected a listed
item and has made changes.
Delete: Select a listed item and click Delete to remove the item from the list.
Clear: Click to erase all fields and enter new information.
Priority Up: Select a rule from the list and click Priority Up to increase the
priority of the rule.
Priority Down: Select a rule from the list and click Priority Down to decrease the
priority of the rule.
Update Priority: After increasing or decreasing the priority of a rule, click Update
Priority to save the changes.
A02-RB-W54 Pag. 55
Wireless Broadband Router
3.8 System
This system setting enables users to change password, set the device time, view
the device information, restart the system, save and load different settings as
profiles, restore factory default settings, upgrade the firmware, and ping remote IP
addresses….etc.
3.8.1 Password
This function enables users to set administrative and user passwords. These
passwords are used to gain access to the Wireless Broadband Router interface.
Click Apply to save.
A02-RB-W54 Pag. 56
Wireless Broadband Router
3.8.2 Time
This function enables users to set the time and date for the Wireless Broadband
Router’s real-time clock, select properly time zone, and enable or disable daylight
saving.
Local Time: Displays the local time and date.
Time Zone: Select the time zone from the drop-down list.
A02-RB-W54 Pag. 57
Wireless Broadband Router
Synchronize the clock with NTP Server: Enable or disable the Wireless
Broadband Router automatically adjust the system time from NTP Server.
NTP server: The Simple Network Time Protocol (SNTP) server allows the
Wireless Broadband Router to synchronize the system clock to the global Internet
through the SNTP Server. Specify the NTP domain name or IP address in the text
box.
Manually Date and Time Setting: Manually setting the Wireless Broadband
Router system time, press the Set Time button to update the system time.
Daylight Saving: Enables users to enable or disable daylight saving time. When
enabled, select the start and end date for daylight saving time.
Click Apply to save.
3.8.3 Device Information
This function enables users to view the Wireless Broadband Router’s WAN,
Wireless, LAN and System configurations.
• WAN: This section displays the WAN interface configuration including the
MAC address, Connection status, DHCP client status, IP address, Subnet
mask, Default gateway, and DNS.
A02-RB-W54 Pag. 58
Wireless Broadband Router
• Wireless: This section displays the wireless configuration information,
including the MAC address, the Connection status, SSID, Channel and
Authentication type.
• LAN: This section displays the LAN interface configuration including the
MAC address, IP Address, Subnet Mask, and DHCP Server Status.
Click DHCP Table to view a list of client stations currently connected to the
Wireless Broadband Router LAN interface.
Click DHCP Release to release all IP addresses assigned to client stations
connected to the WAN via the Wireless Broadband Router. Click DHCP Renew to
reassign IP addresses to client stations connected to the WAN.
A02-RB-W54 Pag. 59
Wireless Broadband Router
3.8.4 Log
This function enables users to view a running log of Router system statistics,
events, and activities. The log displays up to 200 entries. Older entries are
overwritten by new entries.
The Log screen commands are as follows:
First Page: to view the first page of the log
Last Page: to view the final page of the log
Previous Page: to view the page just before the current page
Next Page: to view the page just after the current page
Clear Log: to delete the contents of the log and begin a new log
Refresh: to renew log statistics
A02-RB-W54 Pag. 60
Wireless Broadband Router
3.8.5 Log Settings
This function enables users to set Router Log parameters.
SMTP Server: Type your SMTP server address here.
Send to: Type an email address for the log to be sent to. Click “Email Log Now”
to immediately send the current log.
A02-RB-W54 Pag. 61
Wireless Broadband Router
SMTP Authentication: Selected the Enabled if the SMTP server need for
authentication, fill in account name and password in SMTP Account field and
SMTP Password field.
SMTP Account: If the SMTP Authentication enabled, fill in the SMTP account
name here.
SMTP Password: If the SMTP Authentication enabled, fill in the password of the
SMTP account here.
Syslog Server: Type the IP address of the Syslog Server if user wants the
Wireless Broadband Router to listen and receive incoming Syslog messages.
Log Type: Enables users to select what items will be included in the log:
• System Activity: Displays information related to Wireless Broadband
Router operation.
• Debug Information: Displays information related to errors and system
malfunctions.
• Attacks: Displays information about any malicious activity on the
network.
• Dropped Packets: Displays information about packets that have not
been transferred successfully.
• Notice: Displays important notices by the system administrator.
Click Apply to save.
3.8.6 Statistics
This function displays a table that shows the rate of packet transmission via the
Wireless Broadband Router’s LAN, WAN and Wireless ports (in bytes per
second).
A02-RB-W54 Pag. 62
Wireless Broadband Router
Click Reset to erase all statistics and begin logging statistics again
.
A02-RB-W54 Pag. 63
Wireless Broadband Router
3.8.7 Restart
Click Restart to restart the system in the event the system is not performing
correctly.
3.8.8 Firmware
This function enables users to keep the Wireless Broadband Router firmware up
to date.
Please follow the below instructions:
• Download the latest firmware from the Atlantis Land’s Web site, and save
it to disk.
• Click Browse and go to the location of the downloaded firmware file.
• Select the file and click Upgrade to update the firmware to the latest
release.
A02-RB-W54 Pag. 64
Wireless Broadband Router
3.8.9 Configuration
This function enables users to save settings as a profile and load profiles for
different circumstances. User can also load the factory default settings, and run a
setup wizard to configure the Wireless Broadband Router and Router interface.
Save Settings: Click on Save Settings button, which will open a FileSave Dialog
box, where user gets to save all the current settings and configurations to a file.
Load Settings: Click on the Browse button to open a FileOpen Dialog box,
where user gets to select the file, which saves previous settings and
configurations. Upon selecting the saved file, click Load and complete the restore
process when the Wireless Broadband Router re-operates after it restarts.
Restore Factory Default Settings: Click on Restore button to restore the
access point back to its manufacture default settings.
A02-RB-W54 Pag. 65
Wireless Broadband Router
3.8.10 UPnP
This function enables users to enable or disable the UPnP function on the
Wireless Broadband Router.
UPnP: Select to enable or disable the UPnP function on the Wireless Broadband
Router.
3.8.11 Ping Test
The ping test enables users to determine whether an IP address or host is
present on the Internet. Type the host name or IP address in the text box and
click Ping button to start the Ping test.
A02-RB-W54 Pag. 66
Wireless Broadband Router
3.8.12 Remote Management
This function enables users to set up remote management. Using remote
management, the Wireless Broadband Router can be configured through the
WAN via a Web browser. A user name and password are required to perform
remote management.
HTTP: Enables users to set up HTTP access for remote management.
Remote IP Range: Type a range of IP addresses that can be pinged from remote
locations
A02-RB-W54 Pag. 67
Wireless Broadband Router
Gaming mode: If user is experiencing difficulties when playing online games or
even certain applications that use voice data, user may need to enable Gaming
Mode for these applications to work correctly. When not playing games or using
these voice applications, it is recommended that Gaming Mode be disabled.
PPTP: Enables users to set up PPTP access for remote management.
IPSec: Enables users to set up IPSec access for remote management.
IDENT: Default is stealth. This enables users to set port 113 stealth.
A02-RB-W54 Pag. 68
Wireless Broadband Router
APPENDIX A: Troubleshooting
This chapter covers potential problems on Wireless Broadband Router Point and
the corresponding remedies.
A.1 LEDs
The LEDs are useful aides for finding possible problem causes.
A.1.1 LED Power
The PWR LED on the front panel does not light up.
Steps CORRECTIVE ACTION
1
2
3
Make sure that the Wireless Broadband Router power adaptor
is connected to the device and plugged in to an appropriate
power source. Use only the supplied power adaptor.
Check that the Wireless Broadband Router and the power
source are both turned on and the device is receiving
sufficient power.
If the error persists, you may have a hardware problem. In this
case, you should contact your vendor.
A.1.2 LED LAN
The LAN LED on the front panel does not light up.
Steps CORRECTIVE ACTION
1
2
3
4
Check the Ethernet cable connections between the Wireless
Broadband Router and the computer or hub.
Check for faulty Ethernet cables.
Make sure your computer’s Ethernet card is working properly.
If these steps fail to correct the problem, contact your local
distributor for assistance.
A02-RB-W54 Pag. 69
Wireless Broadband Router
A.1.3 LED WLAN
The WLAN LED on the front panel does not light up.
Steps CORRECTIVE ACTION
1
Press the “Reset” button on the rear panel of the Wireless
Broadband Router, to set back to factory default setting.
2
3
Please unplug AC Adaptor and replug-it.
If these steps fail to correct the problem, contact your local
distributor for assistance.
A.2 WEB
I cannot access the web configurator.
Steps CORRECTIVE ACTION
1
2
3
The web configurator does not display properly.
Make sure you are using the correct IP address of the
Wireless Broadband Router. Check the IP address of the
Router (192.168.1.1).
Check Mac Filtering (on Security).
Press the “Reset” button on the rear panel of the AP, to set
back to factory default setting.
Steps CORRECTIVE ACTION
1
2
Make sure you are using Internet Explorer 5.0 and later
versions.
Delete the temporary web files and log in again.
In Internet Explorer, click Tools, Internet Options and then
click the Delete Files ... button.
When a Delete Files window displays, select Delete all offline
content and click OK. (Steps may vary depending on the
version of your Internet browser.)
A02-RB-W54 Pag. 70
Wireless Broadband Router
A.3 Login
If you forget the password to log in.
Steps CORRECTIVE ACTION
1
2
3
The Reset function is to reset the setting back to factory
default setting, once you press the “RESET” button within 15
seconds, the LED of the WLAN will turn off. And when the
device is ready, the WLAN LED will start blinking.
Before configurating this Wireless Broadband Router, you
need to know the following default settings.
Username: admin
Password : admin
IP Address : 192.168.1.1
Subnet Mask : 255.255.255.0
Wireless: SSID= default, Channel=6, WEP=disable
To increase security level, it is important change password
after first configuration.
A.4 Remote Management
I can’t manage the dvice remotely.
Steps CORRECTIVE ACTION
1
2
Make sure to insert Router ADSL IP in Default Gateway field
of Wireless Broadband Router.
Make sure that ADSL Router is correctly configured (create a
port forwarding from port TCP 80 to Wireless Broadband
Router IP Address).
A02-RB-W54 Pag. 71
Wireless Broadband Router
A.5 FAQ
Question
Answer
Question
Answer
Question
Answer
Can I run an application from a remote computer over the
wireless network?
This will depend on whether or not the application is designed
to be used over a network. Consult the application’s user
guide to determine if it supports operation over a network.
Can I play computer games with other members of the
wireless network?
Yes, as long as the game supports multiple players over a
LAN (local area network).
Refer to the game’s user guide for more information.
What is Spread Spectrum?
Spread Spectrum technology is a wideband radio frequency
technique developed by the military for use in reliable, secure,
mission-critical communications systems. It is designed to
trade off bandwidth efficiency for reliability, integrity, and
security. In other words, more bandwidth is consumed than in
the case of narrowband transmission, but the trade-off
produces a signal that is, in effect, louder and thus easier to
detect, provided that the receiver knows the parameters of the
spread-spectrum signal being broadcast. If a receiver is not
tuned to the right frequency, a spread-spectrum signal looks
like background noise. There are two main alternatives, Direct
Sequence Spread Spectrum (DSSS) and Frequency Hopping
Spread Spectrum (FHSS).
Question
Answer
What is DSSS? What is FHSS? And what are their
differences?
Frequency-Hopping Spread-Spectrum (FHSS) uses a
narrowband carrier that changes frequency in a pattern that is
known to both transmitter and receiver. Properly
synchronized, the net effect is to maintain a single logical
channel. To an unintended receiver, FHSS appears to be
short-duration impulse noise. Direct-Sequence SpreadSpectrum (DSSS) generates a redundant bit pattern for each
bit to be transmitted. This bit pattern is called a chip (or
chipping code). The longer the chip, the greater the probability
that the original data can be recovered. Even if one or more
A02-RB-W54 Pag. 72
Wireless Broadband Router
bits in the chip are damaged during transmission, statistical
techniques embedded in the radio can recover the original
data without the need for retransmission. To an unintended
receiver, DSSS appears as low power wideband noise and is
rejected (ignored) by most narrowband receivers.
Question
Answer
Question
Answer
Question
Answer
Would the information be intercepted while transmitting on
air?
WLAN features two-fold protection in security. On the
hardware side, as with Direct Sequence Spread Spectrum
technology, it has the inherent security feature of scrambling.
On the software side, WLAN offers the encryption function
(WEP) to enhance security and access control.
What is WEP?
WEP is Wired Equivalent Privacy, a data privacy mechanism
based on a 64-bit or 128-bit shared key algorithm, as
described in the IEEE 802.11 standard.
What is WPA?
Attempting IEEE802.11i standard, Wi-Fi Alliance has chosen
from preliminary version a group of specifications called WPA
(Wi-Fi Protected Access).
Specifications of WPA are:
Question
Answer
• TKIP Integration (Temporal Key Integrity Protocol) to
allow key change dinamically and integrity control of
packets.
• Advanced mechanism to manage authentication and
access control to network services in centralized
mode (802.11x through EAP, TLS use is necessary)
• Authentication key is different to key used for
encryption
This protocol is more strong that WEP encryption.
What is WPA2?
Recently approved by Wi-Fi Alliance, the new standard WPA2
is an evolution of WPA (Wi-Fi Protected Access), supported
by almost compatible IEEE802.11g clients.
WPA standard, required to repair WEP weakness, has only a
A02-RB-W54 Pag. 73
Wireless Broadband Router
part of 802.11i specifics.
WPA2 introduce all IEEE802.11i specifics, like support for
Advanced Encryption Standard (AES), encryption protocol
use also in VPN IpSEC.
WPA2 devices will be compatible with WPA device, but they
will be updated through new driver and firmware.
NetFly AP2-54M supports WPA2 without performance
reduction.
Question
Answer
Question
Answer
Question
Answer
What is the impact of these algorithms of encryption on
performance?
Chipset guarantee the full hardware support, without
performance reduction, of almost recent security standard,
like Wi-Fi Protected Access (WPA/WPA2) and IEEE802.11i.
What is infrastructure mode?
When a wireless network is set to infrastructure mode, the
wireless network is configured to communicate with a wired
network through a wireless access point.
What is roaming?
Roaming is the ability of a portable computer user to
communicate continuously while moving freely throughout an
area greater than that covered by a single access point.
Before using the roaming function, the workstation must make
sure that it is the same channel number with the access point
of dedicated coverage area.
Question
Answer
Question
Answer
What is ISM band?
The FCC and their counterparts outside of the U.S. have set
aside bandwidth for unlicensed use in the ISM (Industrial,
Scientific and Medical) band. Spectrum in the vicinity of 2.4
GHz, in particular, is being made available worldwide. This
presents a truly revolutionary opportunity to place convenient
high-speed wireless capabilities in the hands of users around
the globe.
What is the IEEE 802.11g standard?
Approved in June, 2003 as an IEEE standard for wireless
A02-RB-W54 Pag. 74
Wireless Broadband Router
local area networks (WLANs), 802.11g offers wireless
transmission over relatively short distances at up to 54
megabits per second (Mbps) compared with the 11 megabits
per second of the 802.11b (Wi-Fi) standard. Like 802.11b,
802.11g operates in the 2.4 GHz range and is thus compatible
with it.
Question
Answer
Question
Answer
What is WDS?
WDS (Wireless Distribution System) is a technology that allow
at a pair of Wireless Multi-Function APs operating under
Bridge mode to act as the bridge that connect two Ethernet
networks or Ethernet enabled clients together. Repeat Mode
is able to extend the effective range and coverage of the
wireless network.
Why 2 AP trasmitting on different channel making
interferences?
Every channel occupies about 22Mhz; being ISM band made
of 80 Mhz, you can utilize only 3 channel without overlap.
We suggest to set AP with 5 channel interval between 2 AP
utilized. (ex. AP1-channel 1, AP2-channel6).
Interferences are making when 2 or more channels overlap
themselves.
Follow pictures explain this:
Question
Answer
Does IEEE802.11b clients works properly with AP
IEEE802.11g?
It is possible to use IEEE802.11b clients with IEEE802.11g
Access Point.
Performance will be reducing to 11Mbps to guarantee full
compatibility with IEEE802.11b.
A02-RB-W54 Pag. 75
Wireless Broadband Router
We suggest to upgrade WLAN to IEEE802.11g.
Question
Answer
Question
Answer
Question
How I can eliminate interferences in WLAN?
We suggest to turn off (or place far) any device that operate in
the same frequencies and use directional antennas to reduce
noise.
Antenna Specifications
Choose properly antenna, any incorrect choose can damage
product.
It can be follow specifications:
• Reverse SMA connector
• compatible with IEEE 802.11 standard (2.4Ghz)
• Resistivity: 50 Omh
Please respect your local law about electromagnetics
emissions.
May I use a cable to improve antenna standing?
Answer
Question
Answer
Yes, it is possible.
It’s necessary to know that every cable induce attenuation
(dB/m).
A very long cable should be made useless a positive effect
generate by antenna’s gain.
What type of antenna Can I use to increase AP
coverage?
Here you can find our indoor antennas:
A02-ANT0501
A02-ANT0601
A02-ANT06D01
Please visit our website for any information.
A02-RB-W54 Pag. 76
Wireless Broadband Router
APPENDIX B: Regulations
Some countries use different laws about ISM band frequency use.
Please to make reference to follow table:
Channel Country
1-11 USA/CANADA
1-13 ETSI(Europe)
10-11 Spain
10-13 France
14 MKK
1-14 Japan (MKKI Telecom)
3-9 Israel
5-13 Israel
A02-RB-W54 Pag. 77
Wireless Broadband Router
APPENDICE C: Technical Features
Standards IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.11g; IEEE 802.11b
Protocol CSMA/CD
Radio Technology IEEE 802.11g Orthogonal Frequency Division
Modulation
Data Transfer Rate 802.11b: 1, 2, 5.5, 11Mbps (auto sense)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
@802.11g(auto sense)
Ethernet: 10Mbps (half duplex), 20Mbps (full-
duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps
(full- duplex)
Topology Star
Receiver Sensitivity 54Mbps: Typical -70dBm @ 10% PER (Packet
Error Rate)
11Mbps: Typical -85dBm @ 8% PER (Packet Error
Rate)
TX Power 13dBm typically @ 802.11g
13dBm typically @ 802.11b
Network Cables 10BASE-T: 2-pair UTP Cat. 3,4,5 (100 m), EIA/TIA-
568 100-ohm STP (100 m)
100BASE-TX: 2-pair UTP Cat. 5 (100 m), EIA/TIA-
568 100-ohm STP (100 m)
Frequency Range 2412 ~ 2484 MHz ISM band (channels 1 ~ 14)
Modulation Schemes DBPSK/DQPSK/CCK/OFDM
Security 64/128-bits WEP Encryption; WPA, WPA-
PSK,WPA2. WPA2-PSK
Channels 1 ~ 11 channels (FCC); 1 ~ 13 channels (ETSI);
1 ~ 14 channels (MKK)
Number of Ports LAN: 4 x 10/100Mbps Auto-MDIX Fast Ethernet
port
WAN: 1 x 10/100Mbps Auto-MDIX Fast Ethernet
port
DC inputs DC 7,5V / 1A
Power Consumption 7,5W (Max)
Temperature
Humidity Operating: 10% ~ 90%, Storage: 5% ~ 90%
Dimensions 147 x 115 x 35 mm (W x H x D) without Antenna
EMI: FCC Class B, CE Mark B
Operating: 0° ~ 40° C, Storage: -10° ~ 70° C
A02-RB-W54 Pag. 78
Wireless Broadband Router
APPENDICE D: Support
If you have any problems with the Wireless Broadband Router, please consult this
manual. If you continue to have problems you should contact the dealer where you
bought this device. If you have any other questions you can contact the Atlantis Land
company directly at the following address:
Atlantis Land SpA
Viale De Gasperi 122
20017 Mazzo di Rho(MI)
ITALY
Tel: 039.02.93907634(help desk)
Fax: 039.02.93906161
Email: info@atlantis-land.com or tecnici@atlantis-land.com
WWW: http://www.atlantisland.it or www.atlantis-land.com
A02-RB-W54 Pag. 79
Loading...
