Chapter 1
Introduction
1.1 I-Storm PCI ADSL Modem
Features
I-Storm PCI ADSL Modem provides the following features:
PCI modem for broadband ADSL.
♦
Downstream data rate up to 8 Mbps and upstream up to 1
♦
Mbps.
♦ Plug and Play for Microsoft Windows 98 (SE), 2000, Me,
NT4.0 and XP.
♦ Supports NDIS interface for RAS and Dial-Up Networking.
Software upgradeable.
♦
Supports multiple data encapsulation formats, including
♦
PPPoE, PPPoA, IPoA, and RFC1483 bridged or routed.
♦ Compliant with PCI Local Bus Specification Revision 2.2
Friendly GUI Configuration Program.
♦
1.2 Package Contents
The product package comes with the following accessories:
1
I-Storm PCI ADSL modem
1. Atlantis I-STORM PCI ADSL Modem
2. One installation CD with drivers and online manual
3. One RJ-11 ADSL telephone cable
4. One Quick Start Guide
1.3 Information from ISP
Before you start installing this device, you have to check with your
ISP what kind of service (connection method) is provided such as
PPPoE, PPPoA, RFC1483 bridged or routed, IPoA.
Gather the information as illustrated in the following table and keep
it for reference.
If your ISP provides PPPoE or PPPoA connection method, please
select “I-Storm PCI ADSL WAN Adapter” to install driver. If your
ISP provides RFC1483 Bridged or Routed or IPoA, please select “IStorm PCIADSL LAN Adapter” to install driver.
PPPoE
PPPoA
VPI/VCI, VC-based/LLC-based multiplexing,
Username, Password, Service Name, and Domain
Name System (DNS) IP address (it can be
automatically assigned from ISP or be set fixed).
VPI/VCI, VC-based/LLC-based multiplexing,
Username, Password, and Domain Name System
(DNS) IP address (it can be automatically assigned
from ISP or be set fixed).
RFC1483
Bridged
2
VPI/VCI, VC-based/LLC-based multiplexing
Chapter 1 Introduction
RFC1483
Routed
IPoA
VPI/VCI, VC-based/LLC-based multiplexing, IP
address, Subnet mask, Gateway address, and
Domain Name System (DNS) IP address (it is fixed
IP address).
VPI/VCI, IP address, Subnet mask, Gateway
address, and Domain Name System (DNS) IP
address (it is fixed IP address).
3
Chapter 2
Installation
2.1 Installing I-Storm PCI ADSL
Modem
Please refer to the following instructions:
First, you need to prepare your phone line and your phone
devices at your premises. ADSL and telephone services share
the same copper wire to carry their respective signals, a filtering
mechanism must be used to avoid mutual interference.
1. Shut down your computer and switch the power off.
2. Unplug the power cord for your computer from the electrical
outlet.
3. Remove the cover from your systems chassis (see your PC
manufacturer’s manual).
4
Chapter 2 Installation
4. Unscrew the “Retaining Screw” and remove and discard
the “Expansion Slot Cover” from any unused PCI slot ( PCI
slots are usually white in colour).
5. Gently and evenly insert the PCI modem card into your
empty PCI slot.
6. Make sure the card is firmly seated, and then secure the card
with the “Retaining Screw”
7. Replace the cover of your computer system.
5
I-Storm PCI ADSL modem
8. Connect the ADSL/phone line to the connector port on the
modem card and plug the other end of the cable into your phone
line.
2.2 Installing I-Storm PCI ADSL
Modem Drivers
2.2.1 For Windows 98
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. You will
then see the following screen. Click “Next >”.
2. In the next window, select “Search for the best driver
for your device” and click “Next >”.
6
Chapter 2 Installation

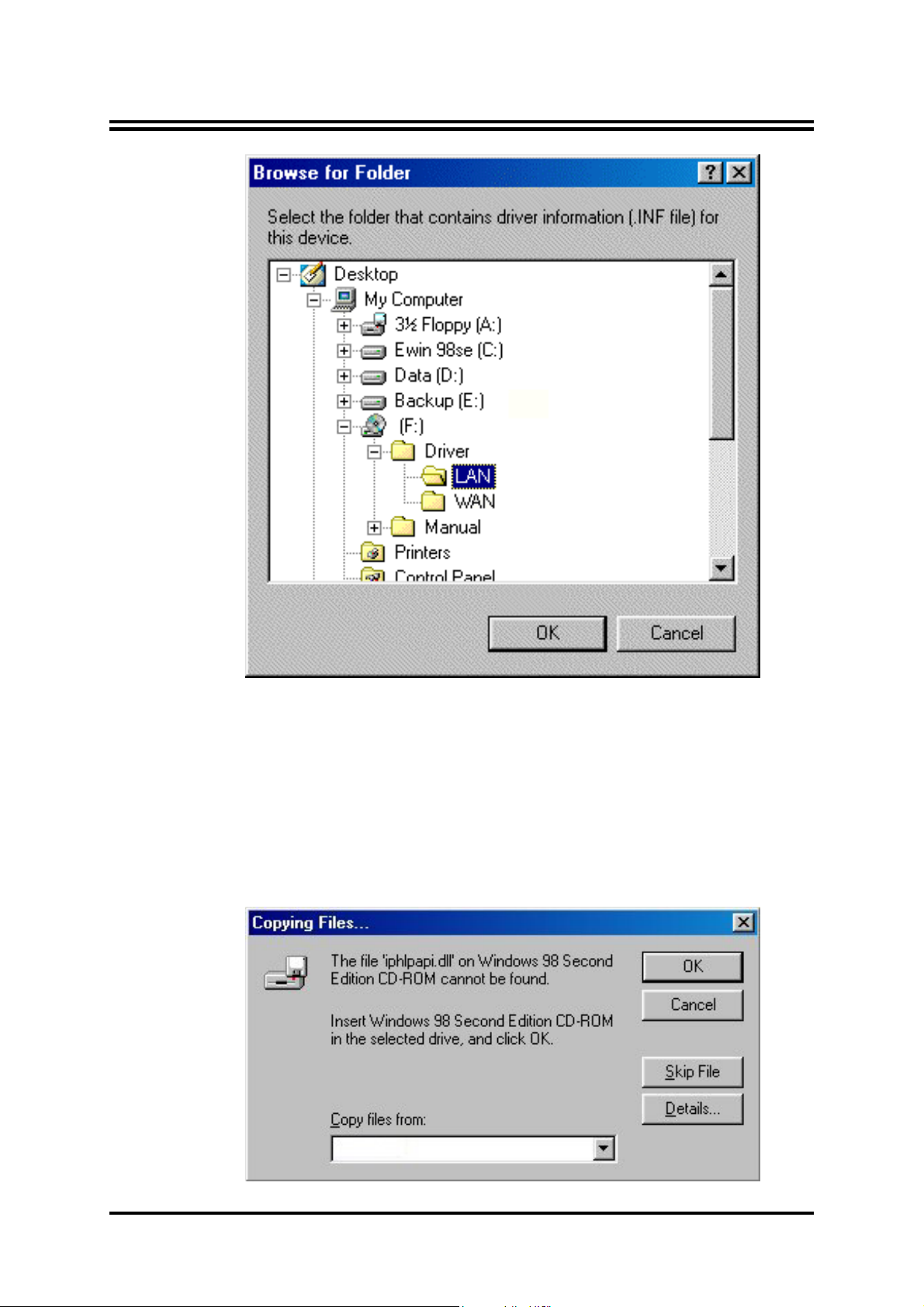

3. Insert the installation CD into the CD-ROM drive and
check “Specify a l
the driver directory such as D:\Driver\SO\LAN for
installing I-Storm PCI ADSL LAN Adapter or
D:\Driver\SO\WAN for installing I-Storm PCI ADSL
WAN Adapter. (Please refer Information from ISP
section for more details.) Click “OK” and then “Next>” to
continue.
ocation”. Click “Browse…” to specify
7
I-Storm PCI ADSL modem
4. Continuing through the Wizard, click the “Next >” button.
Windows will start copying files to your system. Then,
click “Finish”.
5. You will see the following screen prompting for the path
of the Windows source files. Please specify a location.
Click “OK”.
8
Chapter 2 Installation
6. I-Storm PCI ADSL Modem driver is successfully installed
and the Status Task Bar will appear in the System Tray.
7. I-Storm PCI ADSL Modem icon is installed in the Control
Panel.
Go to the Device Manager, the “I-Storm PCI ADSL LAN
Adapter
” is under the Network Adapters.
2.2.2 For Windows Me
1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. Select
“S
pecify the location of the driver” and click “Next >”.
2. Insert the installation CD into the CD-ROM drive and
check “Specify a l
the driver directory such as D:\Driver\SO\LAN for
installing I-Storm PCIADSL LAN Adapter or
D:\Driver\SO\WAN for installing I-Storm PCI ADSL
ocation”. Click “Browse…” to specify
WAN Adapter. (Please refer Information from ISP
section for more details.) Click “OK” and then “Next>” to
continue.
9
I-Storm PCI ADSL modem
10
3. Continuing through the Wizard, Windows will start
copying files to your system. Then, click “Finish”.
Chapter 2 Installation
4. I-Storm PCI ADSL Modem driver is successfully installed
and the Status Task Bar will appear in the System Tray.
5. I-Storm PCI ADSL Modem icon is installed in the Control
Panel.
Go to the Device Manager, the “I-Storm PCI ADSL LAN
Adapter” is under the Network Adapters.
2.2.3 For Windows 2000
1. Start Windows. After the opening banner, Windows will
show the new device has been detected. Click “Next>”.
11
I-Storm PCI ADSL modem
2. Select “Search for a suitable driver for my device”.
Click “Next>”. Then, insert the installation CD into the
CD-ROM drive. In next window, check “Specify a
location” and click “Next>”.
3. Click “Browse…”. In the Locate File window, specify the
driver directory such as D:\Driver\SO\LAN\CxtCAFEU
for installing I-Storm PCIADSL LAN Adapter or
D:\Driver\SO\WAN\CxtCAFEU for installing I-Storm
PCI ADSL WAN Adapter. (Please refer Information from
ISP section for more details.) Click “Open” and then
“Next>“ to continue.

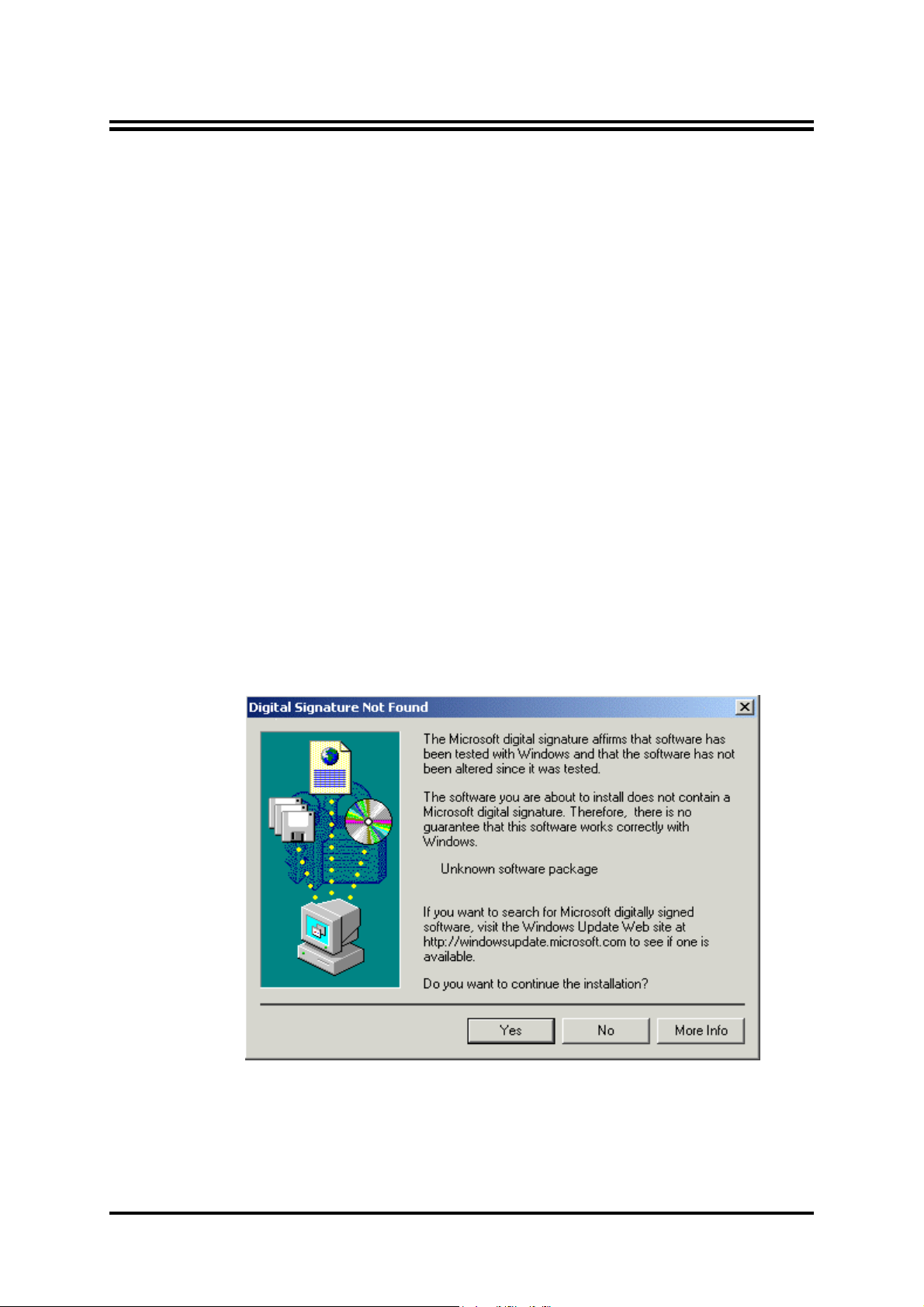

4. When windows titled “Digital Signature Not Found”
appear, press “Yes” to continue the installation.
12
5. Press “Finish”.
Chapter 2 Installation
6. I-Storm PCI ADSL Modem driver is successfully installed
and the Status Task Bar will appear in the System Tray.
7. I-Storm PCI ADSL Modem icon is installed in the Control
Panel.
Go to the Device Manager, the “I-Storm PCI ADSL LAN
Adapter” is under the Network Adapters.
2.2.4 For Windows XP

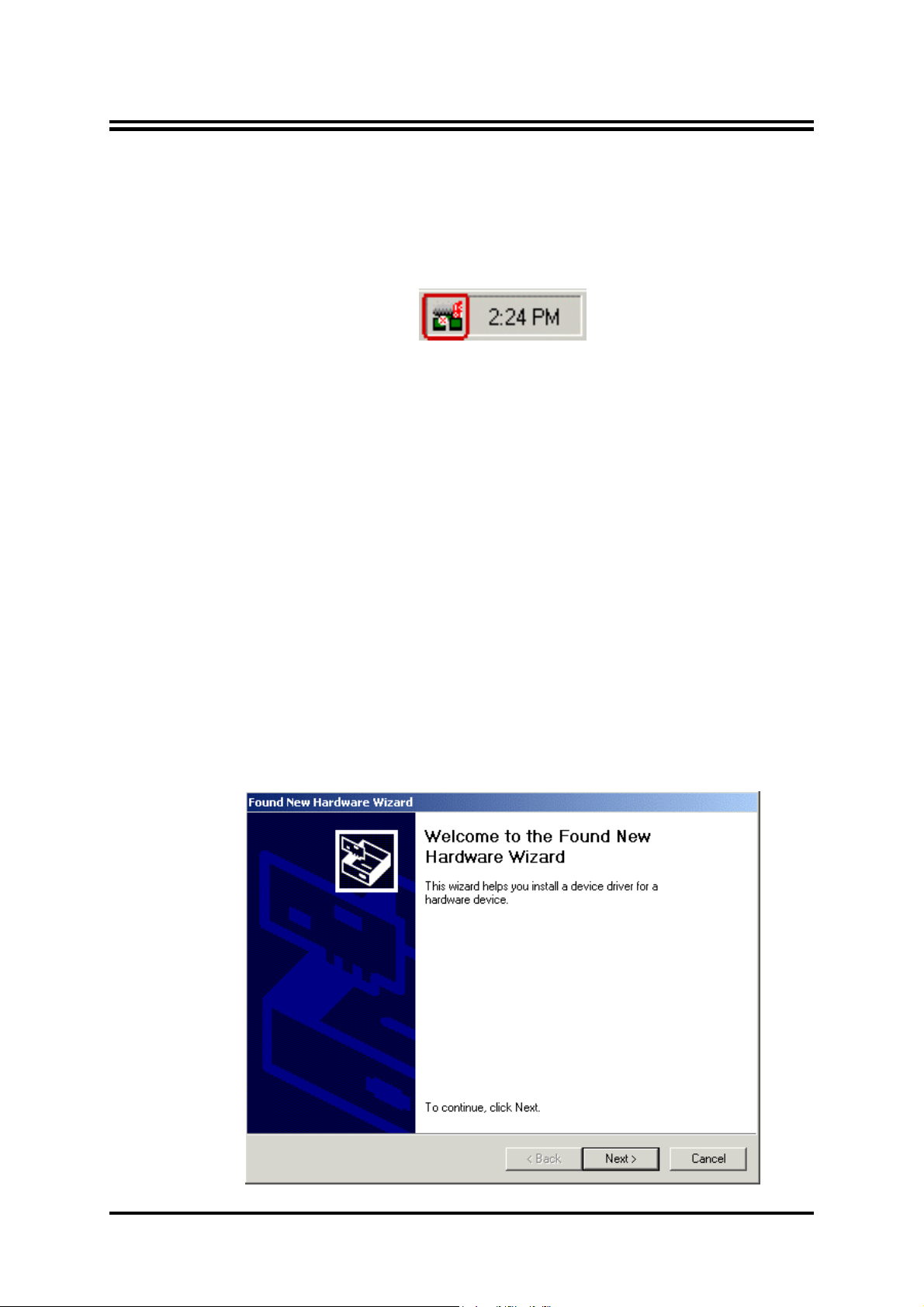

1. Start Windows. After the opening banner, Windows will
tell you that the new device has been detected. Select
“Install from a list or specific location” and click “Next
>”.

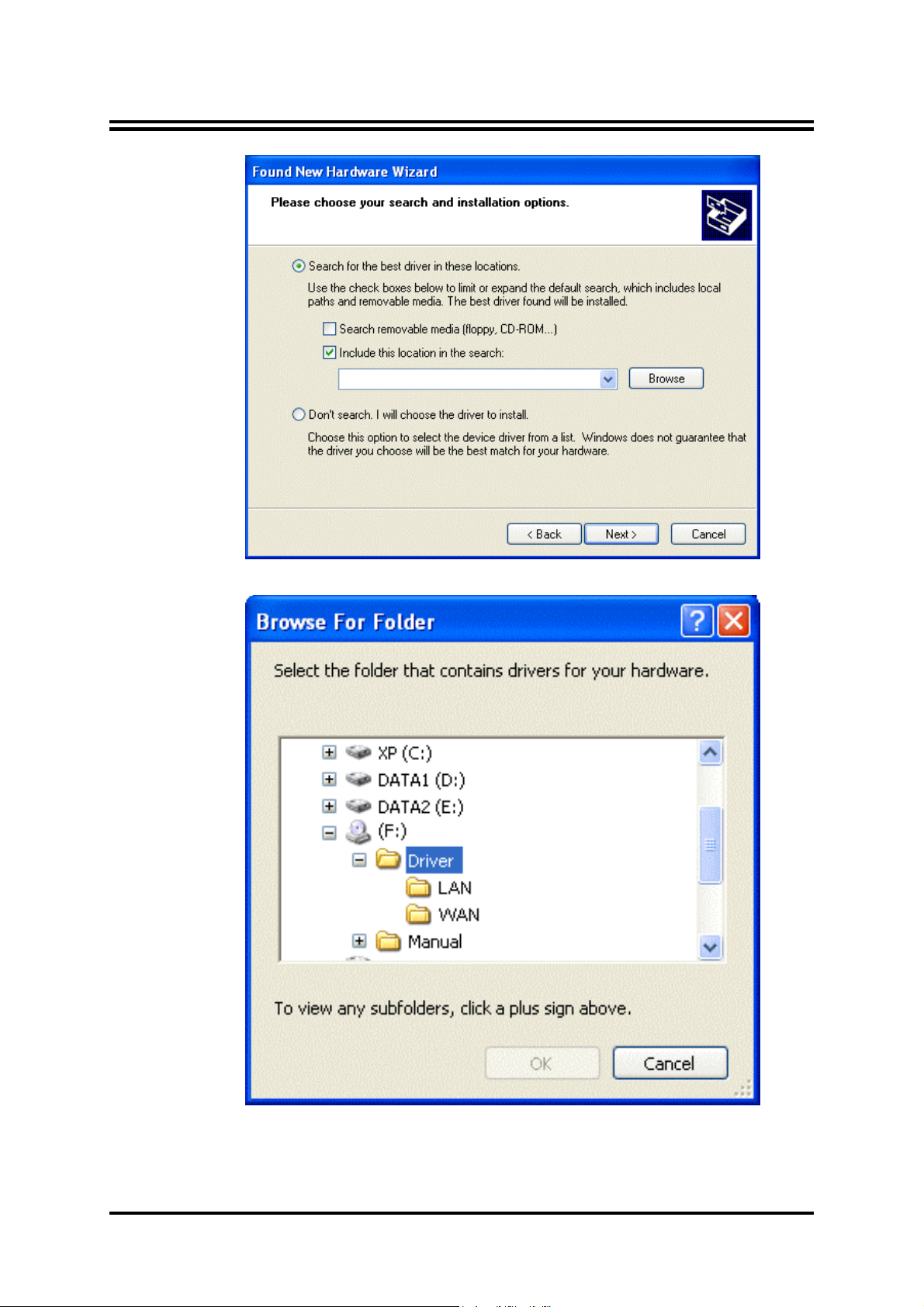

2. Insert the installation CD into the CD-ROM drive and
select “Include this location in the search”. Click
“Browse” to specify the driver directory such as
D:\Driver\SO\LAN for installing I-Storm PCI ADSL LAN
Adapter or D:\Driver\SO\WAN for installing I-Storm PCI
ADSL WAN Adapter. (Please refer Information from ISP
section for more details.) Click “OK” and then “Next>” to
continue.
13
I-Storm PCI ADSL modem
14
Chapter 2 Installation
3. When windows titled “Hardware Installation” or
“Software Installation” appear, press “Continue
Anyway” to go on.
4. Then, click “Finish”.
5. Wait a few moments. Windows will show that the new
device, I-Storm PCI ADSL LAN (or WAN) Adapter, has
been detected. Select “Install from a list or specific
location”. Click “Next >”
6. Click “Next >” when the following figure appears.
15
I-Storm PCI ADSL modem
7. When windows titled “Hardware Installation” appears,
press “Continue Anyway”.
8. Then, click “Finish” to end the installation.
9. I-Storm PCI ADSL Modem driver is successfully installed
and the Status Task Bar will appear in the System Tray.
10. I-Storm PCI ADSL Modem icon is installed in the Control
Panel.
16
Go to the Device Manager, the “I-Storm PCI ADSL LAN
Adapter” is under the Network Adapters.
Chapter 3
Configuration
Follow the instructions below to configure your I-Storm PCIADSL
Modem.
1. Click I-Storm PCI ADSL Modem icon in the Control
Panel or ADSL Configuration icon on the desktop. The
status of ADSL connection will be displayed.
2. Press [Alt]+[P] on keyboard, the following figure appears.
17
I-Storm PCI ADSL modem

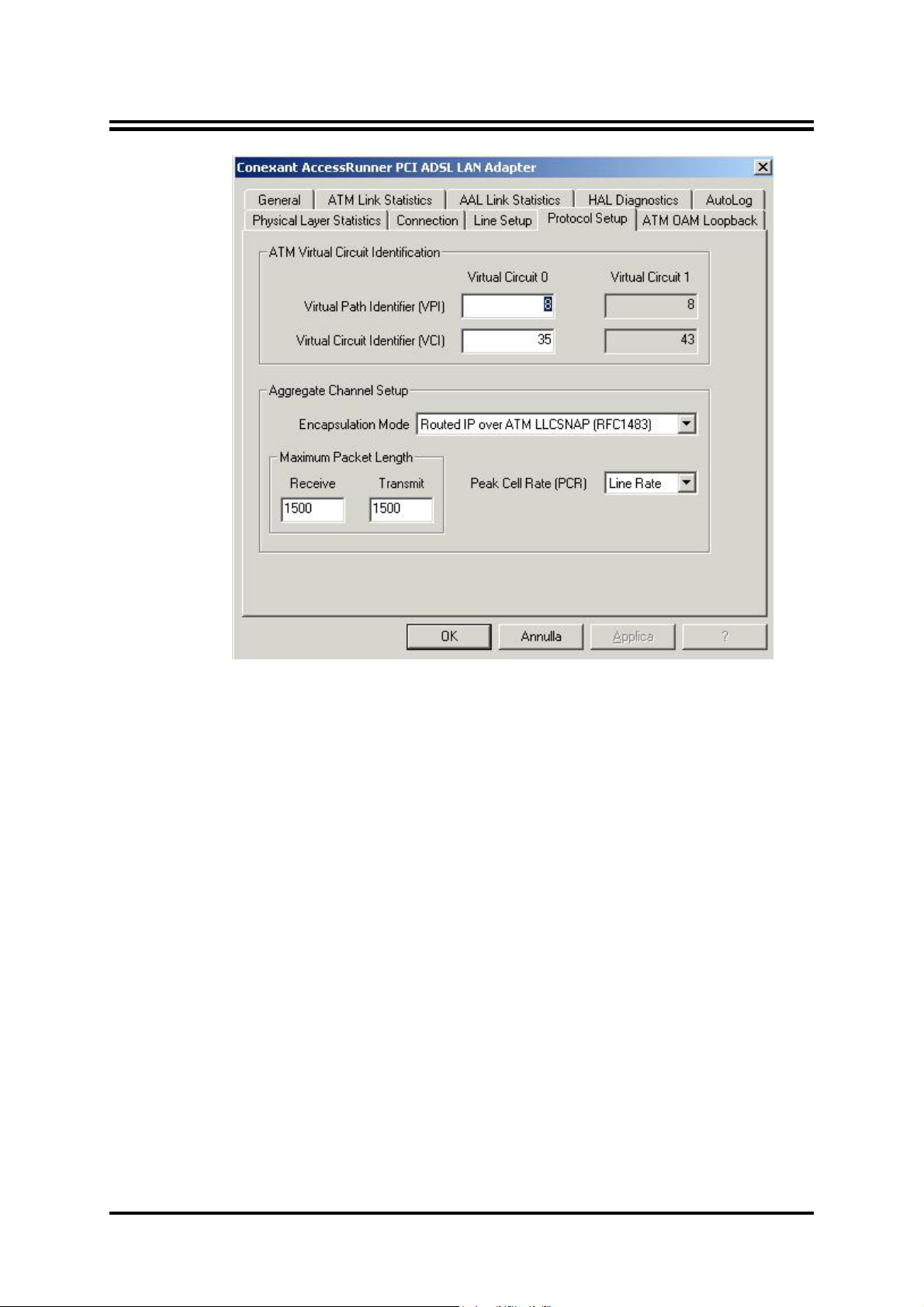

3. Select the Protocol Setup tag, please set the value of
“VPI”, “VCI” and “Encapsulation Mode”. Then, click
“OK”.
3.1 I-Storm PCI ADSL LAN Adapter
Configuration
3.1.1 For Windows 98 / Me
1. Go to Start / Settings / Control Panel. In the Control
18
Panel, double-click on Network and choose the
Configuration tab.
Chapter 3 Configuration
2. Select TCP/IP → I-Storm PCI ADSL LAN Adapter.
Then, click Properties.
3. Select the IP Address tab. In this page, click the Specify
an IP address radio button and enter the “IP address” and
“Subnet Mask” provided by your ISP.
4. Select the Gateway tab. Enter the “gateway” provided by
your ISP and click Add.
19
I-Storm PCI ADSL modem
5. In the DNS Configuration page. Click the Enable DNS
radio button. Enter the “Host” name and “DNS Server IP
address” provided by your ISP. Then, press the Add button.
20
Chapter 3 Configuration
3.1.2 For Windows 2000 / XP
6. Go to Start / Settings / Control Panel. In the Control
Panel, double-click on Network and Dial-up
Connections.

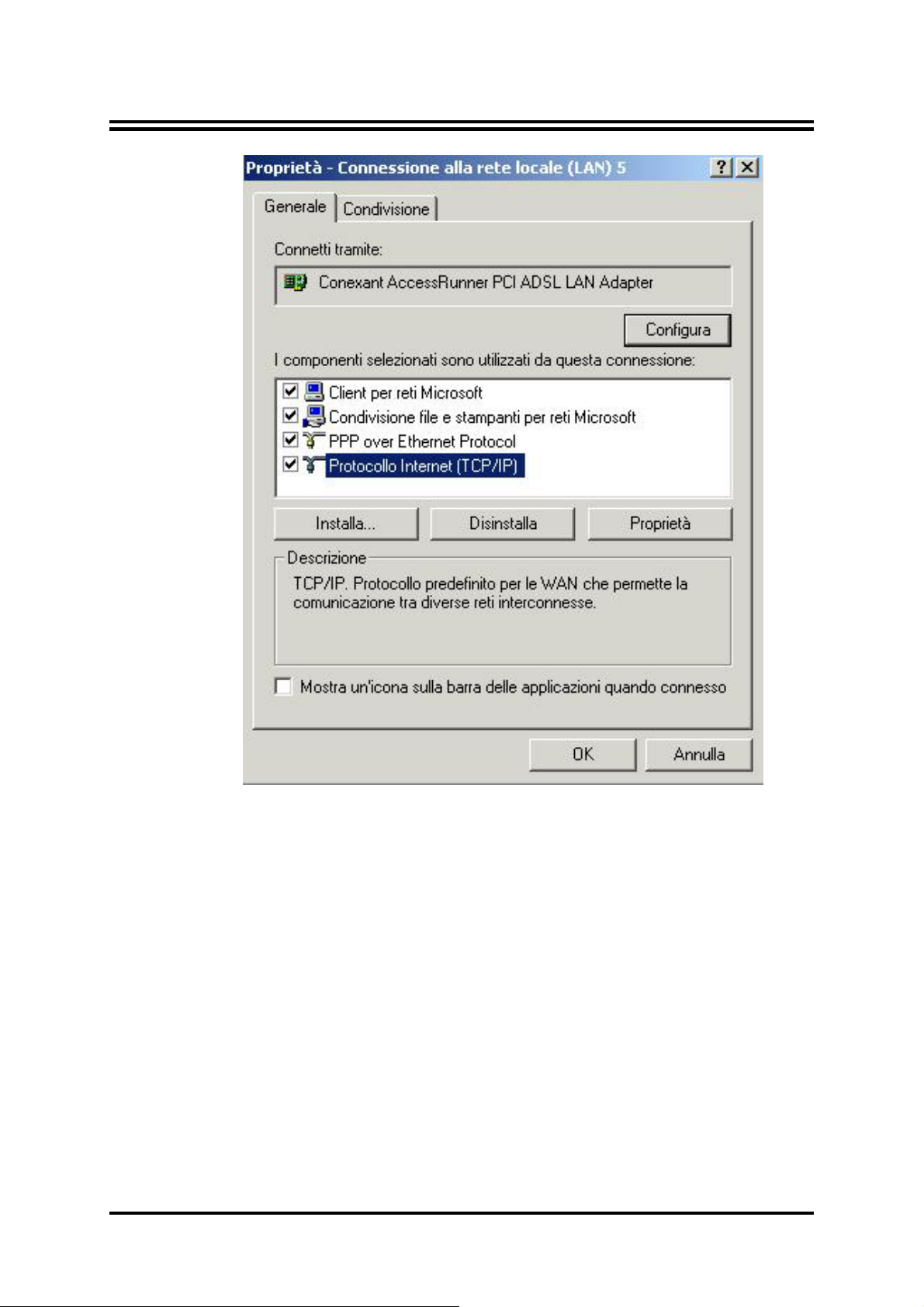

7. Right–click on Local Area Connection that is using the
I-Storm PCI ADSL LAN Adapter and then click
“Properties”.
21
I-Storm PCI ADSL modem
8. Select Internet Protocol (TCP/IP). Then, click
“Properties”.
22
Chapter 3 Configuration

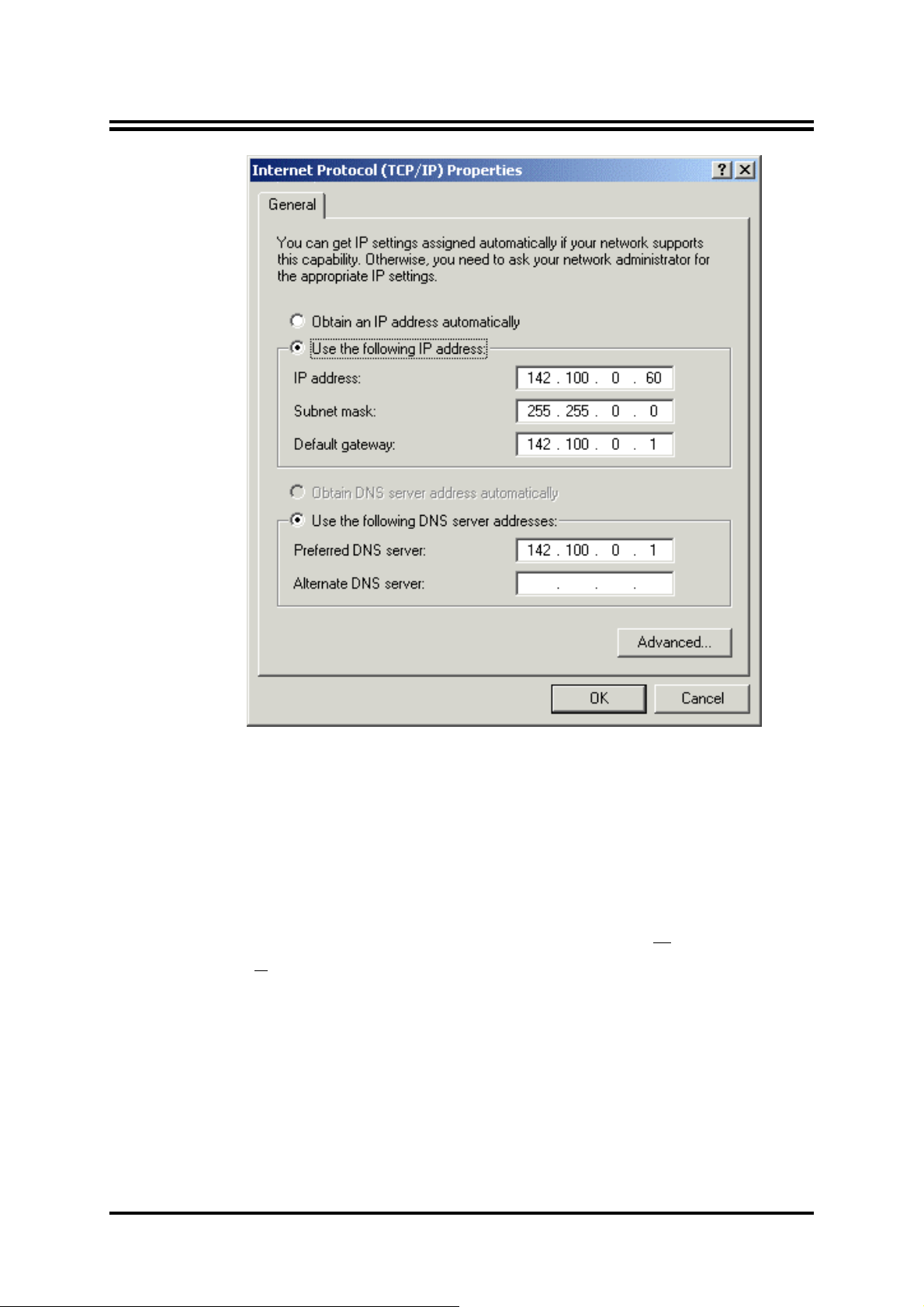

9. Select Use the following IP address, and then enter the
“IP address”, “Subnet mask”, and “Default gateway”
provided by your ISP.
Select Use the following DNS server addresses and then
enter the provided DNS server IP address.
23
I-Storm PCI ADSL modem
3.2 I-Storm PCI ADSL WAN
Adapter Configuration
1. Click ADSL Easy Dialup icon on the desktop. Then, the
following window appears. Enter the “U
assword” provided by your ISP. Let the Phone number
“P
field be blank.
sername” and
24
Chapter 3 Configuration
2. Click Connect and get ready to surf the Internet!
25
APPENDIX
Product Support
If you have any problems with the I-Storm PCI ADSL Modem,
please contact the dealer where you bought this product. If
you have any other questions you can contact the Atlantis
Land company directly at the following address:
AtlantisLand spa
Via Gandhi 5 Ing2,Scala A
20017 Mazzo di Rho(MI)
Tel: 02/93906085, 02/93907634(help desk)
Fax: 02/93906161
Email: info@atlantisland.it
WWW: http://www.atlantisland.it
or tecnici@atlantisland.it
26
Loading...
