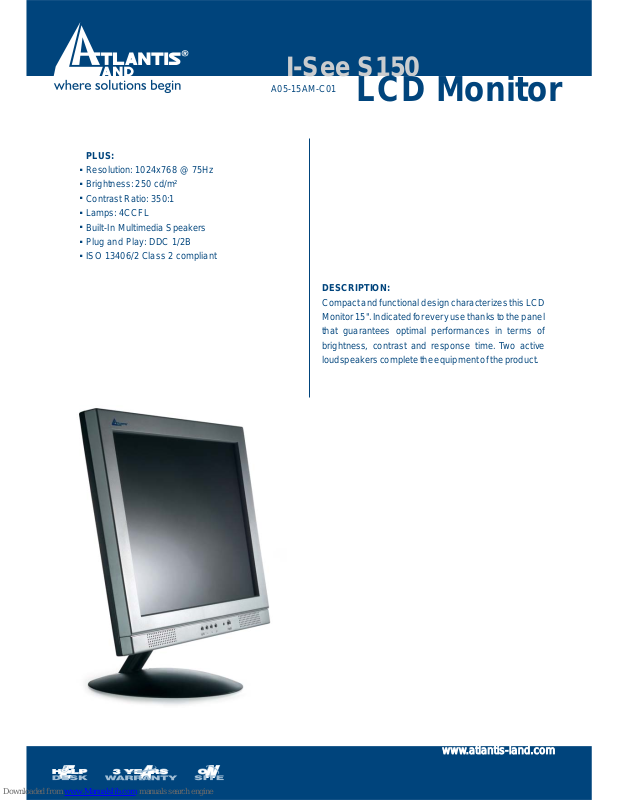

Page 1
www.atlantis-land.com
PLUS:
+
+
+
+
+
+
+
Resolution: 1024x768 @ 75Hz
Brightness: 250 cd/m²
Contrast Ratio: 350:1
Lamps: 4CCFL
Built-In Multimedia Speakers
Plug and Play:DDC 1/2B
ISO 13406/2 Class 2 compliant
DESCRIPTION:
Compactandfunctionaldesign characterizesthis LCD
Monitor15".Indicatedforeveryusethanks tothe panel
that guarantees optimal performances in terms of
brightness, contrast and response time. Two active
loudspeakerscompletethe equipmentofthe product.
A05-15AM-C01
I-See S150
LCD Monitor
Page 2
PRODUCT:I-See S150 15” LCD Monitor
:
EAN CODE: 8026974005089
MODEL NUMBER A05-15AM-C01
ATLANTIS LAND S.p.A. Viale De Gasperi, 122 - 20017 Mazzo di Rho (MI)
Tel. 02 9390.6085 - Fax 02 9390.6161 - www.atlantis-land.com - [email protected]
Society Certified ISO 9001:2000
TECHNICAL FEATURES:
Panel dimension:15”
Maximum resolution: 1024 x 768 @ 75 Hz
Lamps: 4CCFL
User interface:OSD
Plug and Play:DDC: 1/2B
Speakers:2 x 2W
Type:TFT
Viewable area:304.128 x 228.096(mm²)
Pixel Pitch:0.297 mm
Colour Supported: 16.7 M
Brightness: 250 cd/m²
Contrast ratio:350:1
Viewing angle:H:-75º/+75º,V:-70º/+70º
Response time Tr/Tf: 10/15 ms
Frequency:H: 30-60 KHz, V: 55-75 Hz
Signal: Analog
Input Connectors: 15pin D-sub
Safety:CE, FCC, UL
Energy Star: EPA, VESA, DPMS
Quality: ISO 13406-2 class 2
On Mode: 30 Watt
Sleep mode: 3 Watt
Dimension: 360 x 180 x 370 mm (HxPxW)
Weight:3,5 Kg
Monitor:
Panel:
Interface:
Regulations:
Power consumption:
Physical characteristics:
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Compact and functional design
for an high performances monitor
A complete series of buttons allow
to control all monitor settings and
functionalities
Four holes on the back of the product
allow to install the product on a wall
or use it for special applications
