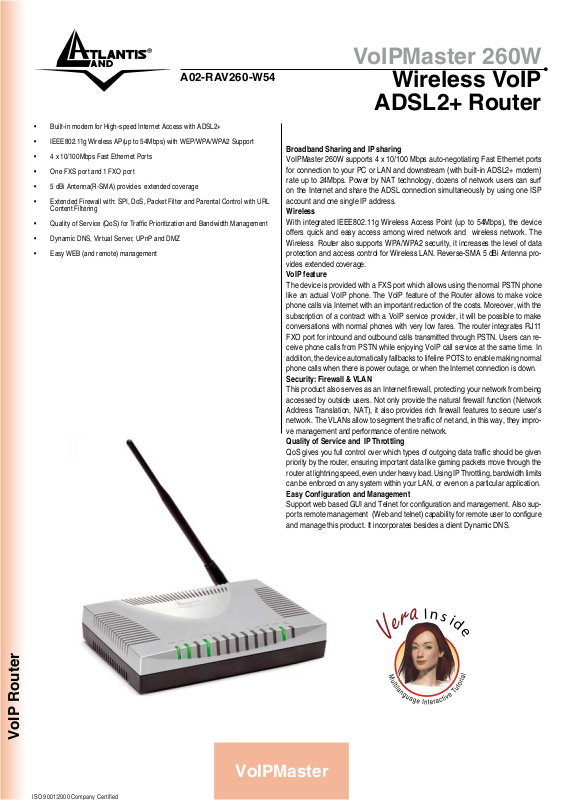

VoIPMaster 260W
A02-RAV260-W54
• Built-in modem for High-speed Internet Access with ADSL2+
• IEEE802.11g Wireless AP(up to 54Mbps) with WEP/WPA/WPA2 Support
• 4 x 10/100Mbps Fast Ethernet Ports
• One FXS port and 1 FXO port
• 5 dBi Antenna(R-SMA) provides extended coverage
• Extended Firewall with: SPI, DoS, Packet Filter and Parental Control with URL
Content Filtering
• Quality of Service (QoS) for Traffic Prioritization and Bandwidth Management
• Dynamic DNS, Virtual Server, UPnP and DMZ
• Easy WEB (and remote) management
Wireless VoIP
ADSL2+ Router
Broadband Sharing and IP sharing
VoIPMaster 260W supports 4 x 10/100 Mbps auto-negotiating Fast Ethernet ports
for connection to your PC or LAN and downstream (with built-in ADSL2+ modem)
rate up to 24Mbps. Power by NAT technology, dozens of network users can surf
on the Internet and share the ADSL connection simultaneously by using one ISP
account and one single IP address.
Wireless
With integrated IEEE802.11g Wireless Access Point (up to 54Mbps), the device
offers quick and easy access among wired network and wireless network. The
Wireless Router also supports WPA/WPA2 security, it increases the level of data
protection and access control for Wireless LAN. Reverse-SMA 5 dBi Antenna provides extended coverage.
VoIP feature
The device is provided with a FXS port which allows using the normal PSTN phone
like an actual VoIP phone. The VoIP feature of the Router allows to make voice
phone calls via Internet with an important reduction of the costs. Moreover, with the
subscription of a contract with a VoIP service provider, it will be possible to make
conversations with normal phones with very low fares. The router integrates RJ11
FXO port for inbound and outbound calls transmitted through PSTN. Users can receive phone calls from PSTN while enjoying VoIP call service at the same time. In
addition, the device automatically fallbacks to lifeline POTS to enable making normal
phone calls when there is power outage, or when the Internet connection is down.
Security: Firewall & VLAN
This product also serves as an Internet rewall, protecting your network from being
accessed by outside users. Not only provide the natural rewall function (Network
Address Translation, NAT), it also provides rich rewall features to secure user’s
network. The VLANs allow to segment the trafc of net and, in this way, they improve management and performance of entire network.
Quality of Service and IP Throttling
QoS gives you full control over which types of outgoing data trafc should be given
priority by the router, ensuring important data like gaming packets move through the
router at lightning speed, even under heavy load. Using IP Throttling, bandwidth limits
can be enforced on any system within your LAN, or even on a particular application.
Easy Configuration and Management
Support web based GUI and Telnet for conguration and management. Also supports remote management (Web and telnet) capability for remote user to congure
and manage this product. It incorporates besides a client Dynamic DNS.
TECHNICAL FEATURES
Interfaces
WAN(ADSL2+): RJ11
LAN: 4 RJ45 10/100 Base-T Ethernet
VoIP: 1FXS (RJ11) and 1 FXO (RJ11)
12 diagnostic LEDs, Factory default reset button and Power Switch
ADSL
ANSI T1.413 issue 2
ITU-T G.992.1 (G.dmt) (8Mbps download, 1Mbps upload)
G.992.2 (G.lite) (8Mbps download, 1Mbps upload)
G.994.1 (G.hs)
ADSL2
ITU G.992.3 (G.dmt.bis) [12Mbps download, 1 Mbps upload]
ADSL2+
ITU G.992.5 (G.dmt.bisplus) [24Mbps download, 1 Mbps upload]
ATM
ATM AAL2/AAL5 and ATM service class : CBR, UBR, VBR-rt, VBR,
ATM Forum UNI 3.0, 3.1 and 4.0
Wireless
Standard IEEE802.11g and IEEE802.11b
DSSS(Direct Sequence Spread Spectrum)
Modulation: QPSK / BPSK / CCK and OFDM
RF Frequency: 2.400 GHz ~2.4835GHz
Operating Channel: 13 (Europe)
Data Rate (with automatic adaptation): 802.11g (Up to 54Mbps) with Automatic Fall-Back
Coverage Area: [Outdoor <120m / Indoor <35m]
1 x 5 dBi dBi external Antenna (R-SMA)
Wi-Fi Protected Access (WPA-PSK, WPA2-PSK) and WEP 64/128 bit
VoIP
One RJ11 FXS port for connecting to regular telephones
One RJ11 FXO port for lifeline support and receiving calls from PSTN
Compliant with SIP standard (RFC3261)
Supports G.711 A/μ law and G.729A Audio Codec standards
Supports Telephony Features: call waiting, silence suppression, voice activity detection
(VAD), comfort noise generation (CNG), G.168 line echo cancellation, caller ID (Bell
202,V23)
Voice over data, QoS control to ensure higher voice quality
Adaptive jitter buffer support
Automatic fallback to lifeline POTS when the router power down or VoIP service is not
available.
Protocols
RIP1, RIP2, STATIC ROUTING,IP, ICMP, TCP, UDP, IGMP
Payload encapsulation: [RFC 2364 (PPPoA-VCMux), RFC 2516 (PPPoE-LLC), RFC
1483 Routed (LLC) and Bridge, RFC1577(IPoA)]
Security
NAT, PAP, CHAP
SPI FIREWALL:[ Rich packet lter, Content lter, URL blocking and Keywords Filtering,
Mac Filtering, Intrusion Detection: DoS attack blocking (IP Spoong, Ping of Death,
Land Attack IP with zero length, Sync ooding, Smurf Attack, Snork Attack, UDP port
loop-back, TCP NULL scan)]
System security Log, real time attack alert
VLAN (per port VLAN, ID Vlan)
L2TP/PPTP/IPSec pass-through
VoIPMaster 260W
Wireless VoIP
ADSL2+ Router
Management
Quick Installation Wizard and Auto-scan ADSL settings
Easy Web GUI (also remote), Telnet (also remote) and SNMP (V1,V2 and V3) for
conguration
Firmware upgrade from local (Web, Telnet) or remote site (Web, Telnet)
Available Syslog monitoring
Support Internet Application: Web, FTP, ICQ, Telnet, E-Mail, News, Netmeeting, MS
messenger, PCanywhere, mIRC, CuSeeme...
Quality of Service and IP Throttling
QoS: The Prioritization functions allow you to specify which packets have priority and
should not be delayed, and/or which packets have low priority and should be moved to
the end of upload queues.
IP Throttling: Using IP Throttling, bandwidth limits can be enforced on any system within
your LAN, or even on a particular application
Advanced Characteristics
UPnP, Virtual Server (port and protocol translation) and DMZ
Dynamic DNS
DNS and DNS relay
DHCP server , DHCP client, DHCP relay
Quality of Service and IP Throttling
SNMP v3, MIB-I and MIB-II support
POP3 email check
Physical and Environmental
Power Consumption: (12V ± 5%, 1A)
Dimensions/ Weight: 175mm x 125mm x 39mm / 350g
Temperature Operating:[0°C to 40°C], Storage:[-20°C to 65°C], Humidity: 5-95% (without
condensing)
Package contents
VoIPMaster 260W Wireless VoIP ADSL2+ Router
Vera (Multilanguage Interactive Tutorial)
1 x 5 dBi Antenna (R-SMA)
CDRom with online manual (English, French and Italian) and SNMP Software
Quick Start Guide (English, French, Italian, German and Spanish)
RJ11 ADSL/telephone cable, CAT5 LAN cable, Console Cable (LAN-RS232)
AC/DC power adapter (12V, 1A)
All righ ts registered
Micros oft and Windows a re registered tra demarks of Micr osoft Corporation
All trade names and m arks are registered tradem arks of respective compan ies
Speci fications are su bjected to change witho ut prior notice. No liabil ity for technical errors and/or omi ssions
The route r may require firmw are modification for cer tain ADSL2/2+/An nex M DSLAMS.
Perform ance and Throug hput are influenced by many f actors (interf erence, noise, e nvironments)
