Atlantis Land A02-RA241 User Manual
WebShare 241
ROUTER ADSL2+
A02-RA241
USER’S MANUAL
A02-RA241_ME01
Where solutions begin
Company certified ISO 9001:2000
WEBSHARE 241
Copyright
The Atlantis Land logo is a registered trademark of Atlantis Land SpA. All other names
mentioned mat be trademarks or registered trademarks of their respective owners. Subject to
change without notice. No liability for technical errors and/or omissions.
CE Mark Warning
This is a Class B product. In a domestic environment, this product may cause radio
interference, in which case the user may be required to take adequate measures.
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: To assure continued compliance, (example - use only shielded interface
cables when connecting to computer or peripheral devices) any changes or modifications not
expressly approved by the party responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause
undesired operation.
WEBSHARE 241
TABLE OF CONTENTS
CHAPTER 1............................................. 1
1.1 AN OVERVIEW OF THE WEBSHARE 241 ....................................................................................... 1
1.2 PACKAGE CONTENTS .................................................................................................................... 1
1.3 WEBSHARE 241 FEATURES.......................................................................................................... 2
1.4 WEBSHARE 241 APPLICATION...................................................................................................... 5
CHAPTER 2............................................. 6
2.1 CAUTIONS FOR USING THE WEBSHARE 241................................................................................. 6
2.2 THE FRONT LEDS ......................................................................................................................... 6
2.3 THE REAR PORTS.......................................................................................................................... 7
2.4 CABLING......................................................................................................................................... 8
CHAPTER 3........................................... 10
3.1 BEFORE CONFIGURATION ........................................................................................................... 10
3.2 CONNECTING THE WEBSHARE 241 ............................................................................................ 10
3.3 CONFIGURING PC IN WINDOWS.................................................................................................. 11
For Windows 95/98/ME.............................................................................................................. 11
For Windows NT4.0 .................................................................................................................... 13
For Windows 2000 ...................................................................................................................... 14
For Windows XP.......................................................................................................................... 16
3.4 FACTORY DEFAULT SETTINGS .................................................................................................... 18
3.4.1 Username and Password................................................................................................. 18
3.4.2 LAN and WAN Port Addresses ....................................................................................... 18
3.5 INFORMATION FROM THE ISP ...................................................................................................... 19
3.6 CONFIGURING WITH THE WEB BROWSER ................................................................................... 19
3.6.1 STATUS.............................................................................................................................. 20
3.6.1.1 ARP Table................................................................................................................... 20
3.6.1.2 Routing Table ............................................................................................................. 20
3.6.1.3 DHCP Table................................................................................................................ 21
3.6.1.4 System Log ................................................................................................................. 21
3.6.1.5 Security Log................................................................................................................ 22
3.6.2 Quick Start Guide.............................................................................................................. 23
3.6.3 CONFIGURATION............................................................................................................ 25
3.6.3.1 LAN .............................................................................................................................. 25
3.6.3.1.1 Ethernet................................................................................................................ 25
3.6.3.1.2 DHCP Server....................................................................................................... 25
3.6.3.2 WAN............................................................................................................................. 28
3.6.3.2.1 ISP ........................................................................................................................ 28
3.6.3.2.2 DNS ...................................................................................................................... 32
3.6.3.2.3 ADSL .................................................................................................................... 33
3.6.3.3 System......................................................................................................................... 34
3.6.3.3.1 Time Zone............................................................................................................ 34
3.6.3.3.2 Remote Access................................................................................................... 34
3.6.3.3.3 Firmware .............................................................................................................. 35
WEBSHARE 241
3.6.3.3.4 Backup/Restore .................................................................................................. 36
3.6.3.3.5 Restart.................................................................................................................. 37
3.6.3.3.6 User Management.............................................................................................. 37
3.6.3.4 Firewall ........................................................................................................................ 38
3.6.3.4.1 Packet Filering .................................................................................................... 38
3.6.3.4.2 MAC address Filtering ....................................................................................... 45
3.6.3.4.3 Intrusion Detection.............................................................................................. 46
3.6.3.4.4 Block Wan Request............................................................................................ 47

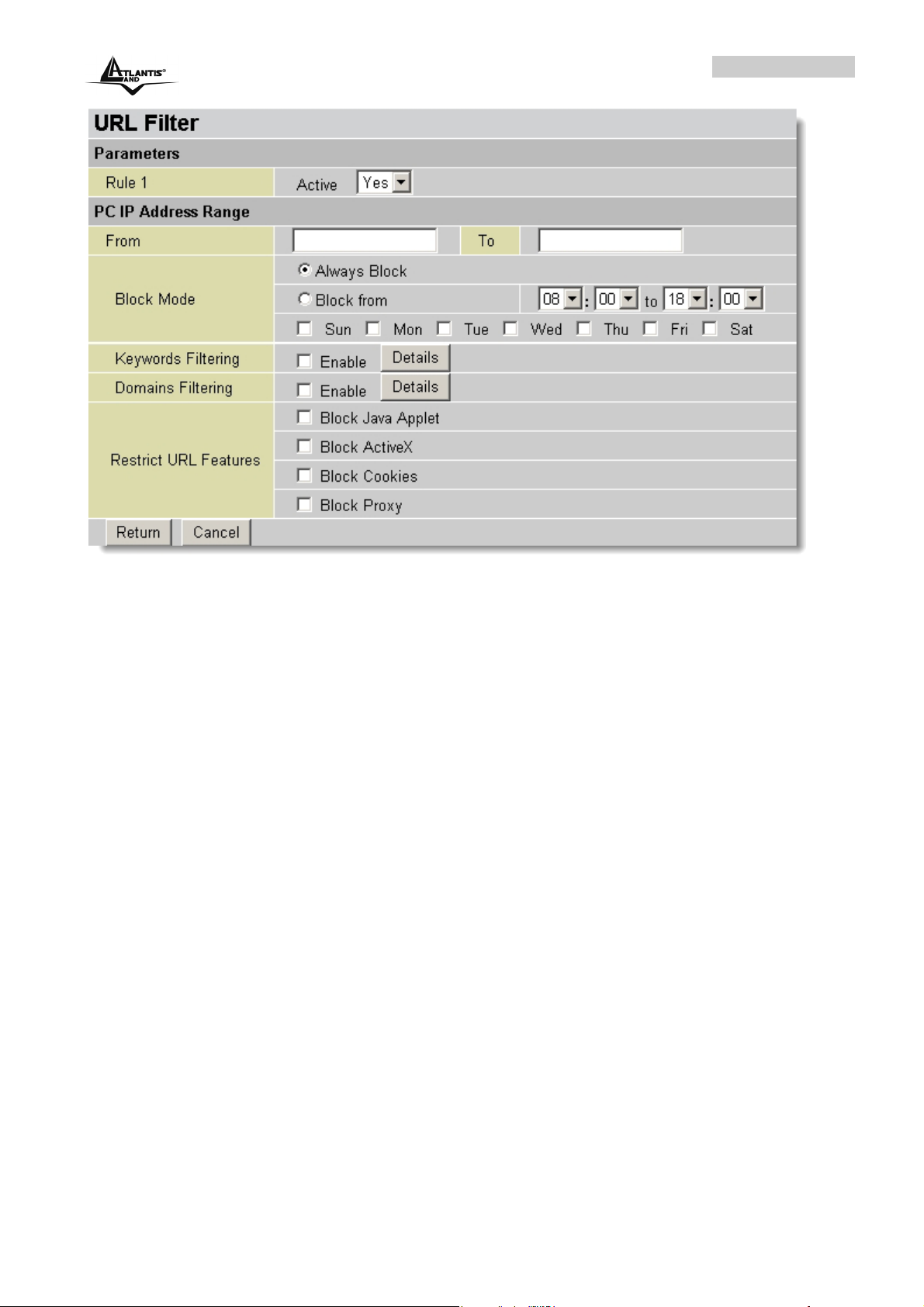

3.6.3.4.5 URL Blocking....................................................................................................... 47
3.6.3.5 QoS .............................................................................................................................. 50
3.6.3.6 Virtual Server .............................................................................................................. 62
3.6.3.7 Advanced .................................................................................................................... 64
3.6.3.7.1 Static Routed....................................................................................................... 64
3.6.3.7.2 Dynamic DNS...................................................................................................... 65
3.6.3.7.3 VLAN .................................................................................................................... 66
3.6.3.7.4 Device Management .......................................................................................... 67
3.6.3.7.5 IGMP..................................................................................................................... 69
3.6.4 SAVE Config ...................................................................................................................... 70
CHAPTER 4........................................... 71
PROBLEMS STARTING UP THE ADSL ROUTER................................................................................. 71
PROBLEMS WITH THE WAN INTERFACE ............................................................................................ 71
PROBLEMS WITH THE LAN INTERFACE ............................................................................................. 71
APPENDIX A ......................................... 73
TRAFFIC SHAPING .............................................................................................................................. 73
APPENDIX B ......................................... 74
T
ECHNICAL FEATURES ....................................................................................................................... 74
APPENDIX C ......................................... 75
FIRMWARE RECOVERY....................................................................................................................... 75
APPENDIX D ......................................... 76
SUPPORT............................................................................................................................................ 76
A02-RA241_ME01 (January 2006, V1.00)
WEBSHARE 241
Chapter 1
Introduction
1.1 An Overview of the WebShare 241
Broadband Sharing and IP sharing
The WebShare 241 supports 4 x 10/100 Mbps auto-negotiating Fast Ethernet ports for
connection to your PC or LAN and downstream (with built-in ADSL2+ modem) rate up to
24Mbps. Power by NAT technology, dozens of network users can surf on the Internet and
share the ADSL connection simultaneously by using one ISP account and one single IP
address.
Security: Firewall & VLAN
This product also serves as an Internet firewall, protecting your network from being accessed
by outside users. Not only provide the natural firewall function (Network Address Translation,
NAT), it also provides rich firewall features to secure user's network.
The VLANs allow to segment the traffic of net and, in this way, they improve management
and performance of entire network.
Quality of Service and IP Throttling
QoS gives you full control over which types of outgoing data traffic should be given priority by
the router, ensuring important data like gaming packets move through the router at lightning
speed, even under heavy load.
Using IP Throttling, bandwidth limits can be enforced on any system within your LAN, or even
on a particular application.
Easy Configuration and Management
Support web based GUI and Telnet for configuration and management. Also supports remote
management (Web and telnet) capability for remote user to configure and manage this
product. It incorporates besides a client Dynamic DNS.
1.2 Package Contents
• WebShare 241 Router ADSL2+
• Vera (Multilanguage Interactive Tutorial)
• One CD-Rom containing the online manual
• One Quick Start Guide
• One RJ-11 ADSL/telephone cable
• One CAT-5 LAN cable
• One AC-DC power adapter (12VDC, 1A)
1
WEBSHARE 241
If any of the above items are missing, please contact your reseller.
1.3 WebShare 241 Features
ADSL Router2+ provides the following features:
• ADSL Multi-Mode Standard: Supports downstream transmission rates of up to
8Mbps, the router is capable of up to 12/24 Mbps with ADSL2/2+, and upstream
transmission rates of up to 1024Kbps. It also supports rate management that allows
ADSL subscribers to select an Internet access speed suiting their needs and budgets.
It is compliant with Multi-Mode standard (ANSI T1.413, Issue 2; G.dmt (G.992.1);
G.lite (G992.2); G.hs(G994.1); G.dmt.bis(ITU G.992.3); Gdmt.bisplus(ITU G.992.5)].
• Fast Ethernet Switch: A 4-port 10/100Mbps fast Ethernet switch is supported in the
LAN site and automatic switching between MDI and MDI-X for 10Base-T and
100Base-TX ports is supported. An Ethernet straight or cross-over cable can be used
directly, this fast Ethernet switch will detect it automatically.
• Multi-Protocol to Establish A Connection: Supports PPPoA (RFC 2364 - PPP over
ATM Adaptation Layer 5), RFC 1483 encapsulation over ATM (bridged or routed),
PPP over Ethernet (RFC 2516), and IPoA (RFC1577) to establish a connection with
the ISP. The product also supports VC-based and LLC-based multiplexing.
• Quick Installation Wizard: Supports a WEB GUI page to install this device quickly.
With this wizard, an end user can enter the information easily which they from the ISP,
then surf the Internet immediately.
• Universal Plug and Play (UPnP) and UPnP NAT Traversal: This protocol is used to
enable simple and robust connectivity among stand-alone devices and PCs from
many different vendors. It makes network simple and affordable for users. UPnP
architecture leverages TCP/IP and the Web to enable seamless proximity networking
in addition to control and data transfer among networked devices.
• Network Address Translation (NAT): Allows multi-users to access outside resource
such as Internet simultaneously with one IP address/one Internet access account.
Besides, many application layer gateway (ALG) are supported such as web browser,
ICQ, FTP, Telnet, E-mail, News, Net2phone, Ping, NetMeeting and others.
• Firewall: Supports SOHO firewall with NAT technology. Automatically detects and
blocks the Denial of Service (DoS) attack. The URL-blocking, packet filtering are also
supported. The hacker’s attack will be recorded associated with timestamp in the
security logging area. More firewall features will be added continually, please visit our
web site to download latest firmware.
• VLAN: A VLAN is a group of end-stations that are not constrained by their physical
location and can communicate as if a common broadcast domain, a LAN. The primary
utility of using VLAN is to reduce latency and need for routers, using faster switching
instead. Other VLAN utility includes:
2
WEBSHARE 241
• Security, Security is increased with the reduction of opportunity in
eavesdropping on a broadcast network because data will be switched to
only those confidential users within the VLAN.
• Cost Reduction, VLANs can be used to create multiple broadcast domains,
thus eliminating the need of expensive routers.
• Port-based (or port-group) VLAN is the common method of implementing a
VLAN, and is the one supplied in the Switch.
• QoS: QoS gives you full control over which types of outgoing data traffic should be
given priority by the Router, ensuring important data like gaming packets move
through the Router at lightning speed, even under heavy load. The QoS features are
configurable by source IP address, destination IP address, protocol, and port. You can
throttle the speed at which different types of outgoing data pass through the router, to
ensure P2P users don’t saturate upload bandwidth, or office browsing doesn’t bring
client web serving to a halt. In addition, or alternatively, you can simply change the
priority of different types of upload data and let the router sort out the actual speeds.
• Domain Name System (DNS) relay: provides an easy way to map the domain name
(a friendly name for users such as www.yahoo.com) and IP address. When a local
machine sets its DNS server with this router’s IP address, then every DNS conversion
requests packet from the PC to this router will be forwarded to the real DNS in the
outside network. After the router gets the reply, then forwards it back to the PC.
• Dynamic Domain Name System (DDNS): The Dynamic DNS service allows you to
alias a dynamic IP address to a static hostname. This dynamic IP address is the WAN
IP address. For example, to use the service, you must first apply an account from this
free Web server http://www.dyndns.org/. There are more than 5 DDNS servers
supported.
• PPP over Ethernet (PPPoE): Provide embedded PPPoE client function to establish a
connection. Users can get greater access speed without changing the operation
concept, sharing the same ISP account and paying for one access account. No
PPPoE client software is required for the local computer. The Always ON, Dial On
Demand and auto disconnection (Idle Timer) functions are provided too.
• Virtual Server: Users can specify some services to be visible from outside users. The
router can detect incoming service request and forward it to the specific local
computer to handle it. For example, users can assign a PC in a LAN acting as a WEB
server inside and expose it to the outside network. Outside users can browse an
inside web server directly while it is protected by NAT. A DMZ host setting is also
provided to a local computer exposed to the outside network, Internet
• Rich Packet Filtering: Not only filters the packet based on IP address, but also based
on Port numbers. It also provides a higher-level security control.
• Dynamic Host Control Protocol (DHCP) client and server: In the WAN site, the
DHCP client can get an IP address from the Internet Server Provider (ISP)
automatically. In the LAN site, the DHCP server can allocate up to 253 client IP
addresses and distribute them including IP address, subnet mask as well as DNS IP
address to local computers. It provides an easy way to manage the local IP network.
3
WEBSHARE 241
• Static and RIP1/2 Routing: Supports an easy static table or RIP1/2 routing protocol
to support routing capability.
• SNTP: An easy way to get the network real time information from an SNTP server.
• SNMP: SNMP is an application layer protocol that is used for managing networks
(V1,V2 and V3)
• Web based GUI: supports web based GUI for configuration and management. It is
user-friendly with an on-line help, providing necessary information and assist user
timing. It also supports remote management capability for remote users to configure
and manage this product.
• Firmware Upgradeable: the device can be upgraded to the latest firmware through
the WEB based GUI.
• Rich management interfaces: Supports flexible management interfaces with local
console port, LAN port, and WAN port. Users can use terminal application through
console port to configure and manage the device, or Telnet, WEB GUI, and SNMP
through LAN or WAN ports to configure and manage a device.
4
WEBSHARE 241
1.4 WebShare 241 Application
5
WEBSHARE 241
Chapter 2
Using WebShare 241
2.1 Cautions for using the WebShare 241
Do not place the WebShare 241 under high humidity and high temperature.
Do not use the same power source for WebShare 241 with other equipment.
Do not open or repair the case yourself. If the WebShare 241 is too hot, turn
off the power immediately and have a qualified serviceman repair it.
Avoid using this product and all accessories outdoors.
Place the WebShare 241 on a stable surface.
Only use the power adapter that comes with the package.
Do NOT upgrade firmware on any Atlantis Land product over a wireless
connection.
Failure of the device may result. Use only hard-wired network connections.
2.2 The Front LEDs
6
WEBSHARE 241
LED Meaning
PWR
SYS
LAN
ADSL
PPP
Lights when power ON.
Lights when system is ready.
Lights when connected to Ethernet device:
• Green for 100Mbps; Orange for 10Mbps
• Blinking when data transmit/received.
Lights when successfully connected to an ADSL DSLAM.
Steady glow when there is a PPPoA / PPPoE connection.
2.3 The Rear Ports
ADSL
LAN
RESET
PWR
PORT Meaning
Connect the supplied RJ-11 cable to this
port when connecting to the
ADSL/telephone network.
Connect an UTP Ethernet cable to one of
the four LAN ports when connecting to a
PC or an office/home network of 10Mbps
or 100Mbps.
Recovery procedures for a lost web
interface password:
After turning the router on press the
Emergency/Failure Recovery Button on
the back of the modem, and hold the
button in until all lights on the modem flash
and it reboots with factory default settings.
The login will be reset to admin and the
password will be reset to atlantis, and the
modem will be accessible via its default IP
address at http://192.168.1.254/
This is used when you can not login to the
router, e.g. forgot the password)
Connect the supplied power adapter to this
7
WEBSHARE 241
jack.
2.4 Cabling
The most common problem is bad cabling or ADSL line. Make sure that all connected
devices are turned on. On the front of the product is a bank of LEDs. As a first check, verify
that the LAN Link, ADSL , PWR, SYS LEDs are lit. If they are not, verify that you are using
the proper cables.
Ensure that all other devices connected to the same telephone line as your router (e.g.
telephones, fax machines, analog modems) have a line filter (A01-AF2) connected between
them and the wall socket (unless you are using a Central Splitter or Central Filter installed by
a qualified and licensed electrician), and ensure that all line filters are correctly installed and
the right way around.
Missing line filters or line filters installed the wrong way around can
cause problems with your ADSL connection, including frequent
disconnections.
8
WEBSHARE 241
9
WEBSHARE 241
Chapter 3
Configuration
The WebShare 241 can be configured with your Web browser. The web browser is included
as a standard application in the following operation systems, UNIX, Linux, Mac OS, Windows
95/98/NT/2000/Me, and etc. The product provides a very easy and user-friendly interface for
configuration.
3.1 Before Configuration
This section describes the configuration required by LAN-attached PCs that communicate
with the WebShare 241, either to configure the device or for network access. These PCs
must have an Ethernet interface installed properly, be connected to the Router either directly
or through an external repeater hub, and have TCP/IP installed and configured to obtain an
IP address through a DHCP server or a fixed IP address that must be in the same subnet of
the ADSL Firewall Router. The default IP address of the WebShare 241 is 192.168.1.254 and
subnet mask is 255.255.255.0. The best and easy way is to configure the PC to get an IP
address from the WebShare 241. Also make sure you have UNINSTALLED any kind of
software firewall that can cause problems while accessing the 192.168.1.254 IP address of
the router.
Please follow the steps below for PC’s network environment installation. First of all, please
check your PC’s network components. The TCP/IP protocol stack and Ethernet network
adapter must be installed. If not, please refer to MS Windows related manuals.
Any TCP/IP capable workstation can be used to communicate with or
through the WebShare 241. To configure other types of workstations,
please consult the manufacturer’s documentation.
3.2 Connecting the WebShare 241
• Connect the WebShare 241 to a LAN (Local Area Network) and the ADSL/telephone
network.
• Power on the device
• Make sure the PWR is lit steady & LAN/ADSL LED is lit.
• Before taking the next step, make sure you have uninstalled any software firewall.
10
WEBSHARE 241
3.3 Configuring PC in Windows
For Windows 95/98/ME
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and choose the Configuration tab.
2. Select TCP / IP -> NE2000 Compatible, or the name of any Network Interface Card
(NIC) in your PC.
3. Click Properties.
4. Select the IP Address tab. In this page, click the Obtain an IP address
automatically radio button.
11
WEBSHARE 241
5. Then select the DNS Configuration tab.
6. Select the Disable DNS radio button and click “OK” to finish the configuration.
12
WEBSHARE 241
For Windows NT4.0
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and choose the Protocols tab.
2. Select TCP/IP Protocol and click Properties.
3. Select the Obtain an IP address from a DHCP server radio button and click
“OK”.
13
WEBSHARE 241
For Windows 2000
1. Go to Start / Settings / Control Panel. In the Control Panel, double-click on
Network and Dial-up Connections.
2. Double-click LAN Area Connection.
3. In the LAN Area Connection Status window, click Properties.
14
WEBSHARE 241
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server
address automatically radio buttons.
6. Click “OK” to finish the configuration.
15
WEBSHARE 241
For Windows XP
1. Go to Start / Control Panel (in Classic View). In the Control Panel, double-click on
Network Connections.
2. Double-click Local Area Connection
3. In the LAN Area Connection Status window, click Properties.
16
WEBSHARE 241
4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server
address automatically radio buttons
6. Click “OK” to finish the configuration.
17
WEBSHARE 241
3.4 Factory Default Settings
Before configurating this WebShare 241, you need to know the following default settings.
• Username: admin
• Password : atlantis
• IP Address : 192.168.1.254
• Subnet Mask : 255.255.255.0
• DHCP server is enabled.
3.4.1 Username and Password
The default username and password are admin and atlantis respectively.
If you ever forget the password to log in, you may press the RESET button to
restore the factory default settings. After turning the router on press the
Emergency/Failure Recovery Button on the back of the modem, and hold the
button in until all lights on the modem flash and it reboots with factory default
settings (approximately 10 seconds). The login will be reset to admin and the
password will be reset to admin, and the modem will be accessible via its
default IP address at http://192.168.1.254/
3.4.2 LAN and WAN Port Addresses
The parameters of LAN and WAN ports are pre-set in the factory. The default values are
shown below.
18
WEBSHARE 241
LAN Port
IP address
Subnet Mask
DHCP server
function
192.168.1.254
255.255.255.0
Enabled
WAN Port
N/A
3.5 Information from the ISP
Before configuring this device, you have to check with your ISP (Internet Service Provider)
what kind of service is provided such as PPPoE, PPPoA, RFC1483, IpoA.
Gather the information as illustrated in the following table and keep it for reference.
PPPoE
PPPoA
VPI/VCI, VC-based/LLC-based multiplexing, Username,
Password, Service Name, and Domain Name System
(DNS) IP address (it can be automatically assigned from
ISP or be set fixed).
VPI/VCI, VC-based/LLC-based multiplexing, Username,
Password, and Domain Name System (DNS) IP
address (it can be automatically assigned from ISP or
be set fixed).
RFC1483 Bridged
RFC1483 Routed
IPoA
VPI/VCI, VC-based/LLC-based multiplexing and configure
this product into BRIDGE Mode.
VPI/VCI, VC-based/LLC-based multiplexing, IP address,
Subnet mask, Gateway address, and Domain Name
System (DNS) IP address (it is fixed IP address).
VPI/VCI, IP address, Subnet mask, Gateway address,
and Domain Name System (DNS) IP address (it is fixed
IP address).
3.6 Configuring with the Web Browser
Open the web browser, enter the local port IP address of this WebShare 241, which defaults
at http://192.168.1.254, and click “Go”, a username and password window will appear. The
default username & password are admin & atlantis, in respectively
19
Loading...
