Atlantis NetCamera 500, NetCamera 501NVW Quick Start Manual

ITALIANO
Questo prodotto è coperto da garanzia Atlantis della durata di 2 anni. Per maggiori dettagli in merito o per accedere alla documentazione completa in Italiano fare riferimento al sito www.atlantis-land.com.
This product is covered by Atlantis 2 years warranty. For more detailed informations please refer to the web site www.atlantis-land.com. For more detailed instructions on configuring and using this device, please refer to the online manual.
FRANCAIS
Ce produit est couvert par une garantie Atlantis de 2 ans. Pour des informations plus détaillées, référez-vous svp au site Web www.atlantis-land.com.
DEUTSCH
Dieses Produkt ist durch die Atlantis 2 Jahre Garantie gedeckt. Für weitere Informationen, beziehen Sie sich bitte auf Web Site www.atlantis-land.com.
ESPAÑOL
Este producto esta cubierto por Atlantis con una garantía de 2 años. Para mayor información diríjase a nuestro sitio Web www.atlantis-land.com.
2
ITALIANO
1. PANORAMICA DI PRODOTTO ............................................................ 10
1.1 Requisiti di sistema .................................................................... 11
1.2 CONTENUTO DELLA CONFEZIONE .............................................. 11
1.3 Vista frontale ............................................................................. 12
1.4 Le porte posteriori ..................................................................... 13
1.5 Cablaggio .................................................................................. 14
1.6 Settaggi di Default ..................................................................... 15
1.7 Collegamento al prodotto attraverso Intelligent IP Installer .......... 16
1.8 Supporto .................................................................................. 17
ENGLISH
1. Product Overview ............................................................................. 22
1.1 System Requirements ................................................................ 23
1.2 Package contents ....................................................................... 23
1.3 Physical Overview ...................................................................... 24
1.4 Rear Port .................................................................................. 25
1.5 Cabling ...................................................................... 26
1.6 Factory Default Settings ............................................................. 28
1.7 Intelligent IP Installer ................................................................ 28
1.8 Support ........................................................................... 29
APPENDIX
APPENDIX A: Technical Features ........................................................... 30
A02-IPCAM5(6)(v1.5)_GX01 (July 2010)
3
AVVERTENZE Abbiamo fatto di tutto al fine di evitare che nel testo, nelle immagini e nelle tabelle presenti in questo manuale, nel software e nell'hardware fossero presenti degli errori. Tuttavia, non possiamo garantire che non siano presenti errori e/o omissioni. Infine, non possiamo essere ritenuti responsabili per qualsiasi perdita, danno o incomprensione compiuti direttamente o indirettamente, come risulta dall'utilizzo del manuale, software e/o hardware. Il contenuto di questo manuale è fornito esclusivamente per uso informale, è soggetto a cambiamenti senza preavviso (a tal fine si invita a consultare il sito
www.atlantisland.it o www.atlantis-land.com per reperirne gli aggiornamenti) e non
deve essere interpretato come un impegno da parte di Atlantis che non si assume responsabilità per qualsiasi errore o inesattezza che possa apparire in questo manuale. Nessuna parte di questa pubblicazione può essere riprodotta o trasmessa in altra forma o con qualsiasi mezzo, elettronicamente o meccanicamente, comprese fotocopie, riproduzioni, o registrazioni in un sistema di salvataggio, oppure tradotti in altra lingua e in altra forma senza un espresso permesso scritto da parte di Atlantis. Tutti i nomi di produttori e dei prodotti e qualsiasi marchio, registrato o meno, menzionati in questo manuale sono usati al solo scopo identificativo e rimangono proprietà esclusiva dei loro rispettivi proprietari.
Restrizioni di responsabilità CE/EMC
Il prodotto descritto in questa guida è stato progettato, prodotto e approvato in conformità alle regole EMC ed è stato certificato per non avere limitazioni EMC. Se il prodotto fosse utilizzato con un PC/apparati non certificati, il produttore non garantisce il rispetto dei limiti EMC. Il prodotto descritto è stato costruito, prodotto e certificato in modo che i valori misurati rientrino nelle limitazioni EMC. In pratica, ed in particolari circostanze, potrebbe essere possibile che detti limiti possano essere superati se utilizzato con apparecchiature non prodotte nel rispetto della certificazione EMC. Può anche essere possibile, in alcuni casi, che i picchi di valore
siano al di fuori delle tolleranze. In questo caso l’utilizzatore è responsabile della “compliance” con i limiti EMC. Il Produttore non è da ritenersi responsabile nel caso
il prodotto sia utilizzato al di fuori delle limitazioni EMC.
CE Mark Warning
In un ambiente domestico il dispositivo può causare interferenze radio, in questo caso è opportuno prendere le adeguate contromisure.
Dichiarazione di Conformità
Questo dispositivo è stato testato ed è risultato conforme alla direttiva 1999/5/CE del parlamento Europeo e della Commissione Europea, a proposito di apparecchiature radio e periferiche per telecomunicazioni e loro mutuo
4
Luogo
Banda di Frequenze(MHz)
Potenza (EIRP)
Chiuso (senza restrizioni)
2400-2483,5
100mW(20dBm)
Aperto
2400-2454 2454-2483,5
100mW(20dBm) 10mW(10dBm)
riconoscimento. Dopo l’installazione, la periferica è stata trovata conforme ai seguenti standard: EN 300.328(V1.6.1)(radio), EN 301 489-1(V1.5.1), EN 301 489­17(V1.2.1) (compatibilità elettromagnetica) ed EN 60950-1(sicurezza). Questa apparecchiatura può pertanto essere utilizzata in tutti i paesi della Comunità Economica Europea ed in tutti i paesi dove viene applicata la Direttiva 1999/5/CE, senza restrizioni eccezion fatta per:
Francia(FR):
(potenza e frequenza) in base alla tabella allegata. Per informazioni ulteriori consultare
Se l’uso di questa apparecchiatura in ambienti domestichi genera interferenze, è obbligo dell’utente porre rimedio a tale situazione.
Italia(IT):
i requisiti sull’Assegnazione delle Frequenze. L’utilizzo di questa apparecchiatura al di fuori di ambienti in cui opera il proprietario, richiede un’autorizzazione generale.
Per ulteriori informazioni si prega di consultare:
Lussemburgo:
l’autorizzazione.
Norvegia (NO):
di raggio nei pressi di Ny Alesund.
Russia (CCP):
Se si utilizza all’aperto tale dispositivo, la potenza in uscita è limitata
www.art-telecom.fr.
Questa periferica è conforme con l’Interfaccia Radio Nazionale e rispetta
www.comunicazioni.it.
Se utilizzato per servizi network o privati è da richiedere
apparecchiatura da non utilizzare in un aresa geografica di 20 km
solo per uso interno.
Dichiarazione di Conformità Sintetica
Con la presente dichiariamo che questo apparato (A02-IPCAM6) è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttive 1999/5/CE. La dichiarazione di conformità nella sua forma completa è disponibile presso il sito www.atlantis-land.com (alla pagina del prodotto) o può essere richiesta a info@atlantis-land.com.
5
Dichiarazione di Conformità ( )
Con la presente Atlantis SpA dichiara che questo apparato (A02-IPCAM5) è risultato conforme alla direttiva sulla bassa tensione (2006/95/EC) ed alla Direttiva sulla
Comnpatibilità Elettromagnetica (2004/108/EEC) dell’Unione Europea. La
dichiarazione di conformità nella sua forma completa è disponibile presso il sito www.atlantis-land.com (alla pagina del prodotto) o può essere richiesta a info@atlantis-land.com.
riciclaggio/smaltimento di questa apparecchiatura
Importanti informazioni per il corretto
Il simbolo qui sotto indicato, riportato sull'apparecchiatura elettronica da Lei acquistata e/o sulla sua confezione, indica che questa apparecchiatura elettronica non potrà essere smaltita come un rifiuto qualunque ma dovrà essere oggetto di raccolta separata. Infatti i rifiuti di apparecchiatura elettroniche ed elettroniche devono essere sottoposti ad uno specifico trattamento, indispensabile per evitare la dispersione degli inquinanti contenuti all''interno delle apparecchiature stesse, a tutela dell'ambiente e della salute umana. Inoltre sarà possibile riutilizzare/riciclare parte dei materiali di cui i rifiuti di apparecchiature elettriche ed elettroniche sono composti, riducendo così l'utilizzo di risorse naturali nonché la quantità di rifiuti da smaltire. Atlantis, in qualità di produttore di questa apparecchiatura, è impegnato nel finanziamento e nella gestione di attività di trattamento e recupero dei rifiuti di apparecchiature elettriche ed elettroniche compatibili con l'ambiente e con la salute umana. E' Sua responsabilità, come utilizzatore di questa apparecchiatura elettronica, provvedere al conferimento della stessa al centro di raccolta di rifiuti di apparecchiature elettriche ed elettroniche predisposto dal Suo Comune. Per maggiori informazioni sul centro di raccolta a Lei più vicino, La invitiamo a contattare i competenti uffici del Suo Comune. Qualora invece avesse deciso di acquistare una nuova apparecchiata elettronica di tipo equivalente e destinata a svolgere le stesse funzioni di quella da smaltire, potrà
6
portare la vecchia apparecchiatura al distributore presso cui acquista la nuova. Il distributore sarà tenuto ritirare gratuitamente la vecchia apparecchiatura1. Si tenga presente che l'abbandono ed il deposito incontrollato di rifiuti sono puniti
con sanzione amministrativa pecuniaria da € 103 a € 619, salvo che il fatto
costituisca più grave reato. Se l'abbandono riguarda rifiuti non pericolosi od ingombranti si applica la sanzione amministrativa pecuniaria da € 25 a € 154.
Il suo contributo nella raccolta differenziata dei rifiuti di apparecchiature elettriche ed elettroniche è essenziale per il raggiungimento di tutela della salute umana connessi al corretto smaltimento e recupero delle apparecchiature stesse.
1 Il distributore non sarà tenuto a ritirare l'apparecchiatura elettronica qualora vi sia un rischio di contaminazione del personale incaricati o qualora risulti evidente che l'apparecchiatura in questione non contiene i suoi componenti essenziali o contiene rifiuti diversi da apparecchiature elettriche e/o elettroniche.
NB: le informazioni sopra riportate sono redatte in conformità alla Direttiva 2002/96/CE ed al D.
nonché particolari modalità di trattamento e smaltimento dei rifiuti di apparecchiature elettriche ed elettroniche (RAEE). Per ulteriori informazioni in materia, la invitiamo a consultare il nostro sito www.atlantis-land.com
AVVERTENZE Utilizzare esclusivamente l’antenna fornita a corredo. Antenne diverse e/o con
guadagno differente potrebbero violare le normative vigenti. Atlantis si intende sollevata da ogni responsabilità in caso di utilizzo di accessori (antenne e/o alimentatori) non contenuti nell’imballo.
Lasciare almeno 30cm di distanza tra l’antenna del dispositivo e l’utilizzatore. Non usare il dispositivo in un luogo in cui ci siano condizioni di alte
temperatura ed umidità, il dispositivo potrebbe funzionare in maniera impropria e danneggiarsi.
Non usare la stessa presa di corrente per connettere altri apparecchi al di fuori
del dispositivo in oggetto
Non aprire mai il case del dispositivo né cercare di ripararlo da soli. Se il dispositivo dovesse essere troppo caldo, spegnerlo immediatamente e
rivolgersi a personale qualificato.
Non appoggiare il dispositivo su superfici plastiche o in legno che potrebbero
non favorire lo smaltimento termico.
Mettere il dispositivo su una superficie piana e stabile Usare esclusivamente l’alimentatore fornito nella confezione, l’uso di altri
alimentatori farà automaticamente decadere la garanzia.
7
Tutte le condizioni di utilizzo, avvertenze e clausole contenute in questo manuale e nella garanzia si intendono note ed accettate. Si prega di restituire immediatamente
(entro 7 giorni dall’acquisto) il prodotto qualora queste non
siano accettate.
La marcatura CE con il simbolo di attention Mark (
) poste sull’etichetta di prodotto potrebbero
non rispettare le dimensioni minime stabilite dalla normativa a causa delle ridotte dimensioni di quest’ultima.
Atlantis invita a visitare il sito web www.atlantis-land.com alla relativa pagina di prodotto per reperire manualistica e contenuti tecnici (aggiornamenti driver e/o funzionalità, utility, support note) aggiornati.
Il logo WEEE ( ) posto sull’etichetta di prodotto potrebbe non rispettare le dimensioni minime stabilite dalla normativa a causa delle ridotte dimensioni di quest’ultima.
Per usufruire delle condizioni di garanzia migliorative associate al prodotto (Fast Swap, On Site e On Center) è opportuno provvedere alla registrazione dello stesso sul sito www.atlantis­land.com entro e non oltre 15 giorni dalla data di acquisto. La mancata registrazione entro il termine
Non effettuare upgrade del firmare utilizzando apparati/client wireless ma
solo wired. Questo potrebbe danneggiare il dispositivo ed invalidare la garanzia.
Usare il prodotto solo in ambienti INDOOR.
8
di sopra farà si che il prodotto sia coperto esclusivamente dalla condizioni standard di garanzia.
9
La ringraziamo per aver scelto un apparato della famiglia NetCamera, la via più semplice per la videosorveglianza Questo documento è inteso come una guida rapida, pertanto per ulteriori dettagli sulla configurazione fare riferimento al manuale esteso contenuto nel CD.

1. PANORAMICA DI PRODOTTO

NetCamera rappresenta la soluzione ideale per inviare video, per la videosorveglianza remota o la trasmissione di immagini/video in tempo reale su LAN, Internet o rete cellulare (Mobile Phone 3GPP Live Video). NetCamera è dotata di una potente CPU, basata su un sistema operativo indipendente, che la rende un sistema completamente autonomo capace di generare video MJPEG/MPEG4 (con 30 fps costanti anche in VGA) e gestire la rilevazione automatica del movimento su 3 differenti zone (con invio automatico di mail con allegati e/o l’upload di immagini tramite il client FTP integrato).
Il sensore CMOS, capace di funzionare anche con bassa luminosità d’ambiente (il
modello NetCamera 501NVW integra 5 LED per funzionamento anche con 0 lux), fornisce video chiari e nitidi con colori reali in ogni situazione. Completano la dotazione uno zoom hardware 10X digitale (per avere dettaglio nei primi piani) e l’integrazione di un microfono per la cattura di rumori. NetCamera può essere collegata, tramite il cavo di rete, direttamente alla LAN ed essere gestita e controllata anche da remoto, in maniera semplice ed intuitiva, tramite un PC o portatile collegato in Internet (o Intranet) utilizzando un qualsiasi browser web in qualunque momento e luogo. Queste caratteristiche la rendono lo strumento ideale per il monitoraggio/videosorveglianza remoti.
Software di registrazione sino a 16 canali e Windows Live MSN
Il software a corredo inoltre permette di gestire sino a 16 NetCamera schedulandone la registrazione continua o su motion detection. Il supporto integrato a Windows Live MSN infine permette di chiamare remotamente, dal proprio Windows Live Messanger, NetCamera è di ricevere direttamente il flusso video da questa generato.
NetCamera 501NVW
NetCamera 501NVW può essere collegata, tramite il cavo di rete, direttamente alla LAN o utilizzare l'interfaccia wireless in standard IEEE802.11g con supporto dei più elevati standard di sicurezza.
10
L’utilizzo di dispositivi in grado di catturare immagini, video o
voce potrebbero essere regolamentati o completamente proibiti in talune giurisdizioni. Potrebbe essere richiesta un’autorizzazione. Atlantis SpA non garantisce in alcun modo che i propri prodotti siano utilizzati in conformità con le leggi locali ed inoltre non può essere ritenuta responsabile per un uso improprio di tali dispositivi.
E’ opportuno inoltre segnalare chiaramente la presenza di
dispositivi capaci di catturare immagini, video o voce. Si ricorda infine di rispettare attentamente la legislazioni vigente riguardante le modalità di conservazione dei contenuti video ripresi.

1.1 Requisiti di sistema

Prima di procedere con l’installazione del prodotto verificare di disporre dei seguenti
requisiti:
Protocollo TCP/IP installato in ogni PC Un browser WEB quali Internet Explorer 6.0 o superiore (Active X), Netscape
Navigator 6.0 o superiore (solo per gestione)
Pentium 4 1800MHz (o equivalente) con 512MB Scheda Grafica con almeno 64 MB RAM graphic cards(o scheda on-borad
equivalente)
Windows 2000, 2003, XP, Vista, 7 oppure Mac OS X Leopard

1.2 CONTENUTO DELLA CONFEZIONE

Prima dell’utilizzo, verificare che la scatola contenga i seguenti elementi:
NetCamera 500 oppure 501NVW Alimentatore AC-DC (5V@1A) Cavo di rete CAT-5 e un’antenna da 2 dBi (solo nel modello 501NVW) Staffa di montaggio con 3 viti per il fissaggio a muro Una guida rapida multilingua (Italiano ed Inglese) Cd-Rom contenente manualistica multilingua (Italiano ed Inglese), utility per
configurazione e software di Registrazione sino a 16 canali.
Coupon di Garanzia
Nel caso in cui il contenuto non sia quello sovradescritto, contattare il proprio rivenditore immediatamente.
11
LED
SIGNIFICATO
Focus Adjustement
Ring
Ruotandolo è possibile controllare la messa a fuoco ed ottenere così immahgini nitide.
NetWork LED
Acceso Fisso quando la connessione attiva. Lampeggiante quando vi è trasmissione/ricezione.
Power LED
Acceso quando connesso alla rete elettrica.
Microphone
Microfono per catturare il rumore d’ambiente.
Nel solo modello NetCamera 501NVW sono presenti 5 LED (5 φ LEDs x 5) per permettere riprese anche in condizioni di scarsa luminosità (sino a qualche metro).

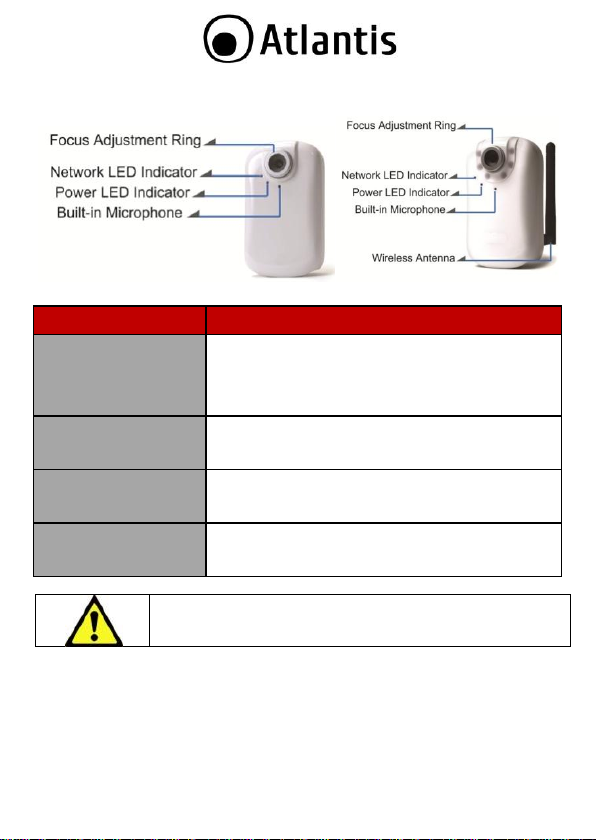

1.3 Vista frontale

12
PORTA
SIGNIFICATO
Power Connector
Connettere l’alimentatore a questo jack. L’alimentatore ha i seguenti valori di targa: AC-DC (5V@1A). Connettere prima l’alimentatore alla rete elettrica e dopo al dispositivo.
RESET
Dopo che il dispositivo è acceso, premere per 10 secondi o più: per effettuare un ritorno alle condizioni di default
(utilizzare, per esempio, in caso si perdesse la password).
Speaker
Utilizzare per collegare degli altoparlanti.

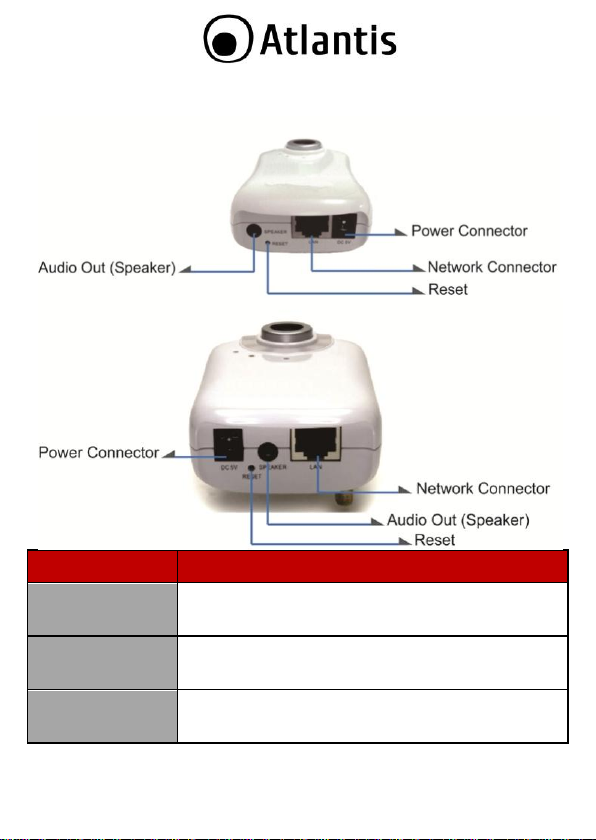

1.4 Le porte posteriori

13
RJ45(LAN)
Connettere con un cavo UTP.
R-SMA
Avvitare delicatamente l’antenna fornita a corredo
(NetCamera 501NVW).

1.5 Cablaggio

Anzitutto collegare la porta RJ45 alla Lan e collegare l’alimentatore alla presa elettrica, poi dopo qualche secondo alla NetCamera (nel modello NetCamera 501NVW è possibile configurare anche l’interfaccia wireless integrata). Una volta effettuati tutti i collegamenti il prodotto effettuerà una diagnostica la cui durata è di circa 2 minuti. Terminata questa fase il Led POWER sarà acceso blu fisso ed il i Led Network saranno accesi (a seconda dei collegamenti fatti) o lampeggianti. In figura un esempio di installazione.
14
Non collocare la NetCamera in ambienti esterni e/o in ambienti ove potrebbe essere esposta ad agenti atmosferici. Assicurarsi che il piedistallo sia saldamente ancorato alla parete (al fine di evitare che NetCamera possa cadere).
L’ottica non va in alcun modo esposta ad irraggiamento solare
diretto. Le condizioni sopra riportate potrebbero danneggiare il prodotto e rendere nulla la garanzia.
NetCamera integra anche un KIT per il montaggio a muro. A tal fine utilizzare le 3 viti fornite per fissare la base ad una superficie piatta (muro o soffitto). Avvitare alla base il supporto metallico e avvitarlo poi nella parte posteriore della telecamera. Posizionarla nella posizione corretta (stringendo l’apposita vite).

1.6 Settaggi di Default

Prima di iniziare la configurazione di NetCamera è necessario conoscere quali siano i settaggi di default. Le configurazioni di default sono:
Username:admin Password: admin Indirizzo IP LAN: Client DHCP
15
La NetCamera è configurata per ottenere un indirizzo IP da un server DHCP presente nella rete. Se il servizio non dovesse essere disponibile il prodotto si posizionerà su un IP nel range
da 192.168.1.2 a 192.168.1.254, impostare quindi il PC sull’
indirizzo 192.168.1.1/255.255.255.0 per effettuare la configurazione di base degli apparati.
Qualora non si riuscisse ad installare il controllo ActiveX (IE non potrà mostrare il video ripreso da NetCamera). Verificare quanto segue: In Strumenti->Opzioni Internet->Protezioni selezionare
Internet/Intranet ed impostare il livello Medio Alto Predefinito.
Disattivare o configurare opportunamente eventuali applicativi di firewalling/antivirus presenti sul PC al fine di consentire al software IIP di comunicare con NetCamera.

1.7 Collegamento al prodotto attraverso Intelligent IP Installer

Nella cartella IIP (solo per ambienti Windows) del CDRom fornito a corredo è presente il software Intelligent IP Installer che permetterà di trovare le NetCamera collegate in rete e procedere quindi alla configurazione di ognuna. Seguire i seguenti step per accedere alla configurazione del prodotto:
Installare il software Intelligent IP Installer contenuto nella cartella
CDRom:\\IIP del CDRom fornito a corredo.
Lanciare il software e cliccare su Search, verranno visualizzate tutte le
NetCamera collegate alla rete.
Selezionare il prodotto desiderato e cliccare sul pulsante Link to IE. Digitare admin nel campo Nome Utente e admin nel campo Password per
accedere alla schermata principale del prodotto.
E’ opportuno consentire l’installazione del controllo Active X (al primo Login).
Cliccare sulla barra mostrata e selezionare Esegui componente aggiuntivo, poi clicccare su Esegui.
Proseguire nella lettura del manuale per la configurazione dei parametri
disponibili nell’ interfaccia WEB.
Questo prodotto è dotato di un’ interfaccia di configurazione e controllo WEB alla
quale è possibile accedere attraverso Internet Explorer (altri browser sono
16
Per gli utenti del mondo Apple è possibile configurare NetCamera nella seguente maniera:
Lanciare Safari. Cliccare su Bonjour Function e selezionare la
NetCamera da configurare.
Alla richiesta di Login digitare admin nel campo Nome
Utente e admin nel campo Password.
Nel browser verrà mostrata l’immagine ripresa da NetCamera.
utilizzabili, ma il supporto Active X, e quindi tutte le funzionalità avanzate, è disponibile solo in Internet Explorer).
Attraverso questa interfaccia sono possibili il controllo completo da parte dell’
amministratore di rete come anche la semplice visualizzazione delle immagini da parte di un operatore. Accedere al manuale completo per avere una disamina completa delle possibilità di configurazione offerte dal controllo via WEB.

1.8 Supporto

Per qualunque altro problema o dubbio sul funzionamento del prodotto, è possibile contattare il servizio di assistenza tecnica Atlantis tramite l’apertura di un ticket on-
line sul portale http://www.atlantis-land.com/ita/supporto.php.
Nel caso non fosse possibile l’accesso al portale di supporto, è altresì possibile
richiedere assistenza telefonica al numero 02/ 78.62.64.37 (consultare il sito per verificare gli orari in cui il servizio viene erogato).
Per esporre eventuali richieste di supporto prevendita o richieste di contatto , si invita ad utilizzare gli indirizzi mail info@atlantis-land.com oppure
prevendite@atlantis-land.com.
Atlantis SpA Via S. Antonio, 8/10 20020 Lainate (MI)
Fax: +39.02.78.62.64.39 Website: http://www.atlantis-land.com Email: info@atlantis-land.com
17
Copyright Statement
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows™ 98SE/2000/ME/XP/VISTA are trademarks of Microsoft® Corp. Pentium is trademark of Intel. All copyright reserved. The Atlantis logo is a registered trademark of Atlantis. All other names mentioned mat be trademarks or registered trademarks of their respective owners. Subject to change without notice. No liability for technical errors and/or omissions.
Wireless LAN, Health and Authorization for use
Radio frequency electromagnetic energy is emitted from Wireless LAN devices. The energy levels of these emissions however are far much less than the electromagnetic energy emissions from wireless devices like for example mobile phones. Wireless LAN devices are safe for use frequency safety standards and recommendations. The use of Wireless LAN devices may be restricted in some situations or environments for example:
On board of airplanes, or In an explosive environment, or In case the interference risk to other devices or services is perceived or
In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please ask for authorization to use these devices prior to operating the equipment.
Regulatory Information/disclaimers
Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by the
manufacturer may void the user’s authority to operate the equipment. The
Manufacturer is not responsible for any radio or television interference caused by unauthorized modification of this device, of the substitution or attachment. Manufacturer and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. CE Mark Warning In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.
identified as harmful
18
Location
Frequency Band (MHz)
Power (EIRP)
Indoor (no restriction)
2400-2483,5
100mW(20dBm)
Outdoor
2400-2454 2454-2483,5
100mW(20dBm) 10mW(10dBm)
CE in which Countries where the product may be used freely: Germany, UK, Italy, Spain, Belgium, Netherlands, Portugal, Greece, Ireland, Denmark, Luxembourg, Austria, Finland, Sweden, Norway and Iceland. France: except the channel 10 through 13, law prohibits the use of other channels.
CE/EMC Restriction of Liability
The product described in this handbook was designed, produced and approved according to the EMC-regulations and is certified to be within EMC limitations. If the product is used in an uncertified PC, the manufacturer undertakes no warranty in respect to the EMC limits. The described product in this handbook was constructed, produced and certified so that the measured values are within EMC limitations. In practice and under special circumstances, it may be possible, that the product may be outside of the given limits if it is used in a PC that is not produced under EMC certification. It is also possible in certain cases and under special circumstances, which the given EMC peak values will become out of tolerance. In these cases, the user himself is responsible for compliance with the EMC limits.
Declaration of Conformity
This equipment has been tested and found to comply with Directive 1999/5/CE of the European Parliament and of the Council on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. After assessment, the equipment has been found to comply with the following standards: EN 300.328 (radio), EN 301 489-1, EN 301 489-17 (electromagnetic compatibility) and EN 60950 (safety). This equipment may be used in all European Union contries and in all countries applying Directive 1999/5/CE, without restriction, with the exception of the following countries:
France (FR):
within the frequency bans listed on the chart. For more info, consult the website
www.art-telecom.fr.
When this equipment is used outdoors, output power is limited to
Italy(IT):
Luxembourg:
For more info, consult the website
General authorization requie for network and service supply.
www.comunicazioni.it
19
Norway (NO):
of 20 km from the center of Ny Alesund.
Russia (CCP):
Declaration of Conformity
Hereby We declare that this product (A02-IPCAM6) is in compliance with the
essential requirements and other relevant provisions of Directive “Electromagnetic Compatibility” and 1999/5/CE within CE Marking Requirememnt.
CE Declaration is available on the web site www.atlantis-land.com.
Declaration of Conformity ( )
Hereby, Atlantis SpA, declares that this device (A02-IPCAM5) is in compliance with the essential requirements and other relevant provisions of Directive 2004/108/EC
“Electromagnetic Compatibility” and 2006/95/EC (Low Voltage Directive) within CE
Marking Requirement.
procedures of this equipment
The crossed-out wheeled bin symbol printed on the unit label or unit packaging indicates that this equipment must not be disposed of as unsorted municipal waste but it should be collected separately. The waste of electric and electronic equipment must be treated separately, in order to ensure that hazardous materials contained inside the equipment are not buried thereby providing potential future problems for the environment and human health. Moreover, it will be possible to reuse and recycle some parts of the waste of electric and electronic equipment, contributing to reduce the quantities of waste to be disposed of and the depletion of natural resources. As user of this equipment, you are responsible to return this waste of electronic equipment to an authorised collection facility set up by your Municipality. More
This subsection does not apply for geographical area within a radius
only for indoor application.
Important information for the correct recycle/treatment
20
CE Logo with attention Mark ( ) aren’t fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.
WEEE BIN Logo ( ) isn’t fully compliant with minimum dimensions requirement to European Directive due to limited sticker area.
Atlantis suggest to vistit the web site www.atlantis-
land.com in order to retrieve update manual, techsheet
and driver.
Before starting, take a few minutes to read this manual. Read all of instructions and save this manual for later reference.
detailed information on your nearest collection centre can be obtained from your Municipality or from other competent local entities. If you are replacing the old equipment with a new equivalent product, the distributor must take-back the old equipment free of charge on a one-to one basis as long as the equipment is of equivalent type and fulfilled the same functions as the supplied equipment. Your rôle in participating to the separate collection of waste of electric and electronic equipment is essential to ensure that environmental protection and human health objectives connected to a responsible treatment and recycling activities are achieved.
PS.: The above mentioned information are reported herewith in compliance with Directive 2002/96/CE, which requires a separate collection system and specific treatment and disposal procedures for the waste of electric and electronic equipments (WEEE). For further and more detailed information, we invite you to visit our website at www.atlantis-land.com
21
Use of audio or video equipment for recording the image or voice of aperson without their knowledge and consent is prohibited in certain states orjurisdictions. Nothing herein represents a warranty or representation that the Atlantis product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her state. Atlantis SpA disclaims any liability whats oever for any end-user use of the Atlantis product, which fails to comply with applicable state, local, or federal laws.
Thank You for choosing an Atlantis Product. For more detailed instructions on configuring and using the NetCamera, please refer to the online manual into CD.

1. Product Overview

NetCamera is the ideal solution for sending videos, for remote video surveillance or for the real-time transmission of images/videos on the LAN, Internet and including 3G mobile devices (Mobile Phone 3GPP Live Video). NetCamera is provided with a powerful CPU, based on a operative system, which makes it like a completely autonomous system, able to generate MJPEG/MPEG4 videos (with constant 30 fps also in VGA) and manage Motion Detection (3 detection areas). NetCamera can send images to an FTP server or using SMTP protocol (mail). The CMOS sensor, able to work also with a low light intensity of the environment, provides clear and tidy videos with real colours in each situation (NetCamera 501NVW offers superior Low-Light performance with 6 Night-Vision LEDs down to 0 Lux) The equipment is completed by a hardware 10X digital zoom (for having details in the close-ups) and microphone for capturing noises. These features make it the ideal tool for remote monitoring/video surveillance. Finally, it can be remotely managed and controlled, in a simply and intuitive way, via PC or notebook connected to the Internet (or Intranet) by using any web browser at any moment and place.
Bundled 16 Channel Surveillance Software & Windows Live MSN
With the included Channel Surveillance Software software, up to 16 NetCameras can be managed for monitoring and recording. Messenger function provide an easy-connect feature. The user can call the NetCamera (using Windows LIVE MSN) and remotely watch the video.

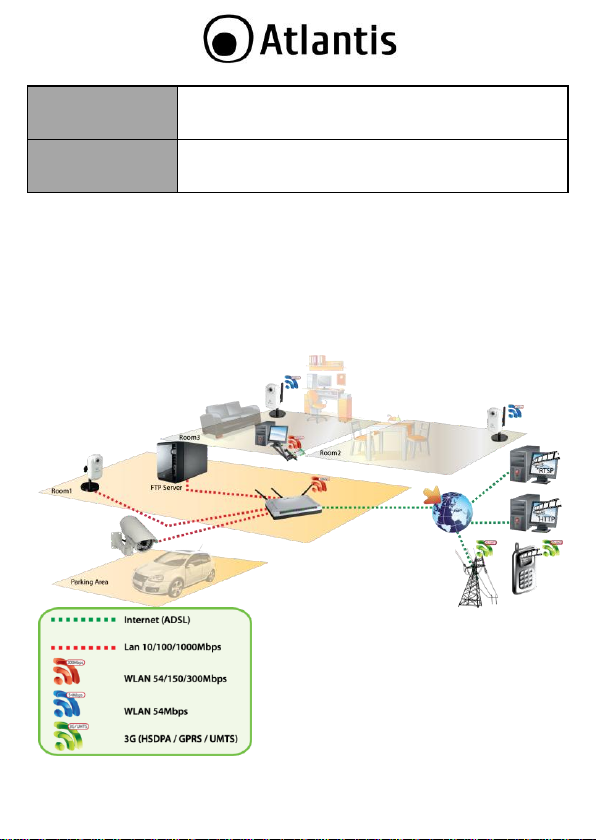

NetCamera 501NVW
NetCamera 501NVW can be connected, via network cable, directly to the LAN or it can use the wireless interface in IEEE802.11g standard with the support of the highest security standards.
22

1.1 System Requirements

Before installing Router, your PC should meet the following:
TCP/IP protocol must be installed on each PC Web browser, such as Microsoft Internet Explorer 6.0 or later Pentium 4 1800MHz (or equivalent AMD) with 512MB Graphic Card: 64 MB RAM graphic cards(or equivalent on-board graphic cards) Windows2000, 2003, XP, Vista, 7 or Mac OS X Leopard

1.2 Package contents

Unpack the package and check all the items carefully. Also, keep the box and packing materials in case you need to ship the unit in the future. The package should contain the following items:
NetCamera 500 or NetCamera 501NVW Power Adapter AC-DC (5V, 1A) UTP cat. 5 cable (RJ-45 connector), 2 dBi Antenna (NetCamera 501NVW) Three screws, Lock ring, Brace, and Base plate Quick Start Guide (English, Italian) Cd-Rom contained manual, Utility and 16 Channel Software Warranty Card
If any item contained is damaged or missing, please contact your local dealer as soon as possible.
23
LED
MEANING
Focus Adjustement
Ring
Adjust the focus ring to get a clear image.
NetWork LED
Lit when connected to Ethernet/WLAN device (Blue for 10/100Mbps). Blinking when data transmit/received.
Power LED
Lit Blue when power is plugged in and the system is ready.
Microphone
The NetCamera has an internal microphone.
NetCamera 501NVW included also 5 Leds for Night Vision (5 φ LEDs x 5).

1.3 Physical Overview

24
PORT
MEANING
Power Connector
Connect the Adapter to your wall outlet then Attach the external power supply to the DC power input connector located on the internet Camera’s back panel (labeled DC 5V@1A).
RESET
After the device has turned on, press it to reset (10 seconds or above) the device will be restored to factory
default settings (this is used when you can not login to the camera, e.g. forgot the password).
Speaker
Audio Out. Please connect Speaker.

1.4 Rear Port

25
RJ45(LAN)
Connect an Ethernet cable to the Ethernet connector located on the Internet Camera’s backpanel and attach it to the network
R-SMA
Connect the supplied Antenna here (NetCamera 501NVW).

1.5 Cabling

First you must connect the product to the RJ45 ports the PCs of your Lan or others Switch. In the end connect the DC Adapter to socket then to the NetCamera. Once you’ve done all the connections the product will carry on immediately a autotest (120 seconds). With the power source on, once the device is connected, the LED Power and Network will light up indicating a normal status. If the LAN Port’s Link indicator does not light up then check the RJ-45 cable if it is firmly feed to the RJ45 port, while the LAN is link up to the Switch/Hub, the LAN port’s LED will light up. The control LEDs of the device are clearly visible and the status of the network link can be seen instantly.
26
Ensure the camera is fixed securely otherwise it may fall and cause injury. The camera is not waterproof and should not be mounted outside or in a position where it could become wet. Use only the power adapter with the camera. Using another
The camera can be assembled in two different ways; either from the top of the unit or the bottom. Assemble the stand and fix it to the cam-era as shown. Use the three screws and plugs provided to fix the stand bracket to a wall, ceiling or other convenient fixing point. The stand can be adjusted to allow the camera a full 360º of rotation and a pan and tilt action.Follow the above steps to mount from the base of the unit, attaching the stand bracket to the mounting point on the base of the unit.
27
adapter, not recommended by the manufacturer, may damage the camera and invalidate the warranty.
If a DHCP server isn’t available in the network, NetCamera will use 192.168.1.2-254 and Subnet Mask 255.255.255.0 (then the manager PC should be set at 192.168.1.1/255.255.255.0).

1.6 Factory Default Settings

Before you configure this NetCamera, you need to know the following default settings:
Username:admin Password: admin IP LAN address: by DHCP

1.7 Intelligent IP Installer

To configure your NetCamera, you will need to use the web browser, enter the IP address and then use the web configuration for further setup. To find out the IP address (if You changed) of your device once it is connected to the network, there is a simple way as described on the following pages. Power on your PC and insert the CDROM. Use the Setup utility included on the
CD (CDRom:\IIP). Please follow these steps to install this utility.
Click the Intelligent IP Installer Icon on your desktop. The main page will
show up listing all active camera (click Search). This will list the device automatically and allow you to access the web configuration interface. Select the relevant IP camera from the list and click Link to IE.
Enter your Username and Password to login to the IP Camera (default is
admin / admin).
When accessing the IP Camera for the first time, a yellow information bar
appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Atlantis SpA. Click the information bar, and select Install ActiveX control. Click Install.
Live video displays in the centre of your web browser. For more detailed instructions on configuring and using the NetCamera,
please refer to the online manual into CD.
28
Before using Intelligent IP Installer, please check two settings.
Browsers Internet Properties Security Select
Default Level.
Browsers Internet Properties Privacy Uncheck
Pop-up Blocker.
Make sure NetCamera system has probably connect to the network and search again. You might have to configure your firewall/Antivirus or even temporarily turn it off.
Mac OS using Safari Browser:
Select Safari icon Click Bonjour function and select the camera you wish
to access.
Enter name and password to login to the IP camera.
(Default is admin / admin)
The monitor image will be displayed in your browser.

1.8 Support

For technical questions and support, please contact our help-desk by ticket on
http://www.atlantis-land.com/ita/supporto.php.
For generic informations, please send an e-mail to info@atlantis-land.com.
For presales informations, please send an e-mail to prevendite@atlantis-land.com.
Atlantis SpA Via S. Antonio, 8/10 20020 Lainate (MI)
Fax: +39.02.78.62.64.39 Website: http://www.atlantis-land.com Email: info@atlantis-land.com
29
Technical Specs
Product Name
NetCamera 500
NetCamera 501NVW
Code
A02-IPCAM5
A02-IPCAM6
Connectors
RJ-45 for Ethernet
10/100 Base-T
DC power jack Reset push switch 3.5 mm jack for
line out
RJ-45 for Ethernet
10/100 Base-T
DC power jack Reset push switch 3.5 mm jack for line
out
R-SMA connector
LED
2 (LAN/WLAN, Power)
Wireless Interface
N/A
IEEE8021.g with WPA-PSK
/WPA2-PSK
Antenna
N/A
1x 2 dBi R-SMA external
Antenna
Image Sensor
1/4" Progressive CMOS Sensor
LENS / Min Illumination
F2.0, 4.0mm board
lens
0.5 Lux
F2.0, 4.0mm board
lens
0 Lux at F2.0 with
LEDs on
Angle of View
53° horizontal
LED (Distance)
N/A
5 φ LEDs x 5mt
Resolution
Motion JPEG: 3 resolutions from 640x480 to
160x120 via API, 3 resolutions via configuration web page
MPEG-4: 3 resolutions from 640x480 to 160x120
via API, 3 resolutions via configuration web page
Video Compression
Motion JPEG MPEG-4 Part2 (ISO/IEC 14496-2), Profile: SP
Frame Rate:
Motion JPEG: Up to 15 fps at 640x480 MPEG-4: Up to 30 fps at 640x480
Video Streaming
Simultaneous Motion JPEG and MPEG-4 (Dual
streaming)
Controllable Frame rate and bandwidth Support Unicast and Multicast Support 3GPP/ISMA RTSP (Real Time Streaming
Protocol)

APPENDIX A: Technical Features

30
Digital Zoom
10x Digital
Image Settings
Rotation: Mirror, Flip Brightness / Contrast / Saturation / HUE Overlay capabilities: Time, Date. Text and
Privacy Image
Shutter Time
1/7.5 ~ 1/120 sec.
Image SnapShoot
Yes
Video Recording
Yes (using bundled software)
Audio
Two-way (full / half duplex) with built-in
microphone
Audio compression: G.711 PCM, 8kHz, 64kbit/s
Instant Messanger
Support Windows LIVE view
Mobile Phone Live View
Through 2.5 WAP, 3GPP, 3G Streaming, and 3G
Browser
Security
Multiple user access levels with password protection,
HTTPS encryption
Users
5 simultaneous users Unlimited number of users using multicast
Alarm and Event Management
Input: Motion Detection Output:FTP/SMTP/HTTP Event
Alarm Sending
FTP Client Mail (SMTP)
Supported Protocols
Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, DNS, NTP, UPnP, RTSP, RTP, HTTP, TCP, UDP, 3GPP/ISMA RTSP
Advanced Features
PPPoE, Dynamic DNS
Certifications
CE (Europe)
Dimensions (mm)
98mm x 55mm x 27mm
100mm x 62mm x 32mm
(without Antenna and
plug)
Weight
80g
130g
Temperature Range
Operation: 0°C ~ 32°C Storage: -10°C ~ 60°C
10% ~ 75% (non Condensing)
Power Comsumption
Max 5V (AC-DC 5V-DC@1A)
System Requirements
TCP/IP protocol must be installed on each PC Web browser, such as Microsoft Internet
Explorer 6.0 or later
Pentium 4 1800MHz (or equivalent AMD) with
31
512MB
Graphic Card: 64 MB RAM graphic cards(or
equivalent on-board graphic cards)
Windows2000, 2003, XP, Vista, 7 or Mac OS X
Leopard
Package Contents
NetCamera 500 or NetCamera 501NVW UTP cat. 5 cable (RJ-45 connector), 2 dBi
Antenna (NetCamera 501NVW)
Power Adapter AC-DC (5V, 1A) Three screws, Lock ring, Brace, and Base plate Quick Start Guide (English, Italian) Cd-Rom contained manual, Utility and 16th
Channel Software
Warranty Card
Mac OS X is a trademark of Apple Inc.
All rights registered Microsoft and Windows are registered trademarks of Microsoft Corporation All trade names and marks are registered trademarks of respective companies Specifications are subjected to change without prior notice. No liability for technical errors and/or omissions Performance and Throughput are influenced by many factors (interference, noise, environments)
32
Atlantis SpA
Via S. Antonio, 8/10
20020 Lainate (MI)
info@atlantis-land.com
Loading...
