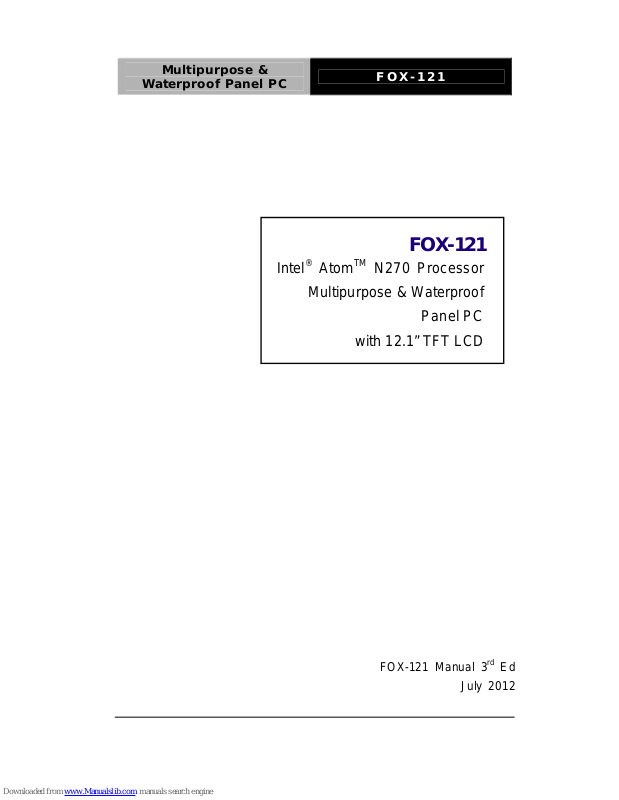

Multipurpose &
FOX-121
Waterproof Panel PC
FOX-121
Intel
®
AtomTM N270 Processor
Multipurpose & Waterproof
Panel PC
with 12.1” TFT LCD
FOX-121 Manual 3rd Ed
July 2012
Multipurpose &
FOX-121
Waterproof Panel PC
i
Copyright Notice
This document is copyrighted, 2012. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, or for
any infringements upon the rights of third parties that may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.
Multipurpose &
FOX-121
Waterproof Panel PC
ii
Acknowledgments
All other products’ name or trademarks are properties of their
respective owners.
Award is a trademark of Award Software International, Inc.
Intel
®
, AtomTM are trademarks of Intel® Corporation.
Microsoft Windows
®
is a registered trademark of Microsoft
Corp.
IBM, PC/AT, PS/2, and VGA are trademarks of International
Business Machines Corporation.
All other product names or trademarks are properties of their
respective owners.
Multipurpose &
FOX-121
Waterproof Panel PC
iii
Packing List
Before you begin operating your PC, please make sure that the
following materials are enclosed:
1 USB Cable with water proof Connector
2 COM Cables with water proof Connectors
1 waterproof Connecter for LAN
1 Easy stand
1 CD-ROM for manual (in PDF format)
1 FOX-121 Multi purpose & Waterproof Panel PC
If any of these items should be missing or damaged, please contact
your distributor or sales representative immediately.
Multipurpose &
FOX-121
Waterproof Panel PC
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a firm surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power sou rce is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire o r
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
Multipurpose &
FOX-121
Waterproof Panel PC
v
d. The equipment does not work well, or you cannot get it
to work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT
WHERE THE STORAGE TEMPERATURE IS BELOW -20°C
(-4°F) OR ABOVE 70°C (158°F). IT MAY DAMAGE THE
EQUIPMENT.
16. DO NOT OPEN the sealed Enclosure /case of equipment. Once
enclosure is disassembled without approval, it will lead in
abnormal operating of water proof gel. For Guarantee of water
proof function, please make sure configuration/ peripheral
(HDD,RAM, peripherals) has been confirmed to install before
shipping.
FCC
This device complies with Part 15 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device must
accept any interference received including
interference that may cause undesired
operation.
Cau
tion:
There is a danger of explosion if the battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer. Dispose of used batteries according to the
manufacturer’s instructions and your local government’s recycling or
disposal directives.
Multipurpose &
FOX-121
Waterproof Panel PC
vi
Below Table for China RoHS Requirements
产品中有毒有害物质或元素名称及含量
AAEON Panel PC/ Workstation
有毒有害物质或元素
部件名称
铅
(Pb)汞 (Hg)镉 (Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件
× ○ ○ ○ ○ ○
外部信号
连接器及线材
× ○ ○ ○ ○ ○
外壳 × ○ ○ ○ ○ ○
中央处理器
与内存
× ○ ○ ○ ○ ○
硬盘 × ○ ○ ○ ○ ○
液晶模块 × ○ ○ ○ ○ ○
光驱 × ○ ○ ○ ○ ○
触控模块 × ○ ○ ○ ○ ○
电源 × ○ ○ ○ ○ ○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。
Multipurpose &
Waterproof Panel PC
FOX-121
vii
Contents
Chapter 1 General Information
1.1 Introduction................................................................ 1-2
1.2 Features....................................................................1-3
1.3 Specification..............................................................1-4
1.4 Dimension ................................................................. 1-6
Chapter 2 Hardware Installation
2.1 USB 1/2 Connecter ...................................................2-2
2.2 COM 1 Connector for RS232....................................2-2
2.3 COM 2 Connector for RS232/RS422/RS485............2-3
2.4 DC-in 9~30V Connector............................................2-4
2.5 Waterproof LAN Connector Installation.....................2-4
Chapter 3 Award BIOS set up
3.1 System Test and Initialization ................................... 3-2
3.2 Award BIOS Setup.................................................... 3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix FAQ
A.1 FAQ........................................................................A-2
A.2 FAQ........................................................................A-4
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1- 1
General
Chapter
1
Information
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1- 2
1.1 Introduction
FOX-121 Multipurpose & Waterproof panel PC is a
high-performance computing and completely fanless solution for
applications in outdoor, semi-outdoor, and harsh indoor
environment ,that comes with Intel
®
AtomTM N270 1.6 GHz
processor, 12.1” wide View-angle display (with sunlight readability),
Sealing enclosure( 6 sides of IP-67 certified) and Water proof I/O
connectors for Ethernet , multi-COM port, audio and USB interfaces.
In addition, with water resistant bottoms on front panel, FOX has
user-friendly interface for brightness control and a variety of
optional wireless for real time communication or navigation.
Besides, for system integrators, a simple, complete, compact and
highly integrated system helps you smoothly build an industrial
grade solution into your applications. By this concept, FOX is
design with valuable features (listed in next section) to serve
various field of markets such as Vehicle, food factory, slaughter
house, Pharmacy Production, Production Plant Hospital Operation
Room, and Outdoor KIOSK Public Information Terminal.
With FOX, we believe the end user can optimize the workflow of
operations and management in daily business.
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1-3
1.2 Features
z IP-67 Water-proof & IEC60945 Ed.4 Certification
z Onboard Intel
®
Atom N270 1.6GHz Processor
z 12.1” 500 Nits XGA LED Backlight (FOX-121HTT)
z 12.1” 1000 Nits XGA LED Backlight (FOX-121STT)
z Fanless Operation
z Water-proof Backlight On/Off & Brightness Adjustment
z Anti-vibration & Easy-to-swap HDD Protection: 3G
z Water-proof WiFi / GPRS / GPS Connector (Optional)
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1- 4
1.3 Specification
System
z CPU Onboard Intel
®
AtomTM N270 1.6GHz
Processor
z Memory 200-pin DDR2 SODIMM x 1, Max. 2GB
z LCD / CRT Controller Intel
®
945GSE integrated
z Ethernet Intel
®
82574L, 10/100/100Base-TX,
RJ-45 x 1
z M12 water proof I/O Port
(Rear)
RS-232 x 1,
RS-232/422/485 x 1
USB 2.0x 2,
10/100/1000Base-TX RJ-45 x 1,
Power input x 1,
WiFi/ GPS/ GSM antenna x 2 (Optional)
z Storage Disk Drive Type II Compact Flash™ socket x 1,
SATA 2.5” Hard disk drive bay x 1
(Anti-vibration 3G)
z Expansion Mini-PCI x 1
z OS Support Windows
®
CE 6.0,
Windows® XP Pro,
Windows® XP Embedded,
Windows® 7,
Windows
®
Embedded Standard 7,
Fedora Linux
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1-5
Mechanical
z Construction Aluminum front bezel and back chassis
z Color Silver Gray
z Mounting VESA mount 75-100mm holes/
Wallmount/ Desktop
z Dimension 13.6” (W) x 11.1” (H) x 2.4” (D)
(345mm x 282mm x 60mm)
z Net Weight 9.9 lb (4.5 Kg)
z Gross Weight 12.1 lb (5.5 Kg)
Environmental
z Operating Temperature
32℉~131℉ (0℃~55℃) (HDD)
z Storage Temperature
-4℉~158℉(-20℃~70℃)
z Operating Humidity
5% to 90%@ 40℃, non-condensing
z Vibration 3G Random Operation, 5~500Hz (w/
HDD)
z Shock 30G peak acceleration (11 msec.
duration) (w/ HDD)
z EMC & International
Standard
CE/FCC Class A
IP-67
IEC60945
z Power Supply Input: DC 9~30V (M12) (ATX mode),
Optional PSE power adapter or general
AC/DC power adapter
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1- 6
1.4 Dimension
345
282
60
75
100
75
100
USB COM2 PowerCOM1
LAN
Unit: mm
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 1 General Information 1-7
Brightness “+“
Brightness “- “
Power on/off
Backlight on/off
Multipurpose &
Waterproof Panel PC
FOX-121
Chapter 2 Quick Installation Guide 2-1
Hardware
Inst
allation
Chapter
2
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 2
2.1 USB 1/2 Connecter
Pin Signal Pin Signal
1 USB1 V+ 2 USB0 V+
3 USB D0+ 4 USB D05 USB0 GND 6 USB D1+
7 USB D1- 8 USB1 GND
2.2 COM1 Connector for RS-232
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide
2 - 3
2.3 COM2 Connector for RS232/RS422/RS485
RS-232
Pin Signal Pin Signal
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
RS-422
Pin Signal Pin Signal
1 TXD- 2 RXD+
3 TXD+ 4 RXD-
RS-485
Pin Signal Pin Signal
1 TXD- 2 NC
3 TXD+ 4 NC
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 4
2.4 DC-IN 9~30V Connecter
Pin Signal Pin Signal
1 DC V+ 2 N/A
3 GND 4 NC
2.5 Waterproof LAN Connector Installation
When you connect the LAN port with the Ethernet cable, please
use the particular Waterproof LAN connector in the packing. If
the Ethernet cable without the particular waterproof LAN
connector, it may cause the issues of LAN connection-missing or
invalid waterproof function. Please follow the steps to install the
waterproof LAN connector.
Step 1: Peel off the release paper of gasket of RJ-45 plug cable set
and stick it to its body
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide
2 - 5
Step 2: Cut off the present RJ-45 plug cable
Step 3: Put all parts of RJ-45 plug cable set through cable in order
Step 4: Install and crimp a new RJ-45 plug
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 6
Step 5: Insert RJ-45 plug into the socket and mount to cable set’s
body
. Make sure the latch of RJ-45 connector is in place
Latch is in place
Step 6: Lock and tighten the nut of RJ-45 plug
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide
2 - 7
Step 7: Screw on the plastic rear nut a little bit for locking later.
Make sure sealer is in place
Sealer is in place
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 2 Quick Installation Guide 2 - 8
Step 8: Before locking the plastic rear nut tightly, press the cable
hardly a
nd make sure all parts of the LAN connector has been
connected tightly
Press hardly
Lock the plastic rear nut
S
tep 9: Tighten the plastic rear nut again to make sure the cable
is securely connected and would not fall off accidentally
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 3 Award BIOS Setup 3-1
Award
Chapter
3
BIOS Setup
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 3 A ward BIOS Setup 3-2
3.1 System Test and Initialization
These routines test and initialize board hardware. If the routines
encounter an error during the tests, you will either hear a few
short beeps or see an error message on the screen. There are
two kinds of errors: fatal and non-fatal. The system can usually
continue the boot up sequence with non-fatal errors. Non-fatal
error messages usually appear on the screen along with the
following instructions:
Press <F1> to RESUME
Write down the message and press the F1 key to continue the
boot up sequence.
System configuration verification
These routines check the current system configuration against
the values stored in the CMOS memory. If they do not match,
the program outputs an error message. You will then need to
run the BIOS setup program to set the configuration information
in memory.
There are three situations in which you will need to change the
CMOS settings:
1. You are starting your system for the first time
2. You have changed the hardware attached to your system
3. The CMOS memory has lost power and the configuration
information has been erased.
TheFOX-121 CMOS memory has an integral lithium battery
backup for data retention. However, you will need to repla ce the
complete unit when it finally runs down.
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 3 Award BIOS Setup 3-3
3.2 Award BIOS Setup
Awards BIOS ROM has a built-in Setup program that allows users
to modify the basic system configuration. This type of information is
stored in battery-backed CMOS RAM so that it retains the Setup
information when the power is turned off.
Entering Setup
Power on the computer and press <Del> immediately. This will
allow you to enter Setup.
Standard CMOS Features
Use this menu for basic system c onfiguration. (Date, time, IDE,
etc.)
Advanced BIOS Features
Use this menu to set the advanced features available on your
system.
Advanced Chipset Features
Use this menu to change the values in the chipset registers and
optimize your system performance.
Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.
(Primary slave, secondary slave, keyboard, mouse etc.)
Power Management Setup
Use this menu to specify your settings for power management.
(HDD power down, power on by ring, KB wake up, etc.)
PnP/PCI Configurations
This entry appears if your system supports PnP/PCI.
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 3 A ward BIOS Setup 3-4
PC Health Status
This menu allows you to set the shutdown temperature for your
system.
Frequency/Voltage Control
Use this menu to specify your settings for auto detect DIMM/PCI
clock and spread spectrum.
Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the
minimal/stable performance for your system to operate.
Load Optimized Defaults
Use this menu to load the BIOS default values that are factory
settings for optimal performance system operations. While AWARD
has designated the custom BIOS to maximize performance, the
factory has the right to change these defaults to meet their needs.
Set Supervisor/User Password
Use this menu to set Supervisor/User Passwords.
Save and Exit Setup
Save CMOS value changes to CMOS and exit setup.
Exit Without Saving
Abandon all CMOS value changes and exit setup.
You can refer to the "AAEON BIOS Item Description.pdf" file in
the CD for the meaning of each setting in this chapter.
Multipurpose &
Waterproof Panel PC
FOX-121
Chapter 4 Driver Installation 4 - 1
Driver
Chapter
4
Inst
allation
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 4 Driver Installation 4 - 2
There are several installation ways depending on the driver
package under different Operating System application. The
Auto-run program will run automatically. However, if the Auto-run
program cannot be run smoothly, please follow the steps belo w to
install the drivers:
Step 1-Install Chipset Driver
Step 2-Install VGA Driver
Step 3-Install LAN Driver
Step 4-Install Audio Driver
Step 5-Install GPS Driver
Multipurpose &
FOX-121
Waterproof Panel PC
Chapter 4 Drivers Inst al la tion 4 - 3
4.1 Installation
Insert the FOX-121 CD-ROM into the CD-ROM drive and install the
drivers from Step 1 to Step 5 in order.
Step 1 – Install Chipset Driver
1. Click on the STEP1-CHIPSET folder and select the OS
folder your system is
2. Double click on infinst911_autol.exe file located in each
OS folder
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
Step 2 – Install VGA Driver
1. Click on the STEP2-VGA folder and select the OS folder
your system is
2. Double click on .exe file located in each OS folder
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
Step 3 – Install LAN Driver
1. Click on the STEP3-LAN folder and select the OS folder
your system is
2. Double click on PROWin32.exe file located in each OS
folder
3. Follow the instructions that the window shows
Multipurpose &
Waterproof Panel PC
FOX-121
Chapter 4 Driver Installation 4 - 4
4. The system will help you install the driver automatically
Step 4 – Install Audio Driver
1. Click on the STEP4-AUDIO folder and select the OS folder
your system is
2. Double click on setup.exe file located in each OS folder
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
Step 5 – Install GPS Driver
1. Click on the STEP5-GPS folder and select the OS folder
your system is
2. Double click on the folder of
PL2303_Prolific_GPS_AllInOne_1013.exe file located in
each OS folder
3. Follow the instructions that the window shows
4. The system will help you install the driver automatically
Multipurpose &
FOX-121
Waterproof Panel PC
Appendix A FAQ A-1
FAQ
Appendix
A
Multipurpose &
FOX-121
Waterproof Panel PC
Appendix A FAQ A-2
A.1 FAQ
Installing Windows 2000 from a USB CD-ROM Drive May Cause
a "Stop 0x7B" Error
Answer:
Only if you install Windows 2000 SP3 version, the error will be
automatically corrected.
Categorized List of Fixes in Windows 2000 Service Pack 3 (SP3)
http://support.microsoft.com/default.aspx?scid=%2fsupport%2fserv
icepacks%2fwindows%2f2000%2fsp3fixlist.asp
Q294820 - Installing Windows 2000 from a USB CD-ROM Drive
May Cause a "Stop 0x7B" Error
http://support.microsoft.com/default.aspx?scid=kb;en-us;294820
PSS ID Number: 294820
Article Last Modified on 5/28/2003
The information in this article applies to:
Microsoft Windows 2000 Server SP1
Microsoft Windows 2000 Server SP2
Microsoft Windows 2000 Advanced Server SP1
Microsoft Windows 2000 Advanced Server SP2
Microsoft Windows 2000 Professional SP1
Microsoft Windows 2000 Professional SP2
Multipurpose &
FOX-121
Waterproof Panel PC
Appendix A FAQ A-3
This article was previously published under Q294820
SYMPTOMS
If you are using a Universal Serial Bus (USB) CD-ROM drive to
install Windows 2000 on certain legacy-free compute rs, you may
receive a "Stop 0x0000007B" Inaccessible_boot_device error
message while booting from the installation CD. Because many
legacy-free computers do not have a standard CD-ROM drive or
floppy disk drive, the USB CD-ROM drive may be the only method
for installing or recovering Windows.
CAUSE
Windows 2000 Setup does not support certain USB CD-ROM
drives as bootable devices. This causes error message during the
Text-mode portion of Setup.
RESOLUTION
Please contact your computer manufacturer for information about
obtaining updated Windows 2000 Setup disks that you can use to
boot your computer with a USB CD-ROM device.
STATUS
Microsoft has confirmed that this is a problem in the Microsoft
products that are listed at the beginning of this article.
Multipurpose &
FOX-121
Waterproof Panel PC
Appendix A FAQ A-4
A.2 FAQ
Why USB Keyboard cannot be used in DOS OS?
Answer:
It is highly recomended to use the USB keyboard without pluging
USD Hub in between, which may have the issue of compatibility in
DOS OS .
Loading...
