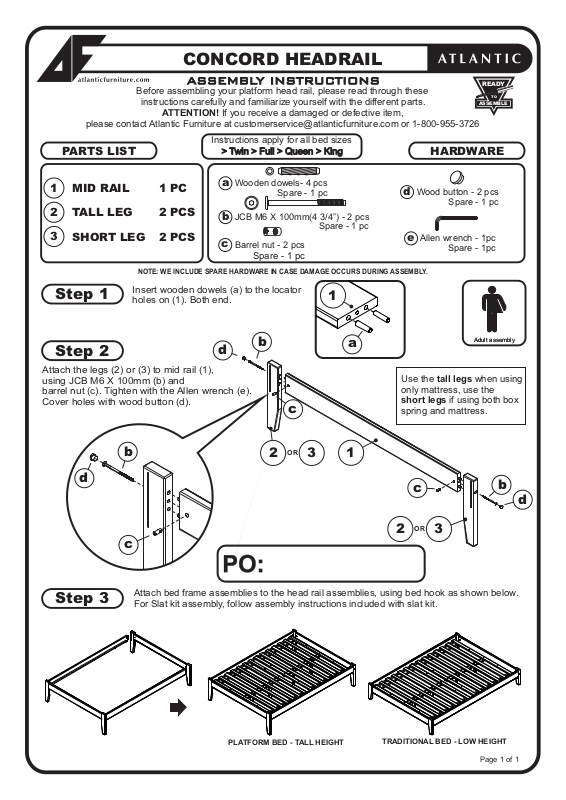

CONCORD HEADRAIL
ASSEMBLY INSTRUCTIONS
Before assembling your platform head rail, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
please contact Atlantic Furniture at [email protected] or 1-800-955-3726
Instructions apply for all bed sizes
PARTS LIST HARDWARE
MID RAIL 1 PC
1
TALL LEG
2
3
SHORT LEG
Step 1
2 PCS
2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Insert wooden dowels (a) to the locator
holes on (1). Both end.
Step 2
> Twin > Full > Queen > King
Wooden dowels- 4 pcs
a
Spare - 1 pc
JCB M6 X 100mm(4 3/4”) - 2 pcs
b
c
Barrel nut - 2 pcs
Spare - 1 pc
Spare - 1 pc
1
b
d
a
Wood button - 2 pcs
d
Spare - 1 pc
e
Allen wrench - 1pc
Spare - 1pc
READY
TO
ASSEMBLE
Adult assemblyAdult assembly
Attach the legs (2) or (3) to mid rail (1),
using JCB M6 X 100mm (b) and
barrel nut (c). Tighten with the Allen wrench (e).
Cover holes with wood button (d).
b
d
c
Step 3
Attach bed frame assemblies to the head rail assemblies, using bed hook as shown below.
For Slat kit assembly, follow assembly instructions included with slat kit.
2
c
OR
3
1
Use the tall legs when using
only mattress, use the
short legs if using both box
spring and mattress.
c
OR
32
b
d
PLATFORM BED - TALL HEIGHT
TRADITIONAL BED - LOW HEIGHT
