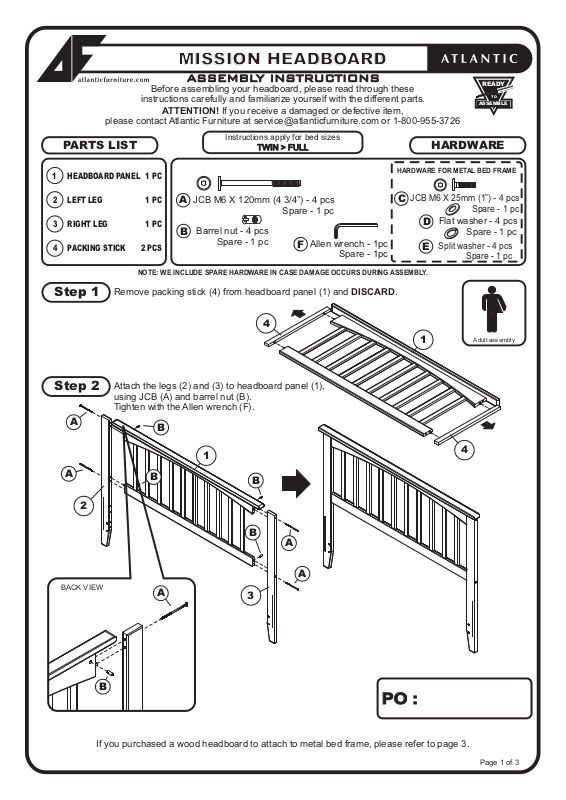

MISSION HEADBOARD
ASSEMBLY INSTRUCTIONS
Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
ATTENTION! If you receive a damaged or defective item,
please contact Atlantic Furniture at [email protected] or 1-800-955-3726
PARTS LIST HARDWARE
HEADBOARD PANEL
1
LEFT LEG
2
3
RIGHT LEG
4
PACKING STICK
Step 1
Remove packing stick (4) from headboard panel (1) and .DISCARD
1 PC
1 PC
1 PC
2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
JCB M6 X 120mm (4 3/4”) - 4 pcs
A
Barrel nut - 4 pcs
B
Instructions apply for bed sizes
TWIN > FULL
Spare - 1 pc
Spare - 1 pc
Allen wrench - 1pc
F
4
Spare - 1pc
HARDWARE FOR METAL BED FRAME
JCB M6 X 25mm (1”) - 4 pcs
C
Spare - 1 pc
Flat washer - 4 pcs
D
Spare - 1 pc
Split washer - 4 pcs
E
1
Spare - 1 pc
Adult assembly
READY
TO
ASSEMBLE

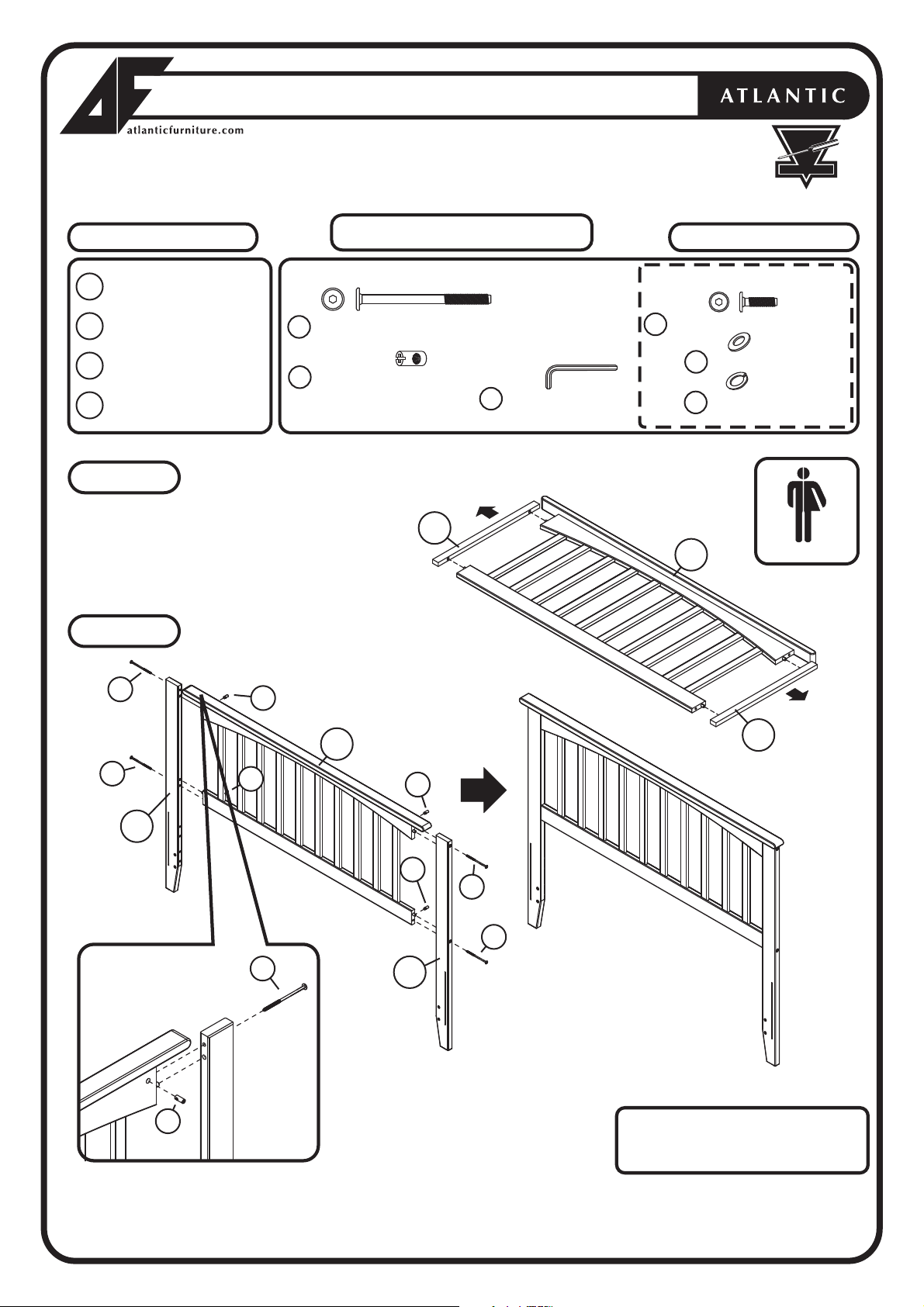

Step 2
A
A
2
BACK VIEW
Attach the legs (2) and (3) to headboard panel (1),
using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (F).
B
1
B
B
B
A
A
A
3
4
B
PO :
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.
Page 1 of 3
Page 2
WOOD BED FRAME

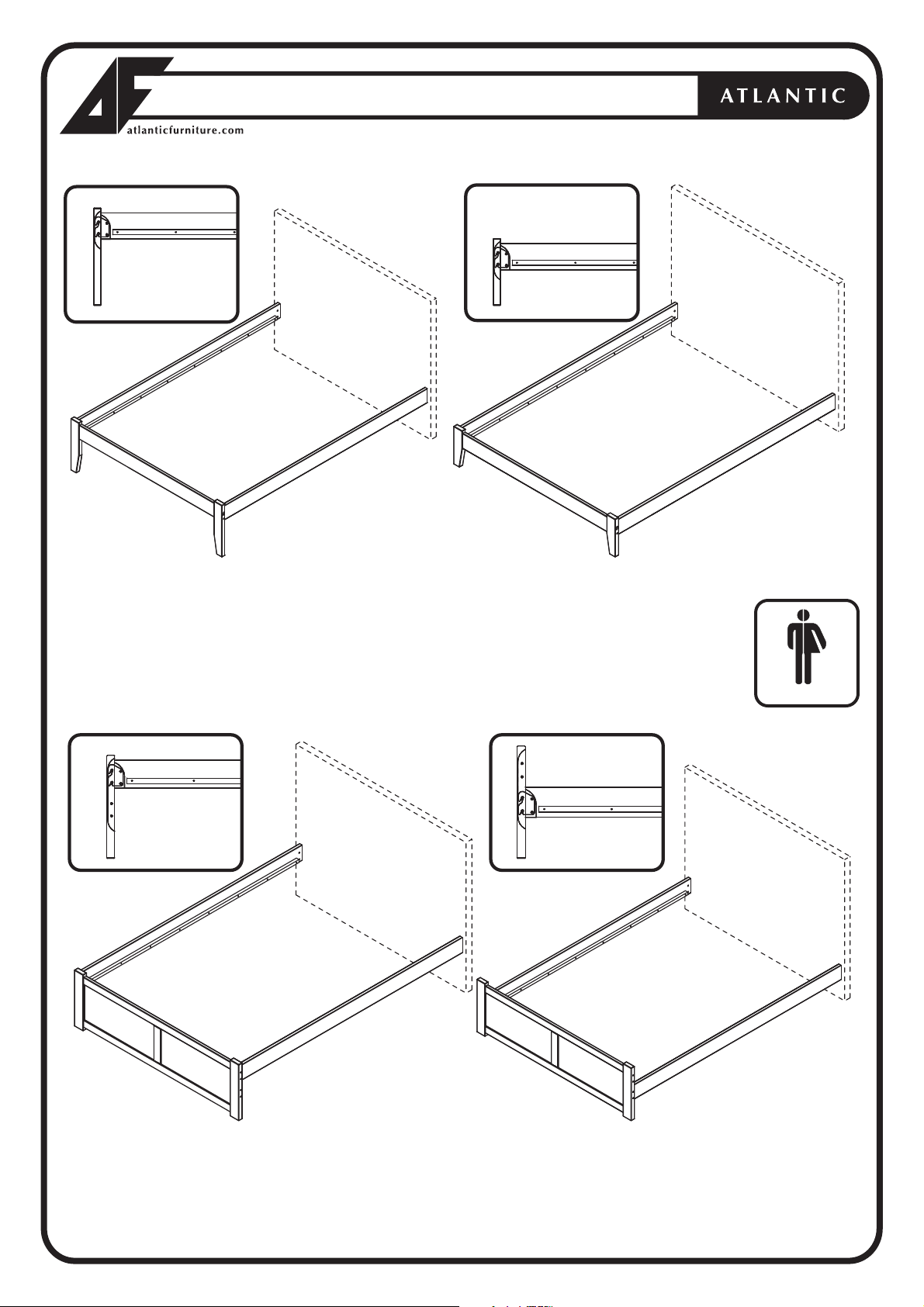

Your Atlantic bed can be assembled using an open footrail or panel footboard.
The open footrail has a choice of tall or short legs.
TALL LEGS
FOOTRAIL
Storage drawers, Trundle bed or mattress only use TALL LEGS.
The side rails can be attached to either the upper set of pins or lower set of pins.
SHORT LEGS
Foundation and mattress use SHORT LEGS.
Adult assembly
UPPER
PANEL FOOTBOARD
Storage drawers, Trundle bed or mattress only use UPPER PINS.
LOWER
Foundation and mattress use LOWER PINS.
Page 2 of 3
Page 3
ATTACHING HEADBOARD TO METAL BED FRAME
ASSEMBLY INSTRUCTIONS
Before assembling your bed, please read through these
instructions carefully and familiarize yourself with the different parts.
Instructions apply for bed sizes
Twin > Full
Metal bed frames are sold separately from wood headboards. The hardware shown on this page
is supplied with your Atlantic wood headboard for attaching the bed frame to the headboard.
The metal bed frame is supplied with its own assembly instructions and hardware.

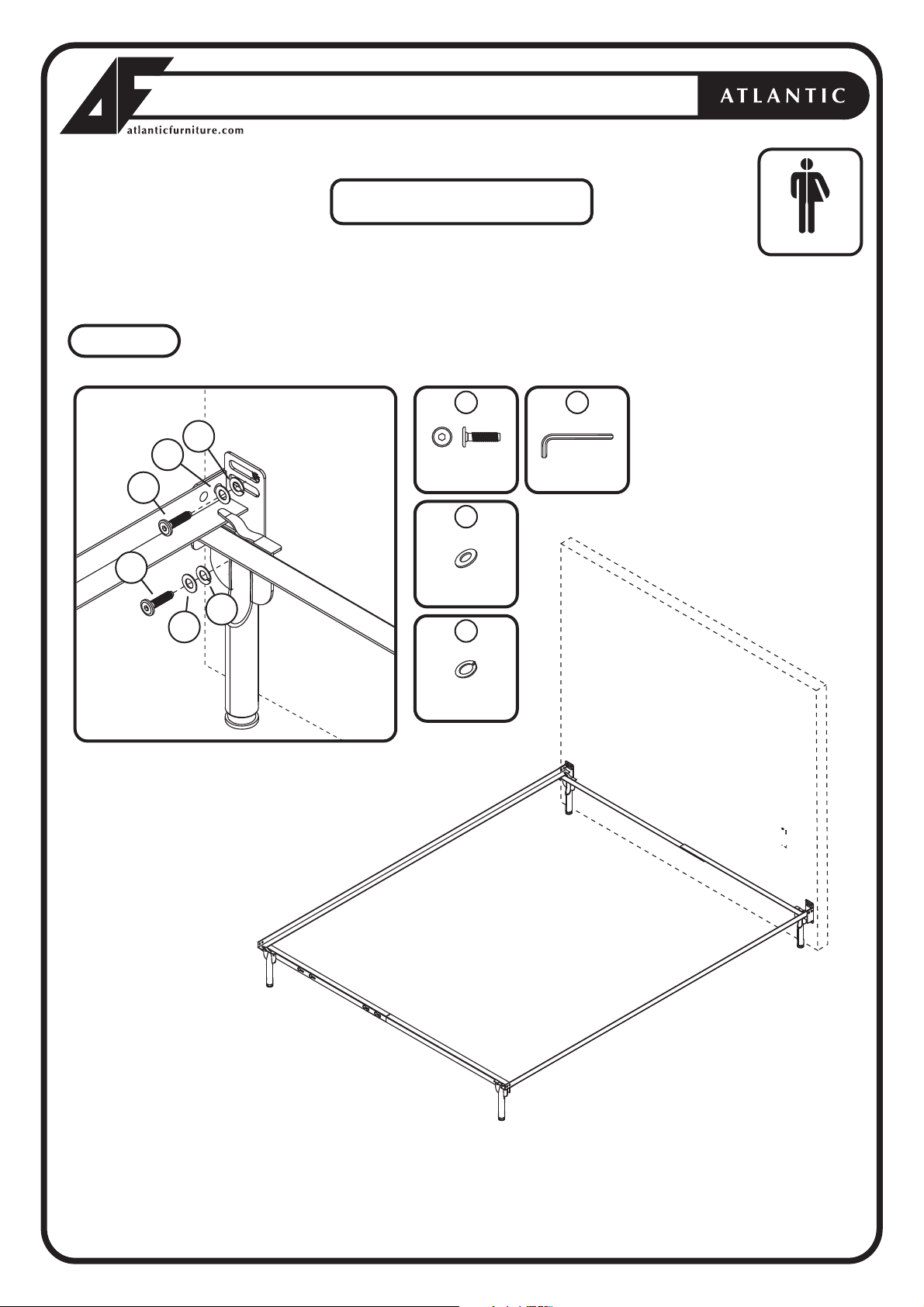

Step 1
Attach the headboard assembly to the metal frame using JCB (C), flat washer (D),
and split washer (E) then tighten with Allen wrench (F), as shown below.
C
F
E
D
JCB M6 X 1”
Allen wrench M4
C
D
C
Flat washer
E
D
E
Adult assembly
Split washer
HEADBOARD
Congratulations!
Your bed is now ready for use.
To ensure lasting safety, we recommend that you periodically check
that all screws are tight and all parts are secure.
Page 3 of 3
