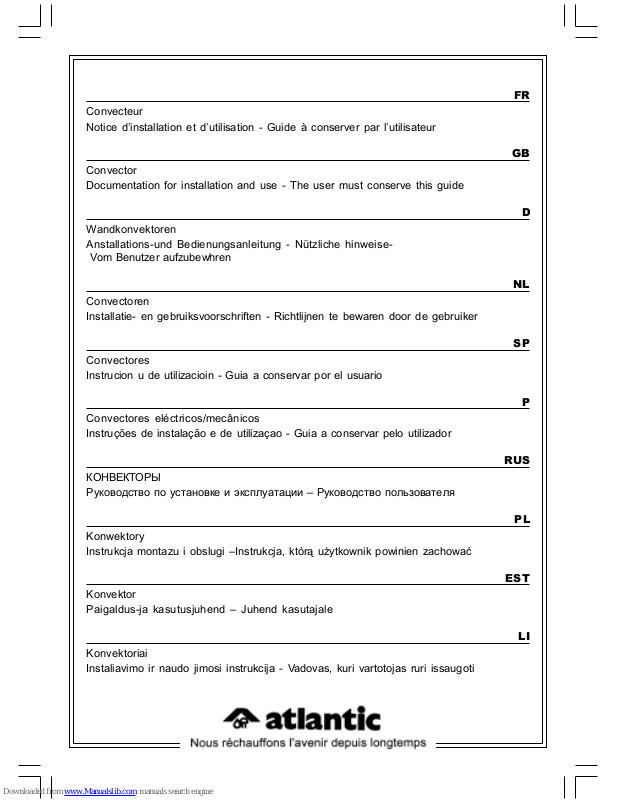

Atlantic F17, F117 Operating Manual

FR

Convecteur
Notice d’installation et d’utilisation - Guide à conserver par l’utilisateur

GB

Convector
Documentation for installation and use - The user must conserve this guide

D

Wandkonvektoren
Anstallations-und Bedienungsanleitung - Nützliche hinweise-

Vom Benutzer aufzubewhren

NL

Convectoren
Installatie- en gebruiksvoorschriften - Richtlijnen te bewaren door de gebruiker

SP

Convectores
Instrucion u de utilizacioin - Guia a conservar por el usuario

P

Convectores eléctricos/mecânicos
Instruções de instalação e de utilizaçao - Guia a conservar pelo utilizador

RUS

КОНВЕКТОРЫ
Руководство по установке и эксплуатации – Руководство пользователя

PL

Konwektory
Instrukcja montazu i obslugi –Instrukcja, którą użytkownik powinien zachować

EST

Konvektor
Paigaldus-ja kasutusjuhend – Juhend kasutajale

LI

Konvektoriai
Instaliavimo ir naudo jimosi instrukcija - Vadovas, kuri vartotojas ruri issaugoti

11

11

1

22

22

2

44

44

4

44

44

4

bis

33

33

3

55

55

5

66

66

6

77

77

7

88

88

8

The product you have just purchased has undergone numerous tests and inspections to guarantee the highest quality.
We hope it will give you entire satisfaction.

2) How to install the panel heater ?

2-1) Mount the wall support

- Place the attachment lug on the floor.

33

33

3

.1

- Mark the holes, to determine the position of the lower attachments.

- Raise the attachment lug, making the previously marked holes coincide so that you can locate the remaining two holes.

33

33

3

.2

- Drill holes and put the inserts into place

- Fix the support.

- Mount the panel heater on mounting S as shown. Lock the lock V.

44

44

4

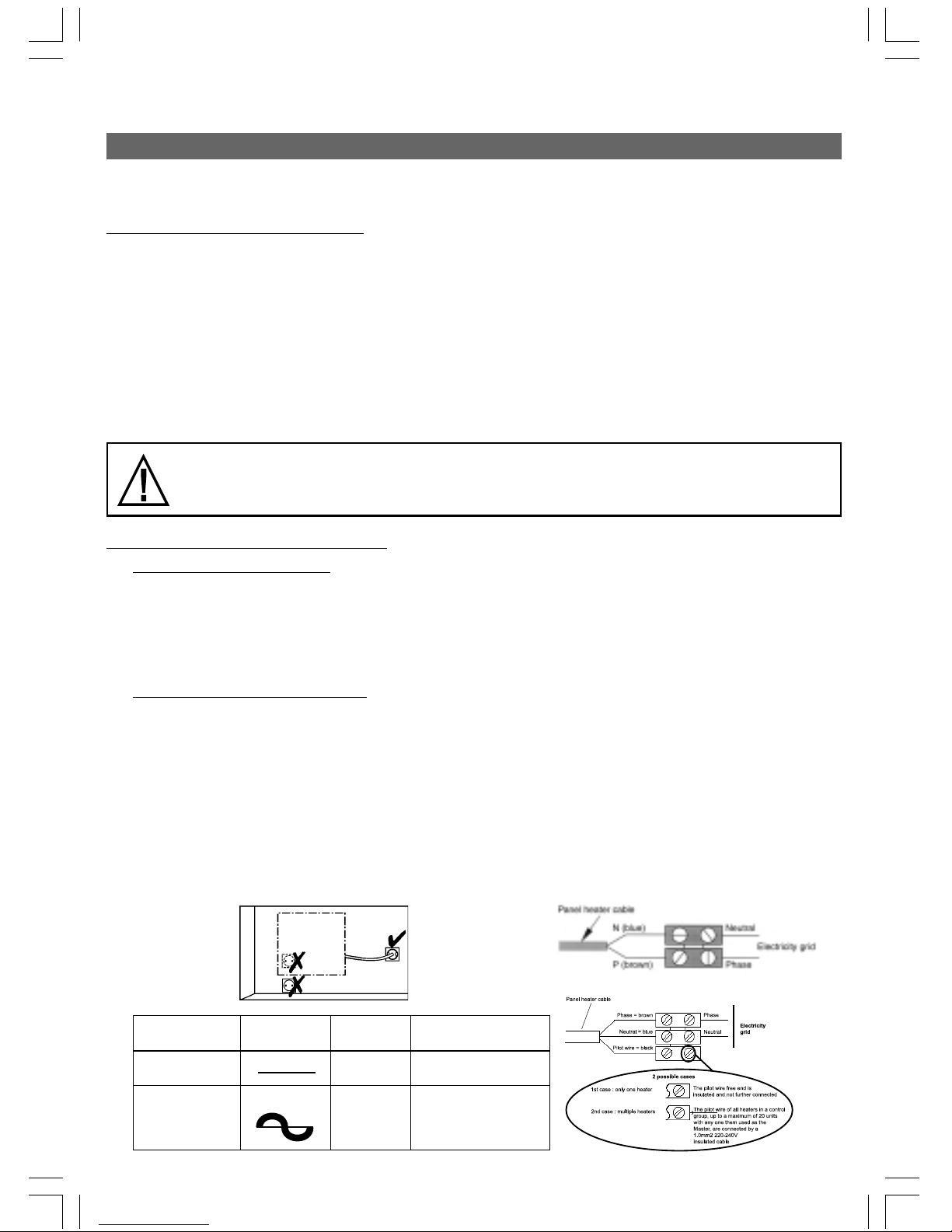

2-2) Connecting the panel heater

- The panel heater must be powered with 220-240V 50Hz

- The panel heater must be connected to the mains, either by a 2-wire cable (Brown = Phase, Blue = Neutral) via a power
socket (Product with plug : diagram A) or connexion box (Mechanical thermostat : diagram B) ; by a 3-wire cable (Brown
= Phase, Blue = Neutral, Black = Pilot wire) by means of a connexion box (version with pilote wire : diagram C).
In humid areas such as bathrooms and kitchens the power socket must be installed at least 25 cm above the floor.

- The installation must be equipped with a omnipole disconnexion mechanism with a break contact distance of at least 3mm.

- Earthing is prohibited. Do not connect the pilot wire (black) to earth.

- The heater must be installed by a qualified electrician in accordance with the local regulations. The heater and the pilot
wire (black) must NOT be connected to earth. If the heater wire is damaged, it must be replaced by a qualified person
to avoid hazard.
If a pilot or piloted panel heater is protected by 30mA differential (e.g. bathroom) the pilot wire’s power must be
protected on this differential.

It is strongly recomended not to install vertical products we manufacture above an altitude of 1000
metres. If the device is installed at altitude the air discharge temperature will be increased (by
approximately 10°C per 1000 m of altitude).
It is forbiden to install vertical product in horizontal position

INSTALLATION OF THE PANEL HEATER

Please read the instructions before starting to install the heater. Disconnect the power before carrying out any work on
the heater. Keep these instructions even once you have installed your heater.

1) Where to install your heater ?

- This equipment was designed to be installed in a residence. Please ask your distributor before using it for any other purpose.

- The panel heater should be installed according to normal trade practice and in compliance with legislation in the
relevant country (the IEE Wiring Regulations).

- The equipment is class 2 and is protected against splashed water. Therefore it can be installed in volume 2, provided

the panel heater’s controls cannot be reached by a person using the shower or bath.

11

11

1

- Comply with the minimum clearance distances for positioning of the panel heater.

22

22

2

- If your wall covering is laid on foam, a spacer the same thickness as the foam must be placed under the panel
heater’s support. This ensures there is free space behind the panel heater to make sure its control settings are not
adversely affected.

- Do not install the panel heater:

➫ In a draught likely to affect the control settings (under a fan, etc.).
➫ Under a fixed mains power socket.

sdnammoC

deviecer

epocsollicsOs

rtueN/féRla

edoM

tbodenia

pmetgnitaeHeerutar

tbodenia

oNtnerrucOCM TROFC gnittestrofmo

Clpmoeet

noitanretla

OCE

gnittesOCE

C°3otC°4

ehtfonoitcuder

TROFMOCgnittes

A

B

C

1) Description of the control unit :

55

55

5

and

66

66

6

➊ ➔

(marche/1) /

switch (stop/0). ➋ ➔ Temperature adjustment control knob. V1➔ Heating indicator light

2) Fixing the comfort temperature

The comfort temperature is the temperature that you would like while the room is occupied.
a) Put the ➊ switch to ON (marche/1).
b) Set the ➋ control knob to between 4 and 5. Electronic Model : the heating indicator V1 comes on if the room
temperature is below the required temperature.
c) Wait a few hours for the temperature to stabilise.
d) If the setting is satisfactory (if necessary use a thermometer to check), mark the position for future use.
e) If the setting is not satisfactory, adjust it and start again from point c.

3) Frost-Free mode

This mode is used to keep the temperature at approximately 7°C in the room when you are absent from the house for
a prolonged period (i.e. more than 24 hours).
a) Leave the ➊ switch on /I.
b) Set the ➋ control knob to

(mecanical).

4) The heating indicator : V1 (electronic model)

This light comes on when the heating element is working. It may flash when the temperature has stabilised.

5) Locking the controls :

77

77

7 et

88

88

8

It is possible to lock or limit use of the ➋ control knob and lock the ➊ switch to prevent unauthorised manipulation of
the panel heater (children, etc.).
a) Unhook the panel heater from its wall mounting.
b) Remove the slugs P on the back of the thermostat from their mountings.
c) Select position B to lock the control knob or position L to limit the amount it can be turned. Position M blocks the switch
for Electronic Model.

6) Using the pilote wire

The product with pilote wire can receive the following signal from a master unit :

- COMFORT (Temperature of ➋ control knob)

- ECO (Comfort temperature -3°C to 4°C)
The product must be connected through the pilote wire to a programming control or a product with K7 Program
in order to use comfort or eco mode. You can thus control several convectors with a single programmer or a product
with K7 Program.

- There is no point in setting maximum heating, the room temperature will not rise any quicker.

- When you air the room, disconnect the panel heater by putting the ➊ switch to

/ 0.

- If you leave for several hours, remember to reduce the temperature.

Absence for : less than 2 hours, do not touch the controls.

2 to 24 hours, lower the ➋ control knob by two graduations.
more than 24 hours or in the summer, put the ➋ control knob to

(mecanical),

the ➊ on

(electronic).

- If you have several units in a room, let them operate simultaneously. This will give you a more uniform temperature
without increasing electricity consumption.

USING THE PANEL HEATER

RECOMMENDATIONS FOR USE

WARNINGS

This appliance is not intended for use by young children or infirm persons without
supervision. Young children should be supervised to ensure that they do not play
with the appliance, lean against the front or insert objects or paper in it. Do not
totally or partially block the grilles on the front or inside of the appliance, as this
may cause overheating. If the supply cord is damaged, it must be replaced by a
service agent or similarly qualified person in order to avoid a hazard (applies to
units fitted with a supply cord and plug). Units fitted with a three core supply cord
(brown, blue & black), must be directly connected to fixed wiring by a licensed
electrician. All work on the interior of the appliance must be carried out by a licensed
electrician.

To maintain performances of your unit, you should clean the upper and lower grilles of the unit about twice a year using a
vacuum cleaner or a brush.
Have a professional check the inside of the unit every five years.
Dirt may collect on the grille of the unit if the atmosphere is polluted. This phenomenon is due to the poor quality of the
ambient air. In this case, it is recommended to check that the room is well ventilated (ventilation, air inlet, etc.), and that
the air is clean. The unit will not be replaced under the guarantee because of this type of dirt.
The unit casing should be cleaned with a damp cloth, never use abrasive products.

If the unit does not heat :

Check that the programmer is in COMFORT mode (electronical).
Make sure that the installation circuit breakers are switched on, or that the load shedder (if you have one) has not
switched off the unit power supply. Check the air temperature in the room.

The unit does not carry out programming orders : (version with pilot wire)

Make sure that the programming unit is being correctly used (refer to its user’s manual) or that the Chronocarte is
properly inserted in its housing and that it is operating normally (batteries ?).

The unit is permanently heating :

Make sure that it is not in a draft and that the temperature setting has not been changed.
This unit with electronic control is equipped with a microprocessor that can be distribued by some severe mains voltage
disturbances (outside EC standards defining the disturbance protection level). If there are any problems (thermostat blocked,
etc.) switch off the unit power supply (fuse, circuit breaker, etc.) for about 5 minutes to allow the unit to start again.

Have your energy distributor check your power supply if the phenomenon occurs frequently.

MAINTENANCE

TROUBLE-SHOOTING

WARRANTY CONDITIONS :

KEEP THIS DOCUMENT IN A SAFE PLACE

(This certificate should only be produced if you are making a complaint, attached with the invoice of the purchase)

- This guarantee is applicable for 2 years from the date of original purchase and shall be valid for no more than 30 months from the
date of manufacture.

- Your Atlantic distributor will exchange parts shown to be defective in manufacture. The replacement parts will be of charge but
Atlantic does not accept responsability for freight or labor charges or losses in transit.

- This guaranteeexcludes damage by neglect, shipping or accident and any damage due to incorrect installation, use or purposes
other than those intended or failure to observe the instructions given.

* This information is shown on the plate which can be seen on the left-side or behind the front grille of the unit.

✁

INSTALLER’S STAMP

UNIT TYPE * :

SERIAL NUMBER * :

CUSTOMER’S NAME AND ADRESS :
