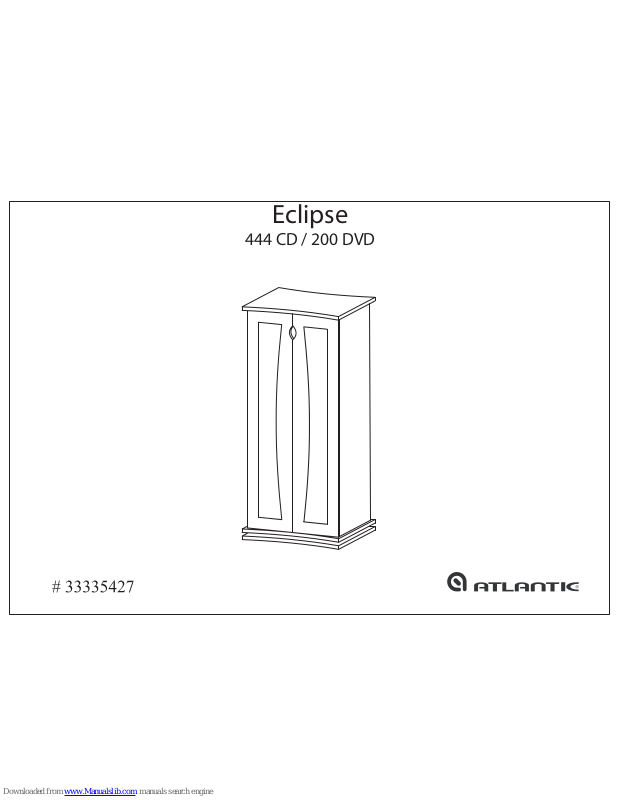

Eclipse
444 CD / 200 DVD
Page 2
de
dul
cni ton / dedeen slo
oT
revirdwercs spillihP
s includedlo
oT
7
c
etimárt ne so
rejna
rtxe sesíap
y
AU
E sol ed se
tneta
P
s
r
egna
rté sy
ap se
rtua te sinU statE ru
op s
ruos n
É
g
ignäh dnis et
ne
ta
P ehcsidnälsua e
redna
dnu .
S.U
/ sév
resé
r stio
rd s
uo
T
/ s
odav
reseR sohce
reD
netlahe
b
r
ov
ethceR ell
A
/ enihC ne éuqi
rba
F / anihC
ne ohceH
anihC ni tlletseg
reH
R1.1 070323 # 33335427
Hex Key
44
4U
Page 3
2 - Screw (L) into panel (A). Insert dowels (M) and plastic inserts (U) into the holes as shown.1 - Insert (K) into side panels (E) and (F). Arrows should point towards screw opening, see diagram (1-A)
3 - Fasten (N) to panel (A) with screws (R). Insert pins (P) into the holes.
4 - Attach (E) and (F) onto panel (A). Lock by turning (K) in side panels (E) and (F), clockwise until it locks.
See diagram (4-A).
U
Page 4
5 - Slide middle panel (D) into groove in panels (E) and (F).
7 - Attach metal plates (O) to left door (G) and right door (H) with screws (S). 8 - Attach doors (G) and (H) to (A) and (B) with pins (P). Attach base panel (B) to side panels (E) and (F) with screws (Q).
U
6 - Insert dowels (M) into the holes of base panel (B) as shown. Insert plastic inserts (U) and then pins (P) into the
holes as shown.
Page 5
Hex Key
9 - Fasten rotating bracket (J) onto the lower base (C) with screws (T) using provided tool (Hex Key). 10 - Attach lower rotating base (C) to (B) by inserting and tightening screws (T) through access holes, one at a time.

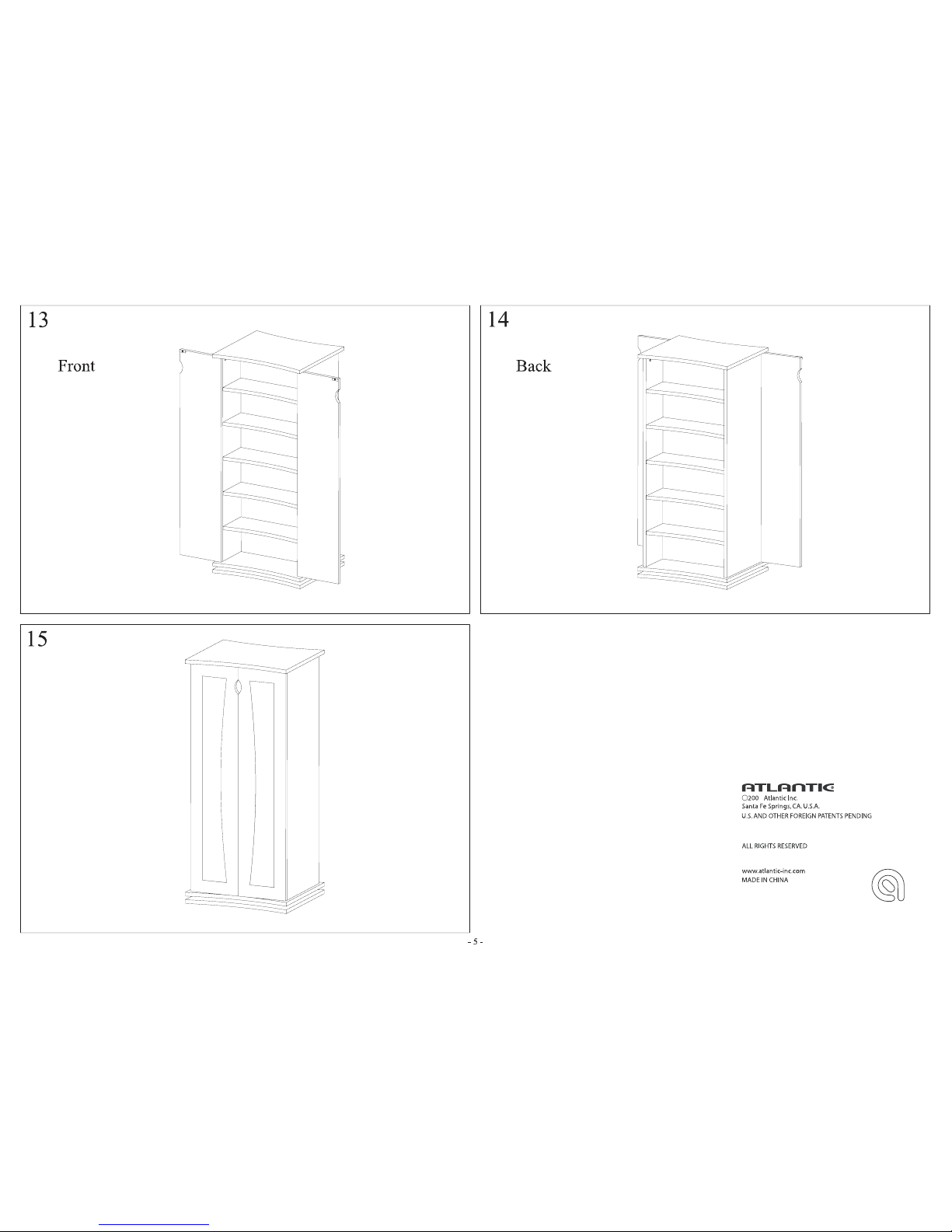

11 - Insert pins (P) at desired heights. 12 - Place shelves (I) on pins (P).
