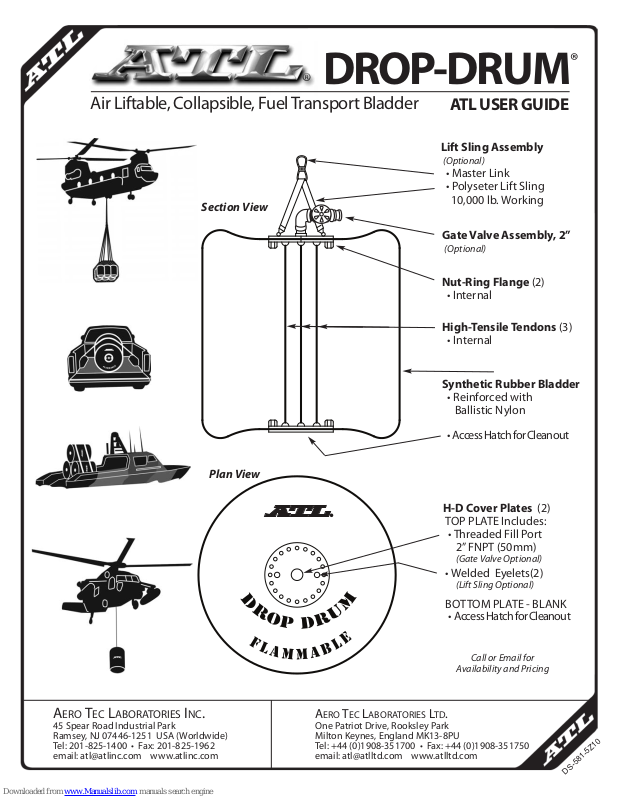

Page 1
DROP-DRUM
®
Air Liftable, Collapsible, FuelTransport Bladder

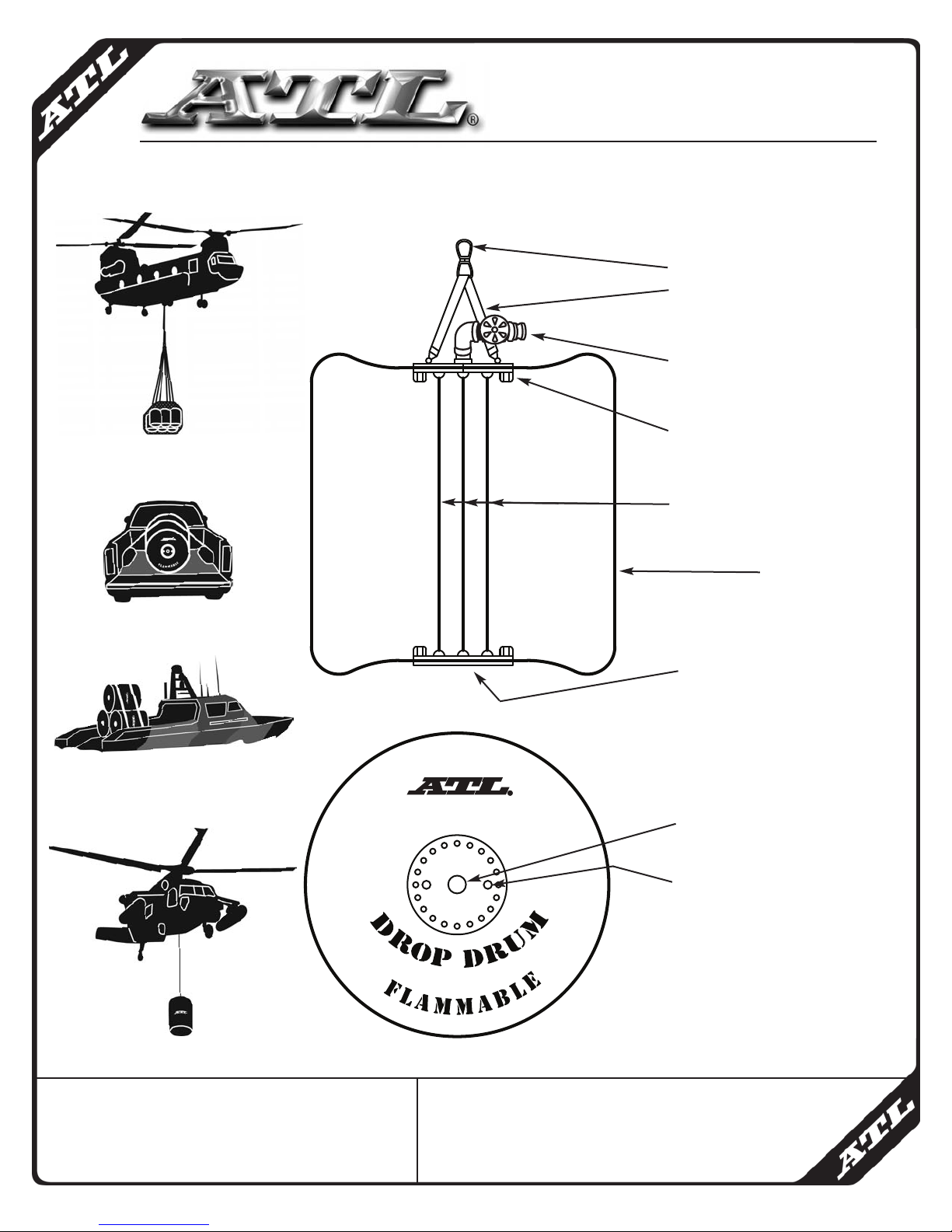

Section View
ATLUSER GUIDE
Lift Sling Assembly
(Optional)
• Master Link
• Polyseter Lift Sling
10,000 lb. Working
Gate Valve Assembly, 2”
(Optional)
Nut-Ring Flange (2)
• Internal
High-Tensile Tendons (3)
• Internal
Synthetic Rubber Bladder
• Reinforced with
Ballistic Nylon
Plan View
AERO TEC LABORATORIES INC.
45 Spear Road Industrial Park
Ramsey, NJ 07446-1251 USA (Worldwide)
Tel: 201-825-1400 • Fax: 201-825-1962
email: [email protected] www.atlinc.com
• Access HatchforCleanout
H-D Cover Plates (2)
TOP PLATE Includes:
• Threaded Fill Port
2” FNPT (50mm)
(Gate Valve Optional)
• Welded Eyelets(2)
(Lift Sling Optional)
BOTTOM PLATE - BLANK
• AccessHatchforCleanout
Call or Email for
Availability and Pricing
AERO TEC LABORATORIES LTD.
One Patriot Drive, Rooksley Park
Milton Keynes, England MK13-8PU
Tel: +44 (0)1908-351700 • Fax: +44 (0)1908-351750
email: [email protected] www.atlltd.com
DS-581-5Z10
Page 2
DROP-DRUM
®
Air Liftable, Collapsible, FuelTransport Bladder
ATL DROP-DRUM® Fuel Bladders
Compatability: Diesel, JP Fuels, MOGAS,
AVGAS, Kerosene, Lube Oils
Capacity: 500 U.S. Gallons (2000 Liters)
I
ATL Part #: 108139
Dry Weight: 130 lbs. (59 kg)
Nominal Filled Dimensions:
51” diam. x 52” ht.
(130cm x 132cm)
Fill Pressure: 5 psi (34.5 kPa)
Max Working Pressure: 20 psi (137.9 kPa)
Nominal Burst Pressure: 40 psi (275.8 kPa)
g-Loads: 3-5 Vertical
II
Capacity:
ATL Part #: 108129
Dry Weight: 100 lbs. (45.4 kg)
Nominal Filled Dimensions:
Fill Pressure: 5 psi (34.5 kPa)
Max Working Pressure: 25 psi (172.4 kPa)
Nominal Burst Pressure: 50 psi (344.7 kPa)
g-Loads: 5-10 Vertical
Capacity:
III
ATL Part #: 108106
Dry Weight: 60 lbs. (27 kg)
Nominal Filled Dimensions:
Fill Pressure: 5 psi (34.5 kPa)
Max Working Pressure: 30 psi (206.8 kPa)
Nominal Burst Pressure: 80 psi (551.6 kPa)
g-Loads: 10-15 Vertical
250 U.S. Gallons (1000 Liters)
39” diam. x 42” ht.
(99cm x 107cm)
55 U.S. Gallons (220 Liters)
23” diam. x 35” ht.
(58.5 cm x 90cm)
ATL USER GUIDE

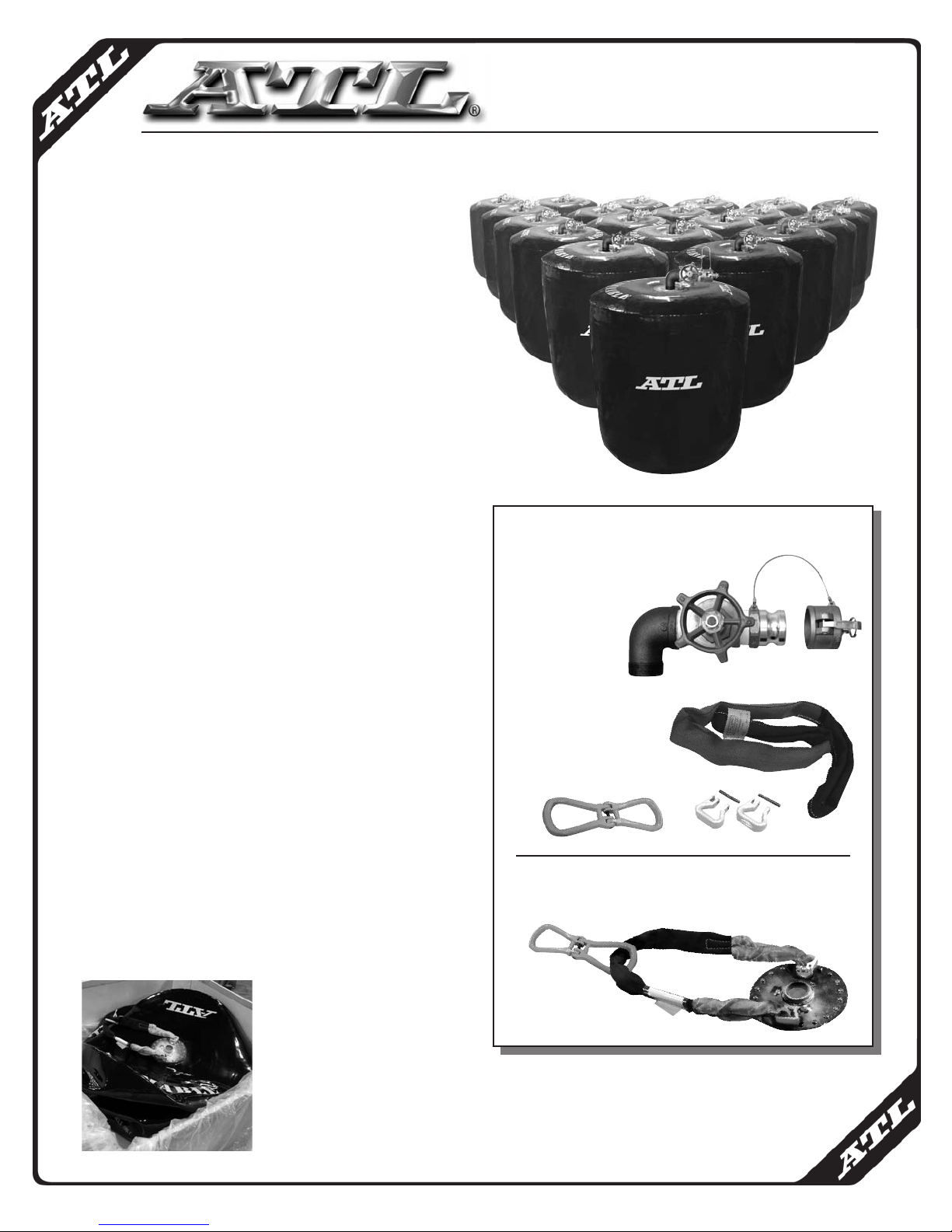

OPTIONAL ACCESSORIES:
Gate Valve Assembly
with Cam-Lock
Dust Cover
Part # 202040
Polyester Lift
Sling Assembly
with Metal Hardware
Part # 202050
Top Fill Plate with
Lift Sling Assembly Installed
(Without Gate Valve Assembly)
FACTORY CRATED
Your ATL Drop Drum
will arrive crated in
a ha rdwood shi pping
container. Filling th e
drum will cause it to
distend and it will be selfsupporting when full.
IMPORTANT: Always fill and discharge the ATL
Drop Drum on a cleared, level surface that is free
from sharp objects and debris.
not intended for consumer or recreational use.
This product is
