Atkins 93025 User Manual

LIMITED WARRANTY

The SysCal™ 93025 system is backed by a 1-year probe and thermocouple
instrument Warranty on defects in workmanship and materials.

Any instrument which proves to be defective in material or workmanship within

1-YEAR WARRANTY

one year of original purchase will be repaired or replaced without charge upon
receipt of the unit prepaid with proof of purchase. This Limited Warranty does
not cover damage in shipment or failure caused by tampering, obvious
carelessness, or abuse, and is the purchaser’s sole remedy.

RETURN/ REPLACEMENT INSTRUCTIONS

Because the individual probes and thermocouple work in tandem to form a
calibrated system, parts cannot be replaced individually.

REPAIR RETURN
If damaged, all probes and thermocouples must be returned together for repair
and recalibration. Limited Warranty terms apply.

SERVICE RETURN

For annual recalibration service and re-issue of certication, return all probes

and thermocouples to the address below.

Cooper-Atkins® Corporation, 33 Reeds Gap Road, Middleeld, CT 06455-0450

800.835.5011 • www.cooper-atkins.com

93025

SysCal™ Calibration System

Instrument Warranty and User Guide

PRODUCT REGISTRY

Please register your Cooper-Atkins

product today. It is the only way to notify

you of future software/product up-grades.

There is no fee to register.

Go to: www.cooper-atkins.com,

select Product Registry and complete

the online form.

Manufactured in the USA by Cooper-Atkins Corporation

An ISO 9001 Registered Facility and calibrated in

V1014 27-958633

an ISO17025 Accredited Lab

CALIBRATION PROCESS

93025 TROUBLESHOOTING

SysCal™ CALIBRATION PROCESS

The Syscal calibration process was designed to monitor the accuracy of a previously

installed TempTrak® transmitter and its modied* Solid Simulator Probe. This process will

be used with the transmitter and solid simulator probe connected, measured as a unit, and
in place within the use environment.

Calibration of the transmitter and solid simulator is achieved by comparing the documented
readings from the transmitter and solid simulator with the reading from the SysCal™
35025 Thermocouple and the 50219-K Probe. This reading is referred to as the reference
standard.

The Total System Accuracy (TSA) of SysCal is ±0.5°F (±0.3°C). A certicate of calibration

from an ISO 17025 accredited laboratory is also supplied. This accuracy will provide a Test

Uncertainty Ratio (TUR) of 4:1 when used as the reference standard for the TempTrak

transmitter and Solid Product Simulator.

*The modified solid simulator incorporates a secondary hole in the opposite end from where the thermistor sensor is inser ted

into the solid simulator. This secondary hole is used to place an insertion probe in the vicinity of the simulator’s thermistor

sensor.

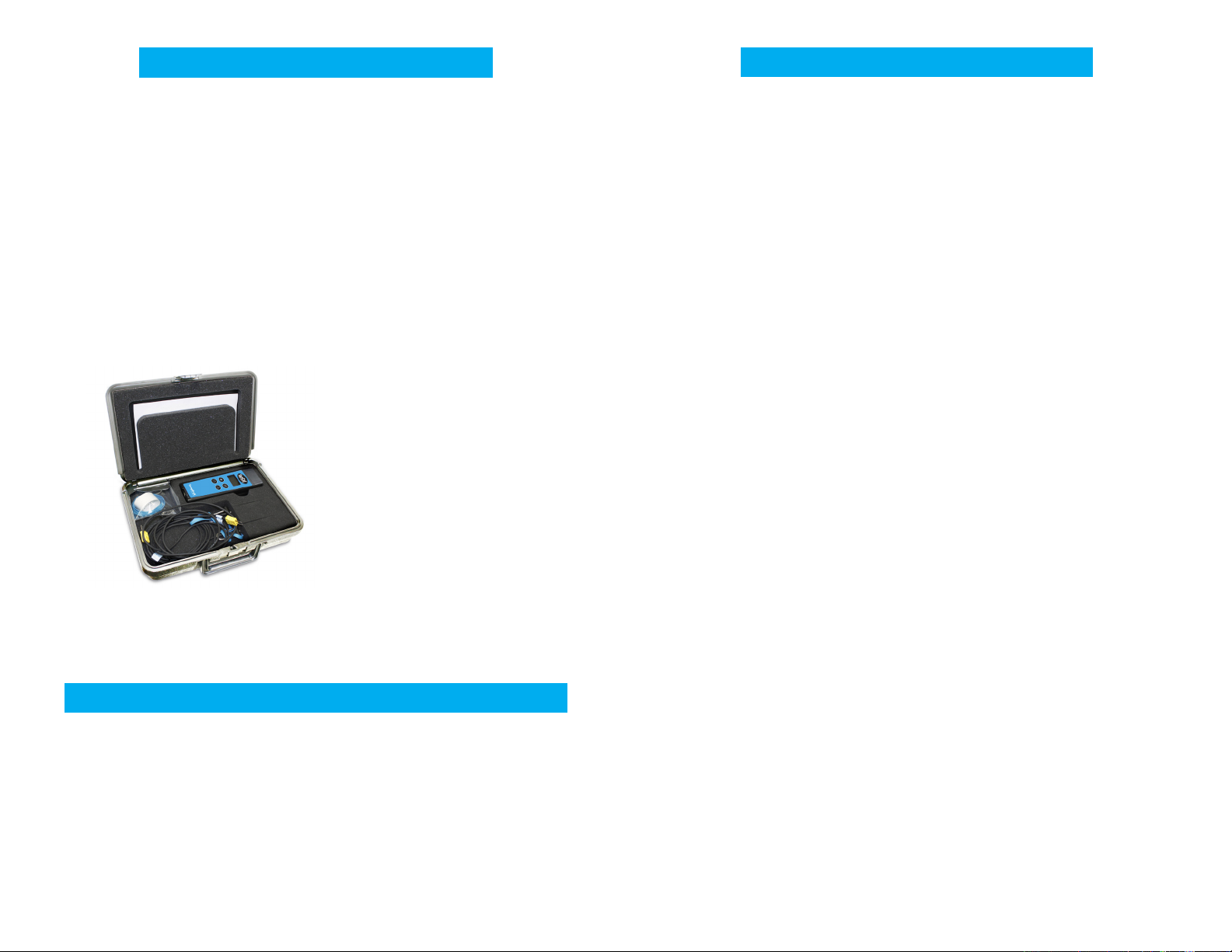

93025
SysCal™ Calibration Kit

(1) 35025 Thermocouple instrument
(2) 50219-K probes

(1) ISO 17025 certicate of calibration

(1) Calibration log sheet
(1) Hard carrying case

(48) Calibration labels
(48) Blank labels

TROUBLESHOOTING

1) Unit Does Not Turn On: Batteries are installed

incorrectly or dead. Check batteries are installed
according to picture on rear label. Replace batteries.

2) Display Shows “Prob”: Probe is broken (Open
thermocouple. See “Test for Broken Probe”
below).

3) Test for Broken Probe: Pull the probe connector out

partially to expose the blade contacts. Place a metal
paper clip across connector blades to short contacts.
If instrument displays temperature, the probe is
broken. Replace Probe.

4) Battery Icon Appears on Display: Low battery.
Replace batteries.

5) Display Shows “bAtt” and Instrument Shuts Off:

Replace batteries.

6) Display Shows “LO” or “HI”: Temperature measured
is outside measurement range of instrument.

TECHNICAL SUPPORT

Cooper-Atkins® Corporation
11353 Reed Hartman Hwy, Suite 110

Cincinnati, OH 45241-2929
888-533-6900

Probe replacement is no longer necessary as long as the calibration process yields an
accuracy within the stated range, and the calibration process is performed within the actual
in-use environment. If any calibration results demonstrate out of tolerance conditions for
a TempTrak® transmitter or probe, the equipment will need to be replaced (refer to current
price schedule). For further information contact your local TempTrak sales representative.

PROBE CONNECTORS LOCATED INSIDE COLD ENVIRONMENTS

It is recommended that the probe connector is located outside of any cold environments to
avoid any inaccuracies.

If the probe cord is not long enough to t outside of the cooler or freezer, it can be left in that

environment during the wait time of 3 to 5 minutes. However, if the probe connector is exposed
to these cold environments, and then plugged into the thermocouple instrument, it needs to

acclimate for approximately 4 minutes. This will compensate for the temperature difference

between the probe connector and the instrument to avoid inaccurate readings.

To avoid taking innaccurate readings, do not leave the thermocouple instrument in these
environments longer than the recommended times explained above.

72

93025 SYSCAL SYSTEM SPECIFICATIONS

CALIBRATION INSTRUCTIONS

SYSTEM COMPONENTS:

(1) 35025 thermocouple and (2) 50219-K probes

SYSTEM RANGE:

-25°F to 180°F (-32°C to 82°C).

SYSTEM ACCURACY:
±0.5°F (±0.3°C) when probe/instrument are calibrated

together and ambient temperature is between 68°F and
86°F (20°C and 30°C).

AMBIENT TEMPERATURE RANGE:

Operating: 32°F to 122°F (0°C to 50°C)

AMBIENT ACCURACY:

At ambient temperatures between 32°F to 68°F (0°C to
20°C) and 86°F to 122°F (30°C to 50°C), add ±0.1° error
per °F or °C deviation from 68°F and 86°F (20°C and

30°C).

RESOLUTION:

0.1° / 1° user selectable

DISPLAY:

LCD with 0.5” (13 mm) digit height

BATTERY TYPE:

(2) 1.5V (AAA) batteries (ANSI/NEDA-24F, IEC-R03)

BATTERY LIFE:
1800 hours typical

LOW BATTERY:
Indicated by battery icon on display. When battery is fully
depleted “batt” appears on display and unit will shut off
and not operate.

STORAGE:

-13°F to 167°F (-25°C to 75°C) (battery removed)

COMPLIANCE/REGULATORY:

Calibrated in an ISO17025 accredited lab, CE certied,

NSF listed, WEEE marked, Rohs compliant.

TRACEABILITY:

We certify that this instrument has been calibrated to
temperature and/or electrical standards traceable to the
U.S. Department of Commerce National Institute of
Standards and Technology (NIST).

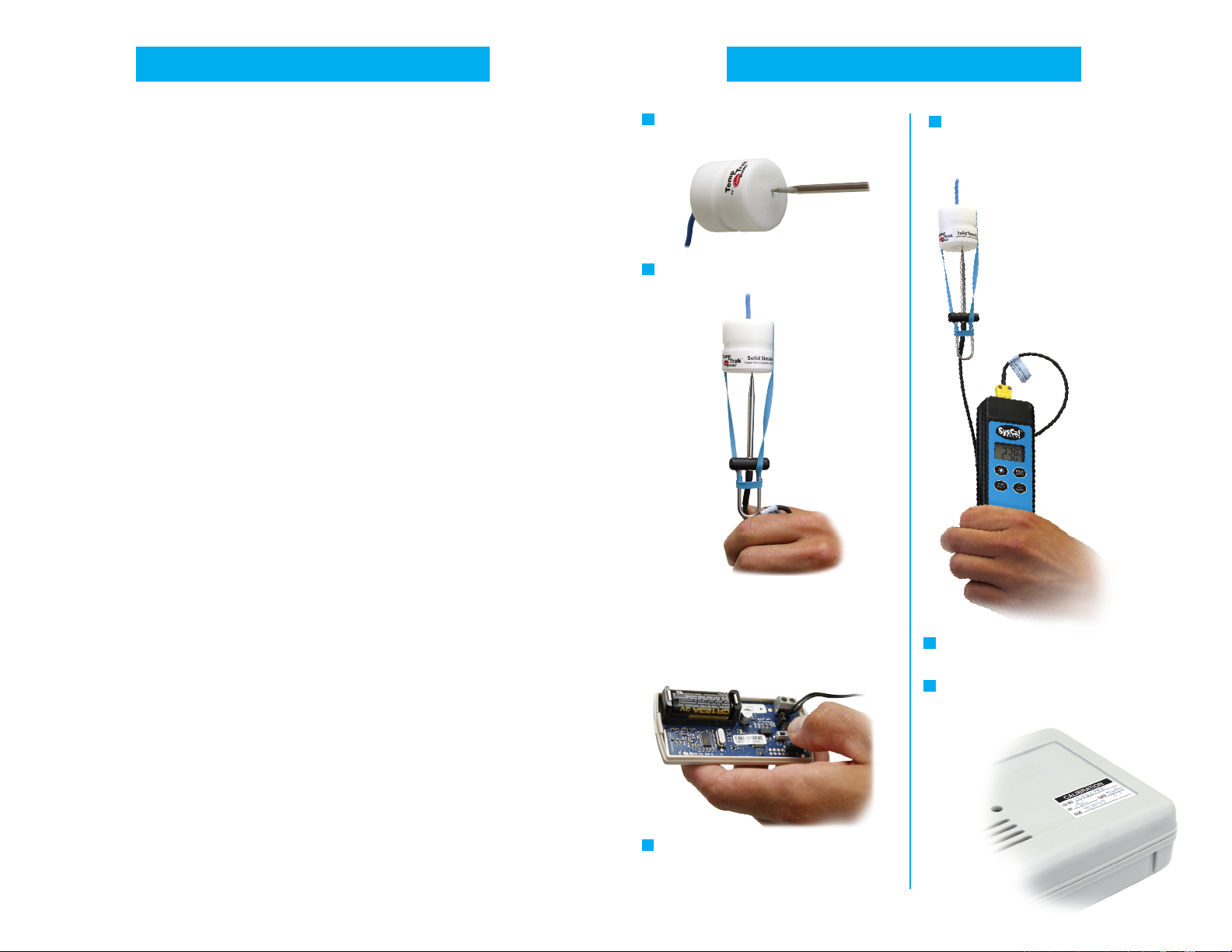

1 Insert the SysCal probe into the calibration port

of the solid simulator.

2 Secure probe by looping the elastic band over

the top of the solid simulator.

Close the door to the monitoring area to minimize
temperature fluctuations. To ensure an accurate
reading between the probe and the solid simulator,
allow them to stabilize for 3 to 5 minutes before
recording a temperature.

4 Immediately after sending the reading from the

transmitter, take note of the temperature displayed
on the thermocouple. Record this reading in your
data log sheet. Use this as your reference standard.

The reading from the TempTrak
transmitter is compared to the
reference standard recorded by
the SysCal thermocouple. If that
reading is within ±2.0ºF (±1.1ºC), the
transmitter and solid simulator probe
are considered to be calibrated
within the stated accuracy.

5 Seal the calibration port on the solid simulator probe

by placing a blank label (supplied) over the hole.

6 A new calibration label (supplied) is dated and signed

by the technician, and placed on the housing
of the TempTrak transmitter (802.11 Wi-Fi shown).

3 A TempTrak reading transmission is initiated

by pressing the transmit button* on the
TempTrak transmitter (900 MHz shown).

*Depending on the transmitter type, this button may be

6 3

accessible from the inside (as above) or from the outside.

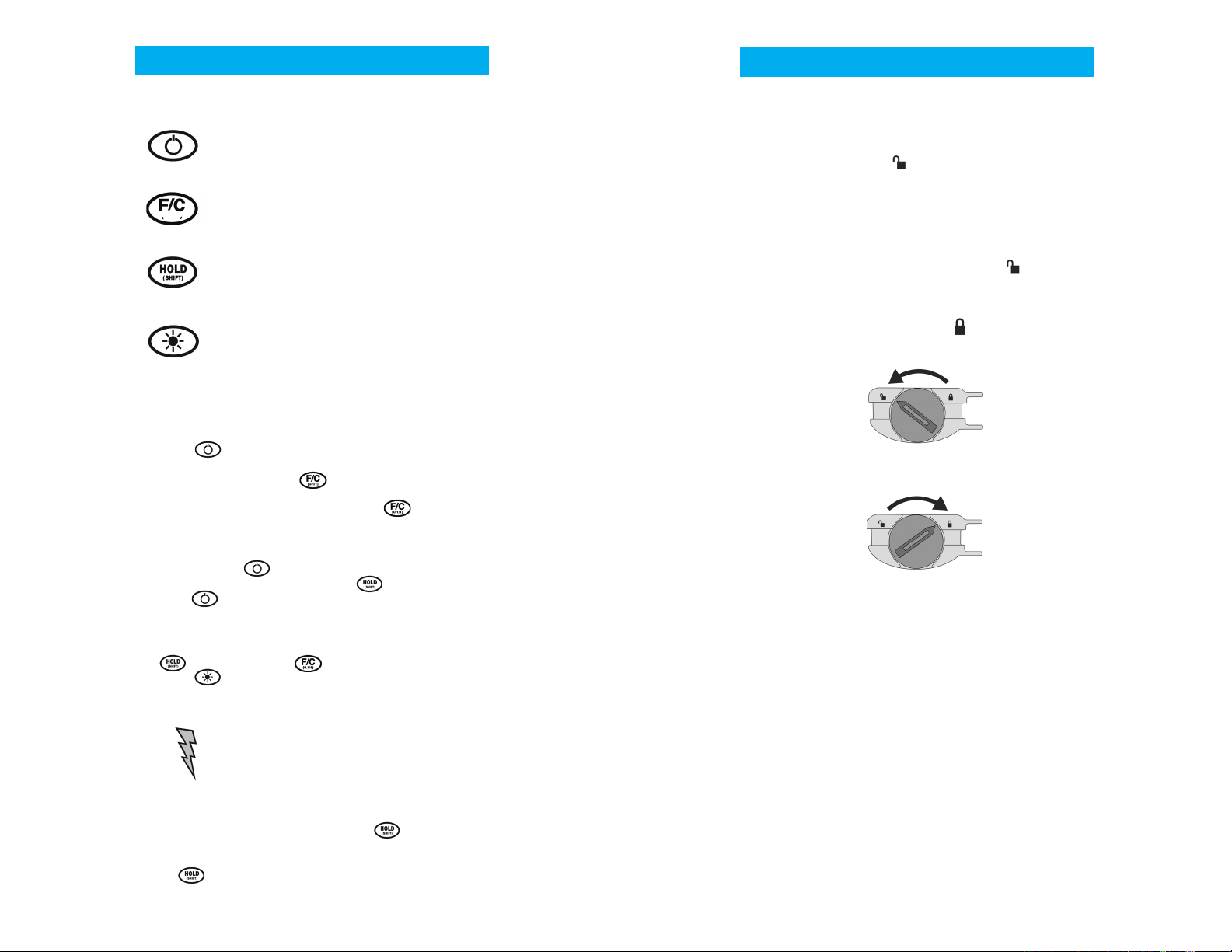

SYSCAL 35025 THERMOCOUPLE

35025 BATTERY REPLACEMENT

OPERATING INSTRUCTIONS

Press to turn instrument ON or OFF. When
used in combination with SHIFT key, enables
or disables AUTO-OFF feature.

Press to select FAHRENHEIT or CELSIUS
temperature scale. When used in combination

(0.1/1)

with SHIFT key, selects tenth degree or whole
degree resolution.

Press to “FREEZE” current temperature
reading on display. SHIFT function provides
secondary user settings with other keys as
noted.

Press to turn on BACKLIGHT for viewing
temperatures in low lighting conditions.
When pressed, BACKLIGHT will remain on
for 5 seconds.

OPERATION:

1) Observing correct polarity, insert thermocouple probe
into connector on top of instrument.

2) Press key to turn instrument on.

3) Default temperature scale is Fahrenheit. To change
temperature scale, press key. (NOTE: Display

will toggle between “F” and “C” icons on right
side of display with each press of the key).

4) The instrument has an AUTO-OFF feature that will turn

off unit after 10 minutes of non-keypad activity to
conserve battery life. To manually turn instrument off,
press and hold key momentarily. To disable
AUTO-OFF feature, press and hold key and then
press key. (NOTE: “AUTO” icon at top of display

will appear when AUTO-OFF feature is active).

5) The resolution default setting is tenth degree. To
change resolution to whole degree, press and hold
key and then press key.

6) Press key to turn on backlight. When pressed,

the backlight will remain on for 5 seconds and
automatically turn off.

NOTE: USE OF BACKLIGHT WILL

SIGNIFICANTLY DECREASE BATTERY
LIFE DUE TO INCREASED POWER
REQUIRED FOR BACKLIGHT OPERATION

7) The instrument has a “HOLD” feature to capture the
current temperature reading on the display. To activate
the hold feature, press and release the key. The

current temperature reading will ash on the display

and the hold icon will appear at top of display. Press
the key again to return to STANDARD

TEMPERATURE MODE.

4 5

BATTERY REPLACEMENT:

1) Turn battery doorknob counter-clockwise until
rotation stops. The arrow on battery door knob will
point towards unlock icon.

2) Pull battery doorknob to remove battery door
assembly. Remove batteries.

3) Referring to battery polarity drawing on rear label,
install (2) AAA alkaline batteries as shown.

4) To install battery door assembly, ensure that battery

doorknob is turned fully counter-clockwise and arrow
on battery door is pointed towards unlock icon. Push
inward on battery door assembly until battery doorknob
is seated against housing. Rotate battery doorknob
clockwise until rotation stops. The arrow on battery
doorknob will point towards lock icon.

TURN COUNTER-CLOCKWISE TO UNLOCK

TURN CLOCKWISE TO LOCK
