ATI Electronics SH801S Users Manual

B LU ET O OTH

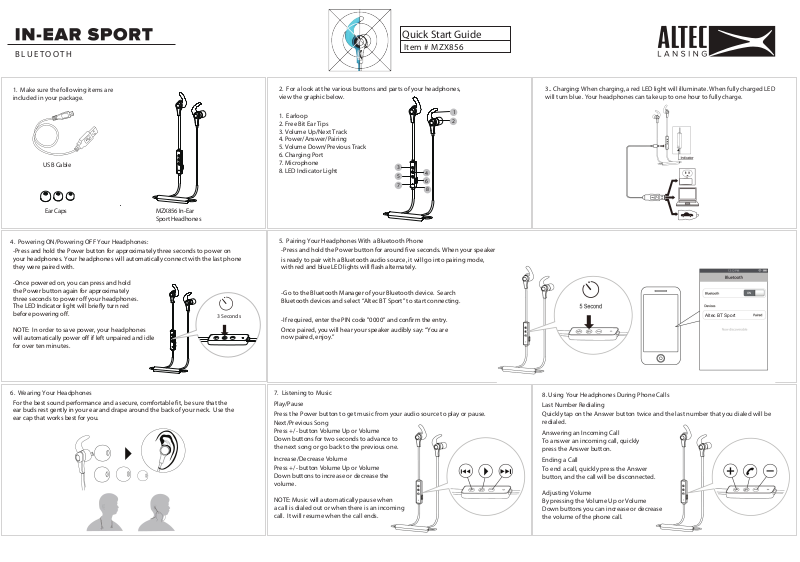

Quick Start Guide

Item # MZX856

1. Make sure the following items are included in your package.

USB Cable

Ear Caps

MZX856 In-Ear Sport Headhones

4. Powering ON/Powering OFF Your Headphones:

-Press and hold the Power button for approximately three seconds to power on your headphones. Your headphones will automatically connect with the last phone they were paired with.

-Once powered on, you can press and hold the Power button again for approximately three seconds to power off your headphones. The LED Indicator light will briefly turn red before powering off.

3 Seconds

NOTE: In order to save power, your headphones will automatically power off if left unpaired and idle for over ten minutes.

2. For a look at the various buttons and parts of your headphones, view the graphic below.

1. Earloop

2. Free Bit Ear Tips

3. Volume Up/Next Track

4. Power/Answer/Pairing

5. Volume Down/Previous Track

6. Charging Port

7. Microphone

8. LED Indicator Light

5. Pairing Your Headphones With a Bluetooth Phone

-Press and hold the Power button for around five seconds. When your speaker is ready to pair with a Bluetooth audio source, it will go into pairing mode,

with red and blue LED lights will flash alternately.

-Go to the Bluetooth Manager of your Bluetooth device. Search Bluetooth devices and select “Altec BT Sport” to start connecting.

-If required, enter the PIN code "0000” and confirm the entry. Once paired, you will hear your speaker audibly say: “You are

now paired, enjoy.”

3.. Charging: When charging, a red LED light will illuminate. When fully charged LED will turn blue. Your headphones can take up to one hour to fully charge.

Altec BT Sport

6. Wearing Your Headphones

For the best sound performance and a secure, comfortable fit, be sure that the ear buds rest gently in your ear and drape around the back of your neck. Use the ear cap that works best for you.

7. Listening to Music

Play/Pause Press the Power button to get music from your audio source to play or pause. Next/Previous Song

Press +/- button Volume Up or Volume Down buttons for two seconds to advance to the next song or go back to the previous one.

Increase/Decrease Volume Press +/- button Volume Up or Volume

Down buttons to increase or decrease the volume.

NOTE: Music will automatically pause when a call is dialed out or when there is an incoming call. It will resume when the call ends.

8. Using Your Headphones During Phone Calls Last Number Redialing Quickly tap on the Answer button twice and the last number that you dialed will be

redialed.

Answering an Incoming Call To answer an incoming call, quickly press the Answer button.

Ending a Call To end a call, quickly press the Answer button, and the call will be disconnected.

Adjusting Volume By pressing the Volume Up or Volume Down buttons you can increase or decrease the volume of the phone call.

B LU ET O OTH

Quick Start Guide

Item # MZX856

Altec Lansing One Year Warranty Card

This warranty covers the original consumer purchaser only and is not transferable.

This warranty covers products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship. Your product will be repaired or replaced at no charge for parts or labor for a period of one year.

What Is Not Covered by Warranty

Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but limited to, repair by unauthorized parties, tampering, modication or accident.

To obtain Warranty Service and Troubleshooting information:

Call 1-855-292-4087 or Visit our website at www.alteclansing.com.

To receive Warranty service along with the name and address of an authorized product service center, the original consumer purchaser must contact us for problem determination and service procedures. Proof of purchase in the form of a bill of sale or receipted invoice, evidencing that the Product is within the applicable Warranty period(s), MUST be presented in order to obtain the requested service. It is your responsibility to properly package and send any defective products along with a dated copy of proof of purchase, a written explanation of the problem, and a valid return address to the authorized service center at your expense. Do not include any other items or accessories with the defective product. Any products received by the authorized service center that are not covered by warranty will be returned unrepaired.

NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION

-ARE THE EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR, ITS MANUFACTURERS, OR SAKAR INT. BE LIABLE FOR ANY INCIDENTAL, DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES (SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS, BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER WARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING, CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.

Technical Support

For technical support issues please visit our website at www.alteclansing.com. You can ﬁnd manuals, software and FAQ’s at the website. Can’t ﬁnd what you are looking for? Call 1-855-292-4087 to access our technical support information on the phone.

Some countries, states or provinces do not allow the exclusion or limitation of incidental or consequential damages or allow limitations on warranties, so limitation or exclusions may not apply to you. This warranty gives you specic legal rights, and you may have other rights that vary from state to state or province to province. Contact your authorized retailer to determine if another warranty applies. This product is manufactured, distributed and sold by SAKAR International, Inc. All other trademarks are the property of the respective owner, who has not sponsored, endorsed or approved this product.

This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may n ot cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates. Uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions. May cause harmful interference to radio or -television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures: __ Reorient or relocate the receiving antenna. __ Increase the separation between the equipment and receiver. __ Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected. __ Consult the dealer or experienced radio/ TV technician for help.
