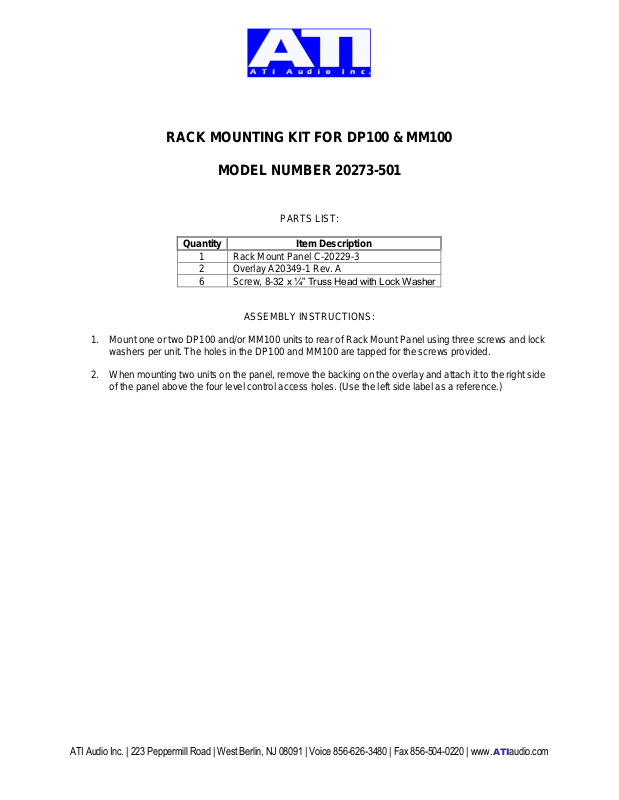

ATI 20273-501 User Manual

ATI Audio Inc. | 223 Peppermill Road | West Berlin, NJ 08091 | Voice 856-626-3480 | Fax [phone] | www. ATIaudio.com

Quantity

Item Description

1

Rack Mount Panel C-20229-3

2

Overlay A20349-1 Rev. A

6

Screw, 8-32 x ¼” Truss Head with Lock Washer

RACK MOUNTING KIT FOR DP100 & MM100

MODEL NUMBER 20273-501

PARTS LIST:

ASSEMBLY INSTRUCTIONS:

1. Mount one or two DP100 and/or MM100 units to rear of Rack Mount Panel using three screws and lock
washers per unit. The holes in the DP100 and MM100 are tapped for the screws provided.

2. When mounting two units on the panel, remove the backing on the overlay and attach it to the right side

of the panel above the four level control access holes. (Use the left side label as a reference.)
