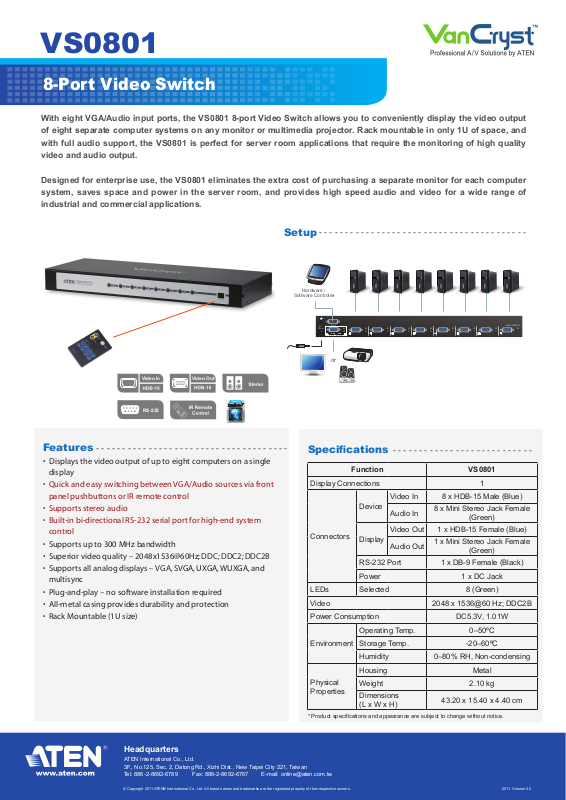

Aten VS0801A-AT-E Datasheet

VS0801

Hardware /

Software Controller

Supports

SupportsSupports

8-Port Video Switch

With eight VGA/Audio input ports, the VS0801 8-port Video Switch allows you to conveniently display the video output of eight separate computer systems on any monitor or multimedia projector. Rack mountable in only 1U of space, and with full audio support, the VS0801 is perfect for server room applications that require the monitoring of high quality video and audio output.

Designed for enterprise use, the VS0801 eliminates the extra cost of purchasing a separate monitor for each computer system, saves space and power in the server room, and provides high speed audio and video for a wide range of industrial and commercial applications.

Video Out

Features

Video In

RS-232

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

• Displays the video output of up to eight computers on a single display

• Quick and easy switching between VGA/Audio sources via front panel pushbuttons or IR remote control

• Supports stereo audio

• Built-in bi-directional RS-232 serial port for high-end system control

• Supports up to 300 MHz bandwidth

• Superior video quality – 2048x1536@60Hz; DDC; DDC2; DDC2B

• Supports all analog displays – VGA, SVGA, UXGA, WUXGA, and multisync

• Plug-and-play – no software installation required

• All-metal casing provides durability and protection

• Rack Mountable (1U size)

Setup

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Specications

Function VS0801

Display Connections 1

Device

Connectors

LEDs Selected 8 (Green)

Video 2048 x 1536@60 Hz; DDC2B

Power Consumption DC5.3V, 1.01W

Environment

Physical Properties

* Product specications and appearance are subject to change without notice.

Display

RS-232 Port 1 x DB-9 Female (Black)

Power 1 x DC Jack

Operating Temp. 0–50ºC

Storage Temp. -20–60ºC

Humidity 0–80% RH, Non-condensing

Housing Metal

Weight 2.10 kg

Dimensions (L x W x H)

- - - - - - - - - - - - - - - - - - - - - - - - - - -

Video In 8 x HDB-15 Male (Blue)

Audio In

Video Out 1 x HDB-15 Female (Blue)

Audio Out

8 x Mini Stereo Jack Female

(Green)

1 x Mini Stereo Jack Female

(Green)

43.20 x 15.40 x 4.40 cm
