Professional A/V Solutions

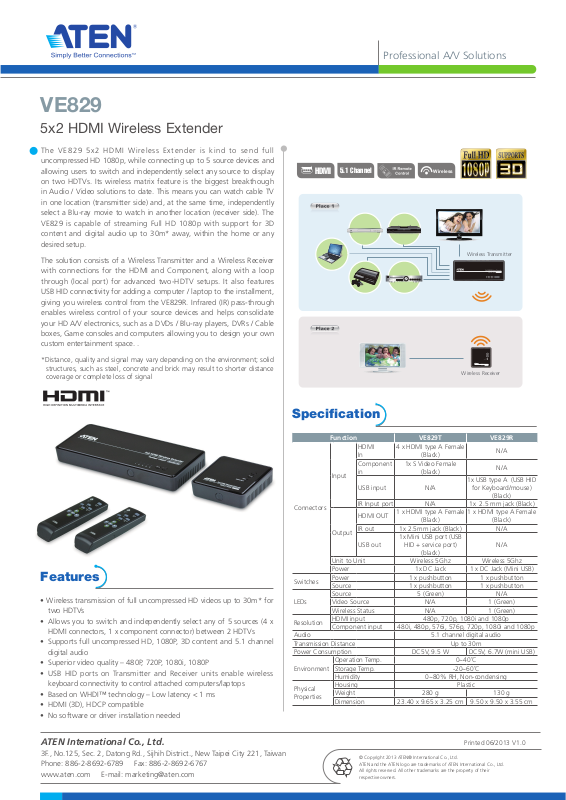

VE829

5x2 HDMI Wireless Extender

Specification

Features

The VE829 5x2 HDMI Wireless Extender is kind to send full
uncompressed HD 1080p, while connecting up to 5 source devices and
allowing users to switch and independently select any source to display
on two HDTVs. Its wireless matrix feature is the biggest breakthough
in Audio / Video solutions to date. This means you can watch cable TV
in one location (transmitter side) and, at the same time, independently
select a Blu-ray movie to watch in another location (receiver side). The
VE829 is capable of streaming Full HD 1080p with support for 3D
content and digital audio up to 30m* away, within the home or any
desired setup.

The solution consists of a Wireless Transmitter and a Wireless Receiver
with connections for the HDMI and Component, along with a loop
through (local port) for advanced two-HDTV setups. It also features
USB HID connectivity for adding a computer / laptop to the installment,
giving you wireless control from the VE829R. Infrared (IR) pass-through
enables wireless control of your source devices and helps consolidate
your HD A/V electronics, such as a DVDs / Blu-ray players, DVRs / Cable
boxes, Game consoles and computers allowing you to design your own
custom entertainment space. .

*Distance, quality and signal may vary depending on the environment; solid

structures, such as steel, concrete and brick may result to shorter distance
coverage or complete loss of signal

• Wireless transmission of full uncompressed HD videos up to 30m* for

two HDTVs

• Allows you to switch and independently select any of 5 sources (4 x

HDMI connectors, 1 x component connector) between 2 HDTVs

• Supports full uncompressed HD, 1080P, 3D content and 5.1 channel

digital audio

• Superior video quality – 480P, 720P, 1080i, 1080P

• USB HID ports on Transmitter and Receiver units enable wireless

keyboard connectivity to control attached computers/laptops

• Based on WHDI™ technology – Low latency < 1 ms

• HDMI (3D), HDCP compatible

• No software or driver installation needed

Wireless Transmitter

Wireless Receiver

HDMI

5.1 Channel

Wireless

Function VE829T VE829R

Connectors

Input

HDMI
In

4 x HDMI type A Female

(Black)

N/A

Component in1x S Video Female

(black)

N/A

USB input N/A

1x USB type A (USB HID

for Keyboard/mouse)

(Black)

IR Input port N/A 1x 2.5 mm jack (Black)

Output

HDMI OUT

1 x HDMI type A Female

(Black)

1 x HDMI type A Female

(Black)

IR out 1x 2.5mm jack (Black) N/A

USB out

1x Mini USB port (USB

HID + service port)

(black)

N/A

Unit to Unit Wireless 5Ghz Wireless 5Ghz
Power 1x DC Jack 1 x DC Jack (Mini USB)

Switches

Power 1 x pushbutton 1 x pushbutton
Source 1 x pushbutton 1 x pushbutton

LEDs

Source 5 (Green) N/A
Video Source N/A 1 (Green)
Wireless Status N/A 1 (Green)

Resolution

HDMI input 480p, 720p, 1080i and 1080p

Component input 480i, 480p, 576i, 576p, 720p, 1080i and 1080p
Audio 5.1 channel digital audio
Transmission Distance Up to 30m
Power Consumption DC5V, 9.5 W DC5V, 6.7W (mini USB)

Environment

Operation Temp. 0~40˚C
Storage Temp. -20~60˚C
Humidity 0~80% RH, Non-condensing

Physical
Properties

Housing Plastic
Weight 280 g 130 g
Dimension 23.40 x 9.65 x 3.25 cm 9.50 x 9.50 x 3.55 cm
