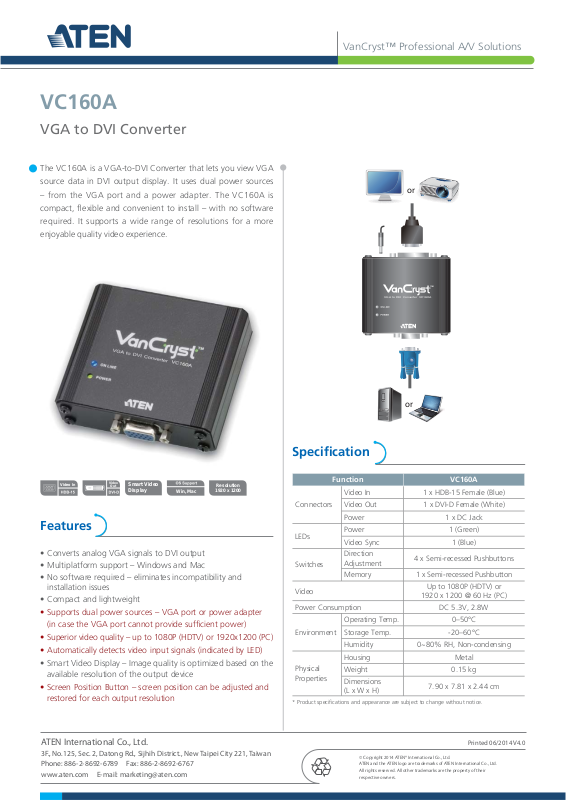

ATEN VC160A User Manual
VC160A
VGA to DVI Converter
The VC160A is a VGA-to-DVI Converter that lets you view VGA
source data in DVI output display. It uses dual power sources
– from the VGA port and a power adapter. The VC160A is
compact, fl exible and convenient to install – with no software
required. It supports a wide range of resolutions for a more
enjoyable quality video experience.
VanCryst™ Professional A/V Solutions
or
VGA to DVI Converter <)'
Video In
Video
Out
Smart Video
Display
Win, Mac
Resolution
1920 x 1200
Features
• Converts analog VGA signals to DVI output
• Multiplatform support – Windows and Mac
• No software required – eliminates incompatibility and
installation issues
• Compact and lightweight
• Supports dual power sources – VGA port or power adapter
(in case the VGA port cannot provide suffi cient power)
• Superior video quality – up to 1080P (HDTV) or 1920x1200 (PC)
• Automatically detects video input signals (indicated by LED)
• Smart Video Display – Image quality is optimized based on the
available resolution of the output device
• Screen Position Button – screen position can be adjusted and
restored for each output resolution
or
Specifi cation
Function VC160A
Video In 1 x HDB-15 Female (Blue)
Connectors
LEDs
Switches
Video
Power Consumption DC 5.3V, 2.8W
Environment
Physical
Properties
* Product specifi cations and appearance are subject to change without notice.
Video Out 1 x DVI-D Female (White)
Power 1 x DC Jack
Power 1 (Green)
Video Sync 1 (Blue)
Direction
Adjustment
Memory 1 x Semi-recessed Pushbutton
Operating Temp. 0–50°C
Storage Temp. -20–60°C
Humidity 0~80% RH, Non-condensing
Housing Metal
Weight 0.15 kg
Dimensions
(L x W x H)
4 x Semi-recessed Pushbuttons
Up to 1080P (HDTV) or
1920 x 1200 @ 60 Hz (PC)
7.90 x 7.81 x 2.44 cm
