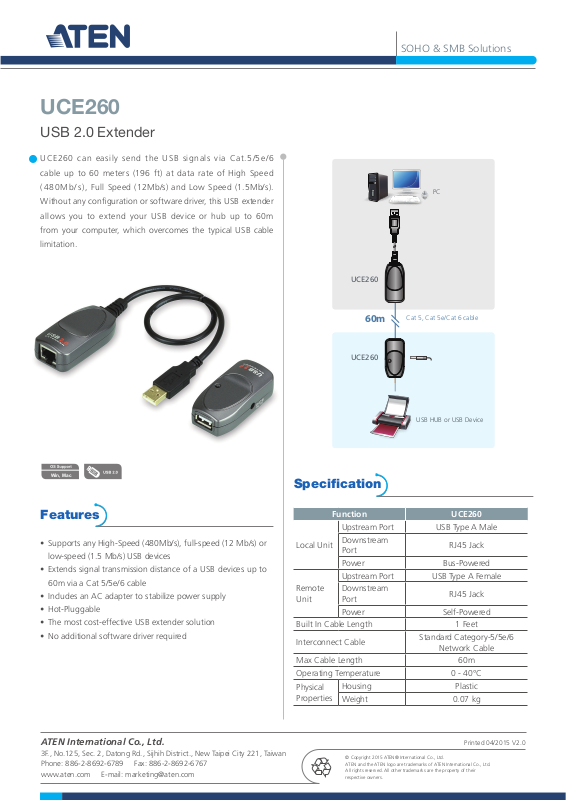

ATEN UCE260 User Manual

UCE260

USB 2.0 Extender

UCE260 can easily send the USB signals via Cat.5/5e/6

cable up to 60 meters (196 ft) at data rate of High Speed

(480Mb/s), Full Speed (12Mb/s) and Low Speed (1.5Mb/s).

Without any conﬁ guration or software driver, this USB extender

allows you to extend your USB device or hub up to 60m

from your computer, which overcomes the typical USB cable

limitation.

SOHO & SMB Solutions

UCE260

Win, Mac

Features

• Supports any High-Speed (480Mb/s), full-speed (12 Mb/s) or

low-speed (1.5 Mb/s) USB devices

• Extends signal transmission distance of a USB devices up to

60m via a Cat 5/5e/6 cable

• Includes an AC adapter to stabilize power supply

• Hot-Pluggable

• The most cost-effective USB extender solution

• No additional software driver required

60m

UCE260

Cat 5, Cat 5e/Cat 6 cable

USB HUB or USB Device

Specification

Function UCE260

Upstream Port USB Type A Male

Local Unit

Remote Unit

Built In Cable Length 1 Feet

Interconnect Cable

Max Cable Length 60m Operating Temperature 0 - 40°C

Physical Properties

Downstream Port

Power Bus-Powered Upstream Port USB Type A Female Downstream

Port Power Self-Powered

Standard Category-5/5e/6

Housing Plastic Weight 0.07 kg

RJ45 Jack

Network Cable

ATEN International Co., Ltd.

3F., No.125, Sec. 2, Datong Rd., Sijhih District., New Taipei City 221, Taiwan Phone: 886-2-8692-6789 Fax: 886-2-8692-6767 www.aten.com E-mail: marketing@aten.com

Printed 04/2015 V2.0
