USB-to-Serial Adapter
USER MANUAL
UC232A / UC232A1
FCC Information
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital service, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2)this device must accept any interference received, including interference that may cause undesired operation.
KCC Statement
RoHS
This product is RoHS compliant.
.
UC232A / UC232A1 User Manual
Online Registration
International http://eservice.aten.com
Telephone Support
For telephone support, call this number:
International |
886-2-8692-6959 |
|
|
China |
86-400-810-0-810 |
|
|
Japan |
81-3-5615-5811 |
|
|
Korea |
82-2-467-6789 |
|
|
North America |
1-888-999-ATEN ext 4988 |
|
1-949-428-1111 |
|
|
Technical Support
For international online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com
For North American technical support:
Email Support |
|
support@aten-usa.com |
|
|
|
Online |
Troubleshooting |
http://www.aten-usa.com/support |
Technical |
Documentation |
|
Support |
Software Updates |
|
|
|
|
Telephone Support |
1-888-999-ATEN ext 4998 |
|
|
|
|
- 3 -
Package Contents
1 UC232A / UC232A1 USB-to-Serial Adapter
1 User Instructions*
Check to make sure that all the components are present and that nothing got damaged in shipping. If you encounter a problem, contact your dealer.
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit, and/or any of the devices connected to it.
*Features may have been added to the UC232A / UC232A1 since this manual was printed. Please visit our website to download the most up to date version of the manual.
Copyright © 2007-2020 ATEN® International Co., Ltd.
Manual Part No. PAPE-1144-AT5G
Printing Date: 2020-10-13
ATEN and the ATEN logo are trademarks of ATEN International Co., Ltd. All rights reserved. All other trademarks are the property of their respective owners.
- 4 -
Overview
Universal Serial Bus (USB) port technology has emerged in response to the proliferation of external peripheral devices (scanners, digital cameras, removable drives, etc.) that are increasingly being connected to the latest generation of computers. It is faster than traditional bus ports and, since it does not require any IRQs, the problem of IRQ conflict is eliminated, which means more peripheral devices can be attached to the system.
The UC232A / UC232A1 USB-to-Serial Adapter provides an external plug-and-play RS-232 serial connection for computers, notebooks, laptops, and handheld computing devices that support the USB specification. It comes with a standard DB-9 male connector for the peripherals to plug into, and an attached USB cable (35 CM for UC232A and 100 CM for UC232A1) with a type A plug for connecting to the computer's USB port, or to a USB hub.
The UC232A / UC232A1 provides mobile phones, PDAs, digital cameras, modems and ISDN terminal adapters with high quality serial connections at a data transfer rate of up to 921.6 Kbps. It makes the USB interface transparent to the peripherals, allowing them to easily interface with the USB, eliminating the setup hassle found with traditional serial port connections. As a USB specification compliant device, the UC232A / UC232A1 also supports energy-saving suspend and resume operations.
Note: The UC232A / UC232A1 does not support devices, such as serial mice, that require an IRQ number or IO Address.
- 5 -
Features
Full compliance with USB specification
Supports RS-232 serial interface
Supports automatic handshake mode
Up to 921.6 Kbps data transfer rate
Supports remote wake up and power management
Provides a 96 byte buffer for each upstream and downstream data transfer
Works with cellular phones, PDAs, digital cameras, modems and ISDN terminal adapters
Easy way to install an additional RS-232 port
No IRQ required
System Requirements
USB Host Controller installed on the system
Operating Systems
Supported operating systems are shown in the table, below:
|
OS |
Version |
|
|
|
|
|
|
|
Windows |
|
|
2000, Vista, 7, 8, 8.1, 10, and higher |
|
|
|
|
|
|
Mac |
|
|
OS 10 and higher |
|
|
|
|
|
|
Linux |
|
RedHat |
7.3 and higher |
|
|
|
|
|
|
- 6 -
Windows 2000 Installation
Installing the Driver(s)
To install the UC232A / UC232A1 drivers, do the following:

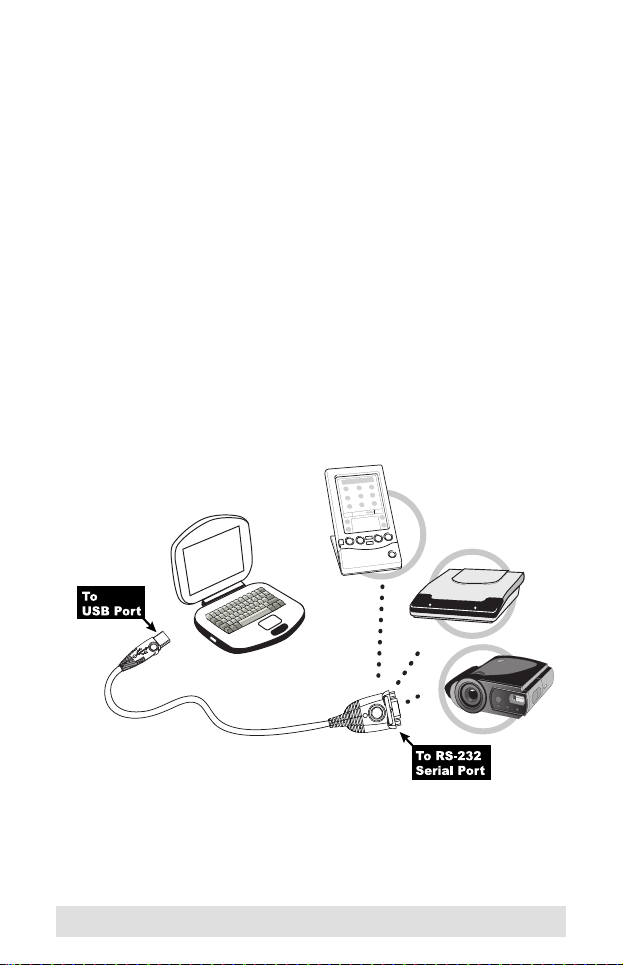

Note: The setup is for UC232A is the picture below. The UC232A1 is the same as the UC232A, except that it has a 100 cm cable attached instead of 35 cm.
1.Please download the latest software installation package from the UC232A / UC232A1 product page at www.aten.com/ download (search for UC232A / UC232A1 and go to the download tab).
2.Execute the file and follow the on-screen instructions to configure detailed software settings.
3.Double click UC-232ADriverInstaller.exe.

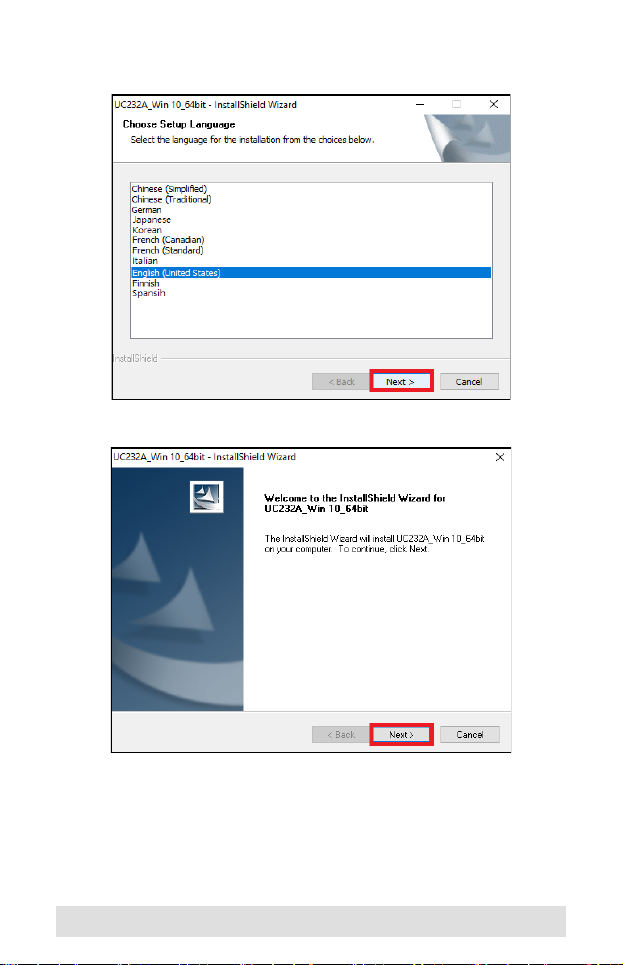

After a few moments, the following dialog box appears:
4. Click Next to install the drivers.
- 7 -
5. Windows displays the following warning:
6.You can safely ignore this warning. Click Continue Anyway to continue installing the new software. When the installation is complete, the following dialog box appears:
7.Click Finish to close the wizard. You have successfully installed the driver(s).
-8 -
