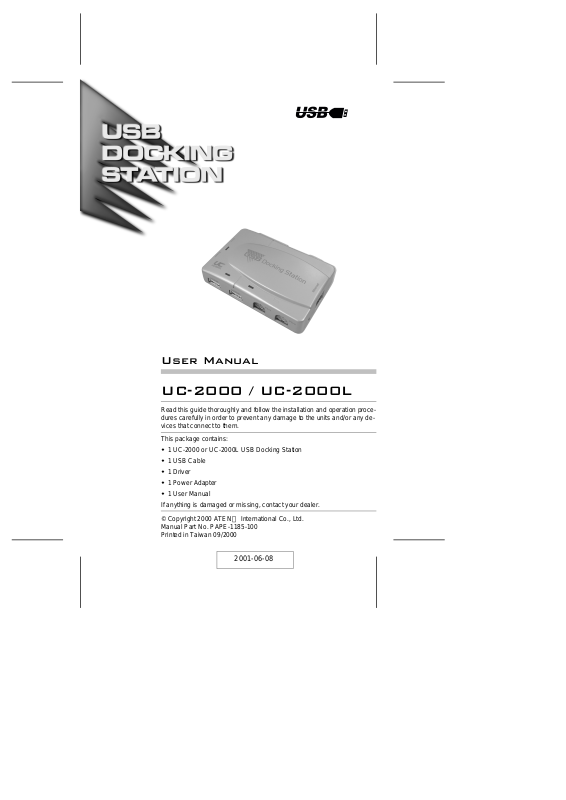

ATEN UC-2000, UC-2000L User Manual

User Manual

UC-2000 / UC-2000L

Read this guide thoroughly and follow the installation and operation procedures carefully in order to prevent any damage to the units and/or any devices that connect to them.

This package contains:

M1 UC-2000 or UC-2000L USB Docking Station

M1 USB Cable

M1 Driver

M1 Power Adapter

M1 User Manual

If anything is damaged or missing, contact your dealer.

© Copyright 2000 ATEN International Co., Ltd.

Manual Part No. PAPE-1185-100

Printed in Taiwan 09/2000

2001-06-08

Overview

The UC-2000 and UC-2000L USB Docking Stations are port replicators that allow you to connect standard desktop peripherals (keyboard, mouse, modem, printer, scanner, etc.), to virtually any notebook by means of a single USB connection.

In addition to ports for two USB peripheral devices, the UC-2000 and UC-2000L incorporate traditional serial, parallel, mouse, and keyboard ports so you don’t have to lose any of your current peripheral investments. The UC-2000L also contains an ethernet port for convenient networking.

By combining the functionality of using full-sized desktop PC peripherals with the convenience of using a portable notebook as your primary computer, your notebook can now be your office PC.

Just connect all your peripherals to the UC-2000 or UC-2000L; make one simple USB cable connection to your notebook; and you have all the convenience of a desktop computer at your fingertips. When it’s time to get on the road, simply unplug the one USB cable and you are ready to travel.

To accomodate all of your peripheral connectivity needs, you can daisy chain USB hubs and USB devices to the UC-2000 or UC-2000L. Easy USB plug and play installation makes adding new USB hardware a breeze. Complex installation routines are eliminated, IRQ conflicts are a thing of the past, and there is no more hassle trying to keep things synchronized between your notebook and office PCs.

- 1 -

2001-06-08

Features

MFully USB 1.1 Compliant

MUp to 12 Mbps USB Data Transfer Rate

MMultiple Port Connections:

M USB Port: Printers, digital cameras, scanners, stroage devices, keyboards, mice, joysticks, and all other USB devices

M Serial Port (DB-9): PDA cradles, external modems, and other serial interface devices

M Parallel Port (DB-25): Parallel printers, parallel port drives, and other parallel port devices

M PS/2 Port: Keyboards, mice

M RJ-45 Socket: Ethernet connector*

MUSB Plug and Play

MKeyboard and Mouse Wakeup Function

MIntegrated 10Base-T Ethernet Support*

MLEDs to Indicate Power Status, USB Port Status, as well as Network Power/Link and Tx/Rx*

M* Networking features are for the UC-2000L only

System Requirements

MWindows 98 or 2000

MUSB Host Controller installed on the system

- 2 -

2001-06-08

Introduction

Front View

2

1

7

6

3

5

4

1.Power LED

Lights Orange to indicate that the UC-2000 / UC-2000L is receiving power from the Power Adapter.

2.USB Port LEDs

These LEDs light GREEN to indicate that a USB peripheral is connected to the corresponding port and is receiving power at the correct current level.If an overcurrent condition between the port and the peripheral device occurs, the LED goes out.

3.USB Type A (Downstream) Ports

The cables from any USB peripheral (keyboard, mouse, printer, scanner, modem, etc.), plug into either port.

4.PS/2 Ports

Cables from a PS/2 Keyboard and PS/2 Mouse can plug in here.

5.Wake Up Button

If the notebook’s keyboard or mouse is in "sleep" or suspend mode, pressing this button will wake it up.

6.Ethernet LEDs (UC-2000L only)

The ORANGE LED lights to indicate that a connection to the server has been established.

The GREEN LED indicates TX/RX status.

7.RJ-45 Socket (UC-2000L only) The Ethernet cable plugs in here

-3 -
