Atech Tech PEGASUS-02 P, SKAT-02 P, PEGASUS-02 M, SKAT-02 M User Manual
1
PEGASUS-02 P / SKAT-02 P
PEGASUS-02 M / SKAT-02 M
MITER SAWS
OPERATING AND SAFETY INSTRUCTIONS
Operating and Safety Instructions
2
CONTENTS Page
1. General Information 3
1.1. Introduction 3
1.2. Manufacturer 3
2. Machine’s description and purpose of use 3
2.1. Machine’s description 3
2.2. Technical features 5
2.3. Cutting diagram 6
2.4. Overall dimensions 7
2.5. Part lists and technical drawings 8
3. Safety 10
3.1. Safety information 10
3.2. Accident prevention 10
3.3. General safety information 11
4. Transport of the machine 12
5. Installation of your machine 13
5.1. Preparation 13
5.2. Electric connection 14
6. Machine safety information 15
7. Operation 16
7.1. Air pressure adjustment of pneumatic clamps 16
7.2. Miter cut 18
8. Safe installation of the saw blade 19
9. Maintenance 20
9.1. Periodic checks 20
9.2. Maintenance at the end of working day 21
10. Troubleshooting Guide 21
11. Electric / Pneumatic Components 22
11.1 Electric components 22
11.2 Pneumatic components 22
Operating and Safety Instructions
3
1. GENERAL INFORMATION
1.1. INTRODUCTION
The user’s manual given by the manufacturer contains necessary information about the
machine parts. Each machine operator should read these instructions carefully, and the
machine should be operated after fully understanding them.
Safe and efficient use of the machine for long term depends on understanding and
following the instructions contained in this manual. The technical drawings and details
contained in this manual constitute a guide for the operator.
1.2. DISTRIBUTOR
ATech Machine, Inc.
429 E. Diamond Ave. #F – Gaithersburg, MD 20877 USA
Phone: +1-301-556-9789 Toll Free: 1-866-80A-TECH Fax: +1-301-542-0140
Website: www.atechna.com E-mail: info@atechna.com
In case of any technical problem please contact your nearest ATECH dealer, or ATECH
head office through the above mentioned phone fax or e-mail address.
Technical labels with the model description of the machine are fixed onto the front side
of each machine.
The machine’s serial number and manufacturing year are stipulated on the technical
label.
2. MACHINE’S DESCRIPTION AND PURPOSE OF USE
2.1. MACHINE’S DESCRIPTION
Portable miter saw for serial cutting of PVC, aluminum and wooden profiles in desired
angles. The operator has the possibility to adjust the cutting speed of the saw blade via
knob according to material type and size.

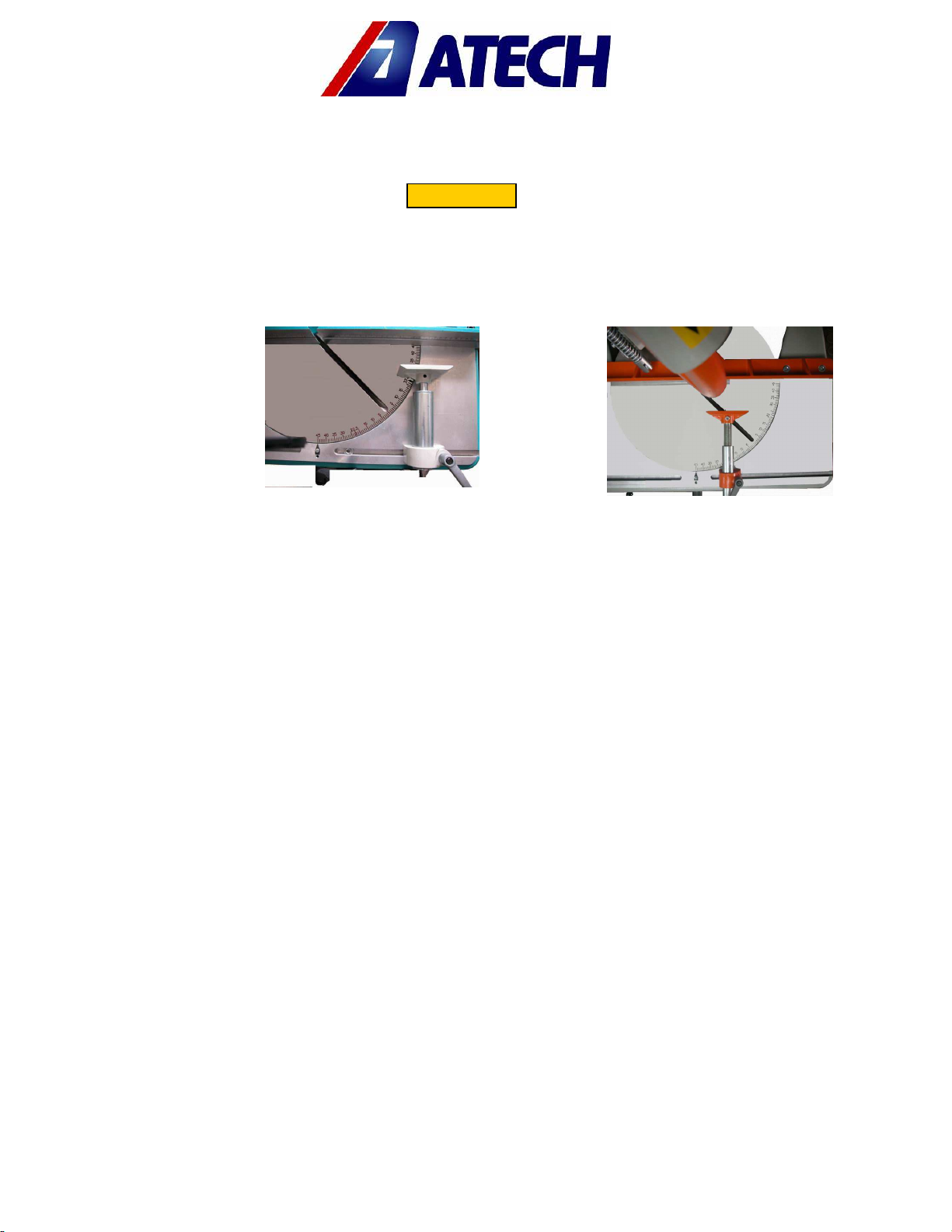

Cutting at fixed angles of 150-22.50-300-450-900, and at intermediate angles via fixing
arm. Machine has been designed according to CE Safety Directives.
PEGASUS-02 M / SKAT-02 M : Manual system with base and pneumatic clamps.
PEGASUS-02 P / SKAT-02 P : Portable manual system.
Operating and Safety Instructions
4
Please mention the below mentioned data in all your correspondence regarding the
machine with the manufacturer and/or your ATECH dealer.
*Machine model
*Machine’s serial number
*Voltage and frequency
*Name of dealer where machine was purchased
*Date of purchase
*Description of the machine fault
*Average daily operation period
Operating and Safety Instructions
5
PEGASUS-02 M
2.2. TECHNICAL FEATURES
Technical
Features
(American)
SKAT-02 P
SKAT-02 M
Technical
Features
(Metric)
SKAT-02 P
SKAT-02 M
Technical
Features
(American)
PEGASUS-02 P
PEGASUS-02 M
Technical
Features
(Metric)
PEGASUS-02 P
3 HP
220V/440V
60Hz
3 HP
220V/440V
60Hz
2,2kW
400V 50Hz
2,2kW
400V 50Hz
220V/440V
220V/440V
2,2kW
400V 50Hz
2,2kW
400V 50Hz
3 HP
60Hz
3 HP
60Hz
d=30-32mm
d=30-32mm
d=30-32mm
d=30-32mm
d=1 "
D=16"
d=1 "
D=16"
D=400mm
D=400mm
d=1 "
D=14"
d=1 "
D=14"
D=350mm
D=350mm
3000 rpm -- -- 26x24x30" 154 lbs
3000 rpm 90-120 psi
3000 rpm -- 66x60x76cm
3000 rpm 6-8 Bar
3000 rpm -- 26x24x30" 154 lbs
3000 rpm 90-120 psi 30x24x53" 253 lbs
3000 rpm -- 66x60x76cm 70kg
3000 rpm 6-8 Bar
1/min
0.2
CFM
5
l/min
30x24x53" 253 lbs
75x60x134
cm
5
75x60x134 cm 115 kg
70kg
115 kg
Operating and Safety Instructions
6
2.3. CUTTING DIAGRAM
PEGASUS Cutting
Diagram
SKAT Cutting
Diagram
Operating and Safety Instructions
7
2.4. OVERALL DIMENSIONS
PEGASUS-02 M / SKAT-02 M PEGASUS-02 P / SKAT-02 P
Operating and Safety Instructions
