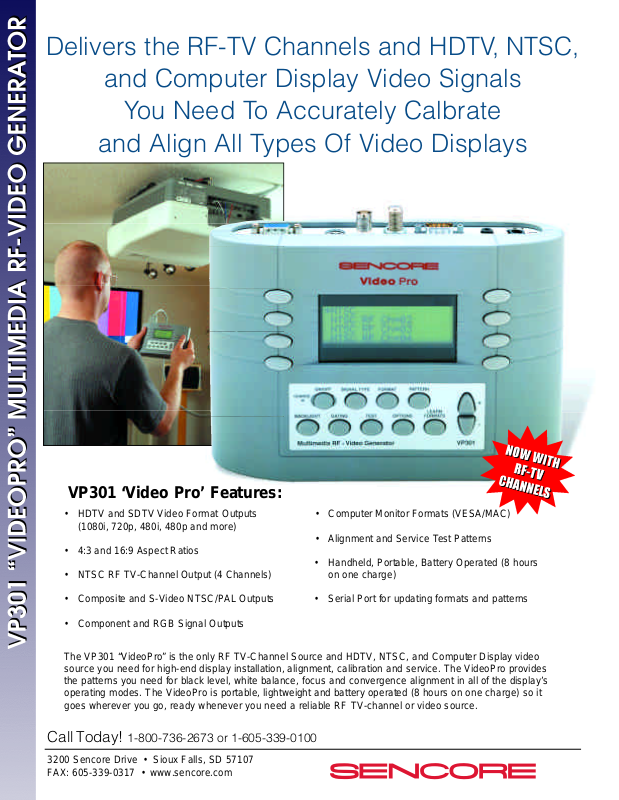

Delivers the RF-TV Channels and HDTV, NTSC,
and Computer Display Video Signals
You Need To Accurately Calbrate
and Align All Types Of Video Displays
VP301 ‘Video Pro’ Features:
• HDTV and SDTV Video Format Outputs
(1080i, 720p, 480i, 480p and more)
• 4:3 and 16:9 Aspect Ratios
• NTSC RF TV-Channel Output (4 Channels)
• Composite and S-Video NTSC/PAL Outputs
• Component and RGB Signal Outputs
The VP301 “VideoPro” is the only RF TV-Channel Source and HDTV, NTSC, and Computer Display video
source you need for high-end display installation, alignment, calibration and service. The VideoPro provides
the patterns you need for black level, white balance, focus and convergence alignment in all of the display’s
operating modes. The VideoPro is portable, lightweight and battery operated (8 hours on one charge) so it
goes wherever you go, ready whenever you need a reliable RF TV-channel or video source.
Call Today! 1-800-736-2673 or 1-605-339-0100
3200 Sencore Drive • Sioux Falls, SD 57107
FAX: 605-339-0317 • www.sencore.com S
• Computer Monitor Formats (VESA/MAC)
• Alignment and Service Test Patterns
• Handheld, Portable, Battery Operated (8 hours
on one charge)
• Serial Port for updating formats and patterns
VP301 VideoPro Multimedia RF-Video Generator
RF Channel Outputs:
Channel Outputs: CH2, CH3, CH4, CH6
Carrier Level: 10 dbmV +/- 3.0 dbmV
Carrier Accuracy: +/- 50 KHZ
Video Formats
Factory Default Formats:
Format Storage Locations: 100 Total
HDTV - 720p59, 720p60, 960p59, 1080i25, 1080i29, 1080i30, 1080p50,1080p59,
1080p60, 1080p24, 1080p24sF, 1365x1024 D-ILA
SDTV - 480i29, 480i30, 480p59, 480p60
VESA/Mac - 38 standard formats from 640x350 to 1920x1440
NTSC - standard NTSC, luminance only NTSC
PAL- standard PALm, luminance only PALm
Video Outputs
HDTV: YPbPr, RGBHV
SDTV: YPbPr, RGBHV
VESA/Mac: RGBHV
NTSC: Composite, S-Video, RGBHV
PAL: Composite, S-Video, RGBHV
Patterns
SMPTE Bar
Staircase
Horizontal Staircase
Overscan (4:3 and 16:9)
Crosshatch (4:3 and 16:9)
Anamorphic (4:3 stretches to 16:9)
Window (variable in 5 or 1 IRE steps)
Raster (variable in 5 or 1 IRE steps)
Color Bar
Pluge
NeedleSplit Bar
Focus
Ramp
Regulate
Checker
ANSI Gray
Multiburst
Timing
Horizontal Frequency: 1 kHz to 250 kHz
Total Horizontal Pixels: 144 to 4096
Active Horizontal Pixels: 16 to 4096
Vertical Frequency: 1 Hz to 650 Hz
Active Vertical Lines: 1 to 4096
Scan Types: Progressive, Interlace
Timing Accuracy: 2%
Key Specifications
AUDIO
SERIAL
PORT
RF-TV
CHANNEL
COMPOSITE
VIDEO
The VP300 Delivers These
Patterns & More. . .
1. Overscan (16:9 shown)
2. Pluge
3. Window
4. SMPTE Bars
Sync Types
Separate Digital Horizontal and Vertical Sync
Digital and Analog Composite Sync
Tri-level HDTV Sync & Bi-Level Sync
S-Video
Battery Power
Type: Four internal AA batteries. 1500 ma/H rated rechargeable
Use Time: 8 hours with supplied NiMH batteries
NiMH batteries supplied with unit.
AC Power
Type: External Charger / Power Supply
AC Input Range: 86 to 250 VAC @ 46 to 66 Hz
Size & Weight
Size: 5.5 x 8.25 x 2 inches, 140 x 210 x 51 mm
Weight: 22 oz. w/ supplied batteries installed
HDTV/COMPUTER
Supplied Accessories:
HD15 to BNC (5) Cable, BNC Composite Video Cable, F to F RF cable,
BNC to RCA Adaptors (3), AC Power Supply/Charger, S-Video Cable
Call 1-800-
S
(Outside the US) 605-339-0100 Visit our website at www.sencore.com
e-mail: sencore@sencore.com
MONITOR
5. Needle
6. H Stair
Form #7237
