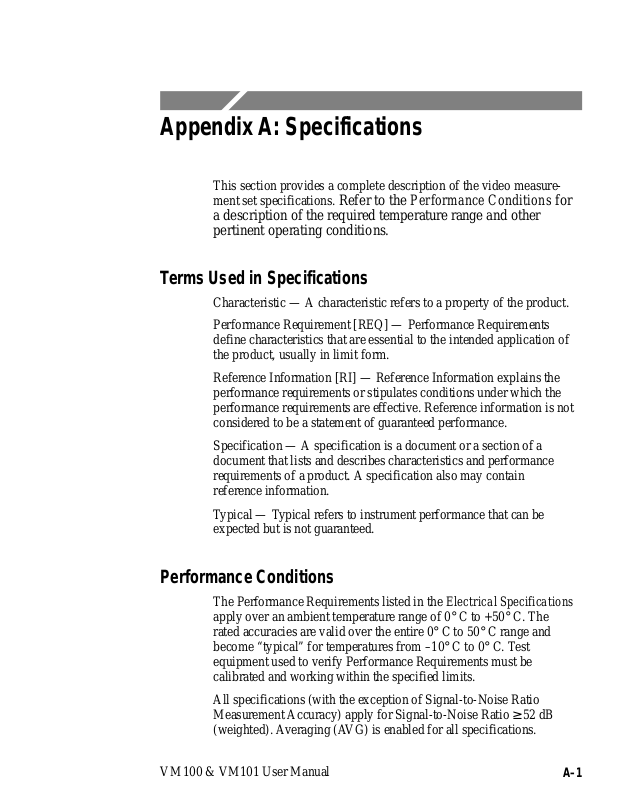

Appendix A: Specifications
This section provides a complete description of the video measurement set specifications.
a description of the required temperature range and other
pertinent operating conditions.
Terms Used in Specifications
Characteristic — A characteristic refers to a property of the product.
Performance Requirement [REQ] — Performance Requirements
define characteristics that are essential to the intended application of
the product, usually in limit form.
Reference Information [RI] — Reference Information explains the
performance requirements or stipulates conditions under which the
performance requirements are effective. Reference information is not
considered to be a statement of guaranteed performance.
Refer to the Performance Conditions for
Specification — A specification is a document or a section of a
document that lists and describes characteristics and performance
requirements of a product. A specification also may contain
reference information.
Typical — Typical refers to instrument performance that can be
expected but is not guaranteed.
Performance Conditions
The Performance Requirements listed in the Electrical Specifications
apply over an ambient temperature range of 0° C to +50° C. The
rated accuracies are valid over the entire 0° C to 50° C range and
become “typical” for temperatures from –10° C to 0° C. Test
equipment used to verify Performance Requirements must be
calibrated and working within the specified limits.
All specifications (with the exception of Signal-to-Noise Ratio
Measurement Accuracy) apply for Signal-to-Noise Ratio ≥ 52 dB
(weighted). Averaging (AVG) is enabled for all specifications.
VM100 & VM101 User Manual
A–1
Appendix A: Specifications
Electrical Specifications
T able A–1: Input signal requirements–VIDEO INPUT
Category
Maximum Operating Voltage REQ: –1.8 V to +2.2 V
Absolute Maximum Input Voltage REQ: –8.5 V to +8.5 V
Minimum Operating Voltage REQ: 1 Vp-p video signal
DC Input Impedance REQ: ≥20 KW
Return Loss REQ: >40 dB to 6 MHz
Description
RI: Typically operates with a 1 Vp-p
input, +1 dB or –6 dB
RI: DC coupling
RI: DC coupling
T able A–2: Input signal requirements–EXT REF
Category
Absolute Maximum Input Voltage REQ: –8.5 V to +8.5 V
Minimum Operating Voltage REQ: 1 Vp-p video signal
DC Input Impedance REQ: ≥20 KW
Return Loss REQ: >40 dB to 6 MHz
Video INPUT / EXT REF
Crosstalk REQ: >70 dB to 6 MHz
Loop-through Isolation RI: >70 dB (typical)
A–2
Description
RI: Typically operates with a 1 Vp-p
input, +1 dB or –6 dB
VM100 & VM101 User Manual
T able A–3: Measurement accuracy
Appendix A: Specifications
Category
Differential Phase REQ: <1.0°
Differential Gain REQ: <2.0%
Chrominance-to-Luminance Gain REQ: <2%
Chrominance-to-Luminance Delay REQ: <20 ns
1
Description
RI: Typically <0.5° from 20° C to 30°
C with test signal generator source
RI: Typically <1% from 20° C to 30° C
for nominal 300 mV chrominance
amplitude
RI: Typically <1% from 20° C to 30° C
with test signal generator source
REQ: <10 ns from 20° C to 30° C with test
signal generator source.
RI: Typically <5 ns from 20°C to 30°
C with test signal generator source
Frequency Response REQ: <0.2 dB
RI: Typically <0.1 dB (1 %) from 20° C
to 30° C with test signal generator
source
RI: VM100: 50 kHz to 4.2 MHz
VM101: 50 kHz to 5.8 MHz
2T K-Factor REQ: 2 %
RI: Typically <0.5 % from 20° C to 30°
C with test signal generator source
1
All tests are performed with A VG enabled. Processing time for each
measurement is a function of the signal-to-noise ratio.
VM100 & VM101 User Manual
A–3
Appendix A: Specifications
T able A–3: Measurement accuracy (cont.)
Category
2
Hum
1
Description
REQ: ±1.0% for hum ≤4.0%
±2.0% for hum >4.0% and <15.0%
RI: Typically ±0.5% for hum ≤4.0%
Signal-to-Noise Ratio
(Weighted or Flat)
REQ: ±1 dB, 28 dB to <45 dB
±2 dB, 45 dB to <60 dB
±3 dB, 60 dB to 67 dB (WGT)
RI: VM100: Noise is weighted with EIA
RS-250-B 5 MHz weighted noise
filter. (Tektronix part number
015-0215-00 equivalent.)
VM101: Noise is weighted with
CCIR 567 weighted noise filter
Group Delay REQ: <20 ns
RI: 50 kHz to 4.8 MHz, within the
bandwidth of the signal under test
Sync Amplitude
2
REQ: <1.0%
Burst Amplitude REQ: <1.0%
Bar Amplitude REQ: <1.0%
Luminance Nonlinearity REQ: <1.0%
1
All tests are performed with A VG enabled. Processing time for each
measurement is a function of the signal-to-noise ratio.
2
The hum and sync amplitude measurements are inaccurate in the presence
of Sound In Sync (SIS) signals.
A–4
VM100 & VM101 User Manual
Table A–4: Output
Appendix A: Specifications
Category
Zero Carrier Reference Pulse Output RI: Can drive demodulator ZCRP
Description
trigger of TTL type (Tektronix
TDM5, DS1200, 1450) or 1.5 V
75 W type (Tektronix 1340, 1350)
T able A–5: AC power source
Category
Mains Voltage Range REQ: 90-250 VAC
Power Consumption REQ: 30 W maximum
Description
50/60 Hz
0.7 A
p-p
,
Environmental Characteristics
T able A–6: Environmental characteristics
Category
Altitude
(see page A–6 for safety-related
information)
Humidity REQ: To 95% relative humidity at or below
Operating Temperature REQ: 0° C to + 50° C (32° F to 122° F)
Description
REQ: Operating: to 15,000 f (4572 m)
Non-operating: to 50,000 f (15,240 m)
RI: Maximum operating temperature
decreases 1° C per 1000 f (305 m)
+50° C
RI: Electrical specifications are guar-
anteed when the instrument is
operated in this temperature range
VM100 & VM101 User Manual
A–5
Appendix A: Specifications
ertifications
T able A–6: Environmental characteristics
(cont.)
Category Description
Package Drop REQ: Meets Tektronix 062-2858-00, Rev. B
Random Vibration
(Operating and Non-Operating)
Shock (Operating) REQ: Meets Tektronix Class III (062-2858-00,
Storage Temperature REQ: –40° C to + 75° C (–40° F to +167° F)
Loose Load Vibration
(Repetitive Shock)
Vehicle Vibration REQ: Meets Tektronix 062-2858-00, Rev. B
REQ: Meets Tektronix Class III (062-2858-00,
Rev. B)
Rev. B)
RI: Three drops on each face of 50 g,
11 ms duration, half-sine pulse
shape for a total of 18 drops
REQ: Meets Tektronix 062-2858-00, Rev. B
(page 51, section 17.7.4)
Safety Standards and Certification
T able A–7: Certifications and compliances
Category
Altitude (Maximum Operating)
See page A–5 for additional
information
C
US Nationally Recognized Testing Laboratory
Listing
Canadian
Certification
Description
Operating: to 6,500 f (2,000 m)
ANSI/ISA S82
Safety Standard for Electrical and Electronic Test,
Measuring, Controlling, and Related Equipment
CAN/CSA C22.2 No.1010.1
Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use
A–6
VM100 & VM101 User Manual
T able A–7: Certifications and compliances (cont.)
Category Description
Certifications (continued)
Appendix A: Specifications
European Union
Compliance
Additional
Compliance
EC Declaration of
Conformity
Low Voltage Directive 73/23/EEC, Amended by
93/68/EEC
UL3111-1
Standard for Electrical Measuring and Test
Equipment
IEC 1010-1
Safety Requirements for Electrical Equipment for
Measurement, Control, and Laboratory Use
Meets intent of Directive 89/336/EEC for Electromagnetic
Compatibility and Low Voltage Directive 73/23/ECC for
Product Safety. Compliance was demonstrated to the
following specifications as listed in the Official Journal of
the European Communities:
EMC Directive 89/336/EEC:
1
EN 50081-1 Emissions:
EN 55022 Class B Radiated and Conducted
Emissions
EN 50082-1 Immunity:
IEC 801-2 Electrostatic Discharge Immunity
IEC 801-3 RF Electromagnetic Field Immunity
IEC 801-4 Electrical Fast Transient/Burst
Immunity
Low Voltage Directive 73/23/EEC:
EN 61010-1 Safety requirements for electrical
equipment for measurement,
control, and laboratory use
1
Using high quality shielded cables.
Equipment Type Test and Measuring
FCC Compliance Emissions comply with FCC Code of Federal Regula-
tions 47, Part 15, Subpart B, Class A Limits
VM100 & VM101 User Manual
A–7
Appendix A: Specifications
T able A–7: Certifications and compliances (cont.)
Category Description
Overvoltage Category Overvoltage Category II (as defined in IEC 1010-1,
Annex J)
Pollution Degree Pollution Degree 2 (as defined in IEC 1010-1); rated for
indoor use only
Safety Class Class I (as defined in IEC 1010-1, Annex H)
Temperature (Operating) +5° C to +50° C (+41° F to 122° F)
Physical Characteristics
Table A–8: Physical characteristics
Category
Dimensions Height: 1.71 in (4.34 cm) Nominal
Stand-Alone Instrument Weight 4.00 lbs (1.81 kg) Nominal
Packaged Weight (for domestic
shipment)
Description
Width: 8.1 in (20.6 cm) Nominal
Depth: 17.2 in (43.7 cm) Nominal
7.12 lbs (3.23 kg) Nominal
Remote Control Port
Table A–9: Remote control port
Category
RS-232 Serial Port Connector: Nine-pin DCE female
Description
A–8
Baud Rate: 300, 600, 1200, 2400, 4800, 9600,
or 19.2K
VM100 & VM101 User Manual
