Fully CISPR-Compliant
Digital EMC/EMI receivers
10 Hz – 6 GHz
PMM 9010
PMM 9030
PMM 9060
Traditional Receiver
Innovative Digital Receiver
Main features at a glance
• The state-of-the-art full compliance 30 MHz EMI Digital Receiver is
the platform of the system. Based on direct Analog to Digital
conversion and sophisticated computation, it offers calibration-free
operation on almost all of its key components, i.e. RBW filters,
detectors, demodulation… while the RF front-end is self-calibrated
by the internal, precise RF signal generator.
• All the units are uniquely compact and lightweight: the low
frequency unit (PMM 9010) is about 4,1 kg and the high frequency
extensions are about 2 kg. All are battery operated.
• Hardware and Firmware are designed around the current EMC
standards, and ready to upgrade to future changes in the same.
• Powerful digital Click Analyzer is fully compliant with the latest
CISPR specifications, 1 (internal option) or 4 (external option) channels.
Performance characteristics highlights
• Frequency ranges from 10 Hz to 30 MHz; 3 GHz; 6 GHz.
• Full compliance with the latest edition of CISPR 16-1-1 standard,
including RMS-AVG detector, APD function, click measurements, etc.
• Commercial and military standards met within the frequency range
• CISPR and MIL-STD RBW filters.
• Integrated preamplifier (all units) and pulse limiter (only PMM 9010).
• Mostly maintenance and calibration free; service done in minutes.
• Excellent RF characteristics.
• Built-in tracking signal generator up to 30 MHz (PMM 9010).
• Multimode functions: sweep, spectrum analyzer, scalar network
analyzer,manual receiver.
• Smart Detector: a “productivity booster” feature specifically designed
to dramatically improve test speed.
Precise, accurate, fast and easy-to-use
full compliance EMI/EMC tests to
civilian and military standards
• Flexible, easy to use for any kind of measurement in stand-alone,
integrated in systems or driven by PC.
• Optical link between main and high frequency units.
• No need for a coaxial cable to connect the antenna to the receiver.
• No aging of critical receiver parts (RBW filters, detectors, mixers, local
oscillators, etc.) that cause degradation of the measurement accuracy.
• Easily and quickly serviced by swapping factory calibrated modules.
• Cost-effective.
The latest design effort of Narda STS has
produced a fully digital EMC receiver up to
30 MHz. The advantages of the digital
techniques extended up to several GHz,thus
creating outstanding equipment perfectly
fitting the need of any designer and test
engineer.
The new EMI/EMC receivers PMM 9010,PMM
9030 and PMM 9060 are fully compliant with
CISPR16-1-1 requirements and meet all
commercial and military standards for EMC
measurements, including the latest
revisions.
They exhibit an outstanding precision and
are practically free of calibration; they are as
small as possible, lightweight and battery
operated; they are easy-to-use and easy-tointerface with a regular PC, and they are to a
wide extent flexible and programmable,
both locally and remotely. Servicing is as
easy as to plugging a card into a computer
and can be done simply by swapping with
pre-calibrated RF modules.
These new concepts make the Narda STS
receivers cost-effective and easy to update
simply by downloading new firmware
versions to cover all the future revisions of
the relevant international standards.
• Internal memory for limits and correction values: antenna factors,
cable loss, probe factors etc.
• Built-in manual, semiautomatic and fully automatic test routines.
• All calculations required by the newest standards (e.g. Click,APD,
RMS-AVG, etc.) automatic and built-in.
• Battery powered.
• Extremely fast in all measurements.
PMM 9010: the new fully digital receiver
that outperforms competition is here
Once more Narda STS is anticipating the
market and competition by introducing the
first Fully Digital EMC Receiver and Analyzer
that meets all the requirements of the latest
civilian and military standards (CISPR-16-1-1
& MIL-STD-461F).
Every circuit in the receiver is digital now,
with the only exception of the attenuator
and the preselector that – physically – shall
put a limit to the RF energy entering the
equipment.
This architecture, carefully designed to
deliver outstanding performances in a very
small volume, is the latest development of
Narda STS R&D Labs, well known all around
the world with the former name “PMM” for
their original and effective technical
solutions.
Add the usual “Easy-to-Use” Narda STS
software - always acknowledged for offering
the best equipment control with a simple
and intuitive user interface - and the picture
The PMM 9010 features several useful functions: as an
example, pictures above show the automatic highest peaks
finder and the intuitive way to observe the selected peak in
Analyzer mode: from measurement to debugging at users’
fingertips!
Practically maintenance-free and exceptionally stable, the
PMM 9010 EMI Receiver is the ideal solution for reliable
measurements day after day, month after month,year after
year.
Moreover, the
outstanding feature
that service can be
easily done by simply
replacing plug-in
pre-calibrated
subassemblies,
represents a highly
valued advantage in
case, for example, of
damage to the RF
front-end.
Indeed, even when an
excess of energy or a too high signal would burn the input
stage, the Customer can be back in operation and continue
his work in the shortest possible time, being sure that his
receiver is still perfectly calibrated.
The Narda STS Sales Network is highly qualified and will be
your consultant for every measurement problem: ask the
experts and make your job easier with PMM 9010, the
guiding star in the EMC market.
of the new PMM 9010 is almost complete.
PMM 9010: the new fully digital receiver that
outperforms competition is here.
Continuing the tradition of offering
innovative technical solutions for easy and
practical measurements applications, the
PMM 9010 - a fully digital receiver in the 10
Hz to 30 MHz range - is the first cornerstone
of a system which grows together with the
users’ needs: all EMC conducted
measurements will be possible by simply
upgrading the PMM 9010 with specific
options, e.g. Click Meter, MIL-STD filters, and
accessories - LISNs and probes - providing a
full compliance with almost all international
standard or proprietary specifications.
Moreover, the modular construction, based
on pre-calibrated subassemblies, offers the
fastest and most convenient recalibration
and service ever!
PMM 9030 and PMM 9060:
PMM 9010 companion products
for testing up to 3 or 6 GHz
Until now,technology has not allowed a fully
digital receiver up to the GHz range, Narda
STS has conceived the best possible solution
designing these extensions for PMM 9010,
enabling the whole test system to go up to 3
or 6 GHz taking all the benefits from the
digital approach.
The PMM 9030 and PMM 9060 are therefore
the ultra-fast 30 MHz - 3 GHz or 6 GHz
receivers extending the measurement
frequency range of the PMM 9010 up to the
field of Radiated Emissions, thanks to a
dedicated RF module. A fast and safe
connection with PMM 9010 is guaranteed by
a High Speed Digital Optical Link, providing
the most immune way to transfer data: only
the real measurement data received at the
antenna reaches the detectors!
This dedicated digital Front End perfectly
matches with the PMM 9010, to create a
compact-size, up-to-date digital receiver up
to 3 or 6 GHz.
PMM 9030 and PMM 9060 are basically a
highly sophisticated auxiliary equipment,
which converts the RF input into a digital
signal sent to PMM 9010 through a Fiber
Optic Cable. The transfer rate is higher than
2.5 GB/s and a huge amount of information
is handled by the proprietary protocol.
Very limited dimensions and lightweight
construction allow the PMM 9030 and PMM
9060 to be connected directly to the
antenna, making the dream of many test
engineers come true. Benefits are really
many, as RF coaxial cables for antenna to
receiver connection may significantly affect

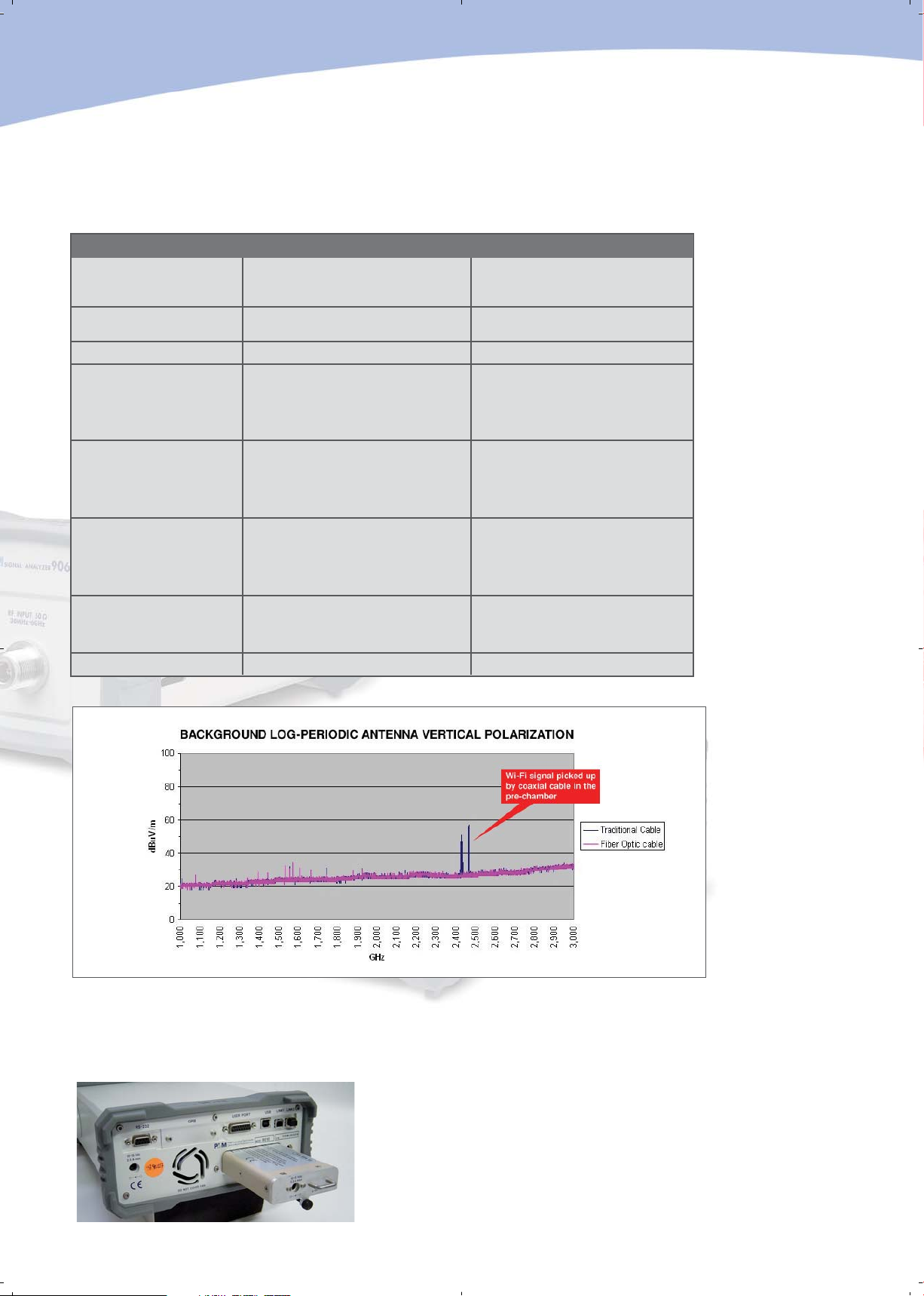

measurements due to intrinsic cable loss
and impedance mismatch.
Moreover, cables may pick up unwanted RF
signals along the path from the antenna to
the receiver. The PMM 9030 and PMM 9060
overcome all those error sources through
the optical link, thus providing more
accurate and reliable measurements.
In order to allow complete galvanic
separation, PMM 9030 and PMM 9060 are
battery powered by the same Li-Ion plug-in
rechargeable battery used for the 9010 unit,
thus providing interchangeability and noisefree performances for up to four hours of
continuous operation. Replacing the plug-in
battery is just a matter of seconds.
The PMM software can drive the coupled
9010-9030 or 9010-9060 to easily perform
any measurement foreseen by the
commercial and military standards, even
stand-alone or, whenever required, with the
necessary auxiliary equipment.
The APD (Amplitude Probability
Distribution) function is another example of
how well the new PMM receivers can
respond to the evolving requests of
upcoming standards.
The APD is a statistical characterization of
signals recently introduced for testing above
1 GHz, that requires scanning of selected
spans and measurements on several
frequencies using Peak detector and Max
Hold function, then sorting frequencies that
show highest disturbance levels and
comparing them with the limits for a given
“Probability”.
This requires the receiver
featuring outstanding
hardware with high range,
huge memory and ultra fast
computation capabilities and a software capable of
handling all the different test
possibilities (two approaches
are defined: E-based and
P-based).
Moreover, to make the Test
Engineer's life easier, the
software allows the user to
adopt the most convenient
test approach - fully
automatic, semiautomatic,
manual, etc. - and,last but not least, to report
all the data and results the User may need.
Universal kit for
mounting PMM 9030
& 9060 directly on the
antenna connector.

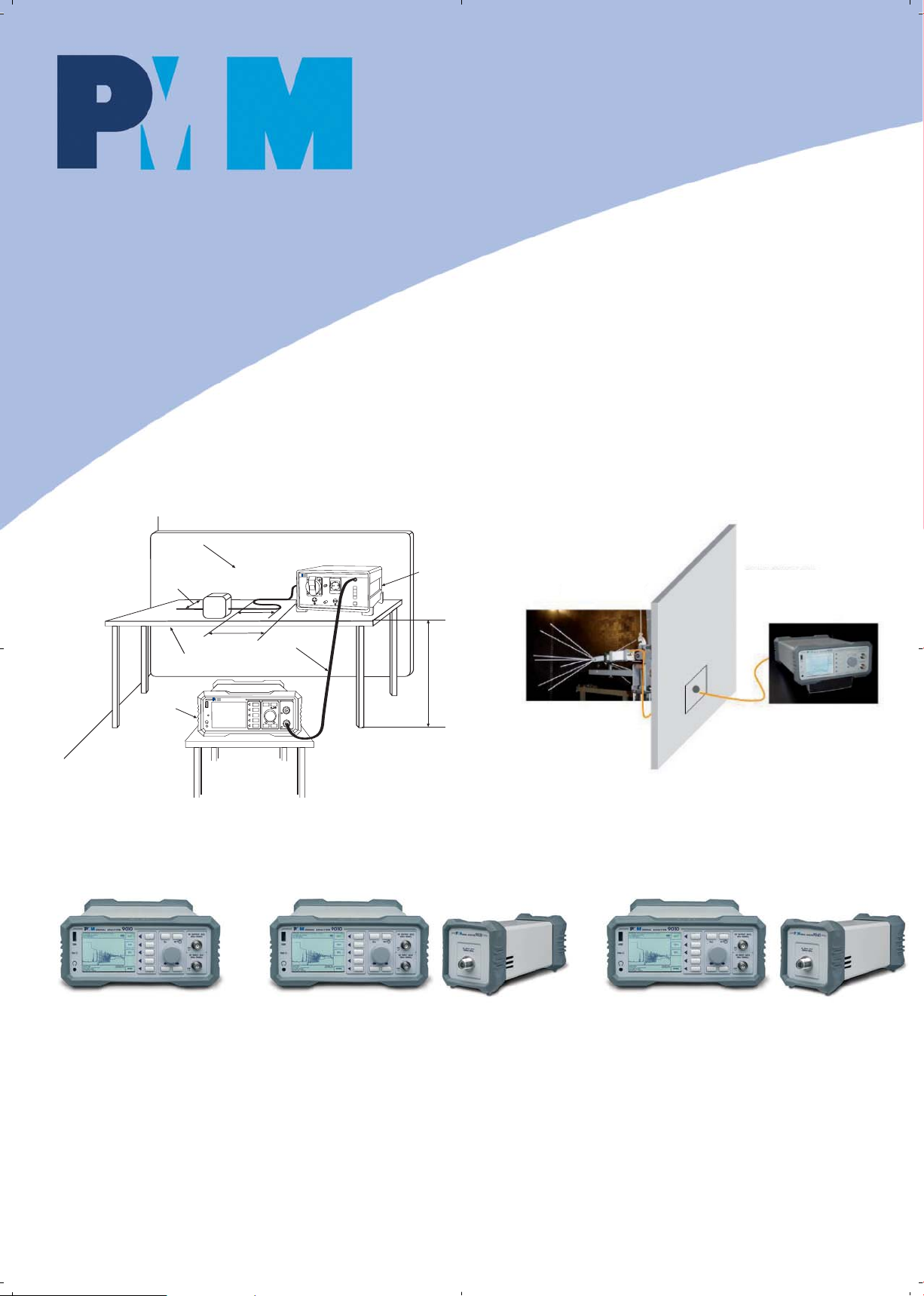

Fiber Optic link between PMM
9010 main unit and PMM 9030 &
9060 RF extension units. Max.
length: 100 m.
approach is that the computing function do
not generate those spurious components a
conventional analog mixer would do.
The Pure Mathematical QP, PK, AVG,
High performance
digital architecture
characterized by an ultra-fast A/D converter
with the DSP controlling 3 processors for
different functions: RSP (Receiver Signal
Processor), FPGA and CPLD.
No calibrations, no adjustments
after the A/D converter which is inserted in
the circuit just when the signal comes out of
the input attenuator and the preselector, to
take the maximum benefit from the digital
approach. All the internal references are
derived from the system clock: the receiver
is free from any phase noise, jitter, drift, etc.
High-speed RSP and DSP
for highest precision and simultaneity. A
dedicated Receiver Signal Processor handles
all the numeric signals within the digital IF,
while the Digital Signal Processor provides
all of the calculations and signals treatment,
like simultaneous detections, demodulations and graphical representation in real
time.
The powerful RSP
(Receiver Signal Processor)
allows the use of the FIR (Finite Impulse
Response) technique to create digital RBW
filters: the result is an impressive lifetime
stability of such filters and a shape
controlled to the perfection, due to its
mathematical modelling. The competitive
receivers featuring analogue filters are
definitely several steps behind.
The Numeric Local Oscillator generates pure
mathematical signals for the Digital IF Filters,
divided into Real and Imaginary parts. The
main advantage of the mathematic
RMS, RMS + AVG Detectors and the
APD function
feature absolute stability and lifetime
calibration-free operation. The response of
such RF receiver is no longer depending
from the input signals and the detectors
always work exactly as intended. These
detectors are mathematical functions for
unsurpassed performance and precision:
they are simply the best and simultaneous
by definition. It shall be noted that all these
detectors and functions are needed in a
receiver full compliant to the latest CISPR 161-1.Then the Product Committee can decide
which of these features are the most
appropriate; for instance, the latest
RMS+Avg detector and the APD functions –
as well as the Average detector - will be used
with the new digital equipment and/or
above 1 GHz. No problem for other products
still requiring the more traditional QuasiPeak and Average detectors: they’re all on
board.
Absolute and stable
compliance to CISPR
of all digital RBW filters. It’s simply amazing
the perfection of these filters
mathematically created and shaped to meet
exactly the CISPR requirements.
If needed by changes in the stardards, new
markets opportunities, custom requests etc.
Narda can model new filters to upgrade the
receivers and implement the new features.
This consists just in firmware upgrade done
by the user and is a matter of seconds.
Ultra-fast measurements of
CISPR A-band (9 kHz ÷ 150 kHz)
the FFT (Fast Fourier Transform) function
allows to perform a full scan of the whole
A-band in only 1 second! Even when the
source is emitting for very short periods of
time - or when the source operating cycle is
extremely short, there is a much higher
probability to capture and measure the
disturbance.
Hold Time
another step ahead from analogue
behaviour! At each frequency step, given by
the selected filter bandwidth, the PMM 9010
really stops for the preset time, so taking a
perfect picture of the signal under analysis,
while analogue receivers may show a certain
“drift”depending from the sweep time.
With setting equal to 0, the Hold Time is the
minimum time of permanence required by
the selected IF filter for the fastest possible
measurement speed.
Built-in Preselector
designed to make correct measurements of
all input signals,including pulses.The quality
of the preselector - one of the very few
analogue sections in the receiver - is
essential to guarantee the best
performances and represents the most
important difference between a true EMI
Receiver, capable of the more reliable results,
and a generic Spectrum Analyzer adapted to
perform EMC measurements.
The Auto Attenuator
provides maximum dynamic range without
distortion. It is controlled by an FPGA (Field
Programmable Gate Array) directly driven by
the internal DSP (Digital Signal Processor)
and provides optimum performances in
every testing condition, while protecting the
RF input (e.g.: zero dB attenuation is not
allowed in auto-attenuation mode).
The Built-in Preamplifier
of PMM 9010 cannot be saturated thus it
provides correct response to continuous
and pulsed signals, while in most receivers
the preamplifier is directly connected to the
RF input. Saturation might be there without
notice!
Pulse Limiter
is built-in in the PMM 9010, providing an
extra protection, if required.
The Pre-Loaded CISPR Limits
are stored in a non-volatile memory and
immediately available for tests done in
“Sweep Mode”: easy, fast and error free!
The Internal RF Generator
in PMM 9010 is a very flexible RF generator
tracking with the span or settable at any
frequency in the range of 10 Hz ÷ 50 MHz:
another powerful tool for the designers that
makes the PMM 9010 an easy-to-use scalar
network analyzer for characterizing
components, filters etc.
This generator provides also the selfcalibration of the equipment,as it represents
the main frequency reference for all the
receiver operation.
To keep it calibrated, it‘s enough to send
back to Narda just the generator module
itself: a terrific advantage in terms of costs
and speed.
The Click Meter Option
allows the user to perform continuous
disturbance tests in a straightforward and
easy way.
The receiver takes care of everything:
evaluation of the Click Rate N; applicable
exceptions; Click measurement using Upper
Quartile Method; Full Report with all
mandatory data.
PMM 9010 fully supports the new standard
dealing with all the allowed four exceptions,
showing in real time all the events including
click details and reporting all mandatory and
optional data to make a detailed report. It
shall be noted that the handling of E-3 is the
most demanding in terms of hardware and
software, however it is also the exception
that is more beneficial for the customer, as it
allows to skip unnecessary tests. In general,
the first investigation is terminated as per
one of the required events listed in the
standard: after 40 clicks; after the standard
120 minutes; after a specific time span;
manually; paused and resumed to allow
restarting recursive EUT programs.
Moreover, PMM 9010 has the unique feature
Rechargeable/Replaceable
Internal batteries
“Smart Measure” that can dramatically
speed up the Click test: another productivity
feature by Narda STS.
Input and Output
USB 2.0, RS232C, and Bluetooth for PC
communication (GPIB/IEEE-488 via optional
external adapter).
Programmable User Port to control auxiliary
equipment like LISNs and other automatic
equipment.
High-Speed Optic links featuring 2.6 GBps
transfer rate,Bluetooth link, battery charger.
Graphic Display
Instruments typically compromise physical
dimensions with display size and type.
Despite its small size,the PMM 9010 features
a sophisticated graphic process that allows
the bright, clear, 16-levels grey backlighted
display to catch and show even the
narrowest peak in the spectrum.
for enhanced portability and for field tests,
also offering the major advantage of being
completely disconnected from the mains in
critical analysis, for measurements not
influenced at all in hostile or noisy
environments.
Easier Radiated Power set-up
as the high frequency receiver can be
mounted directly on top of the EM Clamp
using a suitable Clamp Adapter and a very
short cable connection from the receiver to
the EM Clamp.
This means that the long, movable
connection (usually going to a reel on the
ceiling of the lab and from there to the
receiver) is made with a fibre optic, not with
a coaxial cable which is heavier, thicker, less
flexible, more subject to damage - especially
near to the connectors. Again, mechanical
and electrical advantages for the test
Engineers.
In-situ Tests
Controls
the receiver can be operated as stand-alone
by the front knob and soft keys through
user-friendly menus, or remotely by a PC
connected via USB or RS232 Serial interface
(Bluetooth optionally).
or any tests where the connection to the
supply network may introduce additional
noise, e.g. due to ground loops - are no
longer a problem with the PMM 9010 / 9030
/ 9060 receivers: they are battery operated
and all share the same model of
rechargeable battery.Easy,clean, fast, simple.
Unsurpassed Intrinsic Uncertainty
much better than any analogue receiver, as per the following table:
ANALOGUE TO DIGITAL UNCERTAINTY COMPARISON
Input Quantity Analogue uncertainty contribution PMM 9010 uncertainty
Receiver reading ±0,1 Equal or better
Aging TBD,but present Absent
Attenuation:
Antenna-receiver ±0,1 Equal
Cables TBD, but present Absent
Connections TBD, but present Absent
Receiver correction:
Sine wave voltage ±1,0 Better
Pulse amplitude response ±1,5 Better
Pulse repetition rate response ±1,5 Better
Mismatch:
antenna-receiver +0,9/-1,0 Equal
antenna-cable TBD, but present Absent
cable-cable TBD, but present Absent
Cable-Antenna (or other
transducer,e.g. E.M. clamp) ±0,9 Better (w/ 9030-9060)
balance
Cables coupling to ground TBD, but present Absent with 9030 or 9060
(typical) in dB contribution
Comparison between antenna-receiver connected by coaxial cable (blue trace) and PMM 9030 directly
connected to the antenna and linked to PMM 9010 by fiber optic cable (pink trace).
The example shows how PMM’s solution can prevent unwanted signals being picked up by the coaxial cable
along its path from the antenna to outside the chamber.
The same rechargeable plug-in battery
is used for all PMM 9010, 9030 & 9060
Operating Principles of the
PMM 9010-PMM 9030-PMM 9060
Perfect, life-long stable and calibration-free RBW filters
(picture: 200 Hz RBW CISPR filter)
After the A/D conversion the behaviour
of a regular receiver is mathematically
simulated in order to perfectly match
international standards specifica-tions.
Even for a digital architecture,
preselector filters and input attenuators
are mandatory for limiting the signal
energy into well defined RF bands, to
improve the dynamic range and to
increase the signal to noise ratio, thus
ensuring accurate measurements of all
wideband complex signals typical of
EMC measurements.
The input attenuator provides the
maximum dynamic range with no
distortion. This is particularly important
in conducted tests where overloading
signals may be present outside the
frequency band under test.
To prevent this from happening, the
PMM 9010’s input attenuator is directly
controlled by the DSP in wideband
mode to maintain the response
linearity in any conditions and also to
protect the RF input from out-of-band
signals that are too high.
No calibrations and no adjustments are
required after the A/D converter: CISPR
IF filters and detectors are all
mathematically calculated and are thus
not subject to any degradation for the
life of the instrument. This high
performance digital architecture
features an ultra-fast A/D converter
with the DSP controlling 3 more
processors for different functions: RSP,
FPGA, CPLD.
The ADC is followed by the Receiver
Signal Processor - RSP - that performs
most of the analogue-like functions of
the receiver and handles all the
numeric signals within the digital IF,
with the main advantage of this
solution directly deriving from the
perfection of the mathematic
approach: the computing function is
equivalent to conventional analogue
mixers, but simply cannot generate
spurious components which are
therefore absent.
The sampled signals are processed by
the RSP in a purely mathematical
“mixer-like mode”, and then applied to
FIR (Finite Impulse Response) digital
RBW filters: the result is an unbelievably
stable filter, a shape controlled to
perfection as it is mathematically
modelled. Adjustments needed by
analogue filters are simply not required.
One of the fastest available DSP not
only controls the RSP, but also performs
all of the calculations and signal
processing, like simultaneous
detections and graphical
representation, in real time; it controls
other functions like the frequency
sweep, etc.
The DSP simultaneously applies the
mathematical algorithms corresponding to the detectors Peak,CISPR QuasiPeak, RMS, Average, RMS+AVE whose
response is no longer depends on the
input signals, as the detectors always
work exactly as intended in perfect
time coherent measurements.
Thanks to the high number of
operations performed by the DSP equivalent to those of an ideal 10 GHz
Pentium 4™ - the DSP also manages the
different operating modes: Sweep
Mode, like a traditional receiver with
CISPR Limits stored in non-volatile
memory, Spectrum and Manual Mode.
The Spectrum Mode allows the receiver
to perform spectrum analyzer
functions, and thanks to the very high
scan speed (<100 ms for full-span 9
kHz-30 MHz @ IF resolution 300 kHz) it
is very useful for any kind of debugging.
In Manual Mode the filter in CISPR
bands is selected automatically
according to the frequency and the
data are displayed with a dynamic
range up to 120 dB,and the hold time is
exactly the integration time
theoretically required by the applied
detectors.
Moreover, hold time means that the
receiver really stops for the preset time,
Block diagram of the PMM 9010 EMI Digital Receiver
thus taking a perfect picture of the
signal under analysis, with no drift
depending from on the sweep time.
Other RBW filter standards which may
be required in future can be easily
added: Narda designers will model
them mathematically, verify their
performances and add them to
userfriendly firmware upgrades.
The huge internal memory combined
with the capability of making a FFT
(Fast Fourier Transform) analysis of the
signals allows for an ultra-fast complete
scan of the whole A-band (9 to 150 kHz)
performed in only 1 second even with
the 200 Hz filter.
Even in those cases when the source is
on for very short periods of time – or
when the source has an extremely short
cycle - it is possible to see and measure
the emissions.
A clever function - the Smart Detector dramatically reduces test time and
improves productivity: the receiver
starts scanning with the fast peak
detector then,when the reading is close
to a selected limit it immediately turns
to quasi-peak detector (or any other
selected one), moves some frequency
step back and measures with the new
detector until the signal returns low;
then the receiver turns back in peak
mode and continues the scan at the
highest possible speed, repeating this
process any time there’s an over limit
peak .
This “performance booster” was first
introduced in PMM’s receivers in 1990.
To maintain calibration a signal
reference is essential: a high stability
internal RF Signal Generator (60 to 90
dBμV in 0,1 dB steps) has been added to
the PMM 9010.
This RF generator can work in tracking
mode with the span or set at any
frequency in the range of 10 Hz to 50
MHz: in addition to being the main
reference for the receiver, it also makes
the receiver an easy-to-use scalar
network analyzer for characterizing
components, antennas, filters etc.
To always keep your receiver perfectly
calibrated, just send the generator
module back to your Narda Dealer: a
terrific advantage in terms of costs and
speed.
After recalibration, this single module is
easily reinstalled into the receiver to
restart operations immediately after.
The PMM 9030 and PMM 9060 are
innovative and different from this
stand point: although they need an
external frequency reference source for
calibration check, the complete RF
front-end only - a single, solid block
module - can be sent to Factory the
same way.
Utilizing a digital receiver
implementation, it’s easy for such a
receiver to integrate a single channel
Click Receiver with no additional
hardware required: an external option
is required only to have a full 4 channels
click evaluation.
Moreover, the huge memory of the
receiver (required for storing each
disturbance duration and interval and
for post-process) is essential to be able
to fulfill the recently modified click
specifications approved by CISPR.
Configurations and application examples
Vertical ground plane, min. size 2x2 m
Power cord
40 cm
40 cm
> 80 cm
LISN
bonded to
ground
plane
Non conductive plane
Coax clable
Test
receiver
80 cm
SIGNAL ANALYZER
9010
USB
PW
Esc
RF OUTPUT 50
W
10Hz - 50 MHz
RF INTPUT 50
W
10Hz - 30 MHz
0dB
ON
Example of Test Setup for RFI Voltage Measurement
Test-Chamber
PRF-Chamber
Radiated measurements with PMM 9030/9060 mounted directly on
an antenna connector
PMM 9010 PMM 9010 + PMM 9030 PMM 9010 + PMM 9060
Conducted tests
up to 30 MHz
Interference
measurements with
optional rod antenna
All kinds of conducted and radiated
measurements up to 3 GHz (CISPR 11 group
1; CISPR 11 group 2 with operating frequency
CISPR 13; CISPR 14-1;CISPR 22 when the
highest internal source frequency is up to 500
MHz; future CISPR 32 when the highest
internal source frequency is up to 500 MHz)
< 400 MHz; CISPR 12;
Conducted and radiated measurements up to
6 GHz (as above plus: CISPR 22, any frequency
of internal source; future CISPR 32, any
frequency of internal source but except
outdoor units of direct to home
satellite receivers)
PMM 9010 as a Discontinuous Disturbance
(Click) Analyzer
In the application of measurement of
Discontinuous Conducted Disturbances
(Clicks) the PMM 9010 EMI receiver
equipped with the Click Option not only
guarantees full compliance to the latest
CISPR-14-1 requirements: thanks to its fully
digital structure it offers superior stability
and performance as an Automatic Click
Analyzer featuring:
• wide memory to store each disturbance
duration and interval as required by
CISPR-14-1
• automatic evaluation of Click Rate N
• automatic use of Exceptions,if applicable
• automatic Click measurement using
Upper Quartile Method
• exclusive Smart Measure function to
speed up tests
• real time displaying of all events
including click details
• generation of a Report with all
mandatory data (and more)
PMM 9010 with Click Option real-time display
Moreover, the PMM 9010 as a click Analyzer
can be tailored to the users' requirements:
from the basic single-channel solution, that's
embedded in the PMM 9010 hardware and
can be ordered and activated by the user at
any time, up to the full four-channel
configuration consisting of an external unit
to connect to the PMM 9010 Receiver
(single-channel Click option required).
PMM 9010 + Click Meter (option)
(*)
PMM LISN CONTROL
(*) If required
LISN
SIGNAL ANALYZER
9010
USB
PW
EUT
RF OUTPUT 50
10Hz - 50 MHz
Esc
ON
RF INTPUT 50
10Hz - 30 MHz
0dB
20 dB
Att. (*)
(*) If required
W
W
PMM SWITCHING
BOX
AC
MAINS
Measurement of
discontinuous
disturbances on one
single channel
(frequency) per time
PMM 9010 with Click Option automatic Test Report
PMM 9010 + 4 channels Click Meter Adapter (option)
SIGNAL ANALYZER
AC
MAINS
PMM LISN CONTROL
LISN
EUT
USB
PW
9010
20 dB
Att. (*)
(*) If required
W
RF OUTPUT 50
10Hz - 50 MHz
Esc
ON
W
RF INTPUT 50
10Hz - 30 MHz
0dB
Click $E
9010
9010 CLICK 4E
Measurement of
discontinuous
disturbances on four
channels (frequencies)
simultaneously
PMM 9010/9030/9060
Emission Suite PC software
A powerful Software Utility that control the PMM 9010, PMM 9030 and
PMM 9060 receivers and enables extremely useful functions to
control measurements as well as to collect, analyze and post-process
data safely and easily as never before.
These pictures show just some examples of the most commonly
required functions, with some of them specific to PMM’s receivers.
SIMULTANEOUS DETECTORS IN REAL TIME ALL SIX CISPR detectors!
POWERFUL SCAN TABLE allowing any combinations
of any measuring settings in any sequence to meet
even the most demanding applications in terms of
flexibility!
Useful Functions
Custom Limits
can be easily created, saved and recalled.
Cable losses, Antenna Factors and
Absorbing Clamp Calibration Tables
can be quickly created and computed
during measurements.
“Smart Detector” function in Sweep
Mode
Values measured by the fast Peak Detector
and found exceeding the limits are
immediately measured with the other
detectors simultaneously and during the
same sweep, thus providing an impressive
time saving test.
Auto CISPR
when in Manual mode, the filter is selected
automatically according to the frequency.
Spectrum Analyzer
Function
The very high scan speed (<100 ms for fullspan 10 Hz-30 MHz @ IF resolution 300 kHz),
it is especially very useful for any kind of
debugging with the outstanding
performances of an EMI-specific instrument.
Scalar Network Analyzer
Function
a powerful function useful for designers and
test engineers, provides an easy-to-use
scalar network analyzer for characterizing
components, filters and much more.
TEM and G-TEM
Correlation Program
is the best way to use the PMM receiver for
simulating radiated emission tests in an
OATS.
Fast and precise, this feature is already built
in the PMM software.
PEAKS FINDER with generation of Frequency tables
COMPARE function of stored measurements
ANALYZER mode for fast and accurate debugging
MANUAL mode: up to four simultaneous detectors
Just one click
to move across functions
User-upgradeable Firmware
A simple utility included in the PMM Emission Suite CD allows the user to upgrade the firmware of his own PMM
receiver whenever required by future standards, measuring features and test solutions. A dedicated operating system
allows the PMM 9010 to be ready to use just few seconds after power on.
An exclusive “parking memory” makes upgrading the PMM Receivers Firmware totally failsafe against unexpected
interruptions that may occur during downloading.
Technical Specifications
PMM 9010 - CISPR 16-1-1 & MIL-STD-461F Compliant
Frequency range 10 Hz to 30 MHz
Resolution 0,1 Hz
Reference frequency < 1 ppm
RF input
VSWR Zin 50 Ω, BNC fem.
10 dB RF att. < 1,2
0 dB RF att. < 2
Attenuator 0 dB to 35 dB (5 dB steps)
Preamplifier gain 20 dB (after preselector)
Pulse limiter Built in (selectable)
Max input level
(without equipment
damage) 137 dBμV (1 W)
Sinewave AC voltage
Pulse spectral density 97 dBμV/MHz
Preselector (One LP and six BP filters)
Frequency ranges < 9 kHz
9 kHz to 150 kHz
150 kHz to 500 kHz
500 kHz to 3 MHz
3 MHz to 10 MHz
10 MHz to 20 MHz
20 MHz to 30 MHz
IF bandwidth
3 dB bandwidth 3, 10,30, 100,300 kHz
6 dB bandwidth 0,2 and 9 kHz (CISPR 16-1-1)
10, 100 Hz;1, 10 kHz (MIL-STD-461)
(100 kHz, 1 MHz MIL-STD-461
when operated with 9030 or 9060)
Display units dBm, dBμV, (dBμA, dBpW, dBμV/m,
dBμA/m by PMM Emission Suite)
Displayed dynamic 80, 100,120 dB selectable
Spectrum Analyzer mode
Span/division 100 Hz ÷ 3 MHz
Measurement accuracy S/N > 20 dB
10 Hz to 9 kHz ±1,0 dB Typ.
9 kHz to 30 MHz ±1,0 dB
RF output
Tracking & CW Generator Zout 50 Ω, BNC fem.
Frequency range 10 Hz to 50 MHz
Level 60 to 90 dBμV (0.1 dB step)
Level accuracy
(10 Hz to 30 MHz) ± 0,5 dB
Demodulation AM; volume setting by knob
Autocalibration Internal reference source
I/O Interface RS-232
High Speed Optical (2 channels;
2nd for future extension)
USB Rear
USB Front (future extension)
User Port (drives PMM LISNs)
Bluetooth (optional)
IEEE-488 (optional)
Click meter 1 to 4 simultaneous channels
(Optional) Full compliant to EN 55014-1
Noise level 9 - 150 kHz < -8 dBμV (QP)
(Preamplifier ON) (200 Hz BW) < -15 dBμV (AV)
0,15 - 30 MHz < -4 dBμV (QP)
(9 kHz BW) < -10 dBμV (AV)
Detectors Peak, Quasi-Peak, Average,
(simultaneous on PMM RMS, RMS-Average, C-Average,
Emission Suite) APD
Smart Detector function
Level measuring time CISPR 16-1-1 as default
(Hold time) Variable,1 ms to 30 sec.
Stand-alone display & Marker; marker peak; marker
measure functions to center; highest peaks;move
peak to Analyzer & Manual
modes
Store & Load:
- up to 11 traces (sweep mode)
- two panels
- 4 conversion factors
Built-in limits: CISPR 11,14, 22
Battery charge and voltage
Display style, contrast, backlight
Click functions (option required)
Operating temperature 0° to 40°C
Power supply 10 - 15 Vdc, 2.5A
Li-Ion rechargeable plug-in
battery
(8h avg. duration)
AC universal adapter/charger
Dimensions 235x105x335 mm
Weight 4,1 kg
PMM 9030 - PMM 9060 (CISPR 16-1-1 & MIL-STD-461F Compliant)
PMM 9030 PMM 9060
Frequency range 30 MHz to 3 GHz 30 MHz to 6 GHz
Resolution 100 Hz 100 Hz
Reference frequency < 2 ppm < 2 ppm
RF input Z
VSWR
10 dB RF att. < 1,2 ; < 2 over 1 GHz < 1,2 ; < 2 over 1 GHz; < 3 over 3 GHz
0 dB RF att.
Attenuator 0 dB to 55 dB (5 dB steps) 0 dB to 55 dB (5 dB steps)
Preamplifier gain 10 dB 20 dB, 30 MHz - 1 GHz; 15 dB > 1 GHz
Max input level
(without equipment damage)
Sinewave AC voltage Pulse 137 dBμV (1 W) 137 dBμV (1 W)
spectral density 97 dBμV/MHz 97 dBμV/MHz
Preselector (Three tracking and one bandpass filters) (Four tracking and two bandpass filters)
Frequency ranges 30 MHz to 96,6 MHz 30 MHz to 72 MHz
in 50 Ω, N fem. Zin 50 Ω, N fem.
< 2 < 2; < 3 over 3 GHz
96,6 MHz to 311,0 MHz 72 MHz to 173 MHz
311,0 MHz to 1000 MHz 173 MHz to 416 MHz
1 GHz to 3 GHz 416 MHz to 1 GHz
1 GHz to 3 GHz
3 GHz to 6 GHz
IF bandwidth 3, 10,30, 100,300 kHz, 6 dB bandwidth 3, 10,30, 100,300 kHz, 6 dB bandwidth
Noise level
(Preamplifier OFF)
(Preamplifier ON)
Spurious response < 10 dBμV, < 15 dBμV over 1 GHz < 10 dBμV, < 15 dBμV over 2 GHz
Measurement uncertainty
Worst case @ S/N > 20 dB 30 to 1000 MHz ± 1,0 dB 30 to 1000 MHz ± 1,0 dB
I/O Interface High Speed Optical High Speed Optical
Operating temperature 0° to 40°C 0° to 40°C
Power supply 10 - 15 Vdc,2.5A 10 - 15 Vdc,2.5A
Dimensions 235x105x105 mm 235x105x105 mm
Weight 2 kg 2,2 kg
120 kHz (CISPR 16-1-1), 6 dB bandwidth 120 kHz (CISPR 16-1-1), 6 dB bandwidth
1 MHz (CISPR 16-1-1), B-imp 1 MHz (CISPR 16-1-1), B-imp
30 to 300 MHz < 5 dBμV (QP) 30 to 300 MHz < 10 dBμV (QP)
(120 kHz BW) < 1 dBμV (AV) (120 kHz BW) < 7 dBμV (AV )
300 to 3000 MHz < 8 dBμV (QP) 300 to 3000 MHz < 13 dBμV (QP)
(120 kHz BW) < 4 dBμV (AV) (120 kHz BW) < 7 dBμV (AV )
3000 to 6000 MHz < 15 dBμV (QP)
(120 kHz BW) < 10 dBμV (AV)
30 to 300 MHz < -1 dBμV (QP) 30 to 300 MHz < -20 dBμV (AV)
(120 kHz BW) < -5 dBμV (AV) (10 kHz BW)
300 to 3000 MHz < 2 dBμV (QP) 300 to 3000 MHz < -18 dBμV (AV)
(120 kHz BW) < -2 dBμV (AV) (10 kHz BW)
3000 to 6000 MHz < -12 dBμV (AV)
(10 kHz BW)
1 to 3 GHz ± 1,5 dB 1 to 3 GHz ± 1,5 dB
3 to 6 GHz ± 2,0 dB
RS-232 (for maintenance only) RS-232 (for maintenance only)
Li-Ion rechargeable & interchangeable battery Li-Ion rechargeable & interchangeable battery
(4h avg. duration) (4h avg. duration)
AC universal adapter/charger AC universal adapter/charger
narda
Safety Test Solutions
3
an
Communications Company
Ordering information
9010 EMI receiver 10 Hz - 30 MHz, CISPR 16-1-1 full-compliance 9 kHz - 30 MHz, including:
- internal tracking generator
- battery pack, AC adapter/charger
- PC software PMM Emission Suite
- Control cables (USB, RS-232), BNC-BNC cable
9030 Extension unit 30 MHz - 3 GHz for model 9010, CISPR 16-1-1 full-compliant,including:
- 20 m fiber optic cable
- battery pack with charger
- antenna holder with adapters for BC-01, LP-02 and other models (ref. to manual)
- N-male—N-male; N-male-BNC fem.adapters
- SPA-01, plug-in AC supply adapter (replaces battery) for continuous operation
9060 Extension unit 30 MHz - 6 GHz for model 9010, CISPR 16-1-1 full-compliant,including:
- 20 m fiber optic cable
- battery pack with charger
- antenna holder with adapters for BC-01, LP-02 and other models. (ref.to manual)
- N-male-N-male; N-male-BNC fem.adapters
- SPA-01, plug-in AC supply adapter (replaces battery) for continuous operation
Optional accessories and functions
9010/MIL MIL-STD-461F RBW Filters
9010/CLICK 1-channel Click Analyzer function, CISPR 14-1: 2005 full-compliance, including:
- Switching Operation Box, control cables
- 2x20 dB attenuator
NOTE: field-installable function (advice 9010 S/N for upgrading confirmation)
9010/CLICK4E External box to connect to a receiver 9010 equipped with 9010/click option. Allows four-channel
simultaneous click measurements according to CISPR-14-1-1. AC power only.
9010/BTA RS-232 to BlueTooth adapter for 9010
9010/GPIB-232CV-A RS-232 to GPIB (IEEE-488) external adapter for 9010
BP01 Spare Li-Ion Battery Pack for 9010 & 9030
9010/AC AC adapter/charger for BP01, 9010, 9030
9010/FO-20 20 m fiber optic cable for 9030
9010/FO-50 50 m fiber optic cable for 9030
9010/FO-100 100 m fiber optic cable for 9030
9010/CC Rigid carrying case for 9010
9010/UKAS UKAS CISPR-16-1-1 accredited calibration certificate for 9010
9030/UKAS UKAS CISPR-16-1-1 accredited calibration certificate for 9010 & 9030
9010/UKAS-Click UKAS accredited calibration certificate for 9010 + 9010/Click according to CISPR-16-1-1 &
CISPR-14-1
A wide range of PMM original accessories and ancillary equipments are available, making the PMM 9010 the
complete measuring solution for almost all applications.
• L1-150: Single line LISN,150A
• L2-16: Two lines, Single phase, 16A LISN
• L3-32: Four lines, 3-phase, 32A LISN
• L3-64: Four lines, 3-phase, 64A LISN
• L3-100: Four lines, 3-phase, 100A LISN
• L3-500: Four lines, 3-phase, 350A LISN
• SHC-1: 35 dB CISPR Voltage probe, 1500 Ω
• SHC-2: 30 dB CISPR Voltage probe, 1500 Ω
• RA-01: Rod Antenna (10 kHz – 30 MHz)
• BC-01: Biconical Antenna 30-200 MHz
• LP-02: Log Periodic Antenna 200 MHz-2700 MHz
• TR-01:Wooden tripod for PMM Antennas
PMM 9010 can also be used with other accessories available on market: LISN, any type; Antennas and Loops;
Near Field Probes;TEM/GTEM Cells.
a brand of
PMM’s LISN are controlled
by PMM 9010 receiver to
automatically select the
lines to measure
Narda Safety Test Solutions srl
Via Leonardo da Vinci, 21/23
20090 Segrate (MI) ITALY
Phone: +39 02 26 998 71
Fax: +39 02 26 998 700
E-Mail: support@narda-sts.it
www.narda-sts.it
Specifications may change without prior notice. - 04/09
Loading...
