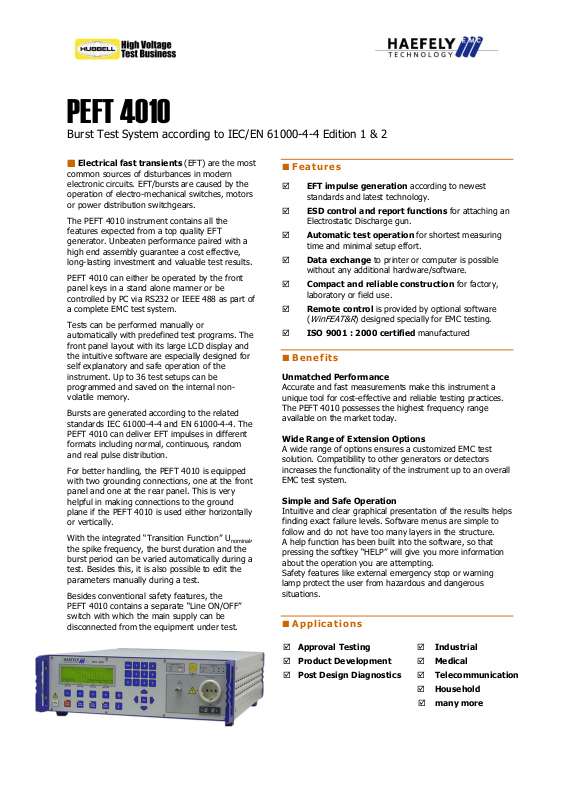

PEFT 4010
Burst Test System according to IEC/EN 61000-4-4 Edition 1 & 2
Electrical fast transients (EFT) are the most
common sources of disturbances in modern
electronic circuits. EFT/bursts are caused by the
operation of electro-mechanical switches, motors
or power distribution switchgears.
The PEFT 4010 instrument contains all the
features expected from a top quality EFT
generator. Unbeaten performance paired with a
high end assembly guarantee a cost effective,
long-lasting investment and valuable test results.
PEFT 4010 can either be operated by the front
panel keys in a stand alone manner or be
controlled by PC via RS232 or IEEE 488 as part of
a complete EMC test system.
Tests can be performed manually or
automatically with predefined test programs. The
front panel layout with its large LCD display and
the intuitive software are especially designed for
self explanatory and safe operation of the
instrument. Up to 36 test setups can be
programmed and saved on the internal nonvolatile memory.
Bursts are generated according to the related
standards IEC 61000-4-4 and EN 61000-4-4. The
PEFT 4010 can deliver EFT impulses in different
formats including normal, continuous, random
and real pulse distribution.
For better handling, the PEFT 4010 is equipped
with two grounding connections, one at the front
panel and one at the rear panel. This is very
helpful in making connections to the ground
plane if the PEFT 4010 is used either horizontally
or vertically.
With the integrated “Transition Function” U
the spike frequency, the burst duration and the
burst period can be varied automatically during a
test. Besides this, it is also possible to edit the
parameters manually during a test.
Besides conventional safety features, the
PEFT 4010 contains a separate “Line ON/OFF”
switch with which the main supply can be
disconnected from the equipment under test.
nominal
,
Features
EFT impulse generation according to newest
standards and latest technology.
ESD control and report functions for attaching an
Electrostatic Discharge gun.
Automatic test operation for shortest measuring
time and minimal setup effort.
Data exchange to printer or computer is possible
without any additional hardware/software.
Compact and reliable construction for factory,
laboratory or field use.
Remote control is provided by optional software
(
WinFEAT&R
ISO 9001 : 2000 certified manufactured
Benefits
Unmatched Performance
Accurate and fast measurements make this instrument a
unique tool for cost-effective and reliable testing practices.
The PEFT 4010 possesses the highest frequency range
available on the market today.
Wide Range of Extension Options
A wide range of options ensures a customized EMC test
solution. Compatibility to other generators or detectors
increases the functionality of the instrument up to an overall
EMC test system.
Simple and Safe Operation
Intuitive and clear graphical presentation of the results helps
finding exact failure levels. Software menus are simple to
follow and do not have too many layers in the structure.
A help function has been built into the software, so that
pressing the softkey “HELP” will give you more information
about the operation you are attempting.
Safety features like external emergency stop or warning
lamp protect the user from hazardous and dangerous
situations.
Applications
Approval Testing
Product Development
Post Design Diagnostics
) designed specially for EMC testing.
Industrial
Medical
Telecommunication
Household
many more
Rear panel view of the PEFT 4010
Burst Modes
On the PEFT 4010 instrument five different burst
modes can be selected.
1. Normal: Bursts are generated as defined
in IEC 61000-4-4.
U
2. Continuous: The spikes are generated
continuously with the selected frequency.
U
3. Random: The spike frequency changes
within a burst between 16% and 100% of
the entered value.
U
4. Real: The spike frequency is changed
from the entered value to 16% within a
burst. Burst amplitude remains constant.
U
5. Real5 / Real100: Spike frequency
reduces within a burst from 100% to 16%
and simultaneously the amplitude
increases from ca. 50% to 100%. The
nominal spike frequencies at the start of a
burst packet are fixed at 5 kHz or 100 kHz.
This feature is only available when the
relevant option is integrated in the PEFT 4010
hardware.
U
Remote Control S o f t w a r e
(WinFEAT&R)
Coupling/Decou p l i n g N e t w o r k
(CDN)
A single phase Coupling/Decoupling Network (CDN)
is built into the PEFT 4010 which enables coupling
of the EFT impulses into a single phase mains
network.
If it is necessary to inject EFT Impulse into a three
phase mains system, the PEFT 4010 can be used
together with an external three phase CDN (up to
100A per phase) with coupling path selection either
controlled directly from the PEFT 4010 or manually.
Injection of EFT impulses into signal and control
cables is required by IEC 61000-4-4. The PEFT 4010
has a direct high voltage output connector for use
with the coupling clamp IP4A. The IP4A fulfils all the
t
requirements of IEC 61000-4-4.
Bursts can also be coupled directly into electronic
circuits using the optional electric and magnetic field
generation probes, mainly used for failure detection.
Interfacing
t
EUT Failed
Connect pass/fail detection hardware to this BNC
input and the EUT (Equipment Under Test)
condition, as determined by specific EUT supervision
hardware, is added to the database of test
information and finally the log file. EUT condition
can also be used to determine the test course.
t
Trigger In
External signals can be used to trigger impulse
generation to a particular event.
Sync In
Impulses can be synchronised to any external cyclic
signal with a high degree of accuracy.
PESD Control
This interface can be used to attach the PESD 1610
generator to the PEFT 4010. The PEFT 4010 is able
to control and document the ESD pistol operation.
P90 Extension
The P90 interface is a self developed standard used
for communication between test instruments. The
primary function of this interface is to control the
t
automatic three phase CDN which is available as an
option.
The control software (WinFEAT&R©) can be installed in
the Microsoft® Windows 95 or higher environments and
can be used to control equipment for EFT (IEC 61000-4-
4), SURGE (IEC 61000-4-5), AC Magnetic fields (IEC
61000-4-8) and Dips or Interrupts (IEC 61000-4-11) etc.
Technical S pecifications
90%
50%
10%
VV
spike frequency
rise time
Impulse duration
Wave Shape into 50Ω load
Rise time 5 ns ± 30 %
Impulse duration 50 ns ± 30 %
Wave Shape into 1000Ω load
Rise time 5 ns ± 30 %
Impulse duration 50 ns – 15 / + 100 ns
Burst Characteristic
Voltage range 0.22 … 4.8 kV
(0.1 … 4.8 kV in expanded
mode)
Spike frequency 1 Hz … 1 MHz
(1 Hz … 2 MHz in expanded
mode)
Burst duration 0.01 … 999 ms
Burst period 0.1 Hz … 400 Hz
2.5 ms … 10 s
1 period … 500 periods
Impulses per second max. 12’000
Impulses per burst max. 1’000
Spike distribution normal, continuous,
random, real
(real5, real100 with “Real
Burst” option)
Polarity positive, negative
Test time 10 s … 8 h per path
Weight and Dimension
Weight 14 kg
W x H x D 450mm x 130mm x 570mm
t t
burst duration
burst period
Single Phase Coupling/Decoupling Network
Maximum AC voltage 264 V @ 16 … 440 Hz
Maximum AC current 16 A @ 50 … 60 Hz, 10 A @
Maximum DC voltage 125 V
Maximum DC current 16 A (dependant on DC
Coupling Modes L-GND, N-GND, PE-GND,
Residual voltage at
Test Supply Input
400 Hz
voltage)
LN-GND, LPE-GND, NPEGND, LNPE-GND
≤ 10% of applied
test voltage
Synchronisation
Frequency 16 2/3 Hz, 40 Hz, 50 Hz,
Impulse trigger automatic, manual, external
60 Hz, 400 Hz, auto
System Configuration
EUT fail input BNC, logic low to trigger
P90 interface for a 3-phase CDN
PESD interface for connecting an ESD
Printer interface Centronix
Computer interface RS-232, IEEE-488 (optional)
Power Supply
Voltage 85 … 264 VAC, 150 VA
Frequency 50 / 60 Hz
extension
generator
Scope of Suppl y
PEFT 4010 instrument including
all cables, user manual and
calibration certificate
Art. No. 2496010
Accessories and Options
Ordering Information Ordering Number
FP-EFT 32M is manual three phase 32A, 690V/400V CDN. Coupling path selection is manual.
FP-EFT 100M2 is a manual three phase CDN for operation up to 100A, 690V/400V. 2495860
IP4A is a capacitive coupling clamp for superposition of burst on data lines in accordance
with IEC 61000-4-4, edition 1 and 2.
Easy Control hand held remote control unit used to start, stop or load tests and programs
from the PEFT 4010 memory.
Vertical Operation Stand mounts the PEFT 4010 vertically for easy access while the
instrument stands on a floor level ground plane.
Real Burst Circuit Board allows “Real5/Real100” burst mode with changing amplitude
while varying frequencies and improves the impulse shape with frequencies > 1 MHz.
E and H Field Generation Probes set can be used to inject near fields and to find
electromagnetic sensitive areas in a test object.
WinFEAT&R control software for remote operation, data logging and analysis
(FEAT&R = Fast, Easy, Accurate Testing & Reporting).
Upgrade PEFT 4010 upgrades the PEFT 4010 instrument to the newest standard
(IEC61000-4-4, Ed. 2, Amd.1 January 2010). It contains a firmware upgrade, a hardware
modification and a calibration. For equipment delivered after June 2007, no upgrade is
necessary.
IEEE-488 Interface P95 IEEE card 2495561
OPTICAL DEC95 RS-232 optical link for a galvanic isolation between PEFT 4010 and PC. 2496891
EUT-OPT.1 optical link for electrical decoupling of the EUT failed input. 2494491
AC Adapter Set for country specific power plug (B, CH, US). 2492001
AC Adapter Schuko-UK converts Euro to UK plugs (13A, 250V). 2497391
DC Adapter Set for DC applications. 2497331
EFT Verification Set for verifying the HV output with 50Ω and 1000Ω load. 2499951
Adapter Verification for wave shape verification at the line output of the PEFT 4010. 2490040
Fiber Optic Interface for connecting the PESD 1610 with the PEFT 4010 mainframe. 2496671
Warning Lamp 2499441
Emergency Stop Switch 2499451
Picture shows: vertical mounted
PEFT 4010 with Field Generation
Probes, Coax Cables, PESD 1610,
Easy Control and Verification Kit.
2490170
2491300
2496021
2497351
2497341
2496081
2499701
2495040
