Product Specifications

Low Temp Good Value

The NESLAB ULT Series controls the tem­perature of the reservoir, cools the fluid, and
circulates this fluid externally. Temperature
remains steady to a very tight tolerance to
give you an excellent calibration source.

When it comes to heat removal, the
environmentally responsible refrigeration
system lets you cool more equipment, glass­ware, or instrumentation than you can with
a benchtop circulator. A good value for low
temperature applications.

The ULT Series has an industrial-grade
circulating pump that delivers consistent
flow which allows fluid to circulate long
distances, even through small I.D. tubing.
And you no longer need to locate your
bath circulator next to your application.

Plus for those applications requiring a
wider temperature range, such as reaction
vessel heating and cooling,

Thermo Electron
Corporation offers an optional extended
temperature range ULT unit that can
circulate between -80°C and +80°C.

Choose Range of Options

While each ULT unit comes with many
standard features, a full range of options
and accessories is available to meet your
specific application needs.

NESLAB ULT Series Bath Circulators

Designed to achieve low temperatures and maintain
excellent temperature stability for consistent results

The ULT Series refrigerated bath
recirculators are self-contained,
compact, cooling units designed for
circulating to external applications.
They provide

temperature stability

for calibration

applications and

for instrumentation cooling.

Ty pical laboratory applications for
the ULT Series - 90ºC to + 10ºC:

• Heat exchangers

• Cloud point/Pour point

• Calibration

• Cell freezing

• Viscosity studies

• Kinetic cooling

• Cooling GC ovens

• Petroleum studies

Note: The ULT 80DZT unit temperature
range is -80

°C to +80°C

Analyze • Detect • Measure • Control

TM

System Specifications

Thermo Electron Corporation has a well-established reputation in temperature control through its NESLAB and HAAKE product lines.
Formerly independent companies, NESLAB and HAAKE have joined forces within Thermo to provide proven temperature control technology
along with global service and support. With over 75 years of extensive industry experience, Thermo professionals worldwide continue to
develop and support the solutions that help you analyze, detect, measure, and control your application with increasingly advanced precision.

ULT 80ZT ULT 80 ULT 95

Temperature range* -80°C to +80°C -80°C to +10°C -90°C to -30°C
Temperature stability +/- 0.03°C +/- 0.03°C +/- 0.02°C
Cooling capacity

60 Hz 250 watts at -70°C 250 watts at -70°C 350 watts at -80°C\
50 Hz 200 watts at -70°C 200 watts at -70°C 280 watts at -80°C

Compressor 2 x 1 hp 2 x 1 hp 2 x 1.5 hp
Heater 1200 watts 1200 watts 1650 watts
Bath volume

gallon 4.0 4.0 4.0
liter 15.1 15.1 15.1

Unit dimensions

H x W x D in 47.50 x 27.375 x 17.75 47.50 x 27.375 x 17.75 48 x 32.125 x 21.50
H x W x D cm 102.7 x 69.2 x 45.1 102.7 x 69.2 x 45.1 119.4 x 81.6 x 54.6

Bath opening/Bath depth

W x L/D in 7 x 5.4/9.5 7 x 5.4/9.5 2 in diameter fill port
W x L/D cm 17.8 x 13.7/24.1 17.8 x 13.7/24.1 5.1 cm diameter fill port

Pump performance

60 Hz (LPM) 10 LPM @ 0’ head, 12’ max 10 LPM @ 0’ head, 12’ max 16 LPM @ 0’ head, 21’ max

(GPM) 2.6 GPM @ 0’ head, 12’ max 2.6 GPM @ 0’ head, 12’ max 3.3 GPM @ 0’ head, 21’ max

50 Hz (LPM) 10 LPM @ 0’ head, 11’ max 10 LPM @ 0’ head, 11’ max 12.4 LPM @ 0’ head, 31’ max

(GPM) 2.6 GPM @ 0’ head, 11’ max 2.6 GPM @ 0’ head, 11’ max 3.3 GPM @ 0’ head, 31’ max

Pump force and suction force and suction increased agitation
Unit weight

lb 336 336 370
kg 152.4 152.4 168

Pumping specifications were determined using water. Stability determined using fluid with specific gravity of 0.6 for both models. ULT 95: - 30ºC fluid tem­perature. ULT 80: - 20ºC fluid temperature. Ambient temperature of 20ºC for both models. Specifications subject to change.

NESLAB ULT Series Specifications

Standard Features

Options and Accessories

Feature Benefit

Circulating pump Delivers a consistent flow when working with dense or viscous fluids
Force/suction pump Provides versatility of circulating through a closed system, open system, or two applications
Heater Offers rapid heating to minimize waittime
Digital temperature controller Provides precise setpoint and readout to a resolution of 0.01°C
Cascade refrigeration system Provides CFC-free refrigeration system for precise temperature control and optimum stability;

allows for fast cooling rates and higher heat removal capacities at low temperatures

Automatic load reset Compensates for changes in the bath load, eliminating shifts in setpoint accuracy
Digital display Offers the user simple operation
Stainless steel bath Offers convenient and easy cleaning

Feature Benefit

Sealed lid for ULT 80 Series Prevents moisture buildup
NESLAB NEScom software Automates your entire temperature control process from a PC system
Plumbing kits

Tygon Allows circulation between -25°C and +100°C and includes 25' of tygon tubing, 25' of tubing

insulation, and 4 hose clamps

Silicone Allows circulation between -100°C and +100°C and includes 25' of silicone tubing, 25' of tubing

insulation, and 4 hose clamps

Remote sensor Allows remote temperature control of an external vessel when circulating. Available in a variety

of lengths and diameters to match many applications

Hollow ball kit Insulates your bath reservoir from temperature losses while allowing immersion of a variety of

vessels such as flasks or test tubes. This kit contains 100 1.5" diameter balls

Stainless steel leveling device * When circulating to an open container, this device ensures that the fluid level remains constant
Flow controller** Quick and easy set up for external circulation to open container
Ethylene glycol Allows circulation to temperatures down to -30°C in a 50/50 blend when mixed with water
Chloramine-T algicide Restricts growth of algae to protect equipment and instrumentation

*Used with standard ring stand
**Necessary to operate stainless steel leveling device

Pumping Capacity

Cooling Capacity

©2004 Thermo Electron Corporation. The information contained herein is subject to change without notice. Any trademarks, tradenames or copyrights
remain solely the property of the manufacturer unless otherwise stated. The only warranties for Thermo products are set forth in the express limited war­ranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Thermo shall not
be liable for technical or editorial errors or omissions contained herein.

PSULTv2.0E10/04TC

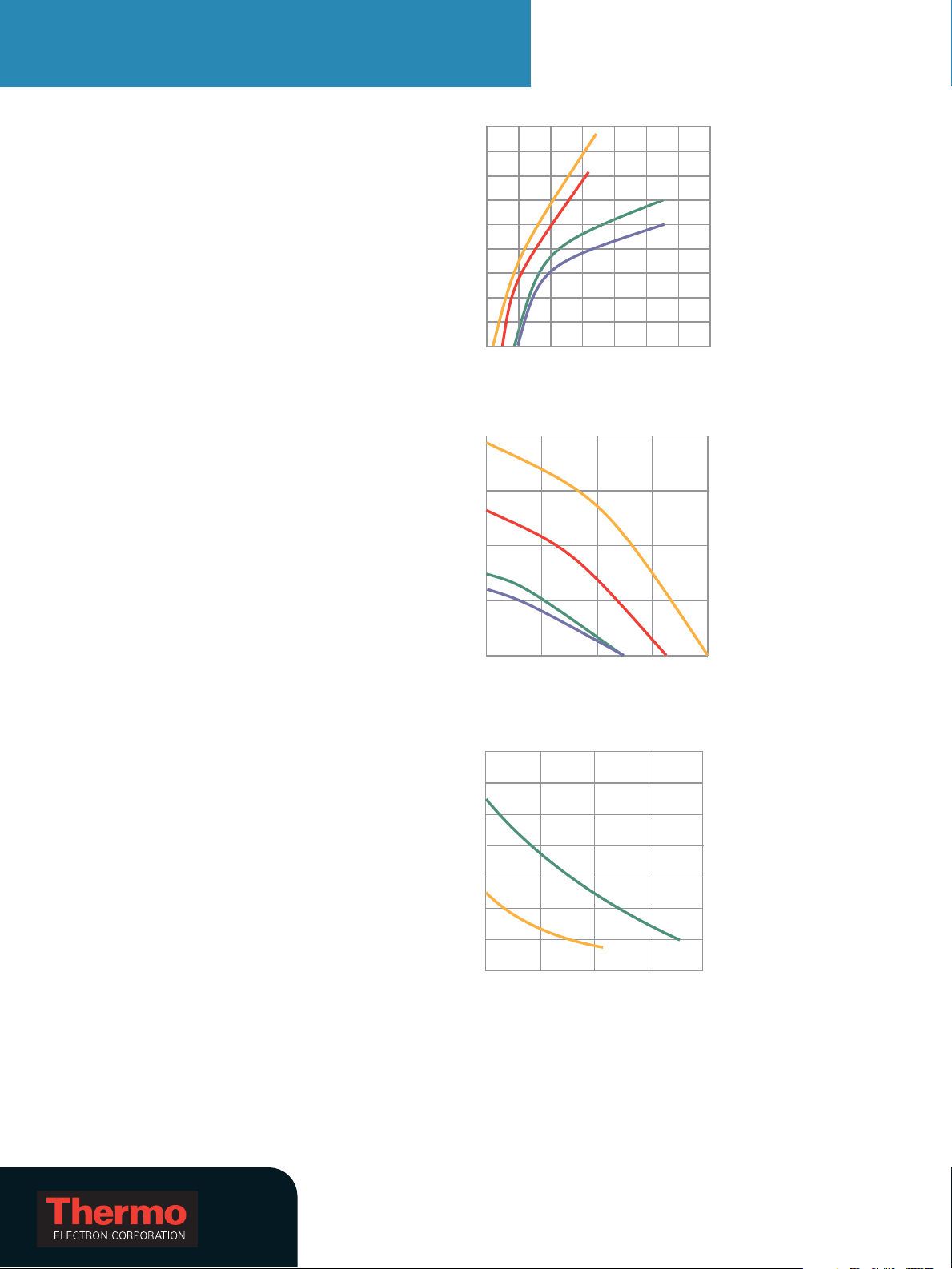

Performance Curves

USA France United Kingdom Benelux International/Germany

25 Nimble Hill Rd. 16 Avenue du Québec - Silic 765 Unit 5, The Ringway Centre Takkebijsters Dieselstr. 4
Newington, NH 03801 91963 Courtaboeuf Cedex Basingstoke, Hampshire 4817 BL Breda 76227 Karlsruhe
Tel. [phone] Tel. [phone] RG21 6YH Tel. [phone] Tel. [phone]
[e-mail] [e-mail] Tel. [phone] [e-mail] [e-mail]

[e-mail]

www.thermo.com/tc

Time to Temperature

900

800

700

600

500

400

300

Herat Load (Watts)

200

100

MetersFeet

9.8 32

7. 3 2 4

e

r
u
s

s

e

r
P

4.9 16

2.4 8

A

B

C

D

-80 -60 -40 -20 0 20 40

Temperature (°C)

A

B

C

A = ULT 95, 60 Hz

B = ULT 95, 50 Hz

C = ULT 80, 60 Hz

D = ULT 80, 50 Hz

A = ULT 95, 60 Hz

B = ULT 95, 50 Hz

C = ULT 80, 60 Hz

D = ULT 80, 50 Hz

D

481216 Lpm

12.23.14.2 Gpm

Flow

40

20

A = ULT 95, 60 Hz

C = ULT 80, 60 Hz

0

-20

Te mp e r ature

-40

C

-60

-80

A

30 60 90 120

Time (Minutes)
