Applications
• Tests and troubleshoots converged Ethernet/IP networks
at 10 Mbps to 10 G interfaces
– Tests Layer 1-3 Ethernet/IP SLAs with an automated,
enhanced RFC 2544/SAMComplete per ITU-T Y.1564
– Integrated burst testing approach including CBS
veries buer settings and TrueSpeed per RFC 6349
for performance testing so you can experience your
network the way your customers do
– Robust network discovery, top talker analysis,
deep packet capture, packet analysis, and expert
troubleshooting guidance capabilities
• Tests TDM/PDH to SONET/SDH at OC-3/STM-1 to OC-192/
STM-64, including service disruption measurements and
path overhead (POH) capture with triggers
• Enables installation and maintenance of OTN networks
up to 11.1 Gbps interface with ODU-0 and Flex support
for Ethernet/IP client interfaces
• Supports 8 G FC dual-port interfaces (along with
1/2/4/10 Gbps) for installation and maintenance of SANs
and low-latency circuits
• Veries network synchronization
– Emulates a 1588v2 master clock/slave recovery for
proper point-to-point (PTP) message propagation and
packet-delay variation (PDV) verication
– Veries SyncE frequency synchronization accuracy and
Ethernet synchronization message channel (ESMC)
message propagation
– Measures wander on SyncE, 1PPS, T1, E1, and
2 and 10 MHz signals
• Tests remote radio head (RRH) health with CPRI and
OBSAI FTTA tests
• Supports SFP+ pluggable optics
• Two simple T-BERD/MTS-5800 congurations:
– Single- and dual-port versions
– Fully loaded TDM/PDH to dual 10 G Ethernet, SONET,
SDH, Fibre Channel, and OTN support
NETWORK AND SERVICE ENABLEMENT
T-BERD®/MTS-5800
Handheld Network Test Product Family
Benets
• All-in-one handheld tool simplies multitechnology testing
• Optimized for easy eld use with multi-touch screen, scripted workows, and support
for emerging network technologies
• Guarantees maximum eciency and success in evolving carrier Ethernet and mobile
backhaul networks
• TrueSAM™ and advanced IP test tools follow best practices with repeatable methods
and procedures for faster service activation and troubleshooting tests with easy-tounderstand results
The T-BERD/MTS-5800 Handheld Network Tester addresses the challenges
of carrier Ethernet evolution. It supports both legacy and emerging
technologies required to handle various network applications including
metro/core, mobile backhaul, and business services installations.
The industry’s smallest handheld instrument can test throughout the
service life cycle, including ber characterization, service activation,
troubleshooting, and maintenance. Advanced Ethernet test functionality,
such as J-Proler, wirespeed capture/decode, and automated J-Mentor,
guides eld technicians through troubleshooting without using a separate
analyzer instrument.
The T-BERD/MTS-5800 ensures successful mobile backhaul transitions by
validating both Ethernet backhaul synchronization (1588v2 and SyncE)
and front haul (CPRI/OBSAI) BER and delay to guarantee successful mobile
hando between cell sites, thereby avoiding service degradation.
Video
Fiber Characterization
(OTDR, OSA)
Splitter
SoHo
SAN
Fibre Channel
Network and Testing
Figure 1. Carrier Ethernet network
Fibre Channel
Storage
switches
headend
TB/MTS-5800v2
SAN
Video
hub oce
VoD
server
OLT
TB/MTS-5800v2
GIG
Mobile
3G/4G
CPRI/OBSAI Verication
for FTTA Installations
Business location A
TB/MTS-5800v2
TB/MTS-5800v2
CE
UNI
“demarcation point”
Core network
IP/MPLS, ATM, SONET
OTN
UNI
“demarcation point”
Business location B
Carrier Ethernet and
Backhaul Testing
SONET/SDH and
OTN Network and Testing
TB/MTS-5800v2
CE
TB/MTS-5800v2
All-in-One Handheld Tool
• Industry’s smallest dual 10 G handheld
instrument for Ethernet, SONET, SDH, OTN,
Fibre Channel, and CPRI/OBSAI testing
– All test interfaces readily available
– Large screen (7 inches) to display test
information
– Multi-touch screen for easier navigation
and advanced workows
– Congure to best meet your needs
The External BITS
Clock Input
High-Speed Electrical
T3, STS1, E3, E4, STM-1e
• State-of-the-art platform supports:
– Integrated Bluetooth to easily ooad results
10/100/1000 Ethernet
– Integrated WiFi for test set connectivity
– Store 1000s of reports
– FiberScope connectivity
Optimized for Easy Field Use
• Fixed test interfaces eliminate loose pluggable modules
• LEDs indicate plug-ins for tests
• Streamlined user interface with simple pass/fail, green/red results
• Extended battery life for longer test times
• Rapid boot-up from power-on to test start
• Dual-port operation to run two tests simultaneously, including
10 G/high-speed tests
Dual RJ45 Ports
Dual SFP+ Ports
1 and 10 G Ethernet LAN/WAN
STM-1-64, OC3-192
OTN OTU 1,2,2e
Fibre Channel: 1,2,4,8,10 G FC
CPRI/OBSAI 614 Mbps – 9.8 Gbps
Low-Speed Electrical
T1, PRI, E1
All key results in one view
Two tests: One streamlined view
T-BERD/MTS-5800 Handheld Network Test Product Family

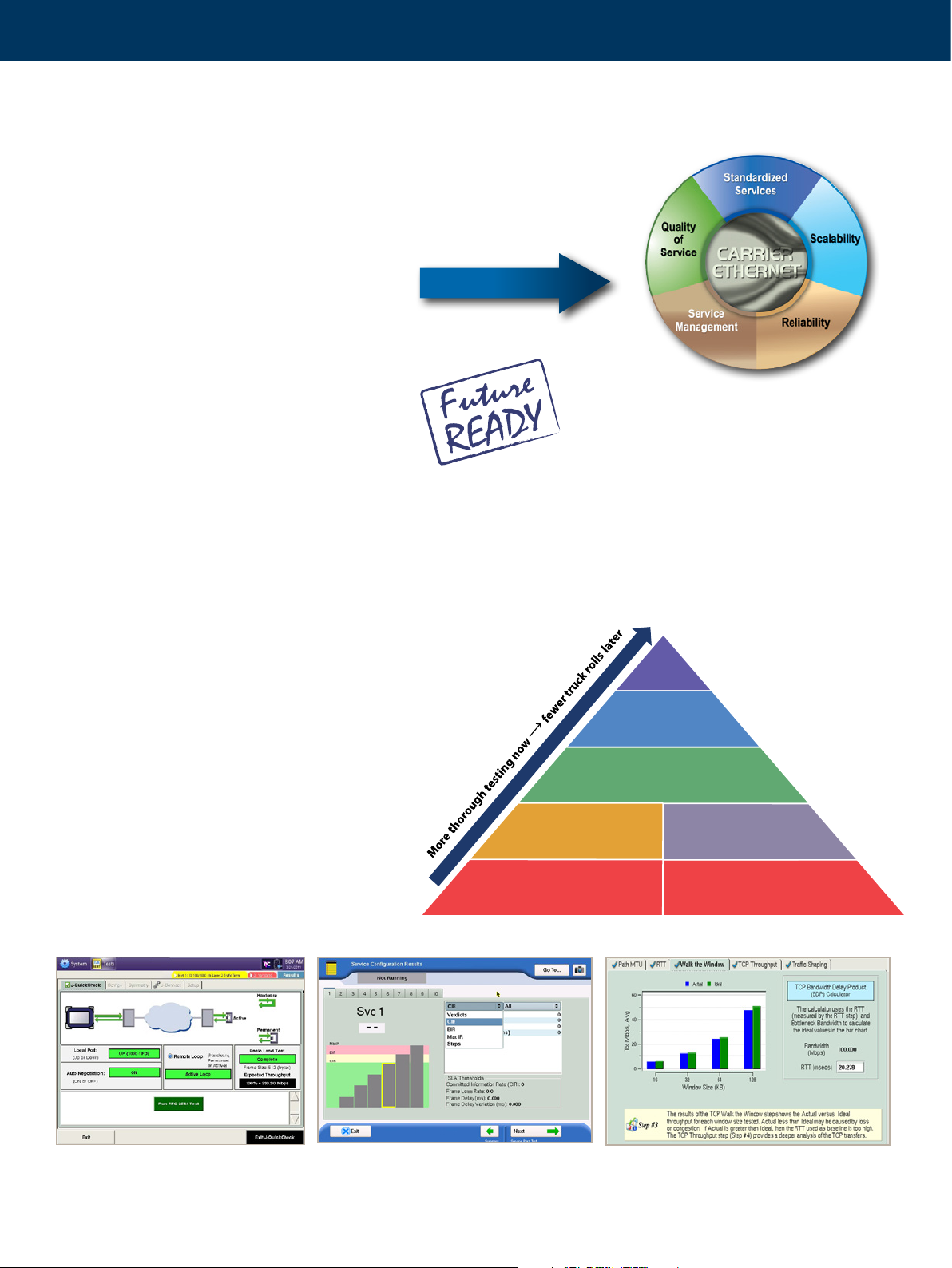

Enables Network Evolution – Today and Tomorrow
• Guarantees leading-edge carrier-grade Ethernet
requirements:
– Ensures reliability with link and service OAM
(IEEE 802.3ah, 802.1ag, and ITU-T Y.1731)
– Validates network scalability with VLAN,
Q-in-Q, MPLS/VPLS tunnelling technologies
– Certies network synchronization with
synchronous Ethernet and IEEE 1588v2
• PTN Ready: Supports packet transport network
(PTN) evolution with MPLS-TP technology
• Architected to meet future technology needs
Carrier Ethernet graphic courtesy of
the Metro Ethernet Forum (MEF), of
which JDSU is a member.
Save Valuable Service Activation Time
Test better and quicker with automated tests
• J-QuickCheck is a fast, automated test (RFC 2544, Y.1564) for validating
end-to-end and auto-negotiation conguration
• Enhanced RFC 2544 is an automated turn-up test for validating key
performance indicators (KPIs)/ concurrently measuring SLAs, such
as throughput, frame delay, delay variation, frame loss, and
optionally committed burst size (CBS)
• Y.1564 SAMComplete is an automated service verication test
speeds the installation of multiple classes of services (COS)
• TrueSpeed per RFC 6349 is an automated, standardsbased test that can save nearly a quarter in operating
expenses (OpEx) and reveals the reason for slow le
downloads, eliminating nger-pointing
• TrueSAM combines all of these tests into one
ultimate installation tool
No way to validate KPI o r auto-negotiation settings
No control-plane or user -experience
Not testing Ethernet, or
testing with L1 or Ethernet BERT
TrueSAM
RFC 6349
TrueSpeed
Validates TCP Throughput and
user experience
Validates Layer 2 control plane Transparency –
RFC 2544
Validates KPI for single stre am
validation
J-Proof
CDP, SDP, e tc.
Y.1564 SAMComplete
Validates KPI for multiple COS
No control-plane or user experience-
No way to validate KPI o r auto-negotiation settings
applications
validation
Testing with just a ping
Enhanced RFC 2544 with J-QuickCheck SAMComplete per ITU-T Y.1564 TrueSpeed per RFC 6349
T-BERD/MTS-5800 Handheld Network Test Product Family
Reduce Mean Time to Repair for Network Problems
Immediately identify problems with automated tests
without the need for a separate analyzer
• Network Discovery automatically identies
equipment present on the network
• J-Proler discovers live trac streams for real-time
troubleshooting with in-service top-talkers analysis
• Integrated Capture/Decode oers 10 G line-rate
packet capture and analysis in a handheld test tool
• J-Mentor provides expert troubleshooting guidance
and interprets packet decodes
• Reduce CapEx/OpEx and still identify problems
immediately without the need for a eld expert or a
J-Mentor — Provides expert troubleshooting guidance
separate analyzer
Part of the Leading T-BERD/MTS Test Portfolio
Activate services
more quickly and
accurately
Reduce mean time
to repair (MTTR) on
network problems
Test the widest range
of traditional and
emerging telecom
interfaces
Common Application Base
Same user interface + same results + same methods and procedures
StrataSync
Empower Your Assets
StrataSync is a hosted, cloud-enabled solution for managing assets, congurations, and test-data
on JDSU instruments. It also ensures that all instrument software is current and the latest options
are installed. StrataSync lets you manage inventory, test results, and performance data anywhere
with browser-based ease while it also improves technician and instrument eciency. StrataSync
manages and tracks test instruments, collects and analyzes results from the entire network, and it
informs and trains the workforce.
