Superb Image Quality
with a Portable Videoscope
Industrial Videoscope
IPLEX RX/ IPLEX RT
2
A Videoscope with a Clear Vision
The IPLEX RX and IPLEX RT provide unsurpassed image quality yet are user‐friendly, and boast a portable design.
The videoscopes are ideal for inspectors who require uncompromised and precise inspections.
Exceptional Image Quality
• Our brightest and sharpest image quality
• Recorded images and movies in high quality
• Expanded image adjustment capability* for
optimum inspections
• Large 6.5 in. monitor
Operation with Ease
• Compact and portable casing
• Multi‐positioning design for comfortable inspection
for any application
• Excellent scope maneuverability with TrueFeelTM and
Tapered FlexTM technologies
• Intuitive and quick operation
Sharp and bright image of engine combustion chamber Comfortable operation using shoulder strap
Rugged and Durable
• Heavy‐duty system compliant with MIL‐STD and IP55
• High‐durability insertion tube withstanding crush and abrasion
• 100 °C / 212 °F capable insertion tube with temperature alert*
Advanced Functionality
• Stereo Measurement* for objective inspections
(to be released in May 2014)
• PDF display function* enabling ecient inspection work
• InHelp™ software to streamline all steps
from inspection to report generation
The IPLEX RX faces the elements on a rainy day The IPLEX RX monitor displaying a manual PDF during inspection
*IPLEX RX only
3
Exceptional Image Quality
to Improve Inspection Quality
Our Best Image Quality
The IPLEX RX and RT feature the best image quality of
our videoscopes. Our unique PulsarPicTM image processor
reduces noise and sharpens images, resulting in the
exceptionally high resolution image.
The IPLEX RX and RT faithfully and brightly reproduce
very small defects, and the sharp and clear images enable
accurate and reliable inspections.
Diverse Applications
2X Brighter Illumination System
The IPLEX RX and RT feature a new LED illumination
system that is approximately twice as bright as
conventional videoscopes, while dynamically adjusting
light output to reduce halation when metal or reflective
surfaces are inspected.
The PulsarPicTM image processor interacts intelligently
with our illumination system to deliver an optimized
amount of light and gain enhancement to provide images
that are very clear and sharply defined.
Turbine blades Bearing of wind gearbox
Combustion chamber Welding
4
Still Images and Movies as Crisp
as Live Images
The IPLEX RX and RT can record inspected images to
a removable USB flash drive as JPEG still images and
MPEG–4 movies.
The improved image quality of recorded images and
movies enables accurate image diagnosis not only in the
field but also at the oce with the use of our free image
management software, InHelp viewer.
IPLEX RX/RT: 44% Larger
Our Conventional Videoscope
Comparison of image sizes
Large Monitor Providing Easy
Yet Accurate Inspections
The compact IPLEX RX and RT are equipped with a
6.5 in. monitor. The large monitor displays small defects
clearly from a comfortable distance for inspectors for
easy identification.
Optimized Image Gradation
The IPLEX RX features our unique image processing
capability, WiDERTM, which brings out the darkest areas
of an image without washing out the details of the brighter
regions. The innovative technology provides optimum
inspections of large areas or even highly reflective areas.
Sharpness: Level ‐1/ Color: Standard/ Normal gain setting
In addition, the IPLEX RX is equipped with sharpness
and color adjustment functions to create optimal images
depending on objects and applications.
Sharpness: Level 2/ Color: Vivid/ WiDERTM gain setting
5
Operation With Ease
for All Remote Visual Applications
Compact and Portable Design
The IPLEX RX and RT weigh just 2.9 kg/ 6.4 lb including
the two‐hour operating Li‐ion battery. The compact and
portable design allows you not only to easily ship or
transport the IPLEX RX and RT to inspection sites but to
smoothly carry them to dicult-to-access locations.

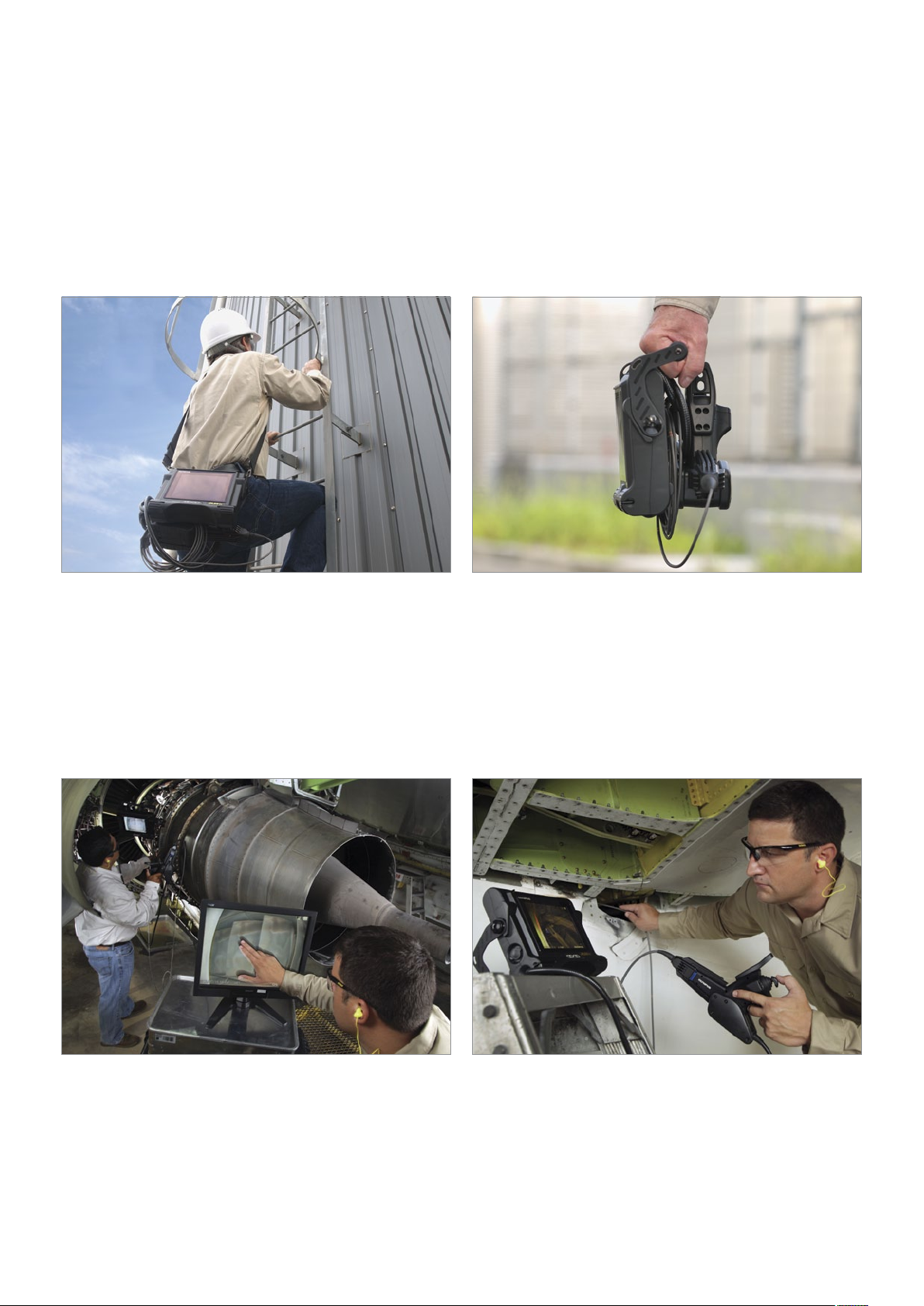

The IPLEX RX carried up a ladder with a shoulder strap
The compact and neat design is easy to carry with one hand
Comfortable Inspections in Optimal Styles
The versatile design of the IPLEX RX and RT oers
comfortable use to almost anyone. The pivoting handle
of the monitor can change into a stand during inspections,
and allows you to place the videoscope wherever you
want to optimize viewing distance and angles. The
video output capability of the IPLEX RX and RT enables
inspections in a group or from remote locations by
connecting the external monitor. Furthermore, the IPLEX
RX and RT can be used while being carried with a
shoulder belt or connected onto a tripod.
The same inspected image is shared between two operators with an external
display connected to the IPLEX RX for remote observation
6
The IPLEX RX sits on a surface using its pivoting handle to angle the image
just right
Smooth and Accurate Approach
to a Target
The innovative articulation technologies equipped on
the IPLEX RX and RT allow for smooth and accurate
approaches to the most demanding inspection paths.
The improved TrueFeelTM articulation controller features
precise and quick scope tip articulation by just light‐
touch operation, achieving smooth navigation through
intricate paths.
The insertion tube is designed with the unique
Tape r e d Fl e xTM to optimize both the scope stiness
and flexibility for excellent scope maneuverability.

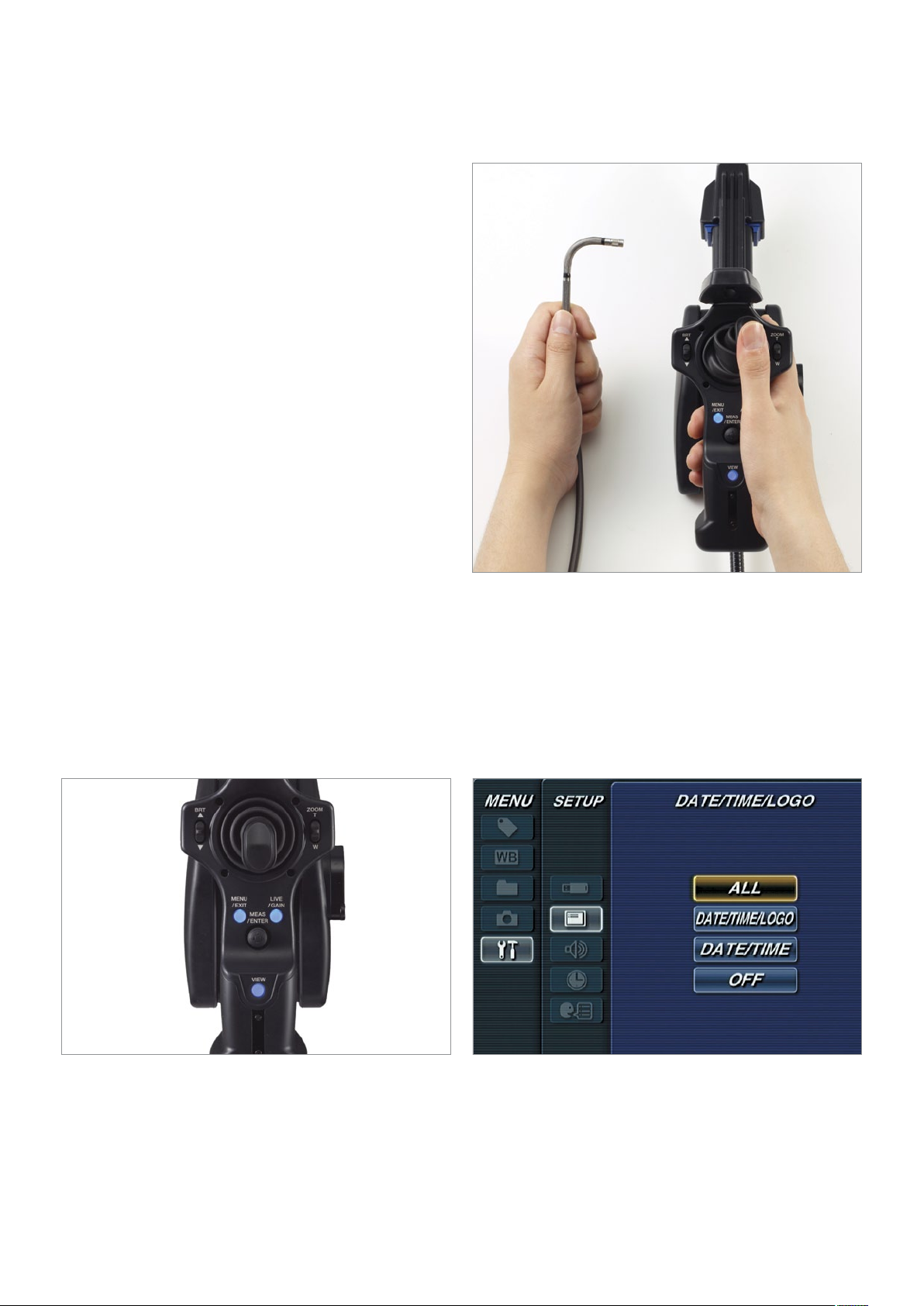

TrueFeel articulation providing a precise and controlled bend at the distal end
Quick and Easy Operation
The most common operations such as scope articulation,
image adjustment and recording can be easily activated
by pressing dedicated Quick Access keys on the
lightweight handset. The menu setting of the IPLEX RX
and RT is simplified for easy and quick operation.
The handheld controller boasting Quick Access keys capable of over 14 actions
in a single touch
User‐friendly Menu Icons
All menus of the IPLEX RX and RT are displayed with
easy‐to‐understand icons. An inspector can intuitively
recognize the menus and eciently operate the desired
feature or setting.
The IPLEX RX intuitive menu shows the options for image overlay
7
Rugged and Durable
for Reliable Performance Even in Harsh Environments
Robust Body
The IPLEX RX and RT pass the impact tests including
vibration and drop from a height of 1.2 m/ 3.9 ft.
The tough system compliant with Military Standards
withstands rough treatment and ensures reliable operation
in dicult environments.
Operable in All Weather
The IPLEX RX and RT comply with internationally recognized
Military Standards (MIL‐STD‐810F/G and MIL-STD‐461F)*
as well as IP55, passing a range of severe environmental
tests, such as blowing rain/dust, high humidity, and icing
rain. In addition, the daylight view monitor featuring low‐
reflection displays clear images even under bright sunlight.
*Reference page 11 for MIL-STD compliance details
RAIN SUNLIGHT DUST
High‐durability Insertion Tube
Operators are often required to inspect objects inside
narrow paths with rough or sharp surfaces. The insertion
tube of the IPLEX RX and RT has a crush and abrasion‐
proof design and is covered with a tough, special
processed tungsten braid.
In addition, the IPLEX RX insertion tube features high
temperature resistant up to 100 °C/ 212 °F. A high
temperature sensor beeps and display visual warning to
prevent overheating.
Special processed tungsten braid
8
Advanced Functionality
to Provide Outstanding Inspection Accuracy and Work Eciency
Stereo Measurement for Reliable Inspection (to be released in May 2014)
Our advanced Stereo Measurement technology oers
outstanding reliability and accuracy for your inspections.
By capturing image information through two parallax
lenses, the IPLEX RX permits accurate measurement of
almost any object from any angle.
Additionally, our unique Spot‐RangingTM feature on the
IPLEX RX, the industry’s only real‐time tip‐to‐target
distance measurement tool, navigates the scope tip to
the optimum distance from a target for the most precise
measurement on the first try.
InHelpTM Inspection Assist Software
InHelp, the inspection data management and reporting*
software, streamlines many aspects of remote visual
inspections with the IPLEX RX and RT. The software
greatly improves work eciency and simplifies inspections
by organizing stored images on the IPLEX RX and RT,
generating detailed inspection reports* on a PC with
simple click operation.
*Report generating function is an option.
Principle of Stereo Measurement technologyDepth measurement accomplished with the IPLEX RX Stereo Measurement
Instruction Manual Display
IPLEX RX has a function to display PDF document.
Instead of alternately facing printed inspection manuals
and inspected images, you can see both of them on the
IPLEX RX monitor at once. This unique capability improves
your inspection speed and eciency.
Optional report generation can be added to compliment the InHelp software
Comparison display between an inspected image and PDF document
9
IPLEX RX/RT Features and Specifications*
SCOPE VARIATION
IPLEX RX model no.
IPLEX RT model no.
Scope diameter
Scope length
Exterior
Tube flexibility
Articulation angle
up/down/right/left
Approx. system weight
(with battery)
*1. To be released in May, 2014
IV9420RX IV9435RX IV9620RX IV9635RX IV9650RX*
IV9420RT IV9435RT IV9620RT IV9635RT IV9650RT*
φ4.0 mm (0.157 in.) φ6.0 mm (0.236 in)
2.0 m (6.6 ft) 3.5 m (11.5 ft) 2.0 m (6.6 ft) 3.5 m (11.5 ft) 5.0 m (16.4 ft) 7.5 m (24.6 ft)
High durability tungsten braid
Uniformed
stiness
130° 130° 150° 130° *1 *1
2.9 kg (6.4 lb) 3.0 kg (6.6 lb) 3.1 kg (6.8 lb) 3.2 kg (7.1 lb) *1 *1
Tapered FlexTM tube with flexibility gradually
increasing toward the distal end.
1
1
IPLEX RX IPLEX RT
INSERTION TUBE
Articulation mechanics Improved TrueFeelTM scope tip articulation with electronic power-assisted, manual articulation
Temperature sensor 2-stage indicator for high temperature warning. N/A
Illumination Ultra-high intensity LED illumination
Optical tip adaptor locking mechanism Double threaded attachment, with O-ring seal
HANDHELD CONTROL UNIT
Dimensions (W xD x H) 365 mm x 93 mm x 192 mm (14.4 in. x 3.7 in. x 7.6 in.)
Weight Approx. 1.0 kg (2.2 lb)
Quick access buttons
MAIN UNIT
Dimensions (W x D x H)
LCD monitor 6.5 in. daylight-view LCD, anti-reflective type
Power supply
Video output standard VGA
USB connector Type A connector, Version 2.0 standards
SOFTWARE MANIPULATIONS
Image manipulations 5X digital zoom, 10 step brightness control
Gain control
Sharpness control 4 step adjustable sharpness control N/A
Saturation control 3 step adjustable control of color saturation N/A
Display text options 30-character title display
RECORDING MANAGEMENT FUNCTIONS
Recording media USB flash memory (1 GB standard, compatible with recommended USB flash device)
Overlay Selectable 30 character title with date, time and system setting.
Thumbnail image display Recorded images can be displayed as thumbnails.
Still image recording
Video recording
STEREO MANAGEMENT FUNCTIONS — OPTIONAL FUNCTION FOR IPLEX RX* (to be released in May, 2014)
Distance Distance between two points
Point-to-line Perpendicular distance between a point and a user-defined line
Depth Orthogonal depth/height distance between a point and a user-defined plane
Area/lines Multiple point circumstance and area measurement
*Stereo Measurement functions are available by upgrading the IPLEX RX.
The following features have dedicated quick access buttons, levers or joysticks on the hand control unit:
Scope articulation control, Image controls, Record still/video, Menu access
227 mm x 64 mm x 189 mm (8.9 in. x 2.5 in. x 7.4 in.)
Maximum Dimension: 239 mm x 99 mm x 215 mm (9.4 in. x 3.9 in. x 8.5 in.)
Battery: 10.8 V nominal, approx. 120-minute operating time.
AC power: 100 V to 240 V, 50/60 Hz (with supplied AC adaptor)
3 step adjustable gain control with exclusive
WiDERTM brightness level balancing technology.
N/A
Resolution — H 768 x V 576 (Pixel)
Recording format — Compressed JPEG format
Size of a single image — Approx. 300 KB (Approx. 3,400 images per 1 GB memory)
Resolution — H 640 × V 480 (Pixel)
Recording format — AVI MPEG-4 format. Can be played on the Windows Media Player.
Size of a single image — Approx. 500 KB per second (Approx. 30 min. per 1 GB memory)
IV9675RX*
IV9675RT*
1
1
10
OPERATING ENVIRONMENT
In air: –25 ºC to 100 ºC (–13 ºF to 212 ºF) IPLEX RX
Insertion tube
Operating temperature
Other parts than above
–25 ºC to 80 ºC (–13 ºF to 176 ºF) IPLEX RT
In water: 10 ºC to 30 ºC (50 ºF to 86 ºF)
In air: –10 °C to 40 ºC (14 ºF to 104 ºF) with battery
0 ºC to 40 ºC (32 ºF to 104 ºF) with AC power adaptor
Relative humidity All parts 15 % to 90 %
Liquid resistance All parts Operable when exposed to machine oil, light oil or 5 % saline solution.
Water pressure resistance:
Insertion tube
Waterproofing
Other parts than above
IV94 series — Up to an equivalent to 3.5 m (11.5 ft) in depth
IV96 series — Up to an equivalent to 7.5 m (24.6 ft) in depth
Operable in blowing rain conditions (Battery compartment must be closed).
Not operable underwater.
MIL-STD COMPLIANCE
The operating environment performance is confirmed by the following MIL-STD-810F/G and MIL-STD-461F.
No warranty is given as to damage-free under any conditions. Please ask Olympus sales representative for details.
Type Method
Vibration MIL-STD-810F, Method 514.5, Procedure I (General vibration test)
Shock MIL-STD-810G, Method 516.5, Procedure IV (Transit drop test)
Water resistance MIL-STD-810F, Method 506.4, Procedure I (Rain and Blowing rain test)
Humidity MIL-STD-810F, Method 507.4
Salt fog MIL-STD-810F, Method 509.4
Sand and dust MIL-STD-810G, Method 510.4, Procedure I (Blowing dust test)
Icing/freezing rain MIL-STD-810F, Method 521.2
Electromagnetic Interference (EMI)*
Explosive atmosphere MIL-STD-810F, Method 511.4, Procedure I (Operation in an explosive atmosphere test)
*1. Excluding IV9675RX and IV9675RT.
1
MIL-STD-461F, RS-103, (Radiated susceptibility test for non-metallic above deck shipboard conditions)
Tip Adaptor Optical Specifications
OPTICAL TIP ADAPTOR VARIATION
6.0 MM VIEWING TIP ADAPTORS
AT40D-
IV96
Field of view 40º 80º 120º 80º 120º
Optical
system
Distal end
Direction of
view
Depth of
1
field*
Outer
diameter*
2
Distal end*
200 to ∞
mm
3
18.4 mm 18.9 mm 18.8 mm 18.9 mm 18.8 mm 24.2 mm
AT80D/
FF-IV94
Field of view 80º 120º 100º 50º/50º 60º/60º
Optical
system
Distal end
*1. Indicates the viewing distance with optimal focus.
*2. The adaptor can be inserted into a ø4.0 mm and ø6.0 mm hole when it is mounted on the scope.
*3. Indicates the length of the rigid portion at the scope’s distal end when mounted.
*4. To be released in May, 2014.
Direction of
view
Depth of
1
field*
Outer
diameter*
2
Distal end*
35 to ∞ mm2 to 200 mm17 to ∞ mm2 to 15 mm8 to ∞
3
AT80D/
NF-IV96
AT80D/
FF-IV96
Forward Side
9 to ∞ mm
35 to ∞
mm
4.0 MM VIEWING TIP ADAPTORS STEREO TIP ADAPTORS (4.0MM AND 6.0MM)
*4
AT120D/
NF-IV94
AT120D/
FF-IV94
AT100S/
NF-IV94
Forward Side
ø4.0 mm ø4.0 mm ø6.0 mm
19.0 mm 21.7 mm *4 *4 *4 *4
AT120D/
NF-IV96
2 to 200
mm
AT100S/
FF-IV94
ø6.0 mm
mm
AT120D/
FF-IV96
19 to ∞
mm
AT50D/
50D-IV94
Forward/
Forward
AT80S-
IV96
15 to ∞
mm
AT50S/
50S-IV94
Side/Side
AT120S/
NF-IV96
1 to 25 mm 3 to ∞ mm
AT60D/
60D-IV96
Forward/
Forward
*4 *4 *4 *4
AT120S/
FF-IV96
*4
AT60S/
60S-IV96
Side/Side
11

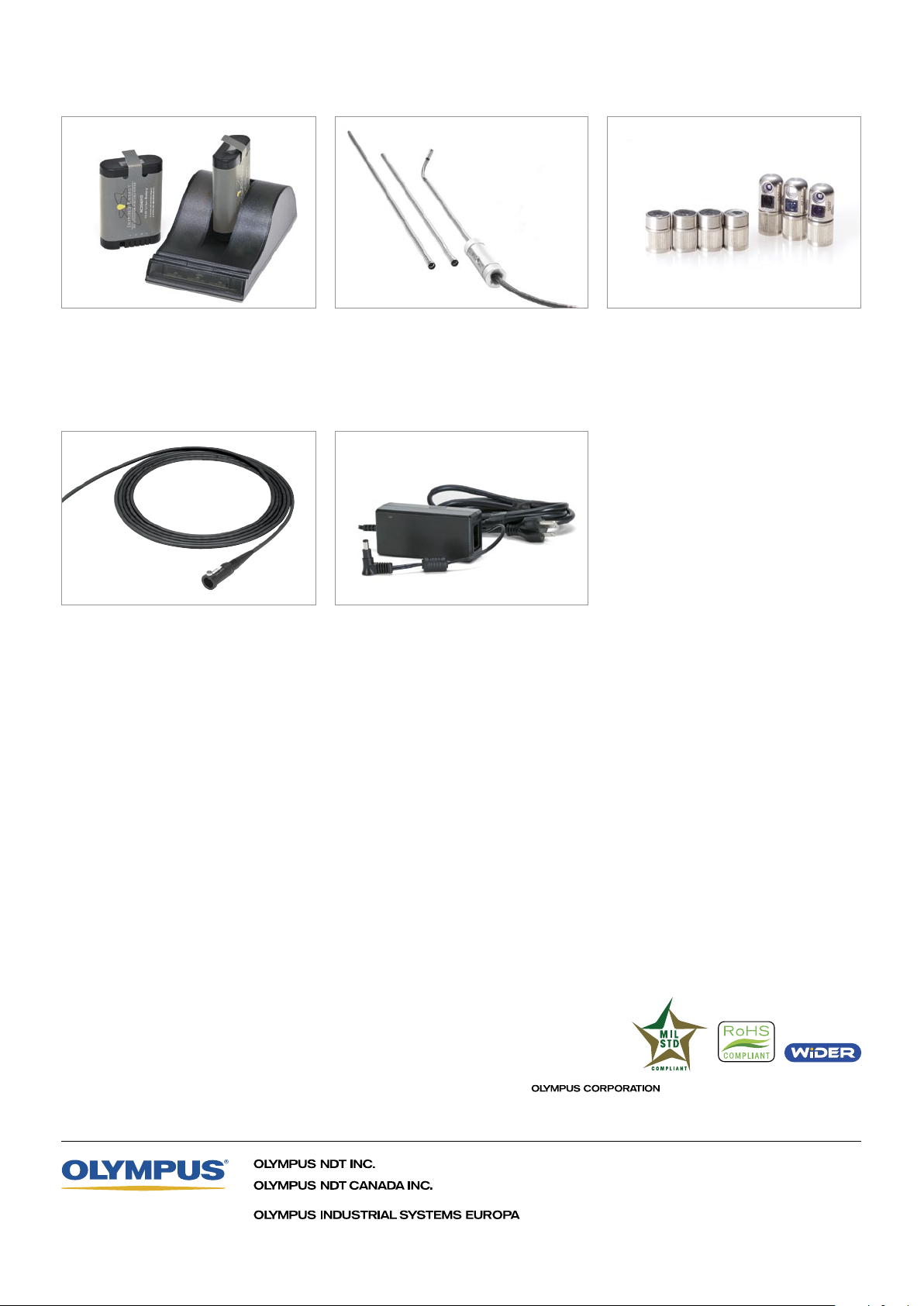

Accessories
Lithium-ion Battery
NC2040NO29
Battery charger*
CH5000C (USA type) /
CH5000X (European type)
The battery provides long-lasting operations.
Guide Tube for 6.0 mm diameter Long Scope
MAJ-1825-75
Protects the scope and assists in smooth entry
when inserting it into a wide pipe. Available on
the 6.0 mm diameter scope in 7.5 m length.
Rigid Sleeve Sets
MAJ-1253 (for 6.0 mm insertion tube)
MAJ-1737 (for 4.0 mm insertion tube)
Sets are available for 6.0 mm and 4.0 mm scopes.
Each set consists of three rigid sleeves of 250 mm,
340 mm and 450 mm lengths.
AC Power Adaptor
The IPLEX RX and RT can be operated with either
the provided AC power adaptor or the battery.
Optical Tip Adaptor
The wide range of the IPLEX RX and RT tip adaptors
meets the optical requirements of any application.
www.olympus-ims.com
For enquiries - contact
www.olympus-ims.com/contact-us
48 Woerd Avenue, Waltham, MA 02453, USA, Tel.: (1) 781-419-3900
505, boul. du Parc-Technologique, Québec (Québec) G1P 4S9, Tel.: (1) 418-872-1155
1109 78 Ave, Edmonton (Alberta) T6P 1L8
Stock Road, Southend-on-Sea, Essex, SS2 5QH, UK, Tel.: (44) (0) 1702 616333
*All specifications are subject to change without notice.
This product is designed for use in industrial environments for the EMC performance. Using it in a residential
environment may aect other equipment in the environment.
All brands are trademarks or registered trademarks of their respective owners and third party entities.
Copyright © 2013 by Olympus Corporation.
is ISO 9001 and 14001 certified
IPLEX_RX_RT_A4_201308 P/N: B386NBE-092013-EN Rev. A
Loading...
