SMC Solid State Amplifiers
80 – 1000 MHz • 10 Watts to 3000 Watts, Minimum Rated Power
Specifications subject to change without notice Page 1 ds-smc-series rev-a-1/11/2011
Instruments for Industry, SMC-Series Amplifiers provide outstanding RF performance. These products are available in
a wide range of power levels from 10 watts to 3000 watts in the 80 – 1000MHz frequency range. These state-of-the-art
solid-state power amplifiers are specifically designed for laboratory and all testing applications.
IFI RF amplifiers are very conservatively designed to operate below maximum ratings for ruggedness and long term
reliability. Sixth generation LDMOS Transistors provide reliable brute-power performance at frequencies
up to 1000MHz.
Our RF power amplifiers feature heavy-duty individually shielded aluminum housings at the module level. This concept
of a shielded modular design minimizes internally produced EMI signal leakage and provides easy access for field
service and rapid turnaround at depot level repair facilities.
From the ground up, the “SMC-SERIES” products are structurally engineered to withstand operation in mechanically
hostile environments. Ruggedized versions are available for applications that will be exposed to very harsh
environments.
Features
• Solid State Design
• Rugged Construction & High Reliability
• Instantaneous Broadband Frequency range
• Backlit screen
• Modular Design Construction
• Integrated Force Air Cooling
• Self-diagnostic circuitry
• IEEE-488 interface & RS232 Remote
Models & General Specifications!
Model
Number!
Frequency
Range (MHz)!
Rated Power
(Watts) Minimum!
P1dB Power
Watts Minimum!
Gain (dB)
Minimum!
KVA
Weight
In Pounds
Size
In Inches
SMC10
80-1000
10
10
40
.1KVA
25 Lbs
5.25” H x 19” W x 24” D
SMC25
80-1000
25
25
44
.2KVA
30 Lbs
5.25” H x 19” W x 24” D
SMC50
80-1000
50
50
47
.4KVA
45 Lbs
7.0” H x 19” W x 25” D
SMC100
80-1000
100
80
50
.5KVA
60 Lbs
7.0” H x 19” W x 25” D
SMC150
80-1000
150
120
52
.8KVA
75 Lbs
8.75” H x 19” W x 24” D
SMC200
80-1000
200
160
53
1.4KVA
120 Lbs
8.75” H x 19” W x 24” D
SMC250
80-1000
250
200
54
1.6KVA
140 Lbs
10.5” H x 19” W x 25.25” D
SMC350
80-1000
350
250
56
3.0KVA
160 Lbs
10.5” H x 19” W x 25.25” D
SMC500
80-1000
500
350
57
4.0KVA
200 Lbs
2x 10.5” H x 19” W x 25.25” D
SMC750
80-1000
750
600
59
6.0KVA
250 Lbs
2x 10.5” H x 19” W x 25.25” D
SMC1000
80-1000
1000
800
60
8.0KVA
500 Lbs
Rack Integrated
SMC2000
80-1000
2000
1500
63
15.0KVA
1000 Lbs
Rack Integrated
SMC2500
80-1000
2500
1800
64
20.0KVA
1500 Lbs
Rack Integrated
SMC3000
80-1000
3000
2500
65
25.0KVA
2000 Lbs
Rack Integrated
Page 2
SMC Solid State Amplifiers
80 – 1000 MHz • 10 Watts to 3000 Watts, Minimum Rated Power
Specifications subject to change without notice Page 2 ds-smc-series rev-a-1/11/2011
Standard Features for IFI SMC Solid State Series Amplifiers
VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance,
Open & Short Circuit Protection.
* Alternate Prime Power (specify at time of order)
GPIB IEEE 488 & RS232 Remote Control
RF Sample Port on the Front Panel, 112R for rear panel
Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less.
Gain Control Local & Remote, 30dB range
RF Input/Output Connectors on the Front Panel, 118R for rear panel
Internal Systems Diagnostics & Status Indicators
Total/Operate Elapsed Time Metering in hours
RF Safety Interlock
Standard
Features:
Forward/Reflected Power Indication simultaneously on Front Panel display
IFI SMC Solid State Series Amplifier Specifications
Frequency Range:
As Specified in Model Table
Rated Output Power:
As Specified in Model Table
Gain @ Rated Power:
As Specified in Model Table
Prime Power:
As Required (Some are listed below)
Input/output Impedance:
50 ohms
RF Input/ Sample Connectors:
Type N Female, unless specified otherwise
RF Output Connector:
Type N Female up to 1KW amps, SC or 7/16 available, 7/16 2KW-3KW amps
Other connectors available by request or specification
Input VSWR:
2.0:1
Output VSWR:
2.5:1
Operating Temp:
0º to 50º C
Non-operating Temp:
-40º to 70º C (50,000 feet max)
Humidity:
95% without condensation
Altitude:
10,000 feet
Cooling System:
Air cooled, self contained
Modulation:
AM,FM, Pulse
Configuration:
Rack Mount as specified in Model Table, or Rack/Cabinet Integrated
Spurious Outputs:
<-60 dBc nominal
Harmonics:
-20dBc minimum @ Linear Power
Standard Prime Powers:
100, 115, 120 VAC ±10% 50/60 Hz, single phase
220, 230, 240VAC ±10% 50/60 Hz, single phase
120/208 or 200/220/230/240VAC ±10% 50/60 Hz, three phase Wye or Delta power is available
200/220/230/240VAC ±10% 50/60 Hz, three phase Wye or Delta power is available
Special Prime Powers other then listed are subject to availability
Some Available Options for IFI SMC Solid State Series Amplifiers
Option 110-1E:
GPIB IEEE-488 RS232 and Ethernet Remote Control
Option 110-2:
GPIB IEEE-488 and RS 422 Remote Control
Option 110-3
GPIB IEEE-488 and RS 485 Remote Control
Option 113:
Chassis slides for a 19" rack mounting
Option 118A:
RF Input On Front Output On Rear
Option 118B:
RF Input On Rear Output On Front
Page 3
SMC Solid State Amplifiers
80 – 1000 MHz • 10 Watts to 3000 Watts, Minimum Rated Power
Specifications subject to change without notice Page 3 ds-smc-series rev-a-1/11/2011

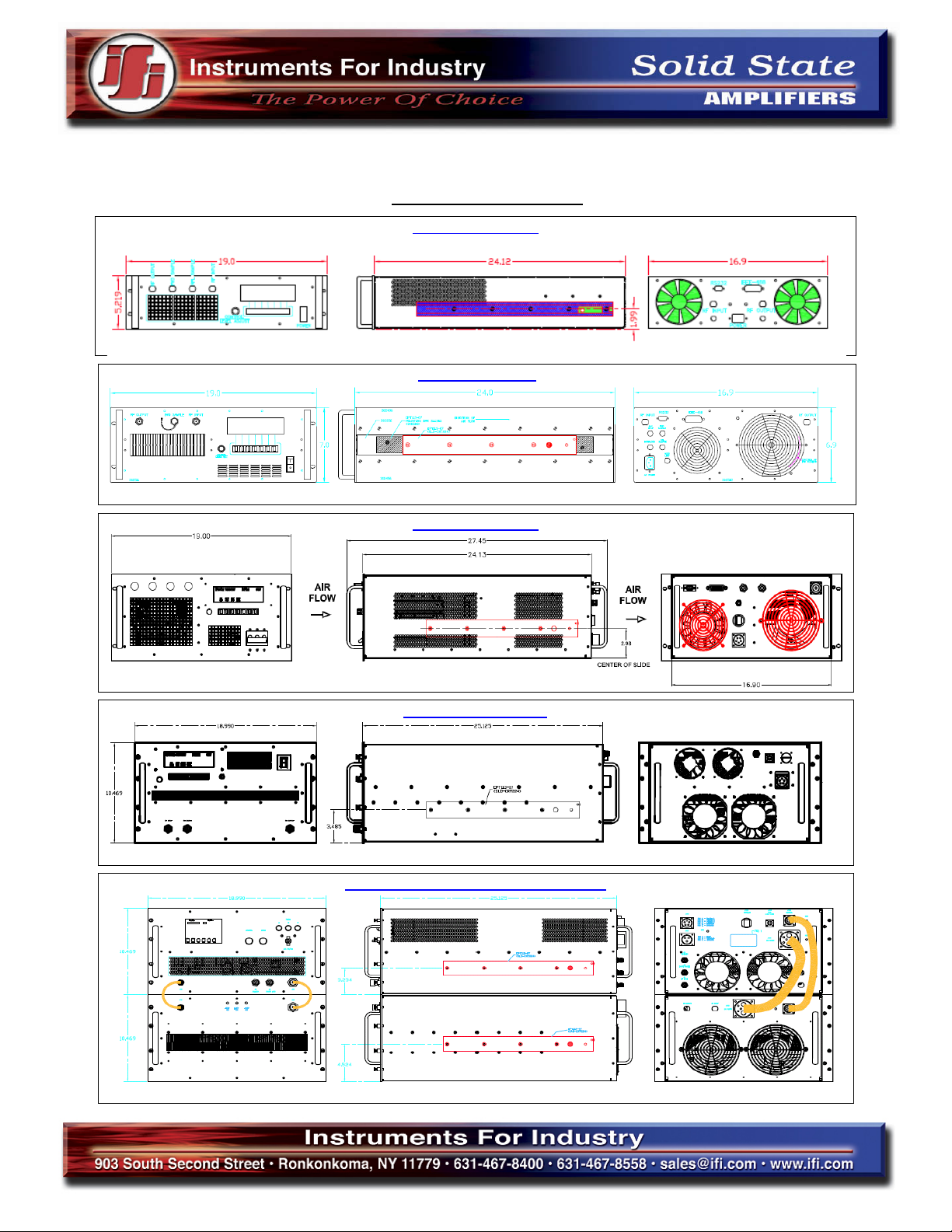

Outline Configurations:
5.25” High Chassis
7.0” High Chassis
8.75” High Chassis
10.5” Drawer Chassis
2x 10.5” Drawer Chassis Configuration
Page 4
SMC Solid State Amplifiers
80 – 1000 MHz • 10 Watts to 3000 Watts, Minimum Rated Power
Specifications subject to change without notice Page 4 ds-smc-series rev-a-1/11/2011
Rack Outline Configurations:
Rack Integrated 1KW
Rack Integrated 2-3KW
