Atec IFI-S21 User Manual

S21 Series Solid State Microwave Power Amplifiers

0.8 – 2.0 GHz • 10 Watts to 2000 Watts

Specifications subject to change without notice Page 1 ds-s21-series rev-a-1/17/2011

Instruments for Industry, S21 Series Solid State amplifiers are state-of-the-art amplifiers and provide outstanding RF performance. The S21 Series amplifiers operate over the frequency range from 0.8-2.0 GHz and can be supplied at power levels from 10 watts to 2000 watts offering all the control and communication features needed for today’s automated test systems. From the ground up, the S21 Series amplifiers are built to withstand rugged handling, whether it's being shipped to you or hauled around from site to site. They feature heavy-duty aluminum chassis construction with a modular approach for easy access and service.

Operation safety and ease of use are paramount in IFI product designs. The IFI S21 Series include a full complement of RF and hardware protection circuits including high VSWR, over-current, voltage protection, redundant thermal and airflow sensors for the module and the system level. In addition, the S21 series includes a state-of-the-art interface that is sophisticated, comprehensive, and yet simple to use.

The backlit LCD screen shows forward/reverse power indication, system status and self-diagnostic information. All the amplifiers operating parameters are simultaneously available in the amplifier front panel display as well as over the remote bus. Selection switches allow you to switch the amplifier to the desired mode of operation for local control if the unit is not being operated remotely.

For computer automation both an RS-232 and IEEE interface are provided as standard. To meet individual application needs, the S21 Series amplifiers can be easily customized with other options. With this capability and its reliable elegant design, the S21 series amplifiers are the perfect system for your applications.

Features

• Solid State Design

• Rugged Construction & High Reliability

• Instantaneous Broadband Frequency range

• Backlit screen

• Modular Design Construction

• Integrated Force Air Cooling

• Self-diagnostic circuitry

• IEEE-488 interface & RS232 Remote

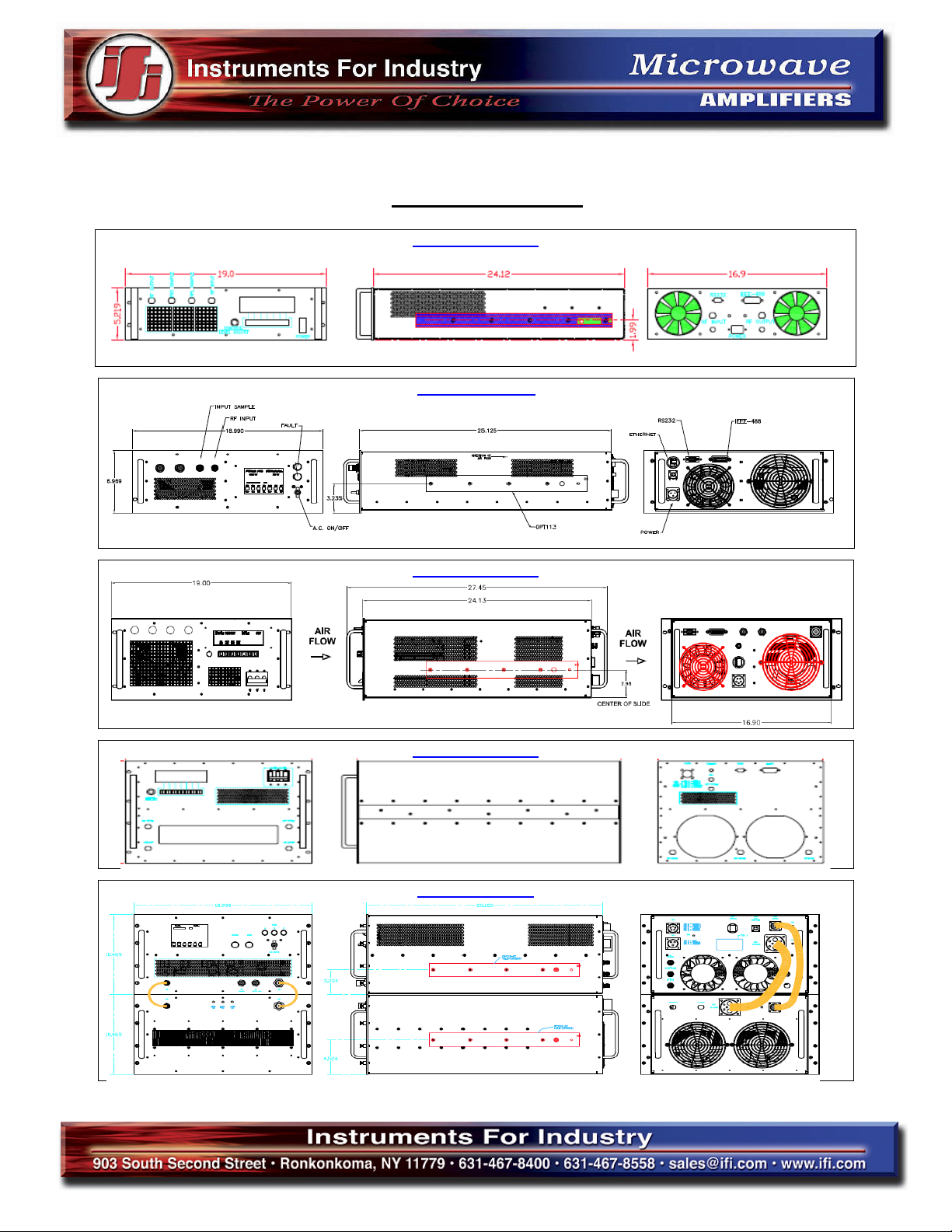

Models & General Specifications:

Model

Number

Frequency

Range (GHz)

Rated Power

(watts minimum)

P1dB Power

(watts minimum)

Gain

(dB min)

Mains (kVA)

Weight

(Pounds)

Size

(Inches)

S21-5

0.8-2.0 5 5

.10

25 Lbs

5.25” H x 19” W x 24” D

S21-10

0.8-2.0

.10

28 Lbs

5.25” H x 19” W x 24” D

S21-20

0.8-2.0

.20

32 Lbs

5.25” H x 19” W x 24” D

S21-25

0.8-2.0

.25

36 Lbs

5.25” H x 19” W x 24” D

S21-40

0.8-2.0

.30

40 Lbs

5.25” H x 19” W x 24” D

S21-50

0.8-2.0

.40

50 Lbs

5.25” H x 19” W x 24” D

S21-75

0.8-2.0

.60

55 Lbs

5.25” H x 19” W x 24” D

S21-100

0.8-2.0

100

0.8

60 Lbs

5.25” H x 19” W x 24” D

S21-150

0.8-2.0

150

130

1.2

80 Lbs

7.00” H x 19” W x 24” D

S21-200

0.8-2.0

200

150

1.5

90 Lbs

7.00” H x 19” W x 24” D

S21-250

0.8-2.0

250

200

2.0

100 Lbs

8.75” H x 19” W x 24” D

S21-300

0.8-2.0

300

250

2.5

120 Lbs

10.5” H x 19” W x 25” D

S21-400

0.8-2.0

400

350

3.0

250 Lbs

2x 10.5” H x 19” W x 25” D

S21-500

0.8-2.0

500

450

4.0

275 Lbs

2x 10.5” H x 19” W x 25” D

S21-1000

0.8-2.0

1000

900

8.0

500 Lbs

Rack Integrated

S21-2000

0.8-2.0

2000

1600

16.0

800 Lbs

Rack Integrated

S21 Series Solid State Microwave Power Amplifiers

0.8 – 2.0 GHz • 10 Watts to 2000 Watts

Specifications subject to change without notice Page 2 ds-s21-series rev-a-1/17/2011

Standard Features for IFI S21 Series Solid State Amplifiers

VSWR Reflected Power Protection, the unit operates without damage or oscillation into any magnitude of phase or load impedance, Open & Short Circuit Protection.

* Alternate Prime Power (specify at time of order) GPIB IEEE 488 & RS232 Remote Control RF Sample Port on the Front Panel, 112R for rear panel Internal Pre-amplification to obtain rated output power with an input level of 0 dBm or less. Gain Control Local & Remote, 30dB range RF Input/Output Connectors on the Front Panel, 118R for rear panel Internal Systems Diagnostics & Status Indicators Total/Operate Elapsed Time Metering in hours RF Safety Interlock

Standard Features:

Forward/Reflected Power Indication simultaneously on Front Panel display

IFI S21 Series Solid State Amplifier Specifications

Frequency Range:

As Specified in Model Table Rated Output Power:

As Specified in Model Table Gain @ Rated Power:

As Specified in Model Table Prime Power:

As Required (Some are listed below) Input/output Impedance:

50 ohms RF Input/ Sample Connectors:

Type N Female, unless specified otherwise RF Output Connector:

Type N Female up to 500W amp, SC or 7/16 available, 7/16 1KW amps

Other connectors available by request or specification

Input VSWR:

2.0:1 Output VSWR:

2.5:1 Operating Temp:

0º to 50º C Non-operating Temp:

-40º to 70º C (50,000 feet max) Humidity:

95% without condensation Altitude:

10,000 feet Cooling System:

Air cooled, self contained Modulation:

AM,FM, Pulse Configuration:

Rack Mount as specified in Model Table, or Rack/Cabinet Integrated Spurious Outputs:

<-60 dBc nominal Harmonics:

-20dBc minimum @ Linear Power

Standard Prime Powers:

100, 115, 120 VAC ±10% 50/60 Hz, single phase 220, 230, 240VAC ±10% 50/60 Hz, single phase 120/208 or 200/220/230/240VAC ±10% 50/60 Hz, three phase Wye or Delta power is available 200/220/230/240VAC ±10% 50/60 Hz, three phase Wye or Delta power is available

Special Prime Powers other then listed are subject to availability

Some Available Options for IFI S21 Series Solid State Amplifiers

Option 110-1E:

GPIB IEEE-488 RS232 and Ethernet Remote Control

Option 110-2:

GPIB IEEE-488 and RS 422 Remote Control

Option 110-3

GPIB IEEE-488 and RS 485 Remote Control

Option 113:

Chassis slides for a 19" rack mounting

Option 118A:

RF Input On Front Output On Rear

Option 118B:

RF Input On Rear Output On Front
