IDA-3106
Interference Analyzer
Interference and
Direction Analyzer
Portable signal analyzer for radio monitoring and interference analysis
from 9 kHz to 6 GHz. Active directional antennas with embedded electronic
compass for emission location from 20 MHz to 6 GHz
Extremely fast sweep time at 12 GHz/s
Real-time bandwidth of up to 32 MHz
for intercepting short term signals
Direction Finding Mode with
automatic azimuth determination
Embedded GPS receiver and electronic
compass for easy emitter location
SmartDF manages triangulation
results and automatically calculates
emitter positions
Rugged and highly size-efficient low weight
package (less than 3 kg)
OPTIONAL
Mapping capabilities with onboard
maps stored on microSD card
High resolution oscilloscopic
view for signal classification
I/Q demodulation recorder
NSTS 0911 – E0280B

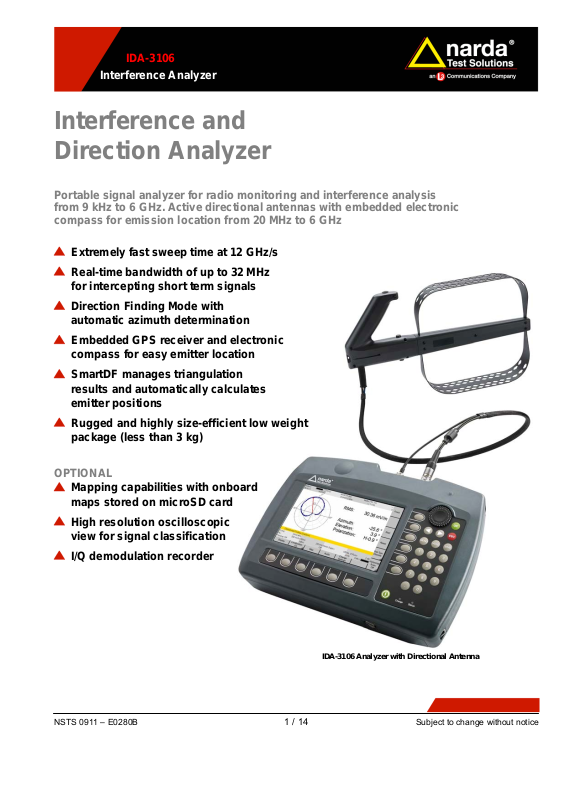

IDA-3106 Analyzer with Directional Antenna
1 / 14
Subject to change without notice
DESCRIPTION
IDA-3106 is a highly sensitive signal analyzer combining excellent RF
signal selectivity with high speed monitoring capabilities and built-in
geolocation tools including dual-compass and mapping software. The
system is designed for portable use and outdoor field applications as
well as for indoor emitter location and is the ideal solution when high
mobility and rapid deployment are essential.
The main tasks for IDA-3106 are detecting, classifying and localizing RF
signals. The unique directional antenna set with embedded electronic
compass and data communication between antenna and analyzer
makes these jobs very easy. Outstanding for a portable device are such
features as Horizontal Scan with automatic azimuth determination and
SmartDF for auto calculation of emitter positions.
The rugged, ergonomic design withstands mechanical stress, foul
weather conditions and very high RF exposure.
Outdoor localization of radio transmitters
APPLICATONS
Further rapid growth in the use of mobile wireless technologies is
certain. The risk of RF interference due to unintended emissions will
increase as a result. IDA-3106 has been developed to quickly detect
and find any kind of RF emission. Some example applications are:
Detecting interference caused by industrial facilities
Securing communication at mega events
Localization of emergency transmitters
Jammer location
Radio monitoring tasks
Security-critical missions
Localization of miniature transmitters
Signal monitoring for border patrols
Close range reconnaissance
Detection of improvised explosive devices (IED)
Interference may be generated by sources at a shared
antenna site
NSTS 0911-E0280B
Securing communication on events
2 / 14
Subject to change without notice
OPERATING MODES
Detecting, classifying and localizing emissions successfully greatly
depends on result visualization. IDA-3106 meets this requirement,
thanks to its various operating modes and impressive presentation of
measurement results. The following operating modes are available:
SPECTRUM
DIRECTION FINDING
MULTI CHANNEL POWER
LEVEL METER
SCOPE and IQ Demodulation (option)
Spectrum
Spectrum mode provides extremely fast scans across the entire
frequency range, ideal for detecting, monitoring and analyzing all
kinds of signals. A full 6 GHz spectrum scan is performed in less
than 500 ms, even for high-resolution results (RBW = 500 kHz, 250
kHz marker resolution).
The extremely low noise level down to -30 dBµV/m in conjunction
with Narda Directional Antennas allows the detection even of very
low-power devices.
Resolution bandwidths range from 10 Hz to 20 MHz to match any
modern communications equipment or even of pulsed signals.
Maximum (Max), average value (Avg) and minimum (Min) traces
allow initial classification of the nature of a signal.
Suspect signals can be isolated using convenient marker functions,
can be quickly zoomed in on and directly transferred to the other
operating modes for in-depth analysis.
SPECTROGRAM (Waterfall) view is ideal for long-term surveillance
f the RF spectrum and identification of permanent, transient and
o
frequency-hopping signals. This view also allows identification of
emitters with varying power and/or varying bandwidths.
An outstanding feature is the capability of simultaneously recording
RMS, +Peak and -Peak traces of the spectrogram.
The large 7-inch color display presents the results as
a spectrum,
a spectrogram,
a spectrum and spectrogram,
or as a table of highest peaks
NSTS 0911-E0280B
3 / 14
Subject to change without notice
Spectrum view for detection purposes
Spectrum view for initial classification of signals
Spectrum and Spectrogram view for transient detection
Direction Finding
(requires Narda directional antennas)
Manual Bearing
Once the signals of interest have been identified, bar graph and
numerical representation of the signal level make it easy to
determine the direction (maximum level). Alongside the screen
information, an audible tone dependent on field strength is available
to enable location of hot spots without looking at the monitor. The
current antenna orientation is displayed on the IDA screen, and is
updated continuously with the aid of an embedded electronic
compass. Supplemented by the position measured by the
integrated GPS receiver, this provides ideal support for classical
direction finding.
Horizontal Scan
Horizontal Scan provides accurate and automatic determination of
the azimuth of the targeted emitter. For each frequency of interest a
scan is started and stopped by pushbutton on the antenna handle,
with the antenna being smoothly rotated horizontally during the
scan. A transmitter table of frequencies can be created to simplify
and speed up scanning of multiple signals.
The measurement results of a horizontal antenna scan are shown in
a polar diagram. Based on this information, IDA calculates the most
likely direction of the emitter. Continuous or discrete point scans
can be performed. Audio indication helps to keep the antenna
levelled to avoid polarization or elevation errors. As soon as the
scan result has been saved, SmartDF handles further processing.
SmartDF
Localization can be performed by triangulation from at least two
direction-finding results. An additional estimation of the distance to
the emitter can be made by considering the signal attenuation vs.
distance. The SmartDF algorithm determines latitude and longitude
of the targeted emitter based on the saved Horizontal Scan or
Manual Bearing results. Positions and directions are displayed as a
graph, underlaid with an optional map. No more need for paper
maps, compass and pencil. For indoor use (e.g. in conference
rooms) SmartDF supplies an editable room plan display.
Direction finding using Manual Bearing
Horizontal scan is a quick direction finding tool
NSTS 0911-E0280B
Optional maps support localization of an emitter
4 / 14
Subject to change without notice
Multi Channel Power
MCP mode is perfect for a very fast overview of specified frequency
bands or channels. Service tables can be defined containing up to
500 freely selectable channels each with a dedicated RBW and
service name.
Simultaneous representation of maximum (Max), average (Avg) and
minimum (Min) values allows immediate distinction between
permanent and non-permanent signals.
Level Meter
Level Meter mode allows selective measurements at a defined
frequency (Fcent) e.g. for monitoring a specific channel (Zero Span
operation). Resolution bandwidth (RBW) can be set according to the
channel width in the range of 100 Hz to 32 MHz. The steep filter
characteristics provide precise separation from adjacent channels.
Peak detector values (for short pulsed) and RMS detector values
(for fluctuating signals) are displayed simultaneously. Level Meter
mode provides gapless and interruption-free measurements.
Scope and IQ Demodulation (Option)
Multi Channel Power for an overview of who is on air
Level Meter for gapless signal measurements
Scope mode provides an oscilloscopic view of signals. Almost all
details can be made visible in this mode to allow rapid classification.
The minimum resolution time of 32 ns even allows analysis of highspeed data transmissions or pulsed signals such as radar.
A top sweep time of 24 hours allows full-day power monitoring of a
single carrier. Extensive trigger functions allow for triggering and
subsequent display of burst signals including a pre-trigger view.
RF signals can be completely described by I/Q data. The I/Q
Demodulation Recorder enables the user to store I/Q data on the
instrument and transfer it to PC for analysis.
NSTS 0911-E0280B
5 / 14
Scope view for detailed analysis versus time
Subject to change without notice
ACTIVE DIRECTIONAL ANTENNA SET
Narda offers a set of three directional antenna modules covering the
frequency range from 20 MHz to 6 GHz. This addresses all major
applications for interference and direction finding.
The snap-in connector of the Active Antenna Handle picks up one of the
directional antenna modules aligned for either horizontally or vertically
polarized signals. IDA recognizes the type of antenna, alignment (H or
V) and corresponding antenna factors. Correction data based on the
frequency response calibration of the handle is automatically transferred
to the instrument. Inside the antenna handle a low noise, switchable
amplifier (0 dB/ 20 dB) provides very high sensitivity for weak signals.
Position sensors in combination with a 3D high resolution compass
accurately determine the current antenna orientation. This information is
automatically transferred to the IDA-3106 and assigned to the measured
RF signal.
Measurements from different locations are tracked by the IDA
embedded GPS receiver. Thus, triangulation can be performed
immediately and the results
of the IDA-3106. Triangulation becomes even more effective with the
Option Mapping, drawing bearing results and suspected emitter
positions directly onto a map.
IDA-3106 can also be used with antennas from other manufacturers,
e.g. for signal monitoring with omnidirectional antennas.
then be graphically displayed on the screen
Directional Antenna 1, ranging from 20 MHz to 250 MHz
Directional Antenna 2, ranging from 200 MHz to 500 MHz
OTHER FUNCTIONS
Additional functions support practical applications during measurement,
analysis and evaluation. They make the IDA-3106 into a masterpiece for
interference finding, triangulation and localization:
Delta spectrum for easy detection of newly appeared emitters
(available in 2012)
High capacity time- or event-controlled data logger
Demodulation (via build in speaker or headphone)
NSTS 0911-E0280B
6 / 14
Subject to change without notice
Directional Antenna 3, ranging from 400 MHz to 6 GHz
DEFINITIONS AND CONDITIONS
Conditions
Unless otherwise noted, specifications apply after 30 minutes
warm-up time within the specified environmental conditions.
The product is within the recommended calibration cycle.
Specifications with limits
These describe product performance for the given parameter
covered by warranty. Specifications with limits (marked as <,
≤, >, ≥, ±, max., min.) apply under the given conditions for the
product and are tested during production taking
measurement uncertainty into account.
Specifications without limits
These describe product performance for the given parameter
covered by warranty. Specifications without limits represent
values with negligible deviations which are ensured by
design (e.g. dimensions or resolution of a setting parameter).
Typical values (typ.)
These characterize product performance for the given
parameter that is not covered by warranty. When stated as a
range or as a limit (marked as <, ≤, >, ≥, ±, max., min.), they
represent the performance met by approximately 80 % of the
instruments. Otherwise, they represent the mean value. The
measurement uncertainty is not taken into account.
Nominal values (nom.)
These characterize expected product performance for the
given parameter that is not covered by warranty. Nominal
values are verified during product development but are not
tested during production.
Uncertainties
These characterize an interval for a given measurand
estimated to have a level of confidence of approximately 95
percent. Uncertainty is stated as the standard uncertainty
multiplied by the coverage factor k=2 based on the normal
distribution. The evaluation has been carried out in
accordance with the rules of the "Guide of the Expression of
Uncertainty in Measurement" (GUM).
SPECIFICATIONS
Basic Unit IDA-3106
RF DATA
Frequency
Amplitude
a) RF data apply in the temperature range of 20°C to 26°C and a relative humidity between 25 % and 75 %.
a)
Frequency range 9 kHz to 6 GHz
Phase noise
(SSB)
Reference frequency
Display range From Displayed Average Noise Level (DANL) to +20 dBm
Reference level (RL) -30 dBm to +20 dBm in steps of 1 dB
RF Input attenuation 0 to 50 dB in steps of 1 dB (coupled with reference level)
Reference level setting
Level uncertainty
Displayed Average
Noise Level (DANL)
Basic unit only
Displayed Average
Noise Level (DANL)
in conjunction with
Active Antenna Handle,
preamp on, (typ.)
3rd order intermodulation < -60 dBc for two single tones with a level of 6 dB below RL, spaced by 1 MHz or more
Spurious responses
(input related)
Spurious responses
(residual)
< - 100 dBc/Hz (@ 300 kHz carrier offset) verified at (57.5 / 2140.5 / 4500.5) MHz
Initial deviation < 1 ppm
Aging < 1 ppm/year, < 5 ppm over 15 years
Thermal drift < 1.5 ppm (-10 °C to +50 °C)
Set individually from a list or using the “RL Search” function for determining the optimum
reference level at a given time
≤ 1.2 dB (15 °C to 30 °C)
valid for Spectrum Analysis and Multi Channel Power modes
f ≤ 30 MHz: < -160 dBm/Hz (noise figure < 14 dB)
f ≤ 2 GHz: < -156 dBm/Hz (noise figure < 18 dB)
f ≤ 4 GHz: < -155 dBm/Hz (noise figure < 19 dB)
f ≤ 6 GHz: < -150 dBm/Hz (noise figure < 24 dB)
f ≤ 3 GHz < -167 dBm/Hz (noise figure 7 dB)
f ≤ 4 GHz < -166 dBm/Hz (noise figure 8 dB)
f ≤ 6 GHz < -164 dBm/Hz (noise figure 10 dB)
< -60 dBc or RL -60 dB (whichever is worse)
and a carrier offset of 1 MHz or more
< -90 dBm (RL=-30 dBm, input attenuation = 0 dB)
For (294 to 306) MHz and (4534 to 4586) MHz limited to < -85 dBm
RL=-30 dBm
(input attenuation = 0 dB)
NSTS 0911-E0280B
7 / 14
Subject to change without notice
Type N-Connector, 50 Ω, female
Maximum RF power level +27 dBm (destruction limit)
Maximum DC voltage ±50 V RF input
Return loss
> 12 dB (typ.), f ≤ 4.5 GHz
> 10 dB (typ.), f > 4.5 GHz
RL≥ -28 dBm
(input attenuation ≥ 2 dB)
OPERATING MODES
Operating
modes
Measurements vs.
frequency
Measurements vs.
time
Measurement vs.
orientation/position
Spectrum Analysis
Multi Channel Power
Level Meter
Scope (option)
Direction Finding
including Horizontal Scan and Localization
SPECTRUM ANALYSIS
Measurement principle Spectrum analysis
Resolution bandwidth RBW, (-3 dB nominal) 10 Hz to 20 MHz (in steps of 1, 2, 3, 5, 10, 20, …)
Video bandwidth VBW Off, 0.2 Hz to 2 MHz (in steps of 1, 2, 3, 5, 10, 20, … coupled with selected RBW)
Filter
Result Type
Units
Display functions
Marker functions
Evaluation functions
Spectrogram time axis (available in 2012)
Spectrogram detection (available in 2012) RMS, +Peak, -Peak
Zoom
Extras (Transfer Parameters) Transfers center frequency and span to other operating modes
Type Gaussian
Shape factor (-60 dB/ -3 dB) 3.8 typical
Act: Displays instantaneous (actual) spectrum
Max: Maximum hold function
Avg: Average over a selectable number of spectra (4 to 256)
or a selectable time period of 1 to 30 minutes
Max Avg: Maximum hold function after averaging
Min: Minimum hold function
Min Avg: Minimum hold function after averaging
With
Antenna
Without
Antenna
Y-scale reference: -130 dBm to 40 dBm
Y-scale range: 20 dB, 40 dB, 60 dB, 80 dB, 100 dB, 120 dB
Screen arrangement: help line, status lines on/off
Spectrogram (available in 2012)
Highest peak, next peak right, next peak left, next higher peak, next lower peak
Information provided by marker: frequency, level, channel name according to selected
channel table.
Delta marker to measure difference in level and frequency of the same trace or to display the
difference between two different traces e.g. average and maximum at the same frequency
Peak table (list of up to 50 highest peaks)
Channel power measurement
Up to 288 traces
Observation length: app. 2.88 s up to 28.8 hours
Time resolution: as fast as possible, 10 ms, 20 ms, 50 ms,100 ms, 200 ms, 500 ms, 1 s, 2 s,
5 s, 10 s, 20 s, 50 s, 1 min, 2 min, 5 min or 6 min
Select frequency window for zoom by: Zoom Min, Zoom Max, Zoom Cent, Zoom Span
Execute Zoom: sets selected frequency window to measured frequency range
V/m, A/m, W/m², mW/cm², dBV/m, dBmV/m, dBA/m, dBµV/m
dBm, dBV, dBmV, dBµV
NSTS 0911-E0280B
8 / 14
Subject to change without notice
MULTI CHANNEL POWER
Measurement principle Spectrum analysis, followed by Channel Power evaluation
Number of channels 1 to 500, to be defined on instrument or by IDA-Tools PC software
Channel band width CBW, (-3 dB nominal) Individually selectable for each channel, from 40 Hz to 6 GHz
Roll-off factor < 4 * RBW / CBW
Applied RBW
Name of channel
Detection Root mean square value (RMS), integration time = 1 / RBW
Result Type, Unit, RBW See spectrum analysis mode
Display: Table view
Display: Bar graph view Bar graph for measurement result of each channel
Evaluation function: Distribution Distribution of each channel in relation to total amount
Marker functions
for bar graph view
Noise threshold
Others
Extras (Transfer parameters) Transfers center frequency and span to other operating modes
Automatic: Frequency range of channel divided by 4 but not more than 20 MHz
Manually: Can be set in the range of available RBWs of spectrum analysis, but not more
than CBW of channel divided by 4
User definable, maximum 15 characters
Automatic creation of communication channel lists by PC software. Channel name is
assigned automatically
Channel name, corresponding frequency band, measurement result, RBW if set individually
for each channel
Sort function according to columns
Highest peak, next peak right, next peak left, next higher peak, next lower peak
Information provided by marker: channel index, level, channel name according to selected
channel table
Delta marker to measure difference in level between two different channels
or to display the difference between two different result types e.g. average and maximum at
the same channel
Identifies whether measured values are above device noise floor. Setting of an additional
threshold possible. Selectable at 0, 3, 6, 10, 15, or 20 dB relative to device noise floor.
Measurement values below threshold are shown as the absolute threshold value marked with
“<” (less than threshold)
Summarizes all measurement values for frequency gaps within the list of channels and
shows the total value for all gaps. Value is displayed as an additional channel in the channel
list. Can be switched off if not required
SCOPE (OPTION)
Measurement principle Selective level measurement at a selectable frequency from 9.05 kHz to 5.999 999 95 GHz
Resolution bandwidth RBW, (-6 dB nominal)
Filter
Video bandwidth (VBW) Off, 0.01 Hz to 32 MHz (depending on the selected RBW)
Sweep Time 500 ns to 24 h
Time Resolution Selectable from 31.25 ns up to 90 min
Result type
Marker function
Evaluation functions Duty cycle (ratio of average power to maximum power)
Display function
Triggering
Extras (Transfer parameters) Transfers center frequency and span to other operating modes
100 Hz to 32 MHz (in steps of 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000,…, 10
Type Steep cut-off channel filter (app. raised cosine)
Roll-off factor 0.16
Time resolution = 1/ RBW
Time resolution > 1/ RBW
MHz, 13.333 MHz, 16 MHz, 20 MHz, 26.666 MHz, 32 MHz)
Act: Instantaneous magnitude value
I, Q or I & Q (Option, I/Q Demod Recorder)
MAX: Maximum value within the time resolution interval (corresponds to peak detector).
AVG: Average value within the time resolution interval (corresponds to RMS detector).
MIN: Minimum value within the time resolution interval.
Highest peak, next peak right, next peak left, next highest peak, next lowest peak
Delta marker
Magnitude
I/Q Real and imaginary part (Option, I/Q Demod Recorder)
Free run, single, multiple, manual start, time controlled
Programmable trigger level, trigger slope and trigger delay
NSTS 0911-E0280B
9 / 14
Subject to change without notice
LEVEL METER
Measurement principle Selective level measurement at a selectable frequency from 9.05 kHz to 5.999 999 95 GHz
Detection
Resolution bandwidth RBW (-6 dB)
Filter
Video bandwidth (VBW) Off, 0.01 Hz to 32 MHz (depending on the selected RBW)
Result type
Noise threshold
Extras (Transfer parameters)
Peak
Root mean square value (RMS), average time selectable from 480 ms up to 30 min
100 Hz to 32 MHz
(in steps of 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, …, 10 MHz,
13.333 MHz, 16 MHz, 20 MHz, 26.666 MHz, 32 MHz)
Type Steep cut-off channel filter (app. raised cosine)
Roll-off factor 0.16
Peak ACT: Displays the actual peak value
Peak MAX: Max hold function for peak values
RMS ACT: Averaging over a defined time period (0.48 s to 30 min)
RMS MAX: Max hold function for RMS values
Identifies whether measured values are above the device noise floor by setting a threshold.
Selectable at 0, 3, 6, 10, 15, or 20 dB relative to device noise floor.
Measurement values below the threshold are shown as the absolute threshold value marked
with “<” (less than threshold). Only applies to the numerical result display (Value)
“Go to … “ transfers the Center Frequency and RBW to other operating modes
Selection of individual services allows “zapping” through a service table
DIRECTION FINDING - requires Narda Active Antenna Handle
Measurement principle
Antenna direction indication
Position indication
Result type
Display modes
Horizontal Scan
SmartDF (Localization)
Transmitter Table
Maps (option)
Outdoor
Indoor Instrument position set manually on an editable rectangular room layout.
Manual Bearing Bar graph and numerical display of the signal level and indication of the direction
Horizontal Scan
SmartDF
Discrete
Continuous
Selective level measurement at a selectable frequency from 9.05 kHz to 5.999 999 95 GHz
Possible parameters and settings as specified under LEVEL METER
Numerical display of Azimuth, Elevation and Polarization determined by the embedded
electronic compass of the antenna handle.
Instrument position displayed as latitude and longitude (GPS WGS84) determined by the
embedded GPS receiver of the basic unit. Optional: Graphical indication of the current
position drawn on a map.
Peak or RMS detection
RMS averaging time: selectable, 0.48 s to 30 min
Polar diagram of the signal level vs. antenna orientation, normalized to the maximum signal.
Automatic direction finding and indication
Graphical indication of the triangulation results for all measurement positions. Accepts
measurements being performed by Manual Bearing or Horizontal Scan. Display of the
estimated emitter coordinates, optional drawn on a map (Option Mapping).
For every key press on the antenna handle the polar diagram is updated with the current
signal level and compass data. At least 3 samples are required for calculating the target
azimuth (up to 2000 samples are possible). Useful for longer averaging times.
Every 120 ms the polar diagram is updated with the current signal level and compass data.
Start and Stop is initiated by key press on the antenna handle. The duration of a scan is
limited to a maximum of 4 min. The target azimuth is calculated automatically.
Shows the vector of target azimuth related to the measurement position.
Triangulation results based on several vectors will be calculated and the geo coordinates of
the potential transmitter position will be displayed. Coordinates are referenced to the
WGS84 geodetic datum. Signal fading vs. distance can be taken into account for target
position calculation. Remotely determined vector data can be added by manual entry.
Used to simplify frequency settings and speed up finding multiple sources transmitting at
different frequencies. Tables can be created on-site and include Fcent and RBW.
Display of high-resolution street maps in various zoom levels. OpenStreetMap bitmap tiles
can be downloaded from internet free of charge using the Narda Map Download Tool. Map
data are stored on microSD card and then plugged into the IDA card slot for portable use.
NSTS 0911-E0280B
10 / 14
Subject to change without notice
GENERAL SPECIFICATIONS - BASIC UNIT
Display
Interface
Antenna detection
Cables and external devices
Demodulation
Setups
Storing
Operating temperature range
Compliance
Air humidity (operating range) RF < 29 g/m³ (< 93 % at +30 °C)
Weight 2.8 kg (basic unit including rechargeable battery)
Dimensions 297 x 213 x 77 mm
Power supply
Recommended calibration interval 24 months
Country of origin Germany
Type TFT color display with backlight
Size, resolution 7 inch (152 mm x 91 mm), 800 x 480 pixels
USB mini B (USB 2.0)
Optical RS 232 (Baud rate 115 200)
Earphone 3.5 mm TRS, switches off the integrated speaker when connected
microSD-card interface for maps
Narda Directional Antennas are automatically detected (type, polarization, consideration of
typical antenna factors, preamp gain and frequency response).
For other antennas parameters can be defined and selected manually.
Narda RF cables are automatically detected (type, frequency response and more)
Modulation Types AM, FM, LSB, USB (see Scope mode for details on I/Q demodulation)
Representation Instrument speaker or external earphone
Squelch -120 dB to -40 dB nominal, Off
Recording 16 kHz / 16 bit wave file recording (WAV)
Format
Conditional Storing
Time Controlled Storing
Memory capacity 128 MB internal memory to store up to 8000 spectra, 4000 screen shots
Climatic
Mechanical
ESD and EMC EN 61326 -1: 2006
Dust and water resistance IP 52 (with antenna attached and interface protector closed)
Safety EN 61010-1:2004
EU Guidelines
CE (European Community) Yes
Rechargeable battery
External power supply
Other cables and external devices (e.g. filters) can be defined and selected manually.
Up to 200 complete device configurations can be saved in the basic unit; can be uploaded
and downloaded using IDA-3106 Tools software.
Result can be stored as a screenshot (in png format) or as ASCII data sets for further
evaluation and import into e.g. MS-Excel
Conditional storing of results exceeding a user definable threshold value with individual
storage rates and reset function (except for modes Scope and Direction Finding)
Timer controlled storage of results for long term monitoring (except for Direction Finding)
Start date, start time and duration: resolution one second.
Duration maximum 99 hours
Storage rate settable to every 1.2 s, 2.4 s, 3.6 s, 6 s, 12 s, 18 s, 30 s,
1 min, 2 min, 3 min, 5 min, 6 min, 10 min, 15 min, 20 min, 30 min
-10 °C to +50 °C during normal operation
0 °C to +40 °C when charging
Storage 1K3 (IEC 60721-3) extended to -10 °C to +50 °C
Transport 2K4 (IEC 60721-3) restricted -30°C to + 70°C due to display
Operating 7K2 (IEC 60721-3) extended to -10 °C to +50 °C
Storage 1M3 (IEC 60721-3)
Transport 2M3 (IEC 60721-3)
Operating 7M3 (IEC 60721-3)
2003/11/EG 06.02.2003 (PBDE and OBDE)
2002/95/EG 27.01.2003 (RoHS)
2002/96/EG 27.01.2003 (WEEE)
Lithium-Ion rechargeable battery pack, “hot-swappable” within 10 seconds
operating time: 2.5 hours (nominal)
charging time: 4.5 hours (nominal)
Input: 9 to 15 V
Adapter 100-240 V
AC
/ 12 V
, 2.5 A
DC
NSTS 0911-E0280B
11 / 14
Subject to change without notice
SPECIFICATIONS OF ANTENNAS
ACTIVE ANTENNA HANDLE (3100/10) - WITH ELECTRONIC COMPASS AND PREAMPLIFIER
Frequency range
Preamplifier
Compass
Connection cable to IDA basic unit RF cable and control cable combined in a flexible tube, length of 1 meter
RF connector to basic unit N-connector, male, 50 Ω
RF connector to Narda directional antennas BMA 50 Ω, (female on handle side)
Antenna connectivity
Power supply From basic unit
Mounting Connecting thread on the underside of the handle for tripod mounting
DIRECTIONAL ANTENNA 1 (3100/11)
Frequency range
Antenna type Loop antenna
Antenna factor 21 dB(1/m) typical @ 200 MHz
DIRECTIONAL ANTENNA 2 (3100/12)
Frequency range
Antenna type Dipole antenna
Antenna factor 23 dB(1/m) typical @ 300 to 400 MHz
DIRECTIONAL ANTENNA 3 (3100/13)
Frequency range
Antenna type Log-periodic antenna
Antenna factor 20 dB(1/m) typical @ 600 MHz
20 MHz to 6 GHz (preamp off: 9 kHz to 6 GHz)
Frequency response correction is applied automatically when used in conjunction with the
IDA basic unit.
Built in, can be switched off
Amplification 20 dB, noise figure < 6 dB
Embedded electronic compass, uncertainty < 1.5° RMS (typ.) for tilt <15°
Pitch- and roll uncertainty < 3° RMS (typ.) in the range of +/- 30°
Narda antennas can be plugged in with horizontal and vertical polarization. Type of antenna
and polarization detected automatically and transferred to basic unit
20 MHz to 250 MHz
Typical antenna factor correction is applied automatically when used in conjunction with the
IDA basic unit and Narda Active Antenna Handle
200 MHz to 500 MHz
Typical antenna factor correction is applied automatically when used in conjunction with the
IDA basic unit and Narda Active Antenna Handle
400 MHz to 6 GHz
Typical antenna factor correction is applied automatically when used in conjunction with the
IDA basic unit and Narda Active Antenna Handle
GENERAL SPECIFICATIONS - ANTENNA HANDLE AND ANTENNAS
Operating temperature range -10 °C to +50 °C
Storage 1K3 (IEC 60721-3) extended to -10 °C to +50 °C
Climatic
Compliance
Air humidity < 29 g/m³ (< 93 % at +30 °C)
Dimensions
Country of origin Germany
Mechanical
ESD and EMC EN 61326:2006
Safety EN 61010-1:2002
EU Guidelines
CE (European Community) Yes
Active Antenna Handle 165 mm length; 165 mm height; 43 mm width, weight: 450 g (w/o cable)
Directional Antenna 1 325 mm length; 255 mm height; 80 mm width, weight: 450 g
Directional Antenna 2 285 mm length; 410 mm height; 43 mm width, weight: 350 g
Directional Antenna 3 460 mm length; 320 mm height; 48 mm width, weight: 400 g
Transport 2K4 (IEC 60721-3)
Operating 7K2 (IEC 60721-3) extended to -10 °C to +50 °C
Storage 1M3 (IEC 60721-3)
Transport 2M3 (IEC 60721-3)
Operating 7M3 (IEC 60721-3)
2003/11/EG 06.02.2003 (PBDE and OBDE)
2002/95/EG 27.01.2003 (RoHS), 2002/96/EG 27.01.2003 (WEEE)
NSTS 0911-E0280B
12 / 14
Subject to change without notice
p)
)
r
)
DIRECTIONAL ANTENNAS - CHARACTERISTICS
Antenna Factors (typical)
Radiation Pattern (typical)
Directional Antenna 1 (Loo
Frequency
Directional Antenna 2 (Dipole
Directional Antenna 3(Log Pe
f < 1.2 GHz 1.2 < f < 2.5 GHz
NSTS 0911-E0280B
13 / 14
Subject to change without notice
ORDERING INFORMATION
IDA Part number
IDA Set with Antennas
IDA-3106 Interference Analyzer, Set with 20 MHz - 6 GHz Antennas
includes:
- IDA-3106 Basic Unit
- Active Antenna Handle
- Directional Antenna 1, 20 MHz - 250 MHz
- Directional Antenna 2, 200 MHz - 500 MHz
- Directional Antenna 3, 400 MHz - 6 GHz
- Arm Support
- Headphone, 3.5 mm Plug
IDA Basic Unit
IDA-3106 Interference Analyzer , Basic Unit Set
includes:
- IDA-3106 Basic Unit - Configuration Software
- Cable, USB 2.0, A/B mini, 1.8 m - Calibration Report
OPTIONS
Option, Mapping 3100/95.01
Option, Scope and I/Q Recorder 3100/95.02
ANTENNAS
Active Antenna Handle (required for Dir. Antennas 1, 2 and 3, Calibration Report included) 3100/10
Directional Antenna 1, 20 MHz - 250 MHz 3100/11
Directional Antenna 2, 200 MHz - 500 MHz 3100/12
Directional Antenna 3, 400 MHz - 6 GHz 3100/13
Arm Support (for Active Antenna Handle) 3100/90.10
ACCESSORIES
Battery Pack, Rechargeable, 7V4 / 5100 mAh (one is included with each IDA Basic Unit) 3001/90.01
Charger Set for Battery Pack, External 3001/90.07
Power Supply DC Vehicle Adapter 2260/90.56
Protective Soft Carrying Bag for IDA-3106 Basic Unit 3001/90.13
Hardcase for IDA Sets (included in Set 3106/102) 3100/90.01
Headphone, 3.5mm Plug (included in Set 3106/102) 3100/90.11
O/E Converter USB, RP-02/USB 2260/90.07
Cable, FO Duplex (1000µm), RP-02, 20m 2260/91.03
RF-Cable, 9 kHz – 6 GHz, N 50 ohm, 5m 3602/02
Tripod, Non-Conductive, 1.65 m, with Carrying Bag 2244/90.31
Operating Manual IDA-3106, German 3106/98.01
- Carrying Strap for IDA
- Power Supply 12VDC, 100V-240VAC
- Cable, USB 2.0, A/B mini, 1.8m
- Configuration Software
- Operating Manual IDA-3106, English
- Hardcase for IDA Sets
- Calibration Reports (Basic Unit and Handle)
- Operating Manual IDA-3106, English - Power Supply 12 VDC, 100 V-240 VAC
3106/102
3106/101
Narda Safety Test Solutions GmbH
Sandwiesenstrasse 7
72793 Pfullingen, Germany
Phone: +49 (0) 7121-97 32-777
Fax: +49 (0) 7121-97 32-790
E-Mail: support@narda-sts.de
www.narda-sts.de
® Names and Logo are registered trademarks of Narda Safety Test Solutions GmbH and L3 Communications Holdings, Inc.
Trade names are trademarks of the owners.
NSTS 0911 - ME-E0280B
Narda Test Solutions GmbH
Beijing Representative
Xiyuan Hotel, No. 1 Sanlihe Road, Haidian
100044 Beijing, China
Phone: +86 10 68305870
Fax: +86 10 68305871
E-Mail: support@narda-sts.cn
www.narda-sts.cn
14 / 14
Subject to change without notice
Loading...
