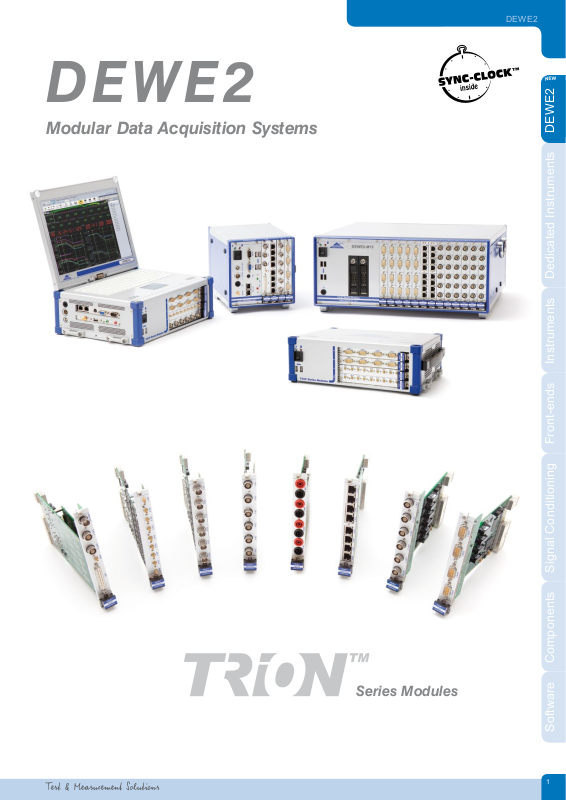

DEWE2

Modular Data Acquisition Systems

DEWE2

Series Modules

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

1

DEWE2 System Architecture

System Architecture

Data Acquisition Module

Sensor

connectorpanel

Signal conditioningFlexible

Filtering A/D conversion High speed

User exchangeable TRION™ modules

Binary / counter / timer modules

Bus interface modules

Analog signal conditioning modules

High speed data interface

data transfer and

synchronization

Timing / sync modules

2

www.dewetron.com

DEWE2 System Architecture

Housing and Storage Controlling and Analysis

Wide range of housings

DEWE2-A series

All-in-one

DEWE2-M series

Mainframes

DEWE2-F series

Front-ends

One software for all

Easy-to-use

Full hardware control

Powerful online or offline data

processing

Attractive online displays

Fast data analysis

Post processing and/or export to

many file formats

Simple reports

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

3

DEWE2 Definitions

A-series

All-in-one instruments

Most compact, includes powerful i7 computer, brilliant
display and keyboard, touchpad.

Most convenient for all mobile applications like inspect­ing facilities, rotating machines, test stands, power
generators, electrical machines, buildings, vehicles,
aircrafts, trains, and anything else.

M-series

Mainframes

Like the A-series but without display; keyboard and point­ing device are included loose.

Very popular for applications where the instrument is
installed in a poorly visible place for the user (e.g. in a
car the instrument is often installed in the leg area of the
passenger seat but the driver needs to see the screen) or
laboratory applications and test rigs.

F-series

Front-ends

F-series units don´t have a built-in computer but supply
measurement data over a robust high-speed PCI Express
bus. Multiple units can be daisy-chained.

One popular application is to use F-series devices with a
laptop computer for mobile applications.

The second use of F-series devices is to expand A or M
series instruments.

4

www.dewetron.com

SYNC-CLOCK™ technology

DEWE2 Advantages

DEWETRONs unique SYNC-CLOCK™ technology
ensures synchronized recording of

Analog signals like acceleration, temperature,

strain, pressure, force, voltage, etc.

Digital signals like static, counters, encoders

Bus systems like CAN-bus, FlexRay™, XCP

GPS

Video cameras (hardware synchronized)

Major sensor systems like Kistler RoaDyn® 2000 wheel

force transducers or GeneSys ADMA INS/GPS system

Your advantage:

SYNC-CLOCK™ enables reduction of

editing and analysis times by up to 50 %.

At the same time, the quality of the analysis results

can be improved by a factor of 5 – 10.

User exchangeable modules

Enjoy maximum flexibility

Mix any TRION™ modules to perfectly match

your sensor setup

Use isolated inputs and differential inputs at the same time

Use modules of different sampling speed

and resolution in one chassis

Add modules at any time;

analog, digital, CAN, time code, sync, etc.

Reconfigure your DEWE2 system in minutes

by changing TRION™ modules

Rugged PXI-compatible interface for high reliability

SYNC-CLOCK™

inside

Analog

Digital

Bus system

GPS

Video

Sensor system

DEWETRON INSTRUMENT

SYNC

RECORDING

Your advantage:

Enables optimal utilization of your DEWE2 instrument

Secures your investment

Input connectors to match your sensors

All TRION™ modules have a factory-exchangeable connector panel

Some types of TRION™ modules are already available

with different input connectors

Customized connector panels can be offered to match your sensors

Your advantage:

Your sensors can keep their cables

and can still be used with existing systems

Safes a lot of money when the quantity of sensors is high

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

5

DEWE2 Advantages

High channel density

The basic consideration for DEWE2 chassis

is a height of 4 U (~177 mm or ~7 in.)

TRION™ modules are made for optimal utilization of that space

The size of input connectors limits the channel count per module

A single 4 U chassis can hold up to 144 analog inputs

Systems are scalable from six to thousands of channels

Your advantage:

The small size and the low weight of portable systems

enable simple and cheap transportation

In high channel-count applications more than 1000

channels can be fitted into a single 19” cabinet

4U

5U

Self test and calibration port

Most TRION™ modules offer self-test functionality

A calibration port is available for efficient calibration

of high channel-count systems

Sensors don't need to be disconnected during calibration

Your advantage:

Confidence in measurement results,

robust high-quality data are ensured

Significant time savings at calibration of

high channel-count systems

SuperCounter™

Perfectly synchronized to analog and all other inputs

Accepts any signal wave form, trigger level from 0 to 50 V

3 modes: event counting, waveform timing and sensor input

C

A

L

I

B

R

A

T

I

O

N

P

O

R

T

Counter/encoder inputs of TRION™ modules are phase
synchronized. Refering to the diagram, you can see that a
standard counter is always a sample behind. With software

ADC-clock

interpolation you can get closer, but only DEWETRONs
advanced technology is both, fully phase AND amplitude

Counter input

corrected.

Ideal counting

Your advantage:

Efficiency: no sensor output-signal adaption required,

single cable connection including power supply

Reduction of analysis time

due to synchronized recording

6

SuperCounter™

Software interpolation

Standard counter

www.dewetron.com

DEWE2 Advantages

Demand for greater accuracy? Voltage drops disturb your measurement?

Highest precision ever

TRION™ series modules easily take it on with all
similar products on the market

Have had enough of ground loops? Need more battery time?

Isolated power supply

Maximum safety

No interference between instrument and test object

Internal buffer battery

Supply voltage drops up to 10 minutes are bridged by
an internal buffer battery

Board Voltage [V]

Fully battery powered

Hot-swappable batteries for continuous operation
without an external power source for hours.

typical
voltage
curve when
you start
a car

What’s most valuable? Safety of classified data?

Your data

We protect your critical data by using reliable,
industrial solid state disks only (no consumer SSD!)

Concerned about vibrations? Respectful of system restore?

High shock and vibration rating

DEWE2 instruments are tested for high shock and
vibration resistance according international standards

Removable hard disk / SSD

The perfect way to protect your data, and also to
work easily within classified data environments.

Recovery inside

An internal dedicated SATA SSD drive stores the fac­tory settings at time of shipment. Total recovery is
possible quickly, everywhere at any time and without
any external media

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

7

DEWE2 Synchronization

SYNC it all!

To create high channel count systems or for distributed measurements DEWE2 instruments sup­port multiple synchronization options. A special feature is the perfectly hardware synchronized
video acquisition since also for data analysis the slogan ”a picture is worth a thousand words” is
true.

Synchronization of multiple DEWE2 systems via Sync-cable

Sync via TRION™ modules

To use TRION-BASE or TRION-TIMING modules for synchronization of multiple units is the most convenient and
easiest way.

Example:

Two instruments synchronized via
TRION-BASE modules
(multiple units possible)

WLAN

DEWE2-A4

with TRION-BASE module

DEWE2-M7s

with TRION-BASE module

User installation possible

Sync up to 1000 meters (IRIG DC, cable length delay compensation)

Example: Three instruments synchronized via TRION-TIMING modules (multiple units possible)

DEWE2-A13

with TRION-TIMING module

DEWE2-M13s

with TRION-TIMING module

DEWE2-M7s

with TRION-TIMING module

Sync up to 100 meters via TRION-SYNC-BUS

Sync via chassis options

These options do not block a module slot but need to be
factory installed at time of initial order.

Two instruments synchronized via DW2-SYNC option.

Two DEWE2-A4 with

option DW2-SYNC

Factory installation only

Sync up to 100 meters via TRION-SYNC-BUS

8

www.dewetron.com

DEWE2 Synchronization

Synchronization to GPS or IRIG time-code

There are 2 ways how to synchronize DEWE2 instruments very accurately to absolute time. Both, GPS time and IRIG
time, enable execution of synchronized distributed measurements over unlimited distances. Each instrument (or
array of instruments) must be connected to the time-code via a TRION-TIMING module.

IRIG

Two instruments synchronized
to absolute IRIG time

IRIG SOURCE

GPS

Two instruments
synchronized via GPS

VIDEO-SYNC

Hardware synchronized video of up to 200 frames per second
(camera clocked by DEWE2 instrument):
accurate per sample, no delay

Software synchronized low-cost video (USB or PAL/NTSC cameras):
optimized low latency, known delay of USB camera can be compensated

High speed video up to 500 000 frames per second:
online sync for Photron cameras, post-sync for any high-speed .avi file.

DEWE2-A4 with option

TRION-BASE module

DEWE-CAM-GIGE-120

SYNC

Gigabit ethernet interface (up to 100 m cable length)

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

9

DEWE2 All-in-One Instruments

A-series

DEWE2

All-In-One

Instruments

DEWE2-A4 DEWE2-A7 DEWE2-A13

Slots for TRION™ acquisition modules 4 7 13

Dynamic channel expansion Ethernet Ethernet Ethernet

Quasi-static channel expansion

Data storage

Technology Removable Solid State Disk (SLC type) Hard disk Hard disk

Capacity 120 GB (up to 256 GB) 1 TB 1 TB

Typ. duration of recording
(16 ch. / 10 kS/s/ch. / 16 bit)

Gap free storing rate

Main system

Display 13“ (1280 x 800) 17“ (1920 x 1080) 17“ (1920 x 1080)

Processor Intel® Core™ i7 Intel® Core™ i7 Intel® Core™ i7

Power supply

Input voltage: rated (max.)

Optional

Environmental

Operating temperature

Storage temperature -20 to +70 °C -20 to +70 °C -20 to +70 °C

Humidity

Max. Altitude 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) 20 m/s² 20 m/s² 20 m/s²

Shock (EN 60028-2-27) 30 g 15 g 15 g

Random vibration (EN 60721-3-2) Class 2M3 Class 2M2 Class 2M2

Dimensions

Dimensions (W x D x H)
(without handle)

Weight without TRION™ modules Typ. 5.9 kg (13 lb.) Typ. 14 kg (31 lb.) Typ. 15 kg (33 lb.)

1)

Please nd current specications in the latest price list

2)

Depending on conguration (performance is different if e.g. Video data is involved and 2 or more les are written in parallel)

3)

Weight of one battery: 660 g (1.45 lb.)

1)

2)

1)

11 to 32 V

incl. external AC power supply

for ~ 10 min. operation and/or

DW2-UPS-150-DC (ext. battery pack)

0 to +50 °C, down to -20 °C with

EPAD2

CPAD2 via TRION-CAN

1 day 35 days 35 days

Typ. 90 MB/s Typ. 90 MB/s Typ. 90 MB/s

(10 to 36 VDC) isolated

DC

Add internal buffer battery

prewarmed unit

10 to 80 % non cond.,
5 to 95 % rel. humidity

318 x 253 x 128 mm

(12.5 x 10 x 5 in.)

100 to 240 V

Battery powered, 3 battery slots 3),
3 batt. for ~2 hours operation included,
incl. external AC power supply,optional

0 to +50 °C, down to -20 °C with

EPAD2

CPAD2 via TRION-CAN

(90 to 264 VAC) 100 to 240 V

AC

external DC power supply

prewarmed unit

10 to 80 % non cond.,

5 to 95 % rel. humidity

450 x 246 x 303 mm

(17.7 x 9.7 x 11.9 in.)

CPAD2 via TRION-CAN

Battery powered, 3 battery slots 3),
3 batt. for ~2 hours operation included,
incl. external AC power supply,optional

external DC power supply

0 to +50 °C, down to -20 °C with

prewarmed unit

10 to 80 % non cond.,
5 to 95 % rel. humidity

450 x 246 x 303 mm

(17.7 x 9.7 x 11.9 in.)

EPAD2

(90 to 264 VAC)

AC

10

DEWE2-A4 with

Removable Solid State Disk

DW2-UPS-150-DC

The hot-swappable

batteries guarantee

continuous operation with-

out an external power source.

DEWE2-A7

DEWE2-A13

www.dewetron.com

F-series

DEWE2 Front-ends

DEWE2 Front-ends

DEWE2-F4s DEWE2-F7s DEWE2-F13s DEWE2-F18

Slots for TRION™
acquisition modules

Main system

Main frame bandwidth 120 MB/sec 120 MB/sec 120 MB/sec 120 MB/sec

Upstream interface (to host) PCI Express X1 PCI Express X1 PCI Express X1 PCI Express X1

Downstream interface - optional optional PCI Express X1

Host PC interface

Power supply standard:
rated (max.)

Optional power supply:
rated (max.)

Dimensions (W x D x H)

Weight Typ. 3.9 kg (8.6 lb.) Typ. 4.9 kg (10.8 lb.) Typ. 8 kg (17.6 lb.) typ. 12.0 kg (26.4 lb.)

Environmental specications

Operating temperature

Storage temperature -20 to +70 °C -20 to +70 °C -20 to +70 °C -20 to +70 °C

Humidity

Max. altitude 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) 20 m/s² 20 m/s² 20 m/s² 20 m/s²

Shock (EN 60028-2-27) 30 g 30 g 15 g 15 g

Random vibration (EN 60721-3-2) Class 2M3 Class 2M3 Class 2M2 Class 2M2

1)

Please nd current specications in the latest price list

1)

100 to 240 V

11 to 32 V

optional with buffer battery

177 x 230 x 177mm (4 u)

0 to +50 °C, down to -20 °C

10 to 80 % non cond.,
5 to 95 % rel. humidity

4 7 13 18

Express card 34, 1 m cable (optional 3 m or 7 m)

optional PCI Express X1 card

(90 to 264 VAC) 100 to 240 V

AC

(10 to 36 VDC)

DC

isolated,

for ~ 10 min.

(7 x 9.1 x 7 in.)

without feet

with prewarmed unit

11 to 32 V

optional with buffer battery

258 x 230 x 177 mm (4 u)

0 to +50 °C, down to -20 °C

with prewarmed unit

10 to 80 % non cond.,
5 to 95 % rel. humidity

(90 to 264 VAC) 100 to 240 V

AC

(10 to 36 VDC)

DC

isolated,

for ~ 10 min.

(10.2 x 9.1 x 7 in.)

without feet

(90 to 264 VAC) 100 to 240 V

AC

Redundant AC power supply Redundant AC power supply

441 x 230 x 177 mm (4 u)

(17.4 x 9.1 x 7 in.)

without feet

0 to +50 °C, down to -20 °C

with prewarmed unit

10 to 80 % non cond.,

5 to 95 % rel. humidity

(90 to 264 VAC)

AC

441 x 427 x 177 mm (4 u)

(17.4 x 16.8 x 7 in.)

without feet

0 to +50 °C, down to -20 °C

with prewarmed unit

10 to 80 % non cond.,
5 to 95 % rel. humidity

DEWE2-F4s

PCIe connection up to 7 meters

DEWE2-A4 with option

DW2-LINK-PCIE-1-S

TRION-SYNC-bus

PCIe connection up to 7 meters

DEWE2-F7s with option

DW2-LINK-PCIE-2-S

PCIe PCIe

SYNC

DEWE-818

DEWE2-F18

DEWE2-F18

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

11

DEWE2 Mainframes

M-series

DEWE2 Mainframes

DEWE2-M4 DEWE2-M4s DEWE2-M7s DEWE2-M13s DEWE2-M13

Slots for TRION™ acquisition modules 4 4 7 13 13

Dynamic channel expansion Ethernet Ethernet Ethernet Ethernet Ethernet

Quasi-static channel expansion

Data storage

Technology Removable Solid State Disk (SLC type) Solid State Disk (SLC type) Solid State Disk (SLC type) Solid State Disk (SLC type) Hard disk (plus two 3,5“ bays)

Capacity 120 GB (up to 256 GB) 120 GB (up to 256 GB) 120 GB (up to 256 GB) 120 GB (up to 256 GB) 1 TB

Typ. duration of recording
(16 ch. / 10 kS/s/ch. / 16 bit)

Gap free storing rate

Main system

Display

Processor Intel® Core™ i7 Intel® Core™ i7 Intel

Power supply

Standard: rated (max.)

Optional

Environmental

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit 0 to +50 °C, down to -20 °C with prewarmed unit 0 to +50 °C, down to -20 °C with prewarmed unit 0 to +50 °C, down to -20 °C with prewarmed unit 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C -20 to +70 °C -20 to +70 °C -20 to +70 °C -20 to +70 °C

Humidity

Max. Altitude 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft) 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) 20 m/s² 20 m/s² 20 m/s² 20 m/s² 20 m/s²

Shock (EN 60028-2-27) 30 g 30 g 30 g 30 g 15 g

Random vibration (EN 60721-3-2) Class 2M3 Class 2M3 Class 2M3 Class 2M3 Class 2M2

Dimensions

Dimensions (W x D x H)
(without handle)

Weight without TRION™ modules Typ. 3.9 kg (8.6 lb.) Typ. 3.9 kg (8.6 lb.) Typ. 4.9 kg (10.8 lb.) Typ. 13.0 kg (28.6 lb.) Typ. 13.0 kg (28.6 lb.)

1)

Please nd current specications in the latest price list

2)

Depending on conguration (performance is different if e.g. Video data are involved and 2 or more les are written in parallel)

3)

Weight of one battery: 660 g (1.45 lb.)

1)

2)

1)

MOB-DISP-12-A recommended

11 to 32 V

incl. external AC power supply

for ~ 10 min. operation and/or

DW2-UPS-150-DC (ext. battery pack)

EPAD2

CPAD2 via TRION-CAN

4 days 4 days 4 days 4 days 35 days

Typ. 90 MB/s Typ. 90 MB/s Typ. 90 MB/s Typ. 90 MB/s Typ. 80 MB/s

no display

(10 to 36 VDC) isolated;

DC

add internal buffer battery

10 to 80 % non cond.,
5 to 95 % rel. humidity

318 x 253 x 108 mm

(12.5 x 10 x 4.3 in.)

MOB-DISP-12-A recommended

11 to 32 V

incl. external AC power supply

EPAD2

CPAD2 via TRION-CAN

no display

(10 to 36 VDC) isolated;

DC

add internal buffer battery

for ~ 10 min. operation

10 to 80 % non cond.,

5 to 95 % rel. humidity

177 x 230 x 177 mm (4 u)

(7 x .9.1 x 7 in.) without feet

12

DW2-UPS-150-DC

The hot-swappable batteries
guarantee continuous
operation without external
power source

RS-232

DC Power

DEWE2-M7s

DEWE2-M13

www.dewetron.com

DEWE2 Mainframes

EPAD2

CPAD2 via TRION-CAN

MOB-DISP-12-A recommended

11 to 32 V

no display

®

Core™ i7 Intel® Core™ i7 Intel® Core™ i7

(10 to 36 VDC) isolated;

DC

incl. external AC power supply

add internal buffer battery

for ~ 10 min. operation

10 to 80 % non cond.,
5 to 95 % rel. humidity

EPAD2

CPAD2 via TRION-CAN

MOB-DISP-12-A recommended

11 to 32 V

no display

(10 to 36 VDC) isolated;

DC

incl. external AC power supply

add internal buffer battery

for ~ 5 min. operation

10 to 80 % non cond.,
5 to 95 % rel. humidity

EPAD2

CPAD2 via TRION-CAN

no display

100 to 240 V

(90 to 264 V

AC

Redundant AC power supply

10 to 80 % non cond.,

5 to 95 % rel. humidity

)

AC

258 x 230 x 177 mm (4 u)

(10.2 x 9.1 x 7 in.) without feet

(4 u plus 1 u for cooling in cabinet required)

441 x 230 x 177 mm

(17.4 x 9.1 x 7 in.) without feet

DEWE2-M13-MK

19“ mounting kit for the
DEWE2-M13 series, 4U

MOB-DISP-12-A

Very rugged
external display

(4 u plus 1 u for cooling in cabinet required)

441 x 427 x 177 mm

(17.4 x 16.8 x 7 in.) without feet

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

13

DEWE2-A4 / M4

DEWE2-A4 / M4

4 slots for TRION™ series modules

Isolated wide range DC power supply

Optional internal buffer battery for ~10 minutes

Fully battery-powered by stackable battery pack

Removable solid state disk

Powerful Intel® Core™ i7 processor

DEWE2-A4 DEWE2-M4

Slots for TRION™ modules 4

Dynamic channel expansion Ethernet

Quasi-static channel expansion

Main system

Data storage

Gap free storing rate Typ. 90 MB/s

Power supply standard: rated (max.) 11 to 32 V

Power supply optional add internal buffer battery for ~10 minutes

Display 13” TFT display, 1280 x 800 no display

Processor Intel® Core™ i7

RAM 4 GB

Ethernet

Wireless LAN 1 antenna, 802.11n standard

USB interfaces 4

RS-232 interface 1

Keyboard/pointing device 84 keys keyboard and touchpad integrated external keyboard and mouse included

Operating system Microsoft® WINDOWS® 7

Dimensions (W x D x H)

Weight without TRION™ modules Typ. 5.9 kg (13 lb.) Typ. 3.9 kg (8.6 lb.)

Power consumption without modules Typ. 75 W Typ. 60 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27) Acceleration 30 g, duration 11ms, pulse form half sine, 3 pumps/direction, 6 directions

Random vibration (EN 60721-3-2) Class 2M3 (spectral acceleration density 3 m²/s³, frequency range 10 Hz-200 Hz, duration 30 min/direction)

1)

Please find current specifications in the latest price list

2)

Depends on the system configuration

1)

removable 120 GB solid state disk (SLC type)

(10 to 36 VDC) isolated; external AC power supply adapter included

DC

optional 2 additional 1 Gbit Ethernet (replaces WLAN and Audio)

317 x 252 x 128 mm

( 12.5 x 9.9 x 5 in.)

EPAD2

CPAD2 via TRION-CAN

optional up to 256 GB

2)

1x 1 Gbit Ethernet

317 x 252 x 108 mm

(12.5 x 9.9 x 4.3 in.)

14

Channel Expansion

DEWE2-A4 with two
channel expansion
chassis DEWE2-F7s

DEWE2-A4 with option

DW2-LINK-PCIE-1-S

TRION-SYNC-bus

PCIe connection up to 7 meters

DEWE2-F7s with option

DW2-LINK-PCIE-2-S

DEWE2-F7s with option

DW2-LINK-PCIE-2-S

www.dewetron.com

DEWE2 Options, Upgrades, Accessories

SYSTEM OPTIONS

DW2-PS-DC-BUFFER Internal battery for a DEWE2 system. Bridges outages of the supply voltage up to approx. 5 - 10 minutes

DW2-LAN-2 Adds two additional 1 GBit LAN interfaces. Replaces the WLAN and AUDIO interfaces

FLEXRAY-INT-1 Adds one FLEXRAY interface. Changes removable SSD to xed installed SSD.

DW2-LINK-PCIE-1-S

DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m

DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m

UPGRADES

SSD-120-240 Upgrade of 120 GB ash disk to 240 GB ash disk

SSD-120-480 Upgrade of 120 GB ash disk to 480 GB ash disk

Adds 1 PCIe interface and 2 TRION-SYNC-BUS interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-LAN-2 option

ACCESSORIES

DW2-CBL-POW-B-2 Power supply cable 2 m to two male banana plugs

DW2-UPS-150-DC

BAT-95WH Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A

BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor

BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor

DE-POWERBOX-12

External 130 W UPS and multi-battery charger with10 to 36 V
2 slots for BAT-95WH batteries, 2 batteries included
Mechanically compatible with DEWE2-A4 / DEWE2-M4, cable set included

Power distribution box with 12 connectors for DC power with voltage meter
Input via 5 m connection cable 2x 10 mm² with 50 A fuse, terminated with 2 ring tongues,
2nd input for a buffer battery (from customer) to achieve UPS function

DW2-PS-DC-BUFFER option

Bridges supply voltage outages

FLEXRAY-INT-1 optionDW2-SYNC option

DC

SSD-32-64/128/256

Flash disk upgrade

DW2-LINK-PCIE-1-S option

(max.) input range

DW2-UPS-150-DC, stackable

130 W UPS with 2 slots for batteries

BAT-CHARGER-1 BAT-CHARGER-4 MOB-DISP-12

DE-POWERBOX-12

DC Power distribution box

External display

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

15

DEWE2-A7 / A13

DEWE2-A7 / A13

7 / 13 slots for TRION™ series modules

Powerful Intel® Core™ i7 processor

Brilliant 17'' full-HD display

Optional fully battery powered

DEWE2-A7 DEWE2-A13

Slots for TRION™ modules 7 13

Dynamic channel expansion Ethernet

Quasi-static channel expansion

Main system

Data storage 1 TB

Gap free storing rate Typ. 90 MB/s

Power supply standard: rated (max.) 100 to 240 VAC (90 to 264 VAC)

Power supply optional

Display 17” TFT display, 1920 x 1080

Processor Intel® Core™ i7

RAM 4 GB

Ethernet 2 x 1 Gbit Ethernet

USB interfaces 7

RS-232 interface 1

Keyboard/pointing device 84 keys keyboard and touchpad integrated

Operating system Microsoft® WINDOWS® 7

Dimensions (W x D x H)

Weight without TRION™ modules Typ. 14 kg (31 lb.) Typ. 15 kg (33 lb.)

Power consumption without modules Typ. 120 W Typ. 120 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27) Acceleration 15 g, duration 11ms, pulse form half sine, 3 pumps/direction, 6 directions

Random vibration (EN 60721-3-2) Class 2M2 (spectral acceleration density 1 m²/s³, frequency range 10 Hz-200 Hz, duration 30 min/direction)

1)

Please find current specifications in the latest price list

2)

Depends on the system configuration

3)

Weight of one battery: 660 g (1.45 lb.)

1)

Battery powered, 3 battery slots 3),

3 batt. for ~2 hours operation included,

incl. external AC power supply, optional external DC power supply

450 x 246 x 303 mm

(17.7 x 9,7 x 11.9 in.)

EPAD2

CPAD2 via TRION-CAN

2)

450 x 246 x 303 mm

(17.7 x 9,7 x 11.9 in.)

16

Channel Expansion

DEWE2-A7 with option

DW2-LINK-PCIE-1-S

PCIe connection up to 7 meters PCIe connection up to 7 meters

TRION-SYNC-bus TRION-SYNC-bus

DEWE2-F13s with option

DW2-LINK-PCIE-2-S

DEWE2-F7s with

TRION-TIMING module

www.dewetron.com

DEWE2 Options, Upgrades, Accessories

SYSTEM OPTIONS

Upgrade of DEWE2-A7/A13 instruments to battery power supply with UPS function

DW2-A13-PS-BAT

DW2-LINK-PCIE-1-S

FLEXRAY-INT-1 Adds one FLEXRAY interface to a DEWE2 system.

DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m

DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m

UPGRADES

HDD-1000-SSD-120 Upgrade to 120 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

HDD-1000-SSD-240 Upgrade to 240 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

HDD-1000-SSD-480 Upgrade to 480 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

18 to 24 VDC (max.) non-isolated input, incl. external AC adaptor
3 slots for hot-swappable batteries, 3 batteries for appr. 2 hours operation included

Adds 1 PCIe interface and 2 TRION-SYNC-BUS interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-SYNC optionDW2-LINK-PCIE-1-S option

DEWE2-A7 DEWE2-A13

DEWE2-A13 with DW2-A13-PS-BAT option

ACCESSORIES

DW2-A13-CC

DEWE-DCDC-24-300-ISO External power supply, input voltage 10 to 36 VDC (max.), output 24 VDC 300 W

BAT-95WH Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A

BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor

BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor

Shipping/carrying case for the DEWE2-A7 or DEWE2-A13 mainframe. Common-carrier rated, internal custom foam
cut-out, high impact construction. Hasps for attaching padlocks, pull-out handle and wheels for easy transport

Carrying bag

DEWE-DCDC-24-300-ISO

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

BAT-CHARGER-1 BAT-CHARGER-4 DW2-A13-CC

Shipping/carrying case

17

DEWE2-M4s / M7s / M13s

DEWE2-M4s / M7s / M13s

4/7/13 slots for TRION™ series modules

All connections at the front

Isolated wide range DC power supply

Optional internal buffer battery for ~10 minutes

Powerful Intel® Core™ i7 processor

DEWE2-M4s DEWE2-M7s DEWE2-M13s

Slots for TRION™ modules 4 7 13

Dynamic channel expansion Ethernet

Quasi-static channel expansion

Main system

Data storage 120 GB solid state disk (SLC type), optional up to 480 GB

Gap free storing rate Typ. 90 MB/s

Power supply: rated (max.)

Display no display, MOB-DISP-12-A recommended

Processor Intel® Core™ i7

RAM 4 GB

Ethernet

Wireless LAN 1 antenna, 802.11n standard

USB interfaces 6

RS-232 interface 1

FireWire® interface optional (replaces WLAN and Audio)

Keyboard/pointing device Keyboard and mouse included

Operating system Microsoft® WINDOWS® 7

Dimensions (W x D x H)
without feet

Weight Typ. 3.9 kg (8.6 lb.) Typ. 4.9 kg (10.8 lb.) Typ. 13 kg (28.6 lb.)

Power consumption without modules Typ. 60 W Typ. 60 W Typ. 60 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27) Acceleration 30 g, duration 11ms, pulse form half sine, 3 pumps/direction, 6 directions

Random vibration (EN 60721-3-2) Class 2M3 (spectral acceleration density 3 m²/s³, frequency range 10 Hz-200 Hz, duration 30 min/direction)

1)

Please find current specifications in the latest price list

2)

Depends on the system configuration

1)

isolated 11 to 32 V

optional 2 additional 1 Gbit Ethernet (replaces WLAN and Audio)

177 x 230 x 177 mm (4 u)

(7 x 9.1 x 7 in.)

(10 to 36 VDC), external AC power supply adapter included

DC

optional internal UPS battery for ~10 minutes

258 x 230 x 177 mm (4 u)

EPAD2

CPAD2 via TRION-CAN

2)

1x 1 Gbit Ethernet

(10.2 x 9.1 x 7 in.)

441 x 230 x 177 mm

(4 u plus 1 u for cooling in cabinet)

(17.4 x 9.1 x 7 in.) without feet

18

Channel Expansion

DEWE2-M7s with option

DW2-LINK-PCIE-1-S

PCIe connection up to 7 meters (250 MB/s)

TRION-SYNC-bus

DEWE2-F13s with option

DW2-LINK-PCIE-2-S

www.dewetron.com

DEWE2 Options, Upgrades, Accessories

SYSTEM OPTIONS

M4s M7s M13s

DW2-PS-DC-BUFFER

DW2-LAN-2 Adds two additional 1 GBit LAN interfaces. Replaces the WLAN and AUDIO interfaces

DW2-LINK-PCIE-1-S

DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m

DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m

UPGRADES

SSD-120-240 Upgrade of 120 GB ash disk to 240 GB ash disk

SSD-120-480 Upgrade of 120 GB ash disk to 480 GB ash disk

Adds an internal battery and bridges outages of the supply voltage up to approx. 5 - 10 minutes
No status information is supplied.

Adds 1 PCIe interface and 2 TRION-SYNC-BUS interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-LAN-2

DEWE2-M4s with 2x

1 Gbit Ethernet option

ACCESSORIES

DW2-CBL-POW-B-2

DW2-UPS-150-DC

DW2-UPS-150-DC-CBL-2 2 m RS-232 cable and DC power cable (terminated with Lemo FGJ.2B.303)

DEWE-UPS-300-DC

BAT-95WH Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A

BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor

BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor

DE-POWERBOX-12

2 male banana plugs to DC power supply input of DEWE2 system. Applicable to DEWE2-A4, DEWE2-M4, DEWE2-M4s,
DEWE2-M7s and DEWE2-F4s / -F7s with option DW2-PS-DC

External 130 W UPS and multi-battery charger with isolated 10 to 36 VDC (max.) input range. 2 slots for BAT-95WH batteries,

2 batteries included, cable set included. Longer cables for exibe use of DW2-UPS-150-DC optionally available

External 300 W UPS and multi-battery charger with isolated 10 to 36 VDC (max.) input range for powering systems with wide
range DC input, output of DEWE-UPS-300-DC is 12 .. 16 VDC when running from batteries and 24 VDC when powered from
DC, 4 slots for BAT-95WH batteries, 2 batteries included

Power distribution box with 12 connectors for DC power with voltage meter
Input via 5 m connection cable 2x 10 mm² with 50 A fuse, terminated with 2 ring tongues,
2nd input for a buffer battery (from customer) to achieve UPS function
Outputs: 1x Lemo EGG.3B.302 socket, 1 pair of high-current banana sockets, 2 cigarette lighter sockets, 2x Lemo
EGG.2B.302 sockets, 2x Lemo EGG.1B.302 sockets, 4 pairs of banana sockets

DEWE2-M7s with option

DW2-LINK-PCIE-1-S

4U

5U

M13s installed into a 19” cabinet

5 u required (4 u = system + 1 u = cooling)

130 W UPS with 2 slots for batteries

DW2-UPS-150-DC,

BAT-CHARGER-1 BAT-CHARGER-4 DE-POWERBOX-12

DC Power distribution box

MOB-DISP-12

External display

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

19

DEWE2-M13

DEWE2-M13

13 slots for TRION™ series modules

Free PCI slots inside

One internal hard disk and 2 bays for removable disks

19” rack-mountable or benchtop use

DEWE2-M13

Slots for TRION™ modules 13

Dynamic channel expansion Ethernet

Quasi-static channel expansion

Main system

Free slots (PCI, PCIe) 2 PCI, 1 PCI x4, 1 PCI x16

Data storage

Gap free storing rate Typ. 80 MB/s

Power supply: rated (max.) 100 to 240 VAC (90 to 264 VAC)

Display no display

Processor Intel® Core™ i7

RAM 4 GB

Ethernet 2x 1 Gbit Ethernet

USB interfaces 8

FireWire® interface optional

Keyboard/pointing device external keyboard with touchpad

Operating system Microsoft® WINDOWS® 7

Dimensions (W x D x H)
without feet

Weight Typ. 13.0 kg (28.6 lb.)

Power consumption without modules Typ. 100 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27) Acceleration 15 g, pulse length 11ms, pulse form half sine, 3 moves/direction, 6 directions

Random vibration (EN 60721-3-2) Class 2M2 (spectral acceleration density 1 m²/s³, Frequency range 10 Hz-200 Hz, duration 30 min/direction)

1)

Please find current specifications in the latest price list

2)

Depends on the system configuration

1)

2 free 3.5” bays for further hard disks

441 x 427 x 177 mm (4 u plus 1 u for cooling in cabinet required)

EPAD2

CPAD2 via TRION-CAN

1 TB hard disk

2)

(17.4 x 16.8 x 7 in.)

20

Channel Expansion

TRION-SYNC-bus

DEWE2-M13 with

TRION-TIMING module

and LINK-HOST-PCIE card

DEWE2-F18 with option

DW2-LINK-PCIE-2-S

PCIe connection up to 7 meters

www.dewetron.com

DEWE2 Options, Upgrades, Accessories

SYSTEM OPTIONS

DW2-PS-AC-RED

DW2-M13-MK 19“ mounting kit for the DEWE2-M13, 4U

FIREWIRE-1394 Adds a PCI Firewire IEEE-1394 card to your system. Requires one free half length PCI slot

UPGRADES

HDD-1000-SSD-120 Upgrade to 120 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

HDD-1000-SSD-240 Upgrade to 240 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

HDD-1000-SSD-480 Upgrade to 480 GB ash disk (replaces 1 TB harddisk), no moving parts, max. data throughput 40 MB/s

DW2-M13-BAY35-SATA 3.5“ SATA removable drive bay for 2.5“ harddisk or 2.5“ ash disk

HDD-SATA-750-2.5 750 GB SATA harddisk 2.5“

Redundant 115 / 230 VAC power supply for a DEWE2 system
Applicable to DEWE2-M13, DEWE2-F13s and DEWE2-F18

DEWE2-M13 with

DW2-PS-AC-RED option

ACCESSORIES

DEWE-TFT24-DT 24“ desktop TFT monitor with resolution of 1920 x 1200

DEWE-TFT19-RM Rack-mounting 9U industrial grade 19“ display with resolution of 1280 x 1024

DEWE2-M13 with typical

PCI slot configuration

DEWE2-M13 with 2x option

DW2-M13-BAY35-SATA

DEWE2-M13 and
DEWE-TFT19-RM

Rack-mounting 19“ display

5 u required

(4 u = system + 1 u = cooling)

4U

5U

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

21

DEWE2-F4s / F7s / F13s

DEWE2-F4s / F7s / F13s

4 or 7 slots for TRION™ series modules

PCI Express data link

120 MB/s data transfer rate

DEWE2-F4s DEWE2-F7s DEWE2-F13s

Slots for TRION™ modules 4 7 13

Quasi-static channel expansion CPAD via TRION-CAN (no EPAD)

Main system

Main frame bandwidth 120 MB/sec

Upstream interface (to host) PCI Express X1, 250 MB/s

Power supply: rated (max.) 100 to 240 VAC (90 to 264 VAC)

Dimensions (W x D x H)
without feet

Weight Typ. 3.9 kg (8.6 lb.) Typ. 4.9 kg (10.8 lb.) Typ. 8 kg (17.6 lb.)

Power consumption without mod. Typ. 25 W Typ. 25 W Typ. 25 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27)

Random vibration (EN 60721-3-2)

1)

Please find current specifications in the latest price list

1)

177 x 230 x 177mm (4 u)

(7 x 9.1 x 7 in.)

Acceleration 30 g,

duration 11ms, pulse form half sine, 3 pumps/direction, 6 directions

Class 2M3 (spectral acceleration density 3 m²/s³,

frequency range 10 Hz-200 Hz, duration 30 min/direction)

258 x 230 x 177 mm (4 u)

(10.2 x 9.1 x 7 in.)

441 x 230 x 177 mm

(4 u plus 1 u for cooling in cabinet)

(17.4 x 9.1 x 7 in.)

Acceleration 15 g

Class 2M2 (spectral acceleration

density 1 m²/s³, Frequency range 10

Hz-200 Hz, duration 30 min/direction)

Channel Expansion

DEWE2-F13s with

DW2-LINK-PCIE-2-S option

PCIe connection up to 7 meters (250 MB/s)

TRION-SYNC-bus

DEWE2-F7s with

DW2-LINK-PCIE-2-S option

DEWE2-F4s with

TRION-TIMING module

22

www.dewetron.com

DEWE2 Options, Upgrades, Accessories

SYSTEM OPTIONS

F4s F7s F13s

DW2-PS-DC-150

DW2-PS-DC-300

DW2-PS-AC-RED Redundant 115 / 230 VAC power supply

DW2-F13s-MK 19“ mounting kit for the DEWE2-F13s, 4U

DW2-LINK-PCIE-2-S

DW2-SYNC Adds 2 TRION-SYNC-BUS interfaces. Please order synchronization cable DW2-CBL-SYNC-xx separately

DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m

DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m

UPGRADES

LINK-HOST-UP-EX34-PCIE Changes the standard ExpressCard-34 to a PCI Express 1X host card

LINK-HOST-PCIE Additional PCI Express 1X host card, needs a free PCI Express slot in host unit

LINK-HOST-EX34 Additional ExpressCard-34 host card, for laptop with ExpressCard-34 slot

Isolated power supply 10 to 36 VDC (max.), 150 W, 2 m Power supply cable to cigarette lighter
Including external 115 / 230 VAC adaptor

Isolated power supply 10 to 36 VDC (max.), 300 W, 2 m Power supply cable to cigarette lighter
Including external 115 / 230 VAC adaptor

Extended interfaces to enable daisy-chaining. 2 PCIe 1X interfaces and 2 SYNC interfaces.
Please order synchronization cable DW2-CBL-SYNC-xx separately!

DEWE2-F7s with option

DW2-LINK-PCIE-2-S

LINK-HOST-EX34

ExpressCard-34 host card

ACCESSORIES

DW2-CBL-POW-B-2

DW2-UPS-150-DC

DW2-UPS-150-DC-CBL-2 2 m RS-232 cable and DC power cable (terminated with Lemo FGJ.2B.303)

BAT-95WH Lithium-Ion battery, 14.4 V, 95 Wh, max. 8 A

DEWE-UPS-300-DC

BAT-CHARGER-1 Desktop battery charger for 1 battery, incl. external AC adaptor

BAT-CHARGER-4 Desktop battery charger for 4 batteries, incl. external AC adaptor

DE-POWERBOX-12

LINK-HOST-PCIE

ExpressCard-34 host card

2 male banana plugs to DC power supply input of DEWE2 system. Applicable to DEWE2-A4, DEWE2-M4, DEWE2-M4s,
DEWE2-M7s and DEWE2-F4s / -F7s with option DW2-PS-DC

External 130 W UPS and multi-battery charger with isolated 10 to 36 VDC (max.) input range. 2 slots for BAT-95WH batteries,

2 batteries included, cable set included. Longer cables for exibe use of DW2-UPS-150-DC optionally available

External 300 W UPS and multi-battery charger with isolated 10 to 36 VDC (max.) input range for powering systems with wide
range DC input, output of DEWE-UPS-300-DC is 12 to 16 VDC when running from batteries and 24 VDC when powered from
DC, 4 slots for BAT-95WH batteries, 2 batteries included

Power distribution box with 12 connectors for DC power with voltage meter
Input via 5 m connection cable 2x 10 mm² with 50 A fuse, terminated with 2 ring tongues,
2nd input for a buffer battery (from customer) to achieve UPS function
Outputs: 1x Lemo EGG.3B.302 socket, 1 pair of high-current banana sockets, 2 cigarette lighter sockets, 2x Lemo
EGG.2B.302 sockets, 2x Lemo EGG.1B.302 sockets, 4 pairs of banana sockets

DEWE2-F13s with option

DW2-LINK-PCIE-2-S

DEWE2-F7s with option

DW2-PS-DC-150

DEWE2-F13s with option

DW2-PS-AC-RED

DEWE2-F13s with option

DW2-F13x-MK

BAT-CHARGER-1 BAT-CHARGER-4 DW2-UPS-150-DC,

130 W UPS with 2 slots for batteries

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

DEWE-UPS-300-DC

300 W UPS with 4 slots for batteries

23

DEWE2-F18

DEWE2-F18

18 slots for TRION™ series modules

PCI Express data link

120 MB/s data transfer rate

19" rack-mountable or benchtop use

DEWE2-F18

Slots for TRION™ modules 18

Quasi-static channel expansion CPAD via TRION-CAN (no EPAD)

Main system

Main frame bandwidth 120 MB/sec

Upstream interface (to host) PCI Express X1, 250 MB/s

Downstream interface PCI Express X1, 250 MB/s

Power supply: rated (max.) 100 to 240 V

Dimensions (W x D x H)
without feet

Weight Typ. 12.0 kg (26.4 lb.)

Power consumption without modules Typ. 25 W

Environmental specifications

Operating temperature 0 to +50 °C, down to -20 °C with prewarmed unit

Storage temperature -20 to +70 °C

Humidity 10 to 80 % non cond., 5 to 95 % rel. humidity

Max. Altitude 2000 m (6560 ft)

Sine vibration (EN 60068-2-6) Acceleration 20 m/s², Freq. 10 Hz - 150 Hz, Sweep 1 oct/min, 20 cycles

Shock (EN 60028-2-27) Acceleration 15 g, pulse length 11ms, pulse form half sine, 3 moves/direction, 6 directions

Random vibration (EN 60721-3-2) Class 2M2 (spectral acceleration density 1 m²/s³, Frequency range 10 Hz-200 Hz, duration 30 min/direction)

1)

Please find current specifications in the latest price list

1)

(90 to 264 VAC)

AC

441 x 427 x 177 mm (4 u plus 1 u for cooling in cabinet required)

(17.4 x 16.8 x 7 in.)

SYSTEM OPTIONS

DW2-PS-AC-RED Redundant 115 / 230 VAC power supply for a DEWE2 system

DW2-F18-MK 19“ mounting kit for the DEWE2-F18, 4U

DW2-CBL-SYNC-03 DEWE2 SYNC-cable with RJ45 plugs, 3 m

DW2-CBL-SYNC-07 DEWE2 SYNC-cable with RJ45 plugs, 7 m

LINK-HOST-UP-EX34-PCIE Changes the standard ExpressCard-34 to a PCI Express 1X host card

Channel Expansion

SYNCSYNCSYNC

PCIePCIePCIe PCIe

24

www.dewetron.com

Series Modules

Series Modules Overview

Model Channels Input type Sample rate Resolution

TRION-2402-dSTG 8 (with RJ-45)

V

TRION-2402-dACC 8 (with SMB)

8 (with DSUB)
6 (with LEMO 1B)

6 (with BNC)

V

TRION-2402-V 4 or 8 Voltage: up to ±1000 V, isolated inputs

V

TRION-CAN 2 or 4 Isolated high speed CAN 2.0B, up to 1 Mbit/s with programmable termination

AC/DC coupled inputs with 4 selectable high pass lters
Voltage: up to ±10 V, single ended/differential
Bridge: full/half/quarter and piezoresistive bridge, incl. shunt calibration
IEPE: 4 mA xed excitation current
Temperature: Pt100 to Pt 2000

Potentiometer, resistance: 10 Ω to 30 kΩ

Voltage: up to ±70 VDC or 46.7 V
Current: with external shunt resistor
IEPE: programmable excitation current 10 µA to 24 mA, 4 HP lters
Temperature: 2-wire Pt100 to Pt 2000, KTY
Resistance: 10 Ω to 1 MΩ
Counter: AI 1 and AI 2 are internally connected to SuperCounters™ with pro­grammable threshold levels to support any signal waveform

Current: with external shunt resistor

supports OBDII, J1939, CAN output

AC, single ended/differential, AC/DC coupling

RMS

204.8 kS/s

per channel

204.8 kS/s

per channel

204.8 kS/s

per channel

n/a n/a

24 bit

24 bit

24 bit

TRION-CNT 6 CNT / 18 DI SuperCounter™ inputs with galvanic isolation, 32 bit, 80 MHz

TRION-DIO-4800 48 DI 48 digital inputs with galvanic isolation,

TRION-BASE 8 DIO and 8 DI,

2 CNT,
1 SYNC, 1 AUX

TRION-TIMING 1 IRIG In / Out

8 DIO, 1 CNT
2 SYNC, 1 AUX

TRION-A429 4, 8, 16 or 30 ARINC 429 channels (RX/TX) - 8 bit

TRION-M1553 1,2 or 4 MIL-STD-1553 channels (dual redundant, dual- or full-function) - 8 bit

TRION-MA4 9, 10, 12 or 13 ARINC 429 channels (RX/TX) and

TRION-1628-AO-2 2 Analog output module, based on NI PXI-6251

Support sensor mode, event counting and waveform timing
Differential counter inputs with ±100 V input range
AC/DC coupling and programmable threshold levels from 0 to 50 V to support
any signal waveform
Each counter input can be selected to be 3 digital inputs

Low level: UIN < 1.8 V
High level: UIN < 3.2 V
Max input level: 35 V continuous (65 V peak)

8 digital I/Os, 8 digital inputs and 2 SuperCounters™: TTL level with 30 V over­voltage protection
1 auxiliary programmable input, by default set to camera trigger
1 isolated synchronisation interface to connect another system

Timing: Isolated IRIG input and output
Synchronization: 2 SYNC interfaces
8 digital I/Os, 1 SuperCounter™: TTL level with 30 V overvoltage protection
1 auxiliary programmable input, by default set to camera trigger

MIL-STD-1553 channels (dual redundant, dual- or full-function)

Voltage: up to ±10 V

204.8 kS/s

per channel

204.8 kS/s

per channel

204.8 kS/s

per channel

204.8 kS/s

per channel

- 8 bit

Update rate max.

2.8 MS/s

80 MHz

80 MHz

80 MHz

80 MHz

16 bit

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

25

Series Modules

26

www.dewetron.com

Series Modules

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

27

Series Modules

TRION-2402-dACC

Differential multi-function input module

Sampling: 24 bit; 204.8 kS/s per channel

Input types: Voltage measurement from ±30 mV to ±70 VDC (46.7 V

IEPE

RMS

AC)

Resistance
Current (using external shunt)

Additional feature: AUX socket

TRION-dACC specifications

Input channels

AUX socket (SMB version only)

Sampling rate

Resolution

Input ranges

Voltage ±30, ±100, ±300 mV, ±1, ±3 V, ±10 V, ±30 V, ±100 V

IEPE ±100, 300 mV, 1 V, 3 V, 10 V

Resistance 10, 30, 100, 300 Ω, 1, 3, 10, 30, 100, 300, 1000 kΩ

Current Depending on external Shunt

Voltage input accuracy ±0.02 % of reading ± 0.02 % of range ±200 μV

Gain drift

Offset drift

linearity

Input impedance

Input bias current

Input conguration

Input coupling

Sensor fault detection for IEPE

Excitation current

Accuracy 0.05% ±2 μA

Drift 15 ppm/°C

Compliance voltage 23 V

Output impedance >10 MΩ

Supported sensors

Counter Channels 2 Counter channels, linked to analog input Channel 1 and Channel 2

Counter modes Event counting; Periode; Frequency; Pulsewidth; Dutycycle

Trigger Level Trigger and retrigger level freely programmable within analog input range

Typical SNR Range 100 mV 1 V 10 V 100 V

100 S/s ≤ fs ≤ 1 kS/s 97 dB 111 dB 112 dB 112 dB

10 kS/s < fs ≤ 102.4 kS/s 87 dB 104 dB 107 dB 104 dB

102.4 kS/s < f ≤ 200 kS/s 80 dB 81 dB 81 dB 81 dB

Spurious free dynamic range Range 10 mV 100 mV 1 V 10 V

100 S/s ≤ fs ≤ 1 kS/s 124 dB 139 dB 140 dB 139 dB

10 kS/s < fs ≤ 102.4 kS/s 118 dB 134 dB 134 dB 134 dB

102.4 kS/s < f ≤ 200 kS/s 116 dB* / 110 dB 131 dB* / 112 dB 132 dB* / 110 dB 131 dB* / 112 dB

Typical CMRR ≤10V Range 100 dB @ 50 Hz 100 dB @ 1 kHz

>10 to 200 V Range 90 dB @ 50 Hz 70 dB @ 1 KHz

Low pass Filter (in DEWESoft 7™, digital)

Characterisic Bessel or Butterworth

Filter order 2

Analog anti aliasing lter

Sample rate ≤ 1kS/s

Sample rate ≤ 10kS/s

Sample rate > 10kS/s

Bandwidth (-3 dB digital lter)

1 kS/s ≤ fs ≤ 51.2 kS/s

51.2 kS/s < fs ≤ 102.4 kS/s

102.4 kS/s < fs ≤ 204.8 kS/s 0.38 fs

Crosstalk n 1 kHz [10 kHz] 120 dB [105 dB]

Inter channel phase mismatch 0.02° * n (kHz) + 0.08°

Common mode voltage

1)

For safety reasons maximum allowed voltage: 70 VDC (46.7 V

1)

8 using SMB sockets (TRION-2402-dACC-8-SMB)

6 using BNC sockets (TRION-2402-dACC-6-BNC)

Selectable: Camera trigger, external trigger, CAL-port

204.8 kS/s per channel

24 bit

1)

typical 10 ppm/°C max. 20 ppm/°C

typical 0.3 μV/°C + 10 ppm of range, max 15 μV/°C + 20 ppm of range

typical 0.01 %

10 MΩ

< 1 nA

Single ended or differential (programmable)

DC, AC (0.16 Hz, 0.5 Hz, 3.4 Hz, 10 Hz)

short circuit and open sensor detection with LED indication

0.1 to 24 mADC (programmable, 16 Bit DAC, 2 Ranges)

IEPE (up to 24 mA excitation)

Resistance

Resistance Temperature Detection: Pt100, Pt200, Pt500, Pt1000, Pt2000

10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz, Off

nd

, 4th, 6th, 8

2nd order Bessel, automatically set by sample rate

2.5 kHz (-3 dB), 1.5 kHz (-1 dB)

25 kHz (-3 dB), 15 kHz (-1 dB)

250 kHz (-3 dB), 150 kHz (-1 dB)

0.494 fs

0.49 fs

±200 VDC (input range > 10 V), ±12 VDC (input range ≤ 10 V)

th

AC)

RMS

TRION-2402-dACC-8-SMB

TRION-2402-dACC-6-BNC

28

www.dewetron.com

Over voltage protection 200 V peak input to GND

Supported TEDS chips DS2406, DS2430A, DS2431, DS2432, DS2433

Power consumption Typ 10 W + excitation power
Connectors TRION-2402-dACC-8-SMB: 8x SMB sockets for inputs, 1 SMB socket for AUX

TRION-2402-dACC-6-BNC: 6x BNC sockets
Weight

* below 0.22 fs

Appr. 210 g (SMB version), appr.270 g (BNC version)

Cables for TRION-2402-dACC modules

Series Modules

TRION cables

TRION-CBL-SMOE-05-00 SMB open end 5 m TRION-x-dACC-x-SMB
TRION-CBL-SMBN-01-00 SMB BNC cable socket 1 m TRION-x-dACC-x-SMB

Connector Termination Length TRION modules

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

29

Series Modules

Differential universal input module

TRION-2402-dSTG

Sampling: 24 bit; 204.8 kS/s per channel

Input types: Voltage up to ±10 V

Strain gauge, bridge sensor, piezoresistive bridge
IEPE
RTD; Pt100 to Pt2000
Resistance, potentiometer

TRION-2402-dSTG-8-RJ

TRION-dSTG specifications

Input channels 8 using RJ-45 sockets (TRION-2402-dSTG-8-RJ)

8 using DSUB 9 sockets (TRION-2402-dSTG-8-D)
6 using LEMO 1B sockets (TRION-2402-dSTG-6-LEMO)

Sampling rate 204.8 kS/s per channel
Resolution 24 bit
Input ranges

Voltage ±10, 30, 100, 300 mV, 1 V, 3 V, 10 V
Bridge 1, 3, 10, 30, 100, 300, 1000 mV/V or mV/mA
IEPE ±100, 300 mV, 1V, 3V, 10V
Resistance 10, 30, 100, 300 Ω, 1, 3, 10, 30 kΩ
Current Depending on external Shunt

Voltage input accuracy ±0.02 % of reading ± 0.02 % of range ±20 μV

Gain drift typical 10 ppm/°C max. 20 ppm/°C
Offset drift typical 0.3 μV/°C+ 10 ppm of range, max 2 μV/°C + 20 ppm of range
linearity typical 0.01 %

Input impedance 100 MΩ
Input bias current < 1 nA
Input conguration Single ended or differential (programmable)
Input coupling DC, AC (0.16 Hz, 0.5 Hz, 3.4 Hz, 10 Hz); max. DC voltage when AC coupled: 50 V

Excitation voltage

Accuracy ±0.03 % ±1 mV
Drift ±10 ppm/K ±50 μV/K
Current limit 100 mA
Protection Continuous short to ground

Excitation current 0.2 to 25 mADC (pogrammable, 1 mV steps)

Accuracy 0.05% ±2 μA
Drift 15 ppm/°C
Compliance voltage 10 V
Output impedance >10 MΩ

IEPE Excitation 4 mA ±10 %

Compliance voltage 22 V

Supported sensors 4- or 6-wire full bridge

Bridge resistance 80 Ω to 10 kΩ @ ≤ 5 VDC excitation
Shunt calibration Two internal shunt resistors 50 kΩ and 100 kΩ
Shunt and completion resistor accuracy 0.05 % ±15 ppm/K
Automatic bridge balance ±250 % of Range
Typical SNR Range 10 mV 100 mV 1 V 10 V

Spurious free dynamic range 10 mV 100 mV 1 V 10 V

Typical CMRR 90 dB @ 1 KHz 80 dB @ 10 KHz
Low pass Filter (

Characterisic Bessel or Butterworth
Filter order 2

Analog anti aliasing lter 2nd order Bessel, automatically set by sample rate

Sample rate ≤ 1k S/s 2.5 kHz (-3 dB), 1.5 kHz (-1 dB)
Sample rate ≤ 10 kS/s 25 kHz (-3 dB), 15 kHz (-1 dB)

Sample rate > 10kS/s 250 kHz (-3 dB), 150 kHz (-1 dB)

Bandwidth (-3 dB digital lter)

1 kS/s ≤ fs ≤ 51.2 kS/s 0.494 fs

51.2 kS/s < fs ≤ 102.4 kS/s 0.49 fs

102.4 kS/s < fs ≤ 204.8 kS/s 0.38 fs

100 S/s ≤ fs ≤ 1 kS/s 82 dB 101 dB 111 d B 112 dB

10 kS/s < fs ≤ 102.4 kS/s 72 dB 92 dB 104 dB 107 dB

102.4 kS/s < f ≤ 200 kS/s 69 dB 80 dB 81 dB 81 dB

100 S/s ≤ fs ≤ 1 kS/s 108 dB 128 dB 141 dB 141 dB

10 kS/s < fs ≤ 102.4 kS/s 103 dB 123 dB 134 dB 136 dB

102.4 kS/s < f ≤ 200 kS/s 99 dB 120 dB* / 106 dB 133 dB* / 106 dB 135 dB* / 106 dB

in DEWESoft 7™

0 to 13.5 VDC (programmable, 1 mV steps), 100 mA max. current, max 8 W per module

3- or 5-wire ½ bridge with internal completion (software programmable)

3- or 4-wire ¼ bridge with internal resistor for 120 and 350 Ω (software programmable)

4-wire full bridge with constant current excitation (piezoresistive bridge sensors)
Potentiometric; Resistance
Resistance Temperature Detection: Pt100, Pt200, Pt500, Pt1000, Pt2000 (software linearization)

IEPE (xed 4 mA excitation)

, digital) 10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz, Off

nd

, 4th, 6th, 8

th

TRION-2402-dSTG-8-D

TRION-2402-dSTG-6-LEMO

30

www.dewetron.com

Crosstalk n 1 kHz [10 kHz] 120 dB [105 dB]

Inter channel phase mismatch 0.02° * n (kHz) + 0.08°
Common mode voltage ±10 V

Over voltage protection ±50 VDC
Supported TEDS chips DS2406, DS2430A, DS2431, DS2432, DS2433
Power consumption Typ 10 W + excitation power
Connector

Weight Appr. 200 g (RJ45 version), appr. 250 g (LEMO version)
* below 0.22 fs

DC

TRION-2402-dSTG-8-RJ: 8x RJ-45 sockets
TRION-2402-dSTG-6-LEMO: 6x Lemo EGG.1B.308 sockets
TRION-2402-dSTG-8-D: 8x SUB-D-9 socket

Cables for TRION-2402-dSTG modules

Series Modules

TRION cables

TRION-CBL-RJOE-05-00 RJ45 open end 5 m TRION-x-dSTG-x-RJ
TRION-CBL-RJD9-01-00 RJ45 DSUB-9 socket (DAQP-STG/MDAQ-STG compatible) 1 m TRION-x-dSTG-x-RJ
TRION-CBL-RJBN-01-00 RJ45 BNC 1 m TRION-x-dSTG-x-RJ
TRION-CBL-L8OE-05-00 LEMO 1B.308 open end 5 m TRION-x-dSTG-x-LEMO
TRION-CBL-L8D9-01-00 LEMO 1B.308 DSUB-9 socket (DAQP-STG/MDAQ-STG compatible) 1 m TRION-x-dSTG-x-LEMO

Connector Termination Length TRION modules

TRION-CBL-RJBN-01-00TRION-CBL-RJD9-01-00

Mating connector

Connector

LEMO-FGG.1B.308.CLAD52Z LEMO 1B.308 mating connector, for cable diameter 4.1 to 5.0 mm - TRION-x-dSTG-x-LEMO

Connector Termination Length TRION modules

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

31

Series Modules

Isolated wide range voltage module

TRION-2402-V

Sampling: 24 bit; 204.8 kS/s per channel

Input types: Voltage ±300 mV to ±1000

(2)

V

DC

Current

Isolation: 4 kV

TRION-2402-V specifications

Input channels

4 (TRION-2402-V-4-B)

8 (TRION-2402-V-8-B)

Sampling rate

Resolution

204.8 kS/s per channel

24 bit

Input ranges

Voltage

Current

Voltage input accuracy Range > 10 V

Range ≤ 10 V

Offset drift Range > 10 V

Range ≤ 10 V

Gain drift

Linearity

Input impedance Range > 10 V

Range ≤ 10 V

Input bias current

Input coupling

Input conguration

Typical SNR Range

100 S/s ≤ fs ≤ 1 kS/s

10 kS/s < fs ≤ 102.4 kS/s

102.4 kS/s < f ≤ 200 kS/s 81 dB 81 dB 81 dB 81 dB

Spurious free dynamic range Range

100 S/s ≤ fs ≤ 1 kS/s

10 kS/s < fs ≤ 102.4 kS/s

102.4 kS/s < f ≤ 200 kS/s

Typical CMRR ≤10 V Range

>10 V Range

Low pass Filter (in DEWESoft 7™, digital)

Characteristic

Filter order

Analog anti aliasing lter

Sample rate ≤ 1kS/s

Sample rate ≤ 10kS/s

Sample rate > 10kS/s

±0.3 V, ±1 V, ±3 V, ±10 V, ±30 V, ±100 V, ±400 V and ±1000 V

Depending on external Shunt; e.g. 20 mA, 1 A, 5 A

±0.02 % of reading ± 0.02 % of range ±3 mV

±0.02 % of reading ± 0.02 % of range ±200 μV

typical 10 µV/°C + 10 ppm of range, max 500 µV/°C + 20 ppm of range

typical 0.3 μV/°C + 10 ppm of range, max 15 μV/°C + 20 ppm of range

typical 10 ppm/°C max. 20 ppm/°C

typical 0.01 %

10 MΩ

5 MΩ

< 100 pA

DC

isolated

1 V 10 V 100 V 1000 V

113 dB 115 dB 113 dB 115 dB

106 dB 109 dB 106 dB 109 dB

1 V 10 V 100 V 1000 V

139 dB 140 dB 139 dB 140 dB

134 dB 134 dB 134 dB 134 dB

(1)

132 dB

/ 110 dB 131 dB

(1)

/ 112 dB 132 dB

100 dB @ 50 Hz 100 dB @ 1 kHz

90 dB @ 50 Hz 60 dB @ 1 kHz

10 Hz, 30 Hz, 100 Hz, 300 Hz, 1 kHz, 3 kHz, 10 kHz, 30 kHz (-3 dB), Off

Bessel or Butterworth

2nd , 4th, 6th, 8th

2nd order Bessel, automatically set by sample rate

2.5 kHz (-3 dB), 1.5 kHz (-1 dB)

25 kHz (-3 dB), 15 kHz (-1 dB)

250 kHz (-3 dB), 150 kHz (-1 dB)

(2)

(1)

/ 110 dB 131 dB

(1)

/ 112 dB

Bandwidth (-3 dB digital lter)

1 kS/s ≤ fs ≤ 51.2 kS/s

51.2 kS/s < fs ≤ 102.4 kS/s

102.4 kS/s < fs ≤ 204.8 kS/s

Crosstalk n 1 kHz [10 kHz]

Inter channel phase mismatch

Measurement category

Isolation voltage
Non-destructive voltage

Range ≤ 10 V
Range > 10 V

Power consumption

Connector

Weight

1)

below 0.22 fs

2)

Unit meets IEC/EN 61010-1:2010 and IEC/EN 61010-2-30:2010 up to input voltage 300 V

0.494 fs

0.49 fs

0.38 fs

110 dB [95 dB]

(1)

0.02°

n (kHz) + 0.08°

CAT II 300 V

4 kV

±1000 V

DC

±2000 V

DC

Typ 6 W for 4 channels (10 W for 8 channels)

4 mm safety banana sockets

Appr. 270 g (4 ch version), appr. 400 g (8 ch version)

TRION-2402-V-8-B

(2)

TRION-2402-V-4-B

32

www.dewetron.com

Shunts for TRION™ voltage input modules

Series Modules

Shunts

DAQ-SHUNT1

DAQ-SHUNT4 5 A shunt box (100 mOhm, ±0.1%, <10ppm); Current input via 2 safety banana jacks, output 2x 0.3 m cable with banana plugs
DAQ-SHUNT5 5 A shunt box (100 mOhm, ±0.1%, <10ppm); Current input via 2 safety banana jacks, output via 2 safety banana jacks

20 mA shunt adaptor (50 Ohm, ±0.1 %, 1 W); Fitting into 4 mm banana jacks with 19 mm distance
Not compatible with TRION-x-V-4-B

DAQ-SHUNT1

(not compatible with TRION-x-V-4 modules)

DAQ-SHUNT4

DAQ-SHUNT5

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

33

Series Modules

Counter, DIO and synchronization module

TRION-BASE

Counter channels: 2 SuperCounters™

Digital I/O: 8 DIO and 8 DI

Synchronization: IRIG code B, DC I/O and Sync I/O

Additional features: 1 AUX socket (by default set to camera trigger)

TRION-BASE specifications

Digital I/O specications

Number of channels

Compatibility (Input)

Compatibility (Output)

Overvoltage protection

Sensor power supply (module total)

Connector

Sync I/O specications

Functionality

Compatibility (Input)

Compatibility (Output)

Overvoltage protection

Connector

Counter specications

Number of channels

Counter modes

Event counting

Waveform timing

Sensor modes

Compatibility (Input)

Counter resolution

Counter time base

Time base accuracy

Maximum input frequency

Overvoltage protection

Sensor power supply (module total)

Connector

AUX specications

Functionality

Compatibility (Input)

Compatibility (Output)

Overvoltage protection

Connector

Timing specications

Input sources

Output signals

Input specication

Compatibility (DC code)

Impedance

Output specication

Compatibility (DC code)

Adjustment range

Clock acc. IRIG locked

Clock acc. IRIG unlocked

Isolation voltage

Connector

General specications

Power consumption

Temperature Range

Weight

8 DIO + 8 DI

CMOS/TTL

TTL, 20 mA

±30 V permanent, 50 V peak (for 100 msec)

5 V (600 mA) and 12 V (600 mA)

SUB-D-25 socket

Acquistion clock and trigger output (can be used to sync two systems/enclosures)

LVTTL

LVTTL, 10 mA

±20 V

On same SUB-D-25 socket as Digital I/O

2 SuperCounters™ or 6 digital inputs

Basic event counting, gated counting, up/down counting and encoder mode (X1, X2 and X4)

Period, frequency, pulse width duty cycle and edge separation

Encoder (angle and linear), Gear tooth with/without zero, gear tooth with missing/double teeth

CMOS/TTL

32-bit

80 MHz

typ. 10 ppm (dened by the back plane)

10 MHz

±30 V permanent, 50 V peak (100 msec)

5 V (600 mA) and 12 V (600 mA)

2x LEMO EGG.1B.307 sockets

Camera trigger, trigger input/output, acquisition clock and programmable clock output

LVTTL

LVTTL, 10 mA

±20 V

SMB socket

IRIG code B, DC

IRIG code B, DC

DC Level Shift TTL / CMOS Compatible

20 kΩ

TTL, 20 mA

±150 ppm

without drift

< 1 ppm

350 V

DC

BNC socket

5 Watt (without sensor supply)

0 - 50 °C

Appr. 240 g

TRION-BASE

34

TRION cables

Connector Termination Length TRION modules

TRION-CBL-L7OE-05-00 LEMO 1B.307 open end 5 m

TRION-CBL-CAMTRG-04-00 SMB To synchronize a DEWE-CAM-FW-70 via an AUX socket of TRION modules 4 m

TRION-BASE,
TRION-CNT-6-LEMO

TRION-BASE,
TRION-TIMING

www.dewetron.com

Timing and synchronization module

TRION-TIMING

Timing: Isolated IRIG input and output

Synchronization: 2 TRION-SYNC-BUS interfaces

Additional features: 8x DIO, 1x counter, 1x AUX

TRION-TIMING specifications

Input sources IRIG code A or B; AM, DC or TTL

Output signals IRIG code B, DC

Compatibility (AM code) 0.5 Vp-p to 10 Vp-p

Ratio (AM code) 3:1 ±10 %

Compatibility (DC code) DC level shift TTL / CMOS compatible

Input

Compatibility (TTL Code) TTL

specification

Impedance 20 kΩ

Output specification

Compatibility (DC code) TTL, 20 mA

Adjustment range ±150 ppm

Clock accuracy IRIG locked without drift

Clock accuracy IRIG unlocked < 1 ppm (opt. 5 ppb)

Max. cable length (IRIG) 1000 m, cable length delay compensation available

Connector BNC socket

Isolation voltage 350 V

Sync specifications

Input sources TRION-SYNC-BUS (RJ-45 with RefClk, AcquisitionClk, AcquisitionSync)

Output signals TRION-SYNC-BUS (RJ-45 with RefClk, AcquisitionClk, AcquisitionSync)

Compatibility LVDS (Low Voltage Differential Signal)

Sync delay < 10 nsec

Max. cable length (TRION-SYNC-BUS) 50 m (standard CAT 6 Ethernet cable)

Connector 2 x RJ-45 socket (1 output, 1 programmable input/output)

Digital I/O specifications

Number of channels 8

Compatibility (input) CMOS/TTL

Compatibility (output) TTL, 20 mA

Overvoltage protection

Connector

Counter specications

Number of channels 1 SuperCounter™ or 3 digital inputs

Event counting Basic event counting, gated counting, up/down counting and encoder mode (X1, X2 and X4)

Waveform timing Period, frequency, pulse width, duty cycle and edge separation

modes

Counter

Sensor modes Encoder (angle and linear), gear tooth with/without zero, gear tooth with missing/double teeth

Input signal compatibility CMOS/TTL

Counter resolution 32-bit

Counter time base 80 MHz

Time base accuracy typ. 10 ppm (defined by the backplane)

Maximum input frequency 10 MHz

Overvoltage protection ±30 V permanent, 50 V peak (for 100 msec)

Sensor power supply 5 V (600 mA) and 12 V (600 mA)

Connector On same SUB-D-15 socket as Digital I/O

AUX specifications

Functionality Camera trigger, trigger input/output, acquisition clock and programmable clock output

Compatibility (input) LVTTL

Compatibility (output) LVTTL, 10 mA

Overvoltage protection ±20 V

Connector SMB socket

General specifications

Power consumption 5 W (without sensor supply)

Temperature Range 0 - 50 °C

Weight Appr. 240 g

DC

±30 V

SUB-D-15 socket

Series Modules

TRION-TIMING

TRION cables

Connector Termination Length TRION modules

TRION-CBL-CAMTRG-04-00 SMB To synchronize a DEWE-CAM-FW-70 via an AUX socket of TRION modules 4 m

DW2-CBL-SYNC-1 RJ45 RJ45 1 m TRION-TIMING

DW2-CBL-SYNC-3 RJ45 RJ45 3 m TRION-TIMING

DW2-CBL-SYNC-7 RJ45 RJ45 7 m TRION-TIMING

TRION-BASE,
TRION-TIMING

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

35

Series Modules

Isolated SuperCounter™ module

TRION-CNT

Sampling 80 MHz time base

204.8 kS/s per channel

Input types Event, waveform timing and sensor mode

Programmable threshold and AC/DC coupling for ideal signal adaption

TRION-CNT specifications

Input channels

Counter modes

Event counting Basic event counting, gated counting, up/down counting and encoder mode (X1, X2 and X4)

Waveform timing Period, frequency, pulse width duty cycle and edge separation

Sensor modes Encoder (angle and linear), gear tooth with/without zero, gear tooth with missing/double teeth

Input signal characteristic

Rated input voltage (max.) 70 VDC (43.7 V

Compatibility Adjustable trigger levels

Conguration Isolation (±500 VDC) for each input channel

Input coupling DC and AC (1Hz) AC for input A only

Input impedance (ground referenced) 1 MΩ / 5 pF

Bandwidth (-3dB) 5 MHz

Trigger adjustment range 0 to 50 V

Trigger resolution 12 mV

Trigger level accuracy ±20 mV ±1% of threshold/retrigger level

Overvoltage protection ±100 V continuous

Max. DC level @AC coupling ±50 V continuous

Counter resolution 32-bit

Counter time base 80 MHz

Time base accuracy typ. 10 ppm (defined by the backplane)

Maximum input frequency 10 MHz

Sensor power supply (per module) 5 V (600 mA) and 12 V (600 mA), not isolated

Power consumption Typ. 5 W + excitation power

Connector 6x LEMO EGG.1B.307 sockets

Weight Appr. 240 g

6 SuperCounters™ or 18 digital inputs

)

PEAK

TRION-CNT-6-LEMO

36

Cables for TRION-CNT modules

TRION cables

TRION-CBL-L7OE-05-00 LEMO 1B.307 open end 5 m

Connector Termination Length TRION modules

TRION-BASE,
TRION-CNT-6-LEMO

Mating connector

Connector

LEMO-FGG.1B.307.CLAD52Z LEMO 1B.307 mating connector, for cable diameter 4.1 to 5.0 mm - TRION-CNT-6-LEMO

Connector Termination Length TRION modules

www.dewetron.com

Isolated digital input module

TRION-DIO-4800

Number of channels: 48 isolated digital inputs (TRION-DIO-4800)

Sampling: 204.8 kS/s per channel

TRION-DIO-4800 specifications

Input channels 48 isolated digital inputs (TRION-DIO-4800)
Input modes digital input (discrete)
Input signal characteristic

Compatibility CMOS
Conguration Isolated input

Input low level

Input high level UIN > 3.2 V
Input high current @ 5 V UIN < 3.5 mA
Input high current @ 30 V UIN < 7 mA
Propagation delay < 160 nsec
Bandwidth 3 MHz
Overvoltage protection 35 V continuous (65 V peak)
Isolation voltage (channel to channel) 100 V

Isolation voltage (input to output) 250 V
Sensor power supply (per module) 5 V (600 mA), not isolated
Power consumption Typ. 5 W + excitation power
Connector 2 x 50 pin mini centronics sockets
Weight Appr.190 g

UIN < 1.8 V

Series Modules

TRION-DIO-4800

Options for TRION-DIO modules

Options

TRION-CB24-B Mini-Centronics

TRION-CB24-SC Centronics

Connector Termination Length TRION modules

24 channel break-out box with 4 mm banana jacks
1 m cable, terminated with 50-pin mini-centronics plug
(two boxes needed for all 48 inputs)

24 channel screw-terminal block, unshielded
1 m cable, terminated with 50-pin mini-centronics plug
For TRION-DIO-4800 (two blocks needed for all 48 inputs)

TRION-CB24-B

1 m TRION-DIO-4800

1 m TRION-DIO-4800

TRION-CB24-SC

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

37

Series Modules

Isolated high speed CAN interface

TRION-CAN

Input types High speed, (low speed and single wire with optional converter)

Listen only and programmable termination
Direct interface to CPAD2 module series

TRION-CAN specifications

Input channels

Specication CAN 2.0B

Physical layer High speed, (low speed and single wire with optional converter)

Listen only mode Supported

Termination Programmable: high impedance or 100 Ω

Galvanic isolation 500 V

Bus pin fault protection ±36 V

CAN Transceiver SNHVD235

Sensor power supply (per module) 5 V (600 mA) and 12 V (600 mA)

Power consumption Typ. 5 W + excitation power

Connector SUB-D-9 plug

Weight Appr. 190 g

2 with DSUB 9 connector (TRION-CAN-2-D)

4 with DSUB 9 connector (TRION-CAN-4-D)

DC

Options

Options

ADAP-CAN-LS-HS DSUB-9 DSUB-9, Adaptor from low-speed CAN to high-speed CAN
ADAP-LIN-CAN

DSUB-9

DSUB-9, Isolated LIN to CAN adaptor. Requests data from LIN
as a LIN-master and outputs the data to CAN

TRION-CAN-4-D

TRION-CAN-2-D

ADAP-CAN-LS-HS ADAP-LIN-CAN

Cables for TRION-CAN modules

TRION cables

TRION-CBL-D9OE-05-00 DSUB-9 open end 5 m TRION-CAN-x-D

Connector Termination Length TRION modules

38

www.dewetron.com

TRION-A429 / M1553 / MA4

ARINC 429 module with up to 30 interfaces

MIL-STD-1553 modules with up to 4 dual redundant channels

Mixed modules with 8 ARINC and up to 5 dual redundant MIL-STD-1553 channels

Specifications

Ports
TRION-A429
TRION-M1553
TRION-MA4

Resolution 8 bit, 1 uSec A/D signal capture on rst two RX channels

Programmable interface

Memory One Mbyte of memory per 16 channel bank for TX/TX buffering

Power consumption 4CH@4.5W, 8CH@5.0W, 16CH@6.0W, 30CH@7.0W

Connector SCSI 3 connector, cable provided

Temperature range 0 to +50°C

Weight Appr. 120 g

4, 8, 16 or 30 ARINC 429
1 to 4 MIL-STD-1553
8 x ARINC 429 + 1 to 5 MIL-STD-1553

Fully programmable label/word encoding and decoding
Word length, Start/Sync/Stop bits, MSB/LSB, RX/TX bit (baud) rates, parity, bit encoding types

Series Modules

TRION-A429

Model overview

TRION Module ARINC channels 1553 channels

TRION-A429 modules

A429-4-T 4 (shared Tx/Rx) -

A429-8-T 8 (shared Tx/Rx) -

A429-16-T 16 (8 shared Tx/Rx and 8 Rx) -

A429-30-T 30 (16 shared Tx/Rx and 14 Rx) -

TRION-M1553 modules

M1553-1D-T - 1 dual redundant, dual function

M1553-2D-T - 2 dual redundant, dual function

M1553-4D-T - 4 dual redundant, dual function

M1553-1F-T - 1 dual redundant, full function

M1553-2F-T - 2 dual redundant, full function

M1553-4F-T - 4 dual redundant, full function

TRION-MA4 modules

MA4-1D8-T 8 (4 shared Tx/Rx and 4 Rx) 1 dual redundant, dual function

MA4-2D8-T 8 (4 shared Tx/Rx and 4 Rx) 2 dual redundant, dual function

MA4-4D8-T 8 (4 shared Tx/Rx and 4 Rx) 4 dual redundant, dual function

MA4-5D8-T 8 (4 shared Tx/Rx and 4 Rx) 5 dual redundant, dual function

MA4-1F8-T 8 (4 shared Tx/Rx and 4 Rx) 1 dual redundant, full function

MA4-2F8-T 8 (4 shared Tx/Rx and 4 Rx) 2 dual redundant, full function

MA4-4F8-T 8 (4 shared Tx/Rx and 4 Rx) 4 dual redundant, full function

MA4-5F8-T 8 (4 shared Tx/Rx and 4 Rx) 5 dual redundant, full function

Software Components Signal Conditioning Front-ends Instruments Dedicated Instruments DEWE2

39

Series Modules

Analog output module

TRION-1628-AO-2

2 channel TRION™ analog output module, based on NI PXI-6251

voltage range max. ±10 V

16 bit resolution

Update rate max. 2.8 MS/s

TRION-1628-AO-2 specifications

Analog input channels

DAC resolution

DNL

Monotonicity
Accuracy

Nominal Range

Positive

Full

Scale

10 -10

5 -5

Maximum update rate

1 channel

2 channels

Timing accuracy

Timing resolution

Output range

Output coupling

Output impedance

Output current drive

Overdrive protection

Overdrive current

Power-on state

Power-on glitch

Output FIFO size

Settling time, full scale step 15 ppm (1 LSB)

Slew rate
Glitch energy at midscale transition,

±10 V range

Magnitude

Duration

Negative

Full

Scale

2

16 bits

±1 LSB

16 bit guaranteed

Residual

Gain Error

(ppm of

Reading)

75 17 1 40 2 64 2,08

85 8 1 40 2 64 1,045

2.86 MS/s

1.00 MS/s

50 ppm of sample rate

50 ns

±10 V, ±5 V

DC

0.2 Ω

±5 mA

±25 V

20 mA

±5 mV2

1.5 V peak for 1.5 s

8,191 samples shared among channels used

2 µs

20 V/µs

10 mV

1 µs

Gain

Tempco

(ppm/°C)

Reference

Tempco

Residual

Offset Error

(ppm of

Range)

Offset
Tempco
(ppm of

Range/°C)

INL

Error
(ppm of
Range)

TRION-1628-AO-2

Absolute
Accuracy at
Full Scale1

(µV)

40

DEWETRON GmbH • Parkring 4 • A-8074 Graz-Grambach • Tel [phone] • Fax [phone] • [e-mail]

www.dewetron.com
