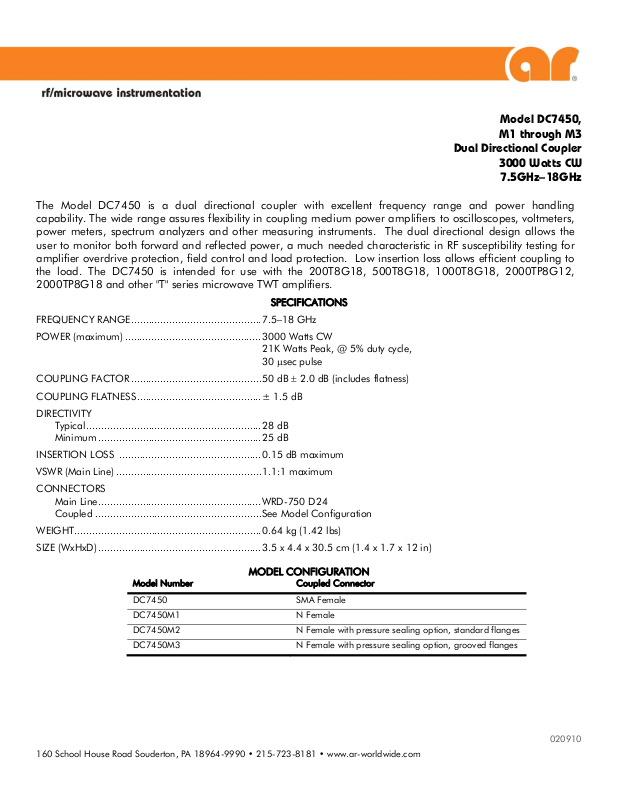

Model DC7450,
M1 through M3
Dual Directional Coupler
3000 Watts CW
7.5GHz–18GHz
The Model DC7450 is a dual directional coupler with excellent frequency range and power handling
capability. The wide range assures flexibility in coupling medium power amplifiers to oscilloscopes, voltmeters,
power meters, spectrum analyzers and other measuring instruments. The dual directional design allows the
user to monitor both forward and reflected power, a much needed characteristic in RF susceptibility testing for
amplifier overdrive protection, field control and load protection. Low insertion loss allows efficient coupling to
the load. The DC7450 is intended for use with the 200T8G18, 500T8G18, 1000T8G18, 2000TP8G12,
2000TP8G18 and other "T" series microwave TWT amplifiers.
FREQUENCY RANGE ............................................ 7.5–18 GHz
POWER (maximum) .............................................. 3000 Watts CW
21K Watts Peak, @ 5% duty cycle,
30 μsec pulse
COUPLING FACTOR ............................................ 50 dB ± 2.0 dB (includes flatness)
COUPLING FLATNESS .......................................... ± 1.5 dB
DIRECTIVITY
Typical ........................................................... 28 dB
Minimum ....................................................... 25 dB
INSERTION LOSS ................................................ 0.15 dB maximum
VSWR (Main Line) ................................................. 1.1:1 maximum
CONNECTORS
Main Line ....................................................... WRD-750 D24
Coupled ........................................................ See Model Configuration
WEIGHT ............................................................... 0.64 kg (1.42 lbs)
SIZE (WxHxD) ....................................................... 3.5 x 4.4 x 30.5 cm (1.4 x 1.7 x 12 in)
Model Number Coupled Connector
DC7450 SMA Female
DC7450M1 N Female
DC7450M2 N Female with pressure sealing option, standard flanges
DC7450M3 N Female with pressure sealing option, grooved flanges
SPECIFICATIONS
MODEL CONFIGURATION
160 School House Road Souderton, PA 18964-9990 • 215-723-8181 • www.ar-worldwide.com
020910
