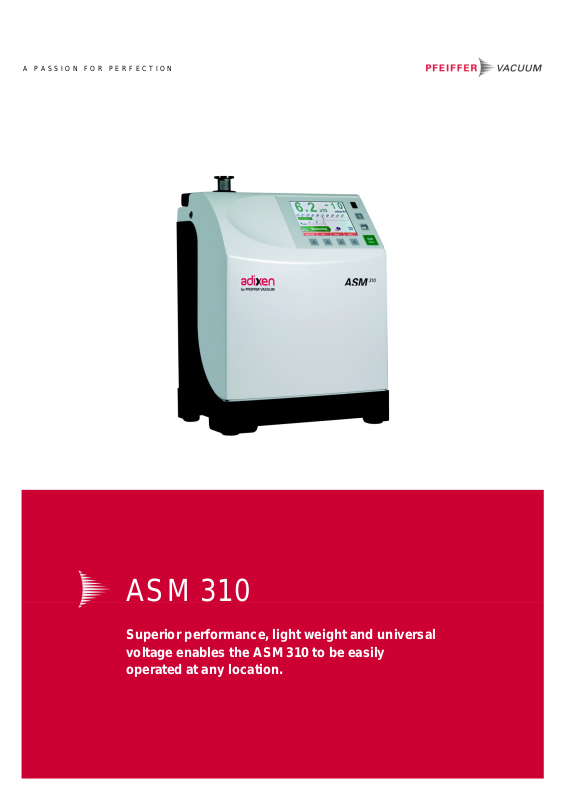

A P A S S I O N F O R P E R F E C T I O N
ASM 310
Superior performance, light weight and universal
voltage enables the ASM 310 to be easily
operated at any location.
Leak Detection & Contamination Management / Leak Detectors / Portable
ASM 310, universal voltage
Oil free pumping system, roughing capacity 1.7 m3/h
Ultralight, only 21 kg (46 lbs) and easy to move
Large bright color touchscreen with graphics functionality
Intuitive and customizable menu
Integrated SD memory card for recording and downloading capacities
Dimensions
Technical Data ASM 310, universal voltage
Backing pump with oil free backing pump
Backing pump capacity 1.7 m3/h
Detectable gases
4
He, 3He, H
2
Dimensions (L x W x H) 350 mm | 13.78 inch
Flange (in) DN 25 ISO-KF
I/O interface Digital, Analog (mantissa, exponent)
Interface RS-232
Maximum inlet test pressure 15 hPa | 11.25 Torr | 15 mbar
Minimum detectable leak rate for helium
(sniffing leak detection)
Minimum detectable leak rate for helium
(vacuum leak detection)
1 · 10-8 Pa m3/s | 7.5 · 10-8 Torr l/s |
1 · 10-7 mbar l/s
-13
5 · 10
Pa m3/s | 3.75 · 10
-12
5 · 10
mbar l/s
-12
Torr l/s |
Noise level < 45 dB (A)
Operating temperature 10-40 °C | 50-104 °F | 283.15-313.15 °K
Pumping speed for He 1.1 l/s
Response time (Sniffing leak detection) < 1 s
Start-up time (20°C) with calibration <3.5 min
Start-up time (20°C) without calibration < 2 min
Supply 100-240 V, 50/60 Hz
Test method Vacuum and sniffing leak detection
Type Mobile
User interface Graphic color touch screen (detachable)
Weight 21 kg | 46.3 lb
Order number
ASM 310 BSAA0000MM9A
www.pfeiffer-vacuum.com Page 2
Leak Detection & Contamination Management / Leak Detectors / Portable
Accessories
Connection cable for remote control
Connection cable for remote control, 10 meters 110881
Connection cable for remote control, 15 meters 110882
Country-specific power cables
Power cable, 2.5 m, Switzerland 103718
Power cable, 2.5 m, UK 104411
Power cable, 2 m, Italy 104758
Standard remote control
Remote control, leak rate in mbar l/s, legend in
English 106688
Remote control, leak rate in Pa
m<sup>3</sup>/s, legend in English 108880
Remote control, leak rate in Pa
m<sup>3</sup>/s, legend in Japanese 106690
Remote control, leak rate in Torr l/s, legend in
English 108881
Transportation accessories
Transportation case to safeguard the ASM 310
against shipping damage 119594
Trolley for ASM 310 with two wheels 114820
www.pfeiffer-vacuum.com Page 3
Are you looking for a
perfect vacuum solution?
Please contact us:
Pfeier Vacuum GmbH
Headquarters · Germany
T +49 6441 802-0
info@pfeier-vacuum.de
www.pfeier-vacuum.com
Vacuum solutions
from a single source
Pfeier Vacuum stands for innovative and custom
vacuum solutions worldwide, technological perfection,
competent advice and reliable service.
Complete range
of products
From a single component to complex systems:
We are the only supplier of vacuum technology
that provides a complete product portfolio.
Competence in
theory and practice
Benefit from our know-how and our portfolio of training
opportunities! We support you with your plant layout
and provide first-class on-site service worldwide.
All data subject to change without prior notice. (10/16/2013)
