7796 SPECIFICATION SHEET
Features
Over 22,000 watts peak for 40 mSec and 8,000 watts peak
continuous into a 0.5-ohm load.
40 mSec pulses of up to 209 amperes peak into a 0.5-ohm
load.
System output of over 650 volts and 250 amperes maximum
are possible with multiple, interconnected amplifiers.
Frequency bandwidth of DC to 50 kHz at rated power, DC to
100 kHz at reduced power.
Rugged chassis for stand-alone or rack mounted operation. No
additional power supplies are required.
Protection circuitry protects the AE Techron 7796 from input
overloads, improper output connection (including shorted and improper loads), over-temperature, over-current, and supply voltages that are too high or low.
7796 with “P” option offers precision control of output offset,
DC drift and gain linearity.
Shipped ready to operate from 208-volt (±10%) three-phase AC
mains. Operation from 400-volt (±10%) AC mains are available on request.
0
20
40
60
80
100
120
140
1 20 50 80 150 250
Volts RMS
Frequency in kHz
7796 Voltage Potential
8 ohm 4 ohm 2 ohm 1 ohm
The AE Techron 7796 amplifier is a high-powered, DC-enabled unit designed to provide clean, reliable power for gradient coils in magnetic resonance imaging systems or in applications that require both significant short-term (burst) and long­term (continuous) power. A single 7796 has an output capability of over 210 amperes peak at its rated voltage. If more current is needed, up to four amplifiers can be combined in parallel and operate as a single system.
The 7796 can operate in either voltage or current mode and features robust output devices and a power range of over 6600 watts RMS. It provides very low noise and fast slew rates, and can safely drive a wide range of resistive, inductive loads.
Typical use includes as a self­contained, general purpose amplifier or combined into systems for doing three-phase or high-current testing required in ANSI-T1-315-2001 or MIL­STD-704.
Performance (Controlled Voltage Mode)
Note: Testing performed at 208V/415V AC. 7796 amplifiers can operate from 400V AC ±10%. Since these amplifiers have an unregulated power supply, low line conditions may slightly affect the maximum voltage potential.
7796P accuracy was measured when driven into a 10 ohm load with between 0.1VDC and 6VDC or between 0.2V AC and 5V AC presented at its inputs.
Frequency Response:
DC – 30 kHz, +0.1, –0.5 dB
7796 Datasheet Information subject to change. 1/28/2013
AC Specifications
PEAK OUTPUT
RMS OUTPUT
40mSec Pulse,
30% Duty Cycle
5 Minute,
100% Duty Cycle
1 Hour,
100% Duty Cycle
5 Minute,
100% Duty Cycle
1 Hour,
100% Duty Cycle
Ohms
Volts
Amps
Volts
Amps
Volts
Amps
Volts
Amps
Volts
Amps
Watts
Open
181 0 181 0 181 0 128 0 128 0 0
16
159
12
159
10
159
10
112 7 112 7 795 8 159
19
154
19
154
19
109
13
109
13
1483 4 158
39
152
38
152
38
107
27
107
27
2887 2 157
79
141
71
100
50
5004
1.5
148
99
71
71
50
50
2509 1 140
140
71
71
50
50
2509
0.5
106
209
63
127
45
90
3999
0.25
53
209
Note: Performance levels typical up to 20 kHz frequency levels. Above 20 kHz, slew rate may affect performance, reducing maximum voltage, current and power output.
8 ohm Power Response:
0
20
40
60
80
100
120
140
0 3 6 9 12 15 18 21 24
Degrees C
Minutes
7796 DC Power
Thermal Limit
43 Volts 60 Amps
60 Volts 60 Amps
0
20
40
60
80
100
120
140
0 5 10 15 20 25 30 35 40 45 50
Degree C
Time in Minutes
7796 Temperature Over Time
Thermal Limit
DC-50 kHz: ± 150 Vpk DC-150 kHz: ± 50 Vpk DC-200 kHz: ± 25 Vpk
Maximum Continuous Output Power:
6600 watts RMS
Slew Rate:
41 V/μSec
Phase Response:
±8.3 degrees (10 Hz – 10 kHz)
Phase Error:
±0.1 degrees at 60 Hz
Maximum Continuous Output Power:
6600 watts RMS
Output Offset: 7796: Less than 5 mV, field adjustable to less than 1 mV
Unit to Unit Phase Error:
±0.1 degrees at 60Hz
Output Offset: 7796: Less than 5 mV, field adjustable
to less than 1 mV
7796P: Less than 200 V
Output Offset Current:
Less than 10 milliamperes DC
7796 Datasheet Information subject to change. 1/28/2013
DC Drift: 7796: ±1.5 mV
7796P: ± 400 µV (from cold to
maximum operating temperature); ±200 µV (after 20 minutes of operation)
Residual Noise: Unfiltered: Less than 75 μV
Filtered (400 Hz – 30 kHz):
Less than 55 μV
THD:
DC - 30 kHz less than 0.1%
Input Characteristics
Balanced with ground:
Three terminal barrier block connector 20k ohm differential
Unbalanced:
BNC connector, 10k ohm single ended
Gain: Voltage Mode: 20 volts/volt
Current Mode: 20 amperes/volt
Gain Linearity (over input signal, from
0.2 V to 5 V):
7796: 0.1% 7796P: DC: 0.0125% AC: 0.030%
Max Input Voltage:
± 10 V balanced or unbalanced
Input Impedance:
20 kOhm differential
Input Sensitivity:
3.0V input for 3800W output into 1 ohm (adjustable)
Common Mode Rejection Range:
± 11 VDC maximum
Common Mode Rejection Ratio:
70 dB

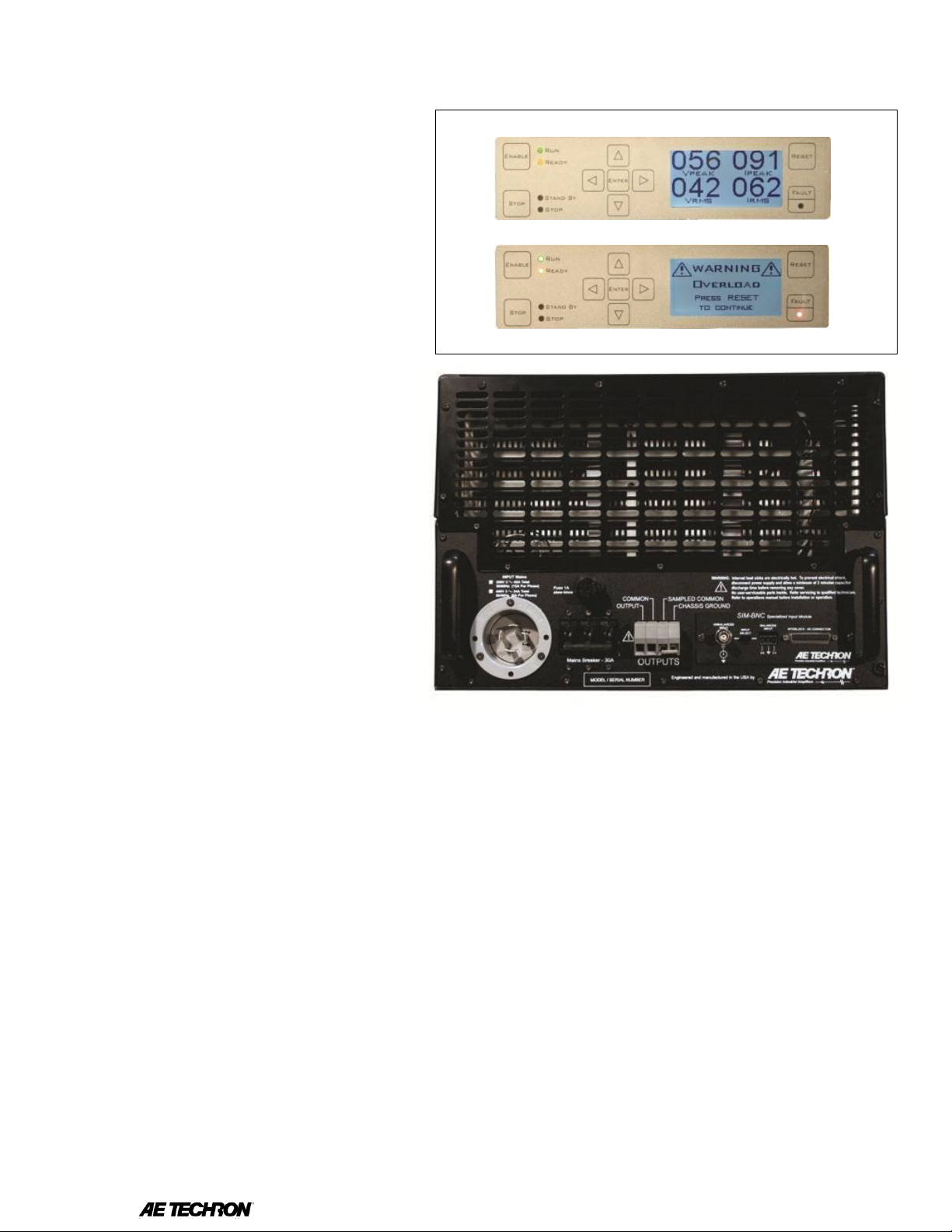

Display, Control, Status, I/O
Front Panel LED Displays indicate:
Run, Ready, Standby, Stop, and Fault conditions in the output stage
LCD Display:
Lists type of fault condition and gives suggested corrective action
Soft Touch Switches for:
Run (Enable), Stop, Reset
User Configurable:
LCD display can be configured for up to four simultaneous displays reporting one, two or all four of the following: Voltage Peak, Voltage RMS, Current Peak, and Current RMS
Back Panel Power Connection:
NEMA-style locking receptacle; matching AC connector also included
Signal Output:
4-position terminal barrier block
Signal Input:
User-selectable Unbalanced BNC or Balanced Barrier Strip
Interlock Connector:
25-pin D-sub connector used for amplifier control and status applications; also used in multi-amplifier applications
7796 Datasheet Information subject to change. 1/28/2013
Communication Capabilities
AE Techron Sales Representative
Current Monitor: ± 1V / 20A ±1% Voltage Monitor: ± 1V / 1V ±1% Reporting:
System Fault, OverTemp, Over Voltage, Overload
Control:
Force to Standby; Reset after a fault
Protection
Over/Under Voltage:
± 10% from specified supply voltage amplifier is forced to Standby
Over Current:
Breaker protection on both main power and low voltage supplies
Over Temperature:
Separate Output transistor, heat sink, and transformer temperature monitoring and protection
Physical Characteristics
Chassis:
All aluminum construction designed for stand-alone or rack­mounted operation with black chassis; the amplifier occupies seven EIA 19-inch-wide rack units
Weight:
153 lbs. (69 kg)
AC Power:
Three-phase, 208 VAC ±10%, 47-60 Hz, 30A AC service. (400 VAC +/-10%, 20A version available)
Operating Temperature:
10°C to 50°C (50°F to 122°F), Maximum Output Power de-rated above 30°C (86°F).)
Humidity:
70% or less, non-condensing
Cooling:
Forced air-cooling from front to back through removable filters via six 100 ft3/min. fans. No space is required between rack-mounted amplifiers. Air filters are removable from the rear via one fastener per side and may be eliminated if cabinet filtration is provided.
Dimensions:
19 in. x 22.8 in. x 12.25 in. (48.3 cm x 57.9 cm x 31.1 cm). Unite occupies seven EIA 19-inch-wide rack units.
7796 Datasheet Information subject to change. 1/28/2013
