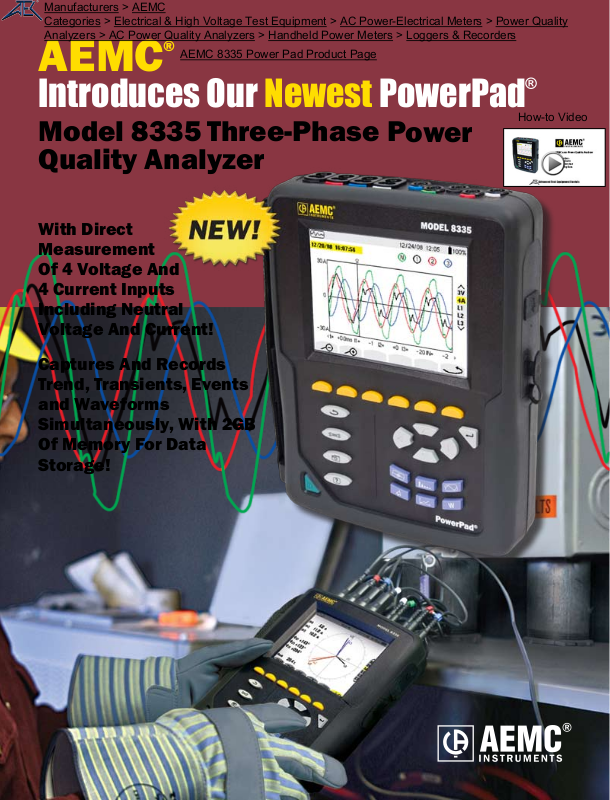

Introduces Our Newest PowerPad

How-to Video

Model 8335 Three-Phase P
Quality Analyzer

With Direct
Measurement
Of 4 Voltage And
4 Current Inputs
Including Neutral
Voltage And Current!

Captures And R
Trend, Transients, Events
and Waveforms
Simultaneously, With 2GB

ecords

ower

Of Memory For Data
Storage!

Power Analyzer

PowerPad Model 8335

DESCRIPTION

®

The PowerPad
compact and shock-resistant. It is intended for technicians and engineers to measure and
carry out diagnostic work and power quality work on one, two or three phase low voltage
networks.

The PowerPad
types of data, synchronized or independent of each other. You can store up to 50 screen
snapshots, up to 300 captured transients that contain four cycles for each active input, and
10000 alarm events from up to 40 different parameters. You can also record trend data for
days, weeks or even months.

Six direct access function buttons quickly let you see:

Waveforms – Display Volts, Amps, THD and Crest Factor by phase or for all phases. You

can display all the voltage inputs on one screen, phase-to-phase or phase-to-neutral. Real­time phasor diagrams can be displayed for volts and amps, also by phase or for all phases
including phase unbalance.

Model 8335 is a three-phase power quality analyzer that is easy-to-use,

®

’s 2GB of memory is conveniently partitioned to let you store four different

Harmonics – Display Harmonics out to the 50th for Volts, Amps and VA. Individual Harmonics
are displayed as a percentage and value for Volts, Amps and VA. Harmonic direction and
sequencing can also be displayed.

Transients – Set, capture and display transients. You select the threshold and the number of

®

transients to capture. The PowerPad

then captures four waveforms for each transient; the
triggering waveform as well as one pre-triggered and two post-triggered waveforms. As many
as 300 transients each consisting of 4 waveforms per channel for up to 8 channels can be
captured.

Trend Recording – Record and display trend data at user selectable sample rates from 1/sec
to 1/15 minutes and user programmable recording periods into 2GB of memory

FEATURES



Measurement of TRMS voltages up to 1000Vrms AC/DC for two, three, four or five-wire
systems

Measurement of TRMS currents up to 6500Arms (sensor dependant)



Measurement of DC current up to 1400A DC (with MR193 probe)

Automatic probe detection and calibration



Frequency measurement (40 to 69Hz systems)

Direct measurement of neutral current for WYE configurations

Record and display trend data as fast as once per second for one month for up to 25 
variables.

Energy assessments



Transient detection on all V and I inputs

PowerPad Model 8335 1

Inrush current

Calculation of Crest Factors for current and voltage

Calculation of the K Factor for transformers

Calculation of short-term flicker for voltage

Calculation of the phase unbalance for voltage and current (3 phase only)

Measurement of harmonic angles and rates (referenced to the fundamental or RMS value) for 
voltage, current or power, up to 50th harmonic



Display of harmonic sequencing and direction

Calculation of overall harmonic distortion factors

Real time display of Phasor diagrams including values and phase angles

Monitoring of the average value of any parameter, calculated over a period running from 1 sec to 
2 hrs



Measurement of active, reactive and apparent power per phase and their respective sum total

Calculation of power factor, displacement power factor and tangent factor

Total power from a point in time, chosen by the operator

Recording, time stamping and characterization of disturbance (swells, sags and interruptions, 
exceedance of power and harmonic thresholds)



Detection of transients and recording of associated waveforms.

Color coded input tags to identify voltage and current inputs to local standards.

2GB internal memory

DataView software included for downloading measurements, storage, and analysis and report 
generation.

APPLICATIONS



Verification of power distribution circuits

Measurement and recording of power system quality (kW, VA, VAR)

Energy metering (kVAh, VARh, kWh)

In plant troubleshooting of power distribution panels and individual machinery

Monitor pad mount transformers

Determine harmonic problems originating from source or load

Monitor phase unbalances

Determine transformer K-Factor

2 PowerPad Model 8335

ORDERING INFORMATION

®

PowerPad

Includes five 10 ft black voltage leads, five black alligator clips, twelve color-coded rings, RS-232 DB9F optically coupled serial cable, NiMH
battery, 110/240V power adapter with US power cord, DataView® software, large classic tool bag, soft carrying pouch and user manual.

PowerPad

Includes the PowerPad® Model 8335, four MN93-BK (240A) probes, five 10 ft black voltage leads, five black alligator clips, twelve color­coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power cord, DataView® software,
large classic tool bag, soft carrying pouch and user manual.

PowerPad

Includes the PowerPad® Model 8335, four SR193-BK (1200A) probes, five 10 ft black voltage leads, five black alligator clips, twelve color­coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power cord, DataView® software,
large classic tool bag, soft carrying pouch and user manual.

PowerPad

Includes the PowerPad® Model 8335, four 24" AmpFlex® 193-24-BK (6500A) sensors, five 10 ft black voltage leads, five black alligator
clips, twelve color-coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power cord,
DataView® software, large classic tool bag, soft carrying pouch and user manual.

Model 8335 ..................................................................................................... Cat. #2136.20

®

Model 8335 w/MN93-BK ............................................................................... Cat. #2136.21

®

Model 8335 w/SR193-BK .............................................................................. Cat. #2136.22

®

Model 8335 w/24" AmpFlex® 193-24-BK ..................................................... Cat. #2136.23

®

PowerPad

Includes the PowerPad® Model 8335, four 36" AmpFlex® 193-36-BK (6500A) sensors, five 10 ft black voltage leads, five black alligator
clips, twelve color-coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power cord,
DataView® software, large classic tool bag, soft carrying pouch and user manual.

PowerPad

Includes the PowerPad® Model 8335, four color-coded MR193-BK (1000AAC/1400ADC) probes, five 10 ft black voltage leads, five black
alligator clips, twelve color-coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power
cord, DataView® software, large classic tool bag, soft carrying pouch and user manual.

PowerPad

Includes the PowerPad® Model 8335, set of three color-coded MN193-BK (6A/120A) probes, five 10 ft black voltage leads, five black
alligator clips, twelve color-coded rings, RS-232 DB9F optically coupled serial cable, NiMH battery, 110/240V power adapter with US power
cord, DataView® software, large classic tool bag, soft carrying pouch and user manual.

Model 8335 w/36" AmpFlex® 193-36-BK ..................................................... Cat. #2136.24

®

Model 8335 w/MR193-BK ............................................................................. Cat. #2136.25

®

Model 8335 w/MN193-BK ............................................................................. Cat. #2136.26

PowerPad Model 8335

3

Accessories and Replacement Parts

Extra Large Classic Tool Bag .............................................................................................. Cat. #2133.73

Replacement - Soft Carrying Pouch ................................................................................... Cat. #2140.15

Replacement - Lead Set with Clips ..................................................................................... Cat. #2140.16

5A Adapter Box (consult factory) ........................................................................................ Cat. #2140.17

Replacement - Battery 9.6V NiMH ...................................................................................... Cat. #2140.19

AC Current Probe Model MR193-BK (1000A

AC/1400ADC) ................................................. Cat. #2140.28

AC Current Probe Model MN93-BK (200A) ......................................................................... Cat. #2140.32

AC Current Probe Model SR193-BK (1200A) ...................................................................... Cat. #2140.33

®

AmpFlex

AmpFlex

Sensor 24" Model 193-24-BK (6500A) ............................................................... Cat. #2140.34

®

Sensor 36" Model 193-36-BK (6500A) ............................................................... Cat. #2140.35

AC Current Probe Model MN193-BK (5A/100A) ................................................................ Cat. #2140.36

Replacement - Set of 12 Color-coded Rings ...................................................................... Cat. #2140.45

Replacement - 6 ft USB cable ............................................................................................. Cat. #2140.46

Replacement - 110/240V Power Adapter with US Power Cord .......................................... Cat. #5000.19

4 PowerPad Model 8335

SPECIFICATIONS

ELECTRICAL

Sampling Frequency
Data Storage
Voltage (TRMS)

MN Clamp: 0 to 6A/120A or 0 to 240A SR Clamp: 0 to 1200A

Current (TRMS)

MR Clamp: 0 to 1000A

®

AmpFlex

: 0 to 6500A1

MEASUREMENT RANGE RESOLUTION ACCURACY

Single-Phase RMS Voltages
Phase-to-Phase RMS Voltages
DC Voltage Component

Single-Phase Peak Voltages

Phase-to-Phase Peak Voltages

Frequency (Hz)
Current Probes (Arms)

MN Probe
SR Probe

®

AmpFlex

Sensor

Active (Real) Power (kW)
Reactive Power (kVAR)
Apparent Power (kVA)
Power Factor (PF & DPF)
Active Energy (kWh)
Reactive Energy (kVARh)
Apparent Energy (kVAh)
Unbalance (V & A)
Phase Angle (V–A, A–A, V–V)
Harmonics (1st to 50th)

F = 40 to 69Hz (V ≥ 50V, A > nom/100)
Total Harmonic Distortion (V & A)
K-factor (Akf)
Flicker (Pst)

Power Source

Battery Life

15 to 1000V 0.1V ±0.5% ± 2cts
15 to 1000V 0.1V ±0.5% ± 2cts
15 to 1000V 0.1V ±1% ± 5cts

15 to 1414V

15 to 1414V

40 to 69Hz 0.01Hz ±0.01Hz

0 to 240A

0 to 1200A

10 to 6500A

0 to 9999kW 4 digits (10,000ct) ±1% ± 1ct @ PF ≥0.8

0 to 9999kVAR 4 digits (10,000ct) ±1% ± 1ct @ PF ≤0.8

0 to 9999kVA 4 digits (10,000ct) ±1% ± 1ct

-1.000 to 1.000 0.001 ±(1.5% + 10cts)
0 to 9999MWh 4 digits (10,000ct) ±1% ± 1ct @ PF ≥0.8

0 to 9999MVARh 4 digits (10,000ct) ±1% ± 1ct @ PF ≤0.8

0 to 9999MVAh 4 digits (10,000ct) ±1% ± 1ct

0 to 100% 0.1% ±1% ± 1ct

-179° to +180° 1° ±2° ± 1ct

0 to 999% 0.1% ±1% + 5cts

0 to 999% 0.1% ±1% + 5cts
1 to 99.99 0.01 ±5% ± 1ct

0.00 to 9.99 0.01 –

MECHANICAL

Dimensions
Weight

DISPLAY

Display Type

ENVIRONMENTAL

Operating Temperature
Storage Temperature

SAFETY

Safety Rating
Double Insulation
CE Mark

(1)

Crest Factor at 6500A = 1

600V Cat. III with MN193 or MR193 probes.

(2)

When used with SR193 or AmpFlex® probes.

Phase-to-Phase: 1000V; Phase-to-Neutral: 1000V

AC, 0 to 1400ADC MiniFlex

External AC supply: 110/230V

≥8 hrs with display on; ≥35 hrs with display off (record mode)

EN 61010-1, 600V Cat. IV², Pollution Degree 2

256 samples per cycle

2GB SD Card

™

: 0.1 to 1000A

0.1V < 1000V
1V > 1000V

0.1V < 1000V
1V > 1000V

0.1A

0.1A < 1000V ; 1A > 1000A

0.1A < 1000V ; 1A > 1000A

9.6V NiMH rechargeable battery pack

AC ±10% (50/60Hz)

9.8 x 7.8 x 2.6" (250 x 200 x 67mm)

4.3 lbs (1.95kg)

1/4 VGA (320 x 240) color LCD

32° to 122°F (0° to 50°C)

-4° to +122°F (-20° to +50°C)

Yes
Yes

±(1% + 1V)

±(1% + 1V)

±(0.5% + 2cts)

±(0.5% + 2cts); ±(0.5% + 1ct)

±(0.5% + 1A)

PowerPad Model 8335 5

Accuracy Specifications of the Current Probes (to be added to the meter’s accuracy)

Sensor Type TRMS Current Maximum Error on I

MR193

1000A

SR193
1000A

AmpFlex

3000A

MiniFlex

1000A

MN93

200A

MN193

100A

MN193

5A

5A

Adapter

[1A; 10A]

[10A; 100A] ±(2°)

[100A; 800A] ±(3%)

[1200A; 1400A]

[1A; 3A]

[3A; 10A] ±(1°)

[10A; 100A] ±(0.3%) ±(0.5°)

[100A; 1200A] ±(0.2%) ±(0.3°)

®

™

[10A; 100A] ±(3%) ±(1°)

[100A; 6500A] ±(2%) ±(0.5°)

[10A; 100A] ±(3%) ±(1°)

[100A; 1000A] ±(2%) ±(0.5°)

[0,5A; 2A]

[2A; 10A] ±(6°)

[10A; 100A] ±(2.5%+1A) ±(3°)

[100A; 240A] ±(1%+1A) ±(2°)

[100mA; 300mA]

[300mA; 1A] ±(1.5°)

[1A; 120A] ±(0.7%) ±(0.7°

[5mA; 50mA] ±(1%+0.1mA) ±(1.7°)

[50mA; 500mA] ±(1%)

[500mA; 6A] ±(0.7%)

[5mA; 50mA] ±(1%) ±(1°)

[50mA; 6A] ±(0.5%) ±(0°)

±(1.5%+1A)

±(5%)

±(0.8%)

±(3%+1A)

±(0.7%+2mA)

RMS

Maximum Error on 

N.S.

±(1.5°)[800A; 1200A]

N.S.

N.S.

N.S.

±(1°)

6

PowerPad Model 8335
