Atec 8650A User Manual

8650A

S

ERIES

UNIVERSAL

PO WER
M

ETERS

The Capabilities to Test T oday’s
Sophisticated Communications Systems

8650A SERIES

UNIVERSAL

POWER

METERS

The Giga-tronics 8650A
Series Universal Power
Meters have the extensive
measurement capabilities and
unique features required to
test today’s sophisticated
communications systems
faster and more accurately.

TDMA

The 8650A can automatically
measure the average power
of pulse modulated signals or
pulse signals that are ampli-

tude modulated during the
pulse ‘on’ period — such as
TDMA signals.

Using the exclusive Burst
Average Power mode (BAP),
the average power reading in
the pulse burst is automati­cally measured between the
3 dB points. Therefore,the
duty cycle can change in time

without affecting the accura­cy of the meter reading. This
method eliminates the need
to manually set time gating,
which can add errors if the
gate is not set accurately.

GSM

The Time Gating feature of
the 8650A lets you program

The Giga-tronics 8650A Series combines the speed,range and capabilities needed to test today’s sophisticated communications systems.

TIME GATE

5% 95%

TIME

POWER

BURST

POWER

TIME

AVERAGE
POWER

a measurement start time
and duration to measure the
average power during a spe­cific time period of a GSM
burst signal. The graphic dis­play provides visual feedback
if you prefer to set the gate
manually. And,of course,
there is the ability to use the
TTL signal for automatically
setting the time gate control.

CDMA

The 8650A has the wide,
80 dB single sensor dynamic
range required for CDMA
signal open-loop tests,the
speed you need to quickly
measure power during
closed-loop tests,and the
10 MHz bandwidth needed
to test third-generation
CDMA signals.

INSTANTANEOUS
PEAK POWER

You can also measure the
instantaneous peak power
level of a pulse modulated
signal with the 8650A.

A built-in delay line lets you
trigger a few nanoseconds
ahead of the pulse for rising
edge measurements. While a
built-in time base gives you
sample delay control up to
100 ms after the trigger
point with 0.5 ns resolution.
And you can view the profile
and see the exact measure­ment point on the pulse.

MAXIMUM PEAK
PO WER

The peak hold feature of the

8650A lets you display the
highest instantaneous power
measured from the time the
feature is enabled until it is
reset.

The display value tracks

the measured value only

when it is rising to a new
maximum;when the meas­ured value falls,the display
value holds at the maximum.

GPIB CW Measurement Speed (rdgs/s)

Normal Mode >300
Swift Mode >1,750
Fast Buffered Mode >26,000

GPIB Modulated Measurement Speed (rdgs/s)

Normal Mode >150
Swift Mode >800
Fast Modulated Mode >800

Asynchronous Sample Rate 2.5–5 MHz
Maximum Diode Sensor Video Bandwidth 20 MHz

Maximum Instrument Video Bandwidth 10 MHz
Maximum Single Sensor CW Dynamic Range 90 dB

Maximum Single Sensor Modulation Dynamic Range

TDMA/GSM 60–80 dB
CDMA (IS-95) 80 dB

Wideband CDMA (10 MHz bandwidth) 80 dB
Maximum Peak Power Sensor Rise Time 100 ns
Automatic Time Gate Setting Yes
Direct Crest Factor Measurement Yes
Statistical Power Measurement Analysis Yes

Giga-tronics 8650A Features and Specifications

SELECTED
SAMPLE
POINT

AVERAGE

POWER

80 dB

HOLD

POWER

TIME

HOLD

HOLD

(RESET)

POWER

FREQUENCY

Or use our
exclusive fast
buffered
mode to

further
reduce processor overhead
and capture over 26,000
readings per second.

Incredible
speed for CW
and modulated
measurements
results from an
asynchronous
sampling rate of 2.5 to
5 MHz,that minimizes the
aliasing effects of signals to
produce faster average
power measurements.

And the 8650A features a
wide variety of statistical
power meas­urement analy­sis,to evaluate
communica­tions system
efficiency.

BURST START AND
END EXCLUDE

The exclusive burst start and
end exclude capabilities of
the 8650A allow you to
exclude the beginning or end
of a burst when measuring
the average burst power.

Masking the beginning or
the end of a burst signal,in
order to exclude overshoot
or other distortions,can be
desirable or even required
for certain types of power
measurements.

CREST FACTOR

The crest factor capability of
the 8650A displays the ratio
of the maximum peak power
(peak hold) measurement to
the average power measure­ment (in dB) from the time
the feature is enabled until it
is reset.

The crest factor capability
operates in the same manner
as the peak hold capability:
the display value holds at the
maximum until it is reset.

INCREDIBLE SPEED
AND STATISTICAL
ANALY SIS

No other meter delivers the
measurement speed available
from the 8650A.

Achieve over 1,750 read-

ings per second over GPIB.

The Features to do the Job
Faster,Easier and More Accurately

HOLD

HOLD

HOLD

CREST
FACTOR

(dB)

AVG.

HOLD

HOLD

POWER

TIME

(RESET)

HOLD

AVG.

CREST
FACTOR

(dB)

POWER

TIME

BURST WIDTH

EXCLUDE INCLUDE IN BURST AVERAGE

BURST START EXCLUDE

TIME

POWER

BURST WIDTH

INCLUDE IN BURST AVERAGE EXCLUDE

BURST END EXCLUDE

Unrivaled Accuracy and Built-In Calibration

Giga-tronics uses diode sen­sors exclusively to provide
speed,range, capability and
accuracy unavailable from
any other power meter.

ACCURACY OVER
A 90 dB RANGE

Giga-tronics has solved the
problem that limited the use
of diode sensors to below
–20 dBm — the ‘square law’
region — by utilizing a
patented built-in power
sweep calibration system.

The power sweep calibra­tor uses a 50 MHz amplitude
controlled oscillator to step
from –30 to +20 dBm in
1 dB increments. Each step is
set using an internal thermis­tor — the standard for accu­racy and traceability.

Giga-tronics gives you
thermistor accuracy
plus diode speed for
measuring signals over a
full 90 dB power range.

BUILT-IN
FREQUENCY
RESPONSE
CALIBRATION

Configuring the meter
for measurements is
easy with calibration
factors programmed
into the sensor.

When the measure­ment frequency is
entered,the meter
automatically applies the
correct calibration fac­tor from the sensor
EEPROM. And the
meter automatically
reads a new set of cal factors
when a sensor is changed.

This avoids the chance of
measurement error from
using invalid calibration fac­tors when you change sen­sors,or from forgetting to

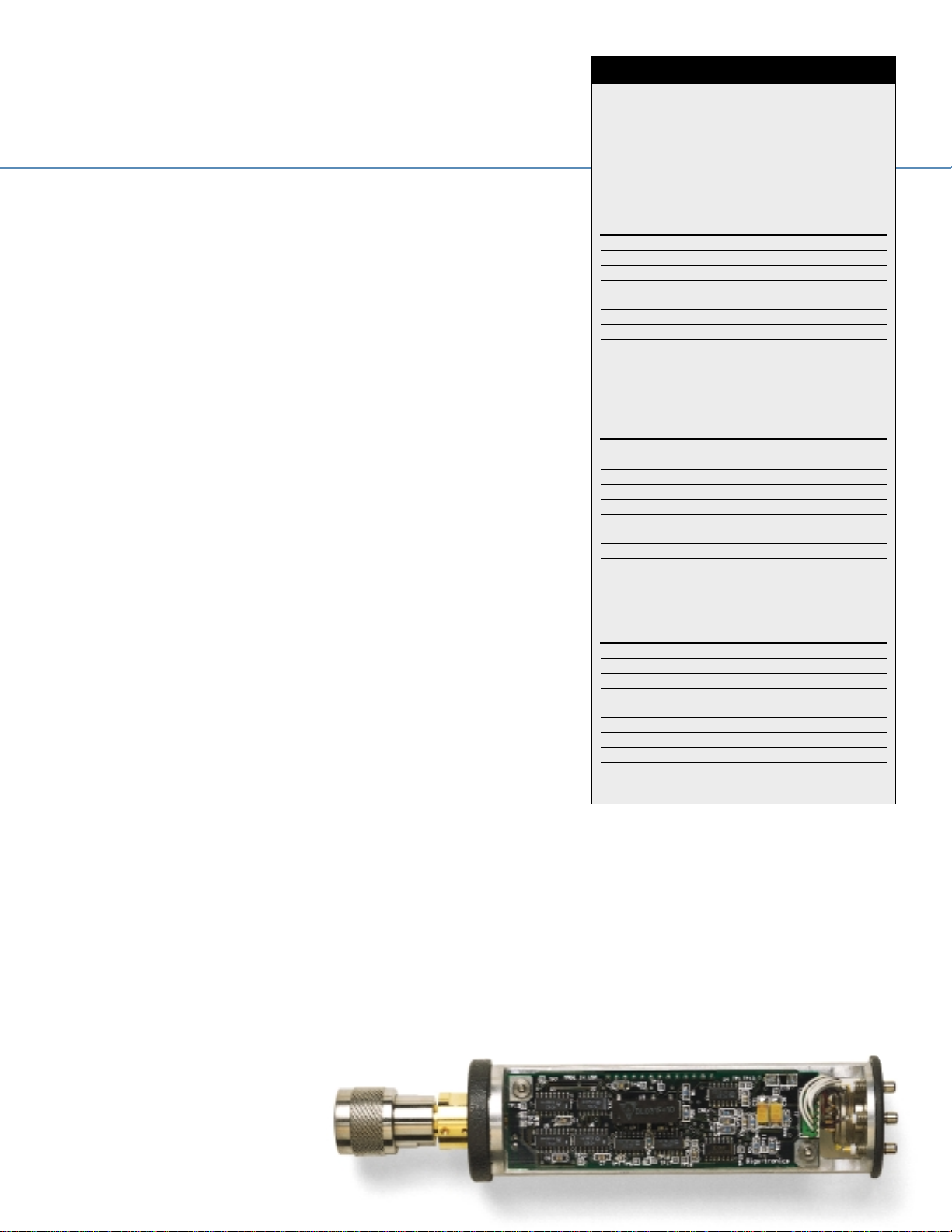

An EEPROM in all Giga-tronics sensors
automatically applies the correct cal factor,so
you save time and avoid measurement errors.

enter new calibration fac­tors. You not only avoid
measurement errors; you
also save yourself test time.

The Accuracy Audit table lists the significant uncertainties
of an absolute power measurement. The accuracy of the
8650A combined with the 80301A sensor is compared to a
typical thermocouple sensor/meter combination at +20 dBm,
0 dBm, and –30 dBm (the dynamic limit of the thermocouple
sensor). The uncertainty comparison at –30 dBm illustrates
the accuracy advantage of a wide dynamic sensor, even
when the full 90 dB dynamic range is not utilized.

+20 dBm

8650A Typical

Frequency = 1 GHz; Source with

Thermocouple

Match = 1.5:1 80301A Meter/Sensor

Instrumentation Uncertainty±5.2% + 2.5% –4.5%
Sensor Power Linearity (>8 GHz)

±0% ±0%
Calibrator Uncertainty ±1.2% ± 1.2%
Calibrator/Sensor Mismatch ± 0.28% ± 0.23%
Calibration Factor Uncertainty ± 1.04% ± 1.6%
Zero Set ± 0.00000005% ± 0.00005%
Noise ± 0.00000005% ± 0.0001%
Mismatch (Sensor/Source) ± 2.25% ± 2.0%

% Total Uncertainty ±9.97% + 7.53 –9.53%

dB Total Uncertainty ± 0.41 dB + 0.316 – 0.4 dB

0 dBm 8650A Typical
Frequency = 1 GHz; Source with

Thermocouple

Match = 1.5:1 80301A Meter/Sensor

Instrumentation Uncertainty

±

0.5% ±0.5%

Sensor Power Linearity (>8 GHz)

±0%

±

0%
Calibrator Uncertainty ±1.2% ± 1.2%
Calibrator/Sensor Mismatch ± 0.28% ± 0.23%
Calibration Factor Uncertainty ± 1.04% ± 1.6%
Zero Set ± 0.000005% ± 0.005%
Noise ± 0.000005% ± 0.01%
Mismatch (Sensor/Source) ± 2.25% ± 2.0%

% Total Uncertainty ± 5.27% ± 5.54%

dB Total Uncertainty ± 0.22 dB ± 0.23 dB

–30 dBm 8650A Typical
Frequency = 1 GHz; Source with

Thermocouple

Match = 1.5:1 80301A Meter/Sensor

Instrumentation Uncertainty

±

0.925% ± 0.5%

Sensor Power Linearity (>8 GHz)

±0%

±

0%
Calibrator Uncertainty ±1.2% ± 1.2%
Calibrator/Sensor Mismatch ± 0.28% ± 0.23%
Calibration Factor Uncertainty ± 1.04% ± 1.6%
Zero Set ± 0.005% ± 5%
Noise ± 0.005% ± 10%
Mismatch (Sensor/Source) ± 2.25% ± 2.0%

% Total Uncertainty ± 5.71% ± 20.53%

dB Total Uncertainty ± 0.24 dB ± 0.8 dB

Accuracy Audit

The Secret is the Sensors

PULSE POWER MEASUREMENTS

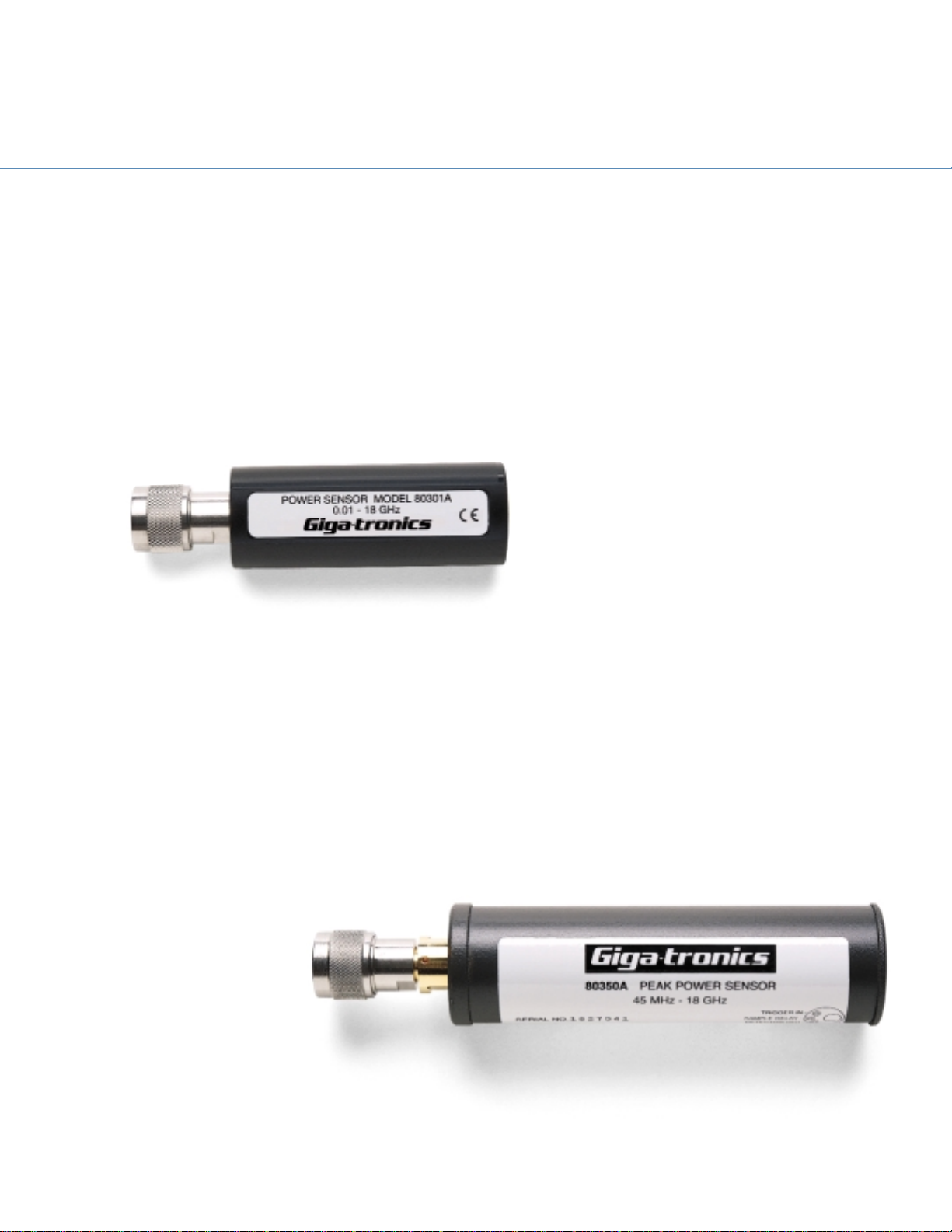

Attach a Giga-tronics 80350A Series Peak
Power Sensor to an 8650A meter and
directly measure the instantaneous peak
power level of a pulse modulated signal.

Use the ‘sample delay’ function to set the
desired measurement point on the wave­form. And an external scope can be used
to view the profile and see the exact
measurement point on the pulse.

Giga-tronics power meter architecture pr ovides for a broad choice of functional sensors.
Just by changing a sensor,you can measure CW power,pulse power,and the peak and aver­age power of TDMA,GSM and CDMA signals fast er,more accurately,and over a wider range.

THE
F ASTEST
CW MEASUREMENTS

Giga-tronics 80300A Series CW Power
Sensors let you measure CW power from
10 MHz to 40 GHz at more than 1,750
readings per second over GPIB.

Measure up to 90 dB with a single sensor,
and select from a variety of high power
sensors,up to 50 W.

MODULATED POWER
MEASUREMENTS

The Giga-tronics 80400A Series
Modulated Power Sensors let you
measure the average power of ampli­tude modulated,burst modulated and
other complex modulated signals — such

as TDMA signals — at bandwidths up to
40 kHz.

The Giga-tronics 80600A Series Modulated

Power Sensors provide bandwidth up to

1.5 MHz to measure the peak and average
power of CDMA signals.

Sensor Model

Signal Type 80301A 80350A 80401A 80601A 80701A

CW Power Level –70 to +20 dBm –30 to +20 dBm –67 to +20 dBm –67 to +20 dBm –64 to +20 dBm
Amplitude Modulation N/A N/A f

m

< 40 kHz, –60 to +20 dBm fm< 1.5 MHz, –60 to +20 dBm fm< 10 MHz, –60 to +20 dBm
Rate, Power Range fm> 40 kHz, –60 to –20 dBm fm> 1.5 MHz, –60 to –20 dBm
Two-Tone N/A N/A <

40 kHz, –60 to +20 dBm < 1.5 MHz, –60 to +20 dBm ≤10 MHz, –60 to +20 dBm
Maximum Separation > 40 kHz, –60 to –20 dBm > 1.5 MHz, –60 to –20 dBm > 10 MHz, –60 to –20 dBm
Between Carriers
Pulse Modulation N/A > 350 ns > 200 µs > 300 µs > 100 µs

Pulse Width Pulse Width Pulse Width Pulse Width

Burst with Modulation N/A N/A f

m

<

40 kHz, > 200 µs f

m

<

1.5 MHz, > 300 µs f

m

<

10 MHz, > 100 µs

f

m

= modulation rate

Pulse Width; –40 to +20 dBm Pulse Width; –40 to +20 dBm Pulse Width; –30 to +20 dBm
f

m

> 40 kHz, > 200 µs fm> 1.5 MHz, > 300 µs fm> 10 MHz, > 100 µs

Pulse Width; –40 to –20 dBm Pulse Width; –40 to –20 dBm Pulse Width; –30 to –20 dBm

Sensor Measurement Capabilities

And the Giga-tronics 80701A Modulated
Power Sensor operating with the 8650A
power meter,provides system bandwidth
up to 10 MHz to measure the peak and
average power of wide band,third-genera­tion CDMA signals over an 80 dB range.

Displays of Intelligence

SEE FOR YOURSELF

The 8650A incorporates a

3.72” wide by 2.15” high
Liquid Crystal Display (LCD)
with 240 x 120 dot resolu­tion,0.38 mm dot pitch,and
Cold Cathode Fluorescent
Lamp (CCFL) back light for
maximum detail and opti­mum viewing.

The large display lets you
see more information. And
the display works in tandem
with the meter controls to
let you view menu selections
and see your input data as
you enter it.

You can view calibration
information,select a standard
mode,setup and recall pre­configured,custom modes,
and set measurement points
and durations.

Each sensor uses an EEPROM to

store values of cal factor.Entering

the measurement frequency

automatically calls up the correct

cal factor.If the measurement

frequency is between cal factor

points, the meter automatically

enters an interpolated value.

An extensive list of help panels

provide assistance in setting up

special features and guidance

in making the measurement.

A volts per frequency input is
available to set the cal factor when
connected to an RF source. As the
source frequency is modified the
V/F output will automatically set
the power meter to the correct cal
factor,thereby eliminating the need
for manual input.

Peak (Pulse) power sensors can be

set to the desired measurement

point of a pulse signal. The trigger

point can be set using an internal

power level or a TTL signal.

Recall setup can be used to
pre-configure measurement
modes for later use. Full
descriptive details help to
clearly identify the settings
before recall.

The graphic display provides visual feedback as you set the
measurement start time and duration of the time gate to
measure the average power during a specific time period.

View the mean power and standard
deviation of the modulated signal
over a time period of interest.
Standard deviation offers an alter­native descriptive analysis of the
power variation when compared to
the traditional crest factor.

STATISTICAL
ANALYSIS

Excessive cost can prove as
detrimental to the success of
communications equipment
as inadequate performance.

The 8650A provides a
range of statistical power
measurement analysis fea­tures that help you optimize
your designs to prevent inad­equate performance due to
under design or excessive
cost due to over design.

These features include
crest factor,standard devi­ation,strip chart, CDF/CCDF,
and histogram,and they let
you view and thoroughly
analyze the power signal
over a selected period of
time.

Combined,they make the
8650A the most advanced
power meter available for
communications systems
design.

The histogram function allows you
to view a power range distribution
over a period of time. The x axis
displays the minimum to maximum
power levels measured during the
interval time period, and the y axis
displays the percent of time each
power level is measured. A zoom
feature lets you view smaller seg­ments of the power range to bet­ter analyze the percentage of time
a specific power level has occurred.

The strip char t function allows you to view the vary-

ing power levels of a signal over a

period of time. The x axis displays

time from the start of the meas-

urement to a selectable period of

1 to 200 minutes, and the y axis

displays the minimum to maximum

power levels measured during the

selected period. Moving a cursor

along the x axis displays time and

the corresponding power level.

The Cumulative Distribution

Function (CDF) shows the

percentage of time a signal is

below a selected power level. The

x axis displays the amount of

power at the selected level,meas-

ured in dBm,and the y axis dis-

plays the percentage of time the

power is at or below the power

specified by the x axis. The

Complementary Cumulative

Distribution Function (CCDF) reori-

ents the CDF curve in accordance

with the equation CCDF = 1-CDF

for more accustomed viewing of a

descending slope. Moving a cursor

along the slope of the curve dis-

plays the power level in dBm and

the corresponding percentage of

time the signal is above that level.

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) RF Connector Length Diameter Weight VSWR

200 mW CW Power Sensors

80301A 10 MHz to 18 GHz +23 dBm (200 mW)–70 to –20 dBm: ±0.00 dB Type N(m) 114.5 mm 32 mm 0.18 kg 1.12: 0.01 - 2 GHz

–

70 to +20 dBm

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (4.5 in) (1.25 in) (0.4 lb) 1.22: 2 - 12.4 GHz

80302A 10 MHz to 18 GHz +23 dBm (200 mW)–70 to –20 dBm: ±0.00 dB APC-7 114.5 mm 32 mm 0.18 kg 1.29: 12.4 - 18 GHz

–

70 to +20 dBm

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (4.5 in) (1.25 in) (0.4 lb)

80303A 10 MHz to 26.5 GHz +23 dBm (200 mW)–70 to –20 dBm: ±0.00 dB Type K(m)

1

114.5 mm 32 mm 0.18 kg 1.12: 0.01 - 2 GHz

–

70 to +20 dBm

–

20 to +20 dBm: ±0.1 dB/10 dB 50Ω (4.5 in) (1.25 in) (0.4 lb) 1.22: 2 - 12.4 GHz

80304A 10 MHz to 40 GHz +23 dBm (200 mW)–70 to –20 dBm: ±0.00 dB Type K(m)

1

114.5 mm 32 mm 0.18 kg 1.38: 12.4 - 18 GHz

–

70 to 0 dBm

–

20 to 0 dBm: ±0.2 dB/10 dB 50Ω (4.5 in) (1.25 in) (0.4 lb) 1.43: 18 - 26.5 GHz

1.92: 26.5 - 40 GHz

Low VSWR CW Power Sensors

80310A 10 MHz to 18 GHz +29 dBm (800 mW)–64 to –14 dBm: ±0.00 dB Type K(m)

1

127 mm 32 mm 0.23 kg 1.13: 0.01 - 2 GHz

–

64 to +26 dBm

–

14 to +26 dBm: ±0.05 dB/10 dB 50Ω (5.0 in) (1.25 in) (0.5 lb) 1.16: 2 - 12 GHz

80313A 10 MHz to 26.5 GHz +29 dBm (800 mW)–64 to –14 dBm: ±0.00 dB 1.23: 12 - 18 GHz

–

64 to +26 dBm

–

14 to +26 dBm: ±0.1 dB/10 dB 1.29: 18 - 26.5 GHz

80314A 10 MHz to 40 GHz +29 dBm (800 mW)–64 to –14 dBm: ±0.00 dB 1.50: 26.5 - 40 GHz

–

64 to +6 dBm

–

14 to +6dBm: ±0.2 dB/10 dB

1 W CW Power Sensors

80320A 10 MHz to 18 GHz +30 dBm (1 W)

–

60 to –10 dBm:±0.00 dB Type K(m)

1

127 mm 32 mm 0.23 kg 1.11: 0.01 - 2 GHz

–

60 to +30 dBm

–

10 to +30 dBm: ±0.05 dB/10 dB 50Ω (5.0 in) (1.25 in) (0.5 lb) 1.12: 2 - 12 GHz

80323A 10 MHz to 26.5 GHz +30 dBm (1 W)

–

60 to –10 dBm: ±0.00 dB 1.18: 12 - 18 GHz

–

60 to +30 dBm

–

10 to +30 dBm: ±0.1 dB/10 dB 1.22: 18 - 26.5 GHz

80324A 10 MHz to 40 GHz +30 dBm (1 W)

–

60 to –10 dBm: ±0.00 dB 1.36: 26.5 - 40 GHz

–

60 to +10 dBm

–

10 to +10 dBm: ±0.2 dB/10 dB

5 W CW Power Sensor

2

80321A 10 MHz to 18 GHz +37 dBm (5 W)

–

50 to 0 dBm: ±0.00 dB Type N(m) 150 mm 32 mm 0.23 kg 1.20: 0.01 - 6 GHz

–

50 to +37 dBm 0 to +37 dBm: ±0.05 dB/10 dB 50Ω (5.9 in) (1.25 in) (0.5 lb) 1.25: 6 - 12.4 GHz

1.35: 12.4 - 18 GHz

25 W CW Power Sensor

3

80322A 10 MHz to 18 GHz +44 dBm (25 W)

–

40 to +10 dBm: ±0.00 dB Type N(m) 230 mm 104 mm 0.3 kg 1.20: 0.01 - 6 GHz

–

40 to +44 dBm +10 to +44 dBm: ±0.05 dB/10 dB 50Ω (9.0 in) (4.1 in) (0.6 lb) 1.30: 6 - 12.4 GHz

1.40: 12.4 - 18 GHz

50 W CW Power Sensor

3

80325A 10 MHz to 18 GHz +47 dBm (50 W)

–

40 to +10 dBm: ±0.00 dB Type N(m) 230 mm 104 mm 0.3 kg 1.25: 0.01 - 6 GHz

–

40 to +47 dBm +10 to +47 dBm: ±0.05 dB/10 dB 50Ω (9.0 in) (4.1 in) (0.6 lb) 1.35: 6 - 12.4 GHz

1.45: 12.4 - 18 GHz

Giga-tronics CW Power Sensor Selection Guide

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) Input Test Port Directivity Weight VSWR

Precision CW Return Loss Bridges

80501 10 MHz to 18 GHz +27 dBm (0.5 W)

–

35 to +10 dBm: ±0.1 dB Type N(f) Type N(f) 38 dB 0.340 kg < 1.17: 0.01 - 8 GHz

–

35 to +20 dBm +10 to +20 dBm: ±0.1 dB 50Ω 50Ω < 1.27: 8 - 18 GHz

±0.005 dB/dB

80502 10 MHz to 18 GHz +27 dBm (0.5 W)

–

35 to +10 dBm: ±0.1 dB Type N(f) APC-7(f) 40 dB 0.340 kg < 1.13: 0.01 - 8 GHz

–

35 to +20 dBm +10 to +20 dBm: ±0.1 dB 50Ω 50Ω < 1.22: 8 - 18 GHz

±0.005 dB/dB

80503 10 MHz to 26.5 GHz +27 dBm (0.5 W)

–

35 to +10 dBm: ±0.1 dB SMA(f) SMA(f) 35 dB 0.340 kg < 1.22: 0.01 - 18 GHz

–

35 to +20 dBm +10 to +20 dBm: ±0.1 dB 50Ω 50Ω < 1.27: 18 - 26.5 GHz

±0.005 dB/dB

80504 10 MHz to 40 GHz +27 dBm (0.5 W)

–

35 to +10 dBm: ±0.1 dB Type K(f) Type K(f) 30 dB 0.198 kg < 1.35: 0.01 - 26.5 GHz

–

35 to +20 dBm +10 to +20 dBm: ±0.1 dB 50Ω 50Ω < 1.44: 26.5 - 40 GHz

±0.005 dB/dB

Giga-tronics Bridge Selection Guide

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) RF Connector Length Diameter Weight VSWR

200 mW Peak Power Sensors

80350A 45 MHz to 18 GHz +23 dBm (200 mW)–30 to –20 dBm: ±0.00 dB Type N(m) 165 mm 37 mm 0.3 kg 1.12: 0.045 - 2 GHz

–

20 to +20 dBm, Peak CW or Peak

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (6.5 in) (1.25 in) (0.7 lb) 1.22: 2 - 12.4 GHz

–

30 to +20 dBm, CW 1.37: 12.4 - 18 GHz

80353A 45 MHz to 26.5 GHz +23 dBm (200 mW)–30 to –20 dBm: ±0.00 dB Type K(m)

1

165 mm 37 mm 0.3 kg 1.50: 18 - 26.5 GHz

–

20 to +20 dBm, Peak CW or Peak

–

20 to +20 dBm: ±0.1 dB/10 dB 50Ω (6.5 in) (1.25 in) (0.7 lb) 1.92: 26.5 - 40 GHz

–

30 to +20 dBm, CW

80354A 45 MHz to 40 GHz +23 dBm (200 mW)–30 to –20 dBm: ±0.00 dB Type K(m)

1

165 mm 37 mm 0.3 kg

–

20 to +0.0 dBm, Peak CW or Peak

–

20 to 0.0 dBm: ±0.2 dB/10 dB 50Ω (6.5 in) (1.25 in) (0.7 lb)

–

30 to +0.0 dBm, CW

5 W Peak Power Sensor

5, 7

80351A 45 MHz to 18 GHz CW: +37 dBm

–

10 to +0 dBm: ±0.00 dB Type N(m) 200 mm 37 mm 0.3 kg 1.15: 0.045 - 4 GHz

0 to +40 dBm, Peak (5 W Average) 0.0 to +40 dBm: ±0.05 dB/10 dB 50Ω (7.9 in) (1.25 in) (0.7 lb) 1.25: 4 - 12.4 GHz

–

10 to +37 dBm, CW Peak: +43 dBm 1.35: 12.4 - 18 GHz

25 W Peak Power Sensor

6, 7

80352A 45 MHz to 18 GHz CW: +44 dBm 0.0 to +10 dBm: ±0.00 dB Type N(m) 280 mm 104 mm 0.3 kg 1.20: 0.045 - 6 GHz

+10 to +50 dBm, Peak (25 W Average) +10 to +50 dBm: ±0.05 dB/10 dB 50Ω (11.0 in) (4.1 in) (0.7 lb) 1.30: 6 - 12.4 GHz

0.0 to +44 dBm, CW Peak: +53 dBm 1.40: 12.4 - 18 GHz

50 W Peak Power Sensor

6, 7

80355A 45 MHz to 18 GHz CW: +47 dBm 0.0 to +10 dBm: ±0.00 dB Type N(m) 280 mm 104 mm 0.3 kg 1.25: 0.045 - 6 GHz

+10 to +50 dBm, Peak (50 W Average) +10 to +50 dBm: ±0.05 dB/10 dB 50Ω (11.0 in) (4.1 in) (0.7 lb) 1.35: 6 - 12.4 GHz

0.0 to +47 dBm, CW Peak: +53 dBm 1.45: 12.4 - 18 G

Hz

Giga-tronics Peak Power Sensor Selection Guide

1

The K connector is electrically and mechanically compatible with the APC-3.5 and SMA connec­tors. Note: Use a Type N(m) to SMA(f) adapter (part no. 29835) for calibration of power sensors
with Type K(m) connectors.

2

Power coefficient equals <0.01 dB/Watt.3Power coefficient equals

<0.015 dB/Watt.

4

For frequencies above 8 GHz,add power linearity to system linearity.5Power

coefficient equals <0.01 dB/Watt (Average).

6

Power coefficient equals <0.015 dB/Watt

(Average).

7

Peak operating range above CW maximum range is limited to <10% duty cycle.

8

Square root of the sum of the individual uncertainties squared (RSS).9Cal Factor numbers
allow for 3% repeatability when reconnecting an attenuator to a sensor and 3% for attenuator
measurement uncertainty and mismatch of sensor/pad combination.

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) RF Connector Length Diameter Weight VSWR

200 mW Modulation Power Sensors

80401A 10 MHz to 18 GHz +23 dBm (200 mW)–67 to –20 dBm: ±0.00 dB Type N(m) 114.5 mm 32 mm 0.18 kg 1.12: 0.01 - 2 GHz

–

67 to +20 dBm

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (4.5 in) (1.25 in) (0.4 lb) 1.22: 2 - 12.4 GHz

80402A 10 MHz to 18 GHz +23 dBm (200 mW)–67 to –20 dBm: ±0.00 dB APC-7 1.29: 12.4 - 18 GHz

–

67 to +20 dBm

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω

Low VSWR Modulation Power Sensor

80410A 10 MHz to 18 GHz +29 dBm (800 mW)–64 to –14 dBm: ±0.00 dB Type K 1(m) 127 mm 32 mm 0.23 kg 1.13: 0.01 - 2 GHz

–

64 to +26 dBm

–

14 to +26 dBm: ±0.05 dB/10 dB 50Ω (5.0 in) (1.25 in) (0.5 lb) 1.16: 2 - 12 GHz

1.23: 12 - 18 GHz

1 W Modulation Power Sensor

80420A 10 MHz to 18 GHz +30 dBm (1 W)

–

57 to–10 dBm: ±0.00 dB Type K 1(m) 127 mm 32 mm 0.23 kg 1.11: 0.01 - 2 GHz

–

57 to +30 dBm

–

10 to +30 dBm: ±0.05 dB/10 dB 50Ω (5.0 in) (1.25 in) (0.5 lb) 1.12: 2 - 12 GHz

1.18: 12 - 18 GHz

5 W Modulation Power Sensor

2

80421A 10 MHz to 18 GHz +37 dBm (5 W)

–

47 to 0 dBm: ±0.00 dB Type N(m) 150 mm 32 mm 0.23 kg 1.20: 0.01 - 6 GHz

–

47 to +37 dBm 0 to +37 dBm: ±0.05 dB/10 dB 50Ω (5.9 in) (1.25 in) (0.5 lb) 1.25: 6 - 12.4 GHz

1.35: 12.4 - 18 GHz

25 W Modulation Power Sensor

3

80422A 10 MHz to 18 GHz +44 dBm (25 W)

–

37 to +10 dBm: ±0.00 dB Type N(m) 230 mm 104 mm 0.3 kg 1.20: 0.01 - 6 GHz

–

37 to +44 dBm +10 to +44 dBm: ±0.05 dB/10 dB 50Ω (9.0 in) 4.1 in) (0.6 lb) 1.30: 6 - 12.4 GHz

1.40: 12.4 - 18 GHz

50 W Modulation Power Sensor

3

80425A 10 MHz to 18 GHz +47 dBm (50 W)

–

34 to +10 dBm: ±0.00 dB Type N(m) 230 mm 104 mm 0.3 kg 1.25: 0.01 - 6 GHz

–

34 to +47 dBm +10 to +47 dBm: ±0.05 dB/10 dB 50Ω (9.0 in) (4.1 in) (0.6 lb) 1.35: 6 - 12.4 GHz

1.45: 12.4 - 18 GHz

Giga-tronics Modulation Power Sensor Selection Guide (fm< 40 kHz)

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) RF Connector Length Diameter Weight VSWR

200 mW Modulation Power Sensors

80601A 10 MHz to 18 GHz +23 dBm (200 mW)–67 to –20 dBm: ±0.00 dB Type N(m) 137 mm 41 mm 0.23 kg 1.12: 0.01 - 2 GHz

–

67 to +20 dBm, CW

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (5.39 in) (1.62 in) (0.5 lb) 1.22: 2 - 12.4 GHz

1.29: 12.4 - 18 GHz

5 W Modulation Power Sensor

5, 7

80621A 10 MHz to 18 GHz +37 dBm (5 W)

–

47 to 0 dBm: ±0.00 dB Type N(m) 175 mm 41 mm 0.28 kg 1.20: 0.01 - 6 GHz

–

47 to +37 dBm 0 to +37 dBm: ±0.05 dB/10 dB 50Ω (6.90 in) (1.62 in) (0.6 lb) 1.25: 6 - 12.4 GHz

1.35: 12.4 - 18 GHz

Giga-tronics Modulation Power Sensor Selection Guide (fm< 1.5 MHz)

Frequency Range/ Maximum Power Linearity

4

Power Range Power (Frequency > 8 GHz) RF Connector Length Diameter Weight VSWR

True RMS Sensors (-30 dBm to +20 dBm)

80330A 10 MHz to 18 GHz +33 dBm (2 W)

–

30 to +20 dBm: ±0.00 dB Type K(m)

1

152 mm 32 mm 0.27 kg 1.12: 0.01 - 12 GHz
80333A 10 MHz to 26.5 GHz 50Ω (6.0 in) (1.25 in) (0.6 lb) 1.15: 12 - 18 GHz
80334A 10 MHz to 40 GHz 1.18: 18 - 26.5 GHz

1.29: 26.5 - 40 GHz

Giga-tronics True RMS Sensors Selection Guide (fm> 1.5 MHz)

Frequency (GHz) Root Sum of Squares (RSS) Uncertainties(%)

8

80301A 80321A

9

80302A 80322A

9

80350A 80325A

9

80401A 80303A 80310A 80320A 80421A

9

80402A 80304A 80313A 80323A 80422A980330A 80351A

9

80601A 80353A 80314A 80324A 80425A980333A 80352A

9

Lower Upper 80701A 80354A 80410A 80420A 80621A980334A 80355A

9

Min 1

1.04 1.64 1.58 1.58 4.54 1.58 4.92
1 2 1.20 1.73 1.73 1.73 4.67 1.73 5.04
2 4 1.33 1.93 1.91 1.91 4.89 1.90 7.09
4 6 1.41 2.03 2.02 2.01 5.01 2.01 7.17
6 8 1.52 2.08 2.07 2.06 5.12 2.06 7.25
8 12.4 1.92 2.55 2.54 2.53 5.56 2.53 7.56

12.4 18 2.11 2.83 2.80 2.79 5.89 2.78 12.37
18 26.5 — 3.63 3.68 3.62 — 3.59 —

26.5 40 — 6.05 5.54 5.39 — 5.30 —

Sensor Calibration Factor Uncertainties

Frequency Range/ Maximum
Power Range Power Power Linearity

4

RF Connector Length Diameter Weight VSWR

200 mW Modulation Power Sensor

80701A (Requires Option 12) Frequency >8 GHz

50 MHz to 18 GHz +23 dBm (200 mW)

–

60 to –20 dBm: ±0.00 dB Type N(m) 120 mm 27 mm 0.10 kg 1.12: 0.01 - 2 GHz

–

64 to +20 dBm, CW

–

20 to +20 dBm: ±0.05 dB/10 dB 50Ω (4.72 in) (1.06 in) (0.2 lb) 1.22: 2 - 12.4 GHz

250 MHz to 18 GHz Frequency <500 MHz 1.29: 12.4 - 18 GHz

–

60 to +20 dBm, Modulation

–

60 to –20 dBm: ±0.00 dB

–

20 to +20 dBm: ±0.05 dB/10 dB

Giga-tronics Modulation Power Sensor Selection Guide (fm< 10 MHz)

8650A Series Universal Power Meter Specifications

10

Depending on sensor used.

11

MAP (Modulated Average Power),

PAP (Pulse Average Power),BAP (Burst Average Power).

12

Specified
performance applies with maximum averaging and 24 hour warm-up
at constant temperature.

13

Operates in Normal Mode only.14Display

contrast reduces above 50° C.

15

Does not apply to 80701A Sensor

below 500 MHz.

Specifications subject to change without notice.

Specifications describe the instrument’s warranted performance,
and apply when using the 80300A, 80400A, 80600A, and
80700A Series Sensors.

METER

Frequency Range: 10 MHz to 40 GHz

10

Power Range: -70 dBm to +47 dBm

(100 pW to 50 Watt)

10

Single Sensor Dynamic Range:

10

CW Power Sensors: 90 dB
Peak (Pulse) Power Sensors: 40 dB, Peak

50 dB, CW

Modulation Power Sensors: 87 dB, CW

80 dB, MAP/PAP

11

60 dB, BAP

11

Display Resolution: User selectable from

1 dB to 0.001 dB in Log mode, and from 1 to 4
digits of display resolution in Linear mode.

Meter Functions

Measurement Modes (Sensors):

CW (80300A, 80350A, 80400A, 80600A, and

80700A Series)
Peak (80350A Series)
MAP/PAP/BAP

11

(80400A, 80600A, and 80700A Series)

Averaging: User selectable, auto-averaging or

manual from 1-512 readings. Timed averaging from
20 ms to 20 seconds.

dB Rel and Offset: Power display can be

offset by -99.999 to +99.999 dB to account for
external loss/gain.

Configuration Storage Registers:

Allows up to 20 front panel setups.

Power Measurements and Display
Configurations: Any two of the following

channel configurations, simultaneously:
A, B, A/B, B/A, A-B, B-A, DLYA, DLYB

Number of Display Lines: 4
Sampling:

CW and Modulation Mode: 2.5 to 5 MHz asynchronous

Analog Bandwidth:

CW Mode: ≥3 kHz
Modulation Mode: >10 MHz

Time Gating:

Trigger Delay:0 to 327 ms
Gate Time: 10 µs to 327 ms
Holdoff Time: 0 to 327 ms

ACCURACY

50 MHz Calibrator: (Standard)

Calibrator: +20 dBm to -30 dBm

power sweep calibration signal to dynamically

linearize the power sensors.

Connector: Type N, 50 Ω
Frequency: 50 MHz, nominal

0.0 dBm Accuracy: ±1.2% worst case for

one year, over temperature range of 5º to 35ºC.

VSWR: <1.05 (Return Loss >33 dB) @0 dBm.

1 GHz Calibrator: (Option 12)

Required for 80700A Series Sensors.

Calibrator: +20 dBm to -30 dBm

power sweep calibration signal to dynamically
linearize power sensors.

Connector: Type N, 50 Ω
Frequency: (Switchable): 1 GHz, nominal;

50 MHz, nominal

0.0 dBm Accuracy: ±1.2% worst case for
one year, over temperature range of 5º to 35ºC.

VSWR: <1.07 (Return Loss >30 dB) @0 dBm.

800 MHz - 1 GHz Synthesizer

Specifications: (Option 12)
Power Range: +15 dBm to -30 dBm, settable in

1 dB steps.
Frequency: 800 MHz to 1 GHz, settable in

1 MHz steps.

Power Stability: <0.1 dB/Hour
Frequency Accuracy: ± 0.05%

Instrumentation Linearity:

±0.02 dB over any 20 dB range from

-70 to +16 dBm.

15

±0.02 dB + (±0.05 dB/dB) from +16 to +20 dBm.
±0.04 dB from -70 to +16 dBm.

Graph shows linearity plus worst case zero set, and noise
versus input power

Temperature Coefficient of
Linearity: <0.3%/ºC temperature change following

Power Sweep calibration. 24 hour warm-up required.

Zeroing Accuracy: (CW)

Zero Set:

12

<±50 pW, <±100 pW with
80400A and 80600A Series Modulation Power Sensors.
<±200 pW with 80700A Series Sensors.

Zero Drift:

12

<±100 pW during 1 hour,
<±200 pW with 80400A and 80600A Series Sensors,
<±400 pW with 80700A Series Sensors.

Noise: <±50 pW, <±100 pW with 80400A

and 80600A Series Modulation Power Sensors.
<±200 pW with 80700A Series Sensors.
Measurable over any 1 minute interval after zeroing,
3 standard deviations.

REMOTE INPUTS/OUTPUTS

V Prop F Input (BNC): Sets calibration factors

using source VpropF output.

13

Analog Output (2) (BNC): Provides an output

voltage of 0 to 10V for Channels 1 and 2 in
either Lin or Log units.

13

Does not operate in Swift

or Buffered modes.

Trigger Input (BNC): TTL trigger input signal

for Swift and Fast Buffered modes.

GPIB Interface: IEEE-488 and IEC-625 remote

programming

RS232 Interface: Programmable serial interface,

DB-9 connector

GENERAL SPECIFICATIONS

Temperature Range:

Operating: 0º to 55ºC (+32º to +131ºF)

14

Storage: -40ºC to 70ºC (-40º to +158ºF)

Power Requirements:

100/120/220/240V ±10%,
48 to 440 Hz, 25VA typical

Physical Characteristics:

Dimensions: 215 mm (8.4 in) wide,

89 mm (3.5 in) high, 368 mm (14.5 in) deep

Weight: 4.55 kg (10lbs)

ORDERING INFORMATION

POWER METERS

8651A Single Input Universal Power Meter

(includes 1 sensor cable)

8652A Dual Input Universal Power Meter

(includes 2 sensor cables)

ACCESSORIES

One manual, one power cord.

POWER METER OPTIONS

01 Rack mount kit
03 8651A Rear Panel Sensor and Calibrator Connections
04 8652A Rear Panel Sensor and Calibrator Connections
05 Soft Carry Case
07 Side Mounted Carrying Handle
08 Transit Case, (Includes Soft Carr y Case)
09 Dual Rack Mount Kit (with assembly instructions)
10 Dual Rack Mount Kit (factory assembled)
12 1 GHz, 50 MHz Switchable Calibrator
13 8651A Rear Panel Input Connector
14 8652A Rear Panel Input Connectors

80301A
80310A
80320A
80321A
80322A
80325A
80330A

80401A, 80601A (CW)

80701A (CW)

-70

-64

-60

-50

-40

-40

-30

-67

-64

-60

-54

-50

-40

-30

-30

-20

-57

-54

-50

-44

-40

-30

-20

-20

-10

-47

-44

-40

-34

-30

-20

-10

-10
0

-37

-34

-30

-24

-20

-10
0
0

10

-27

-25

-20

-14

-10
0

10
10
20

-17

-16

-10

-4
0

10
20
20

-7

-7

0

6
10
20
30
30

3

3

10
16
20
30
40
40

13
13

20
25
30
40
44
50

20
20

3
2
1
0

-1

-2

-3

SENSORS

TYPICAL ERROR (dB)

Input, (dBm)

Giga-tronics Incorporated
4650 Norris Canyon Road
San Ramon,California 94583
Telephone: [phone] or

925 328 4650
Telefax: 925 328 4700
Web Site: www.gigatronics.com

© 1999 Giga-tronics Incorporated GT-167-B
