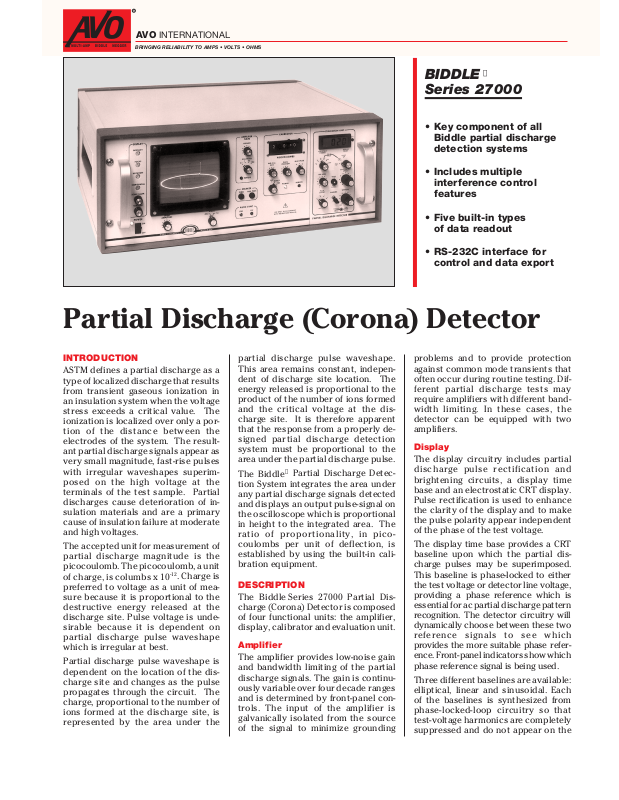

Atec 27000 User Manual

AVO INTERNATIONAL

BRINGING RELIABILITY TO AMPS • VOLTS • OHMS

PARTIAL DISCHARGE DETECTION SYSTEMS

BIDDLE



Series 27000

• Key component of all
Biddle partial discharge
detection systems

• Includes multiple
interference control
features

• Five built-in types
of data readout

• RS-232C interface for
control and data export

Partial Discharge (Corona) Detector

INTRODUCTION

ASTM defines a partial discharge as a
type of localized discharge that results
from transient gaseous ionization in
an insulation system when the voltage
stress exceeds a critical value. The
ionization is localized over only a por­tion of the distance between the
electrodes of the system. The result­ant partial discharge signals appear as
very small magnitude, fast-rise pulses
with irregular waveshapes superim­posed on the high voltage at the
terminals of the test sample. Partial
discharges cause deterioration of in­sulation materials and are a primary
cause of insulation failure at moderate
and high voltages.

The accepted unit for measurement of
partial discharge magnitude is the
picocoulomb. The picocoulomb, a unit
of charge, is columbs x 10
preferred to voltage as a unit of mea­sure because it is proportional to the
destructive energy released at the
discharge site. Pulse voltage is unde­sirable because it is dependent on
partial discharge pulse waveshape
which is irregular at best.

Partial discharge pulse waveshape is
dependent on the location of the dis­charge site and changes as the pulse
propagates through the circuit. The
charge, proportional to the number of
ions formed at the discharge site, is
represented by the area under the

-12

. Charge is

partial discharge pulse waveshape.
This area remains constant, indepen­dent of discharge site location. The
energy released is proportional to the
product of the number of ions formed
and the critical voltage at the dis­charge site. It is therefore apparent
that the response from a properly de­signed partial discharge detection
system must be proportional to the
area under the partial discharge pulse.



The Biddle
tion System integrates the area under
any partial discharge signals detected
and displays an output pulse-signal on
the oscilloscope which is proportional
in height to the integrated area. The
ratio of proportionality, in pico­coulombs per unit of deflection, is
established by using the built-in cali­bration equipment.

DESCRIPTION

The Biddle
charge (Corona) Detector is composed
of four functional units: the amplifier,
display, calibrator and evaluation unit.

Amplifier

The amplifier provides low-noise gain
and bandwidth limiting of the partial
discharge signals. The gain is continu­ously variable over four decade ranges
and is determined by front-panel con­trols. The input of the amplifier is
galvanically isolated from the source
of the signal to minimize grounding

Partial Discharge Detec-

Series 27000 Partial Dis-

problems and to provide protection
against common mode transients that
often occur during routine testing. Dif­ferent partial discharge tests may
require amplifiers with different band­width limiting. In these cases, the
detector can be equipped with two
amplifiers.

Display

The display circuitry includes partial
discharge pulse rectification and
brightening circuits, a display time
base and an electrostatic CRT display.
Pulse rectification is used to enhance
the clarity of the display and to make
the pulse polarity appear independent
of the phase of the test voltage.

The display time base provides a CRT
baseline upon which the partial dis­charge pulses may be superimposed.
This baseline is phase-locked to either
the test voltage or detector line voltage,
providing a phase reference which is
essential for ac partial discharge pattern
recognition. The detector circuitry will
dynamically choose between these two
reference signals to see which
provides the more suitable phase refer­ence. Front-panel indicators show which
phase reference signal is being used.

Three different baselines are available:
elliptical, linear and sinusoidal. Each
of the baselines is synthesized from
phase-locked-loop circuitry so that
test-voltage harmonics are completely
suppressed and do not appear on the

PARTIAL DISCHARGE DETECTION SYSTEMS

CRT display. The rotation of the ellip­tical time base may be altered from
the factory-set conventions to suit
user requirements.

Two phase-reference markers may be
manually activated by pressing a
pushbutton switch on the detector front
panel. These markers appear as pulses
on the display time base. One marker
indicates the 0° phase position and the
other indicates the 270° phase position
of the display time base. They may be
used to assist the user in determining
the phase angle of partial discharge sig­nals and to remind the user of the
elliptical display conventions.

Calibrator

The calibrator provides a precision
signal that is used to calibrate the
desired readout in units of pico­coulombs. The output of the calibrator
is continuously variable from 0.1 to
999 pC via a digital control. A digital
display with automatic decimal point
indicates the actual output level. Cali­bration can be either direct or indirect
(in accordance with IEC 270, ASTM D­1868, method 3 or ASTM D-1868,
method 4, respectively).

Evaluation Unit

The evaluation unit is used to measure,
process and display several variables
pertaining to the partial discharge sig­nal. The variables measured are peak
partial discharge in picocoulombs,
average partial discharge in microam­peres and apparent partial discharge
power loss in milliwatts. A front-panel
liquid crystal display as well as rear­panel terminal block outputs are used
to convey the measurements to the
user. These outputs may be used to
drive strip chart or X-Y graphic record­ers when this capability is required.
The evaluation unit also provides the
following two important functions:

• Overlimit trip function: The overlimit
trip function monitors the detector’s
peak partial discharge signal and indi­cates when that signal exceeds the
overlimit level via a front-panel con­trol. If the partial discharge exceeds
this level, then a trip will occur. A trip
is indicated by a front-panel LED and
relay contacts which are accessible on
a rear-panel terminal block.

Since partial discharge is often masked
by noise, internal digital filters may be
used to minimize false trips, and to vary
the sensitivity of the overlimit detector.

• Window-gating function: The win-
dow-gating function allows the user to
define a window period during which
partial discharge is measured. Any in­terference signals occurring outside of
this window will be ignored by the sig­nal measurement and display circuitry.
This feature may be used to blank spuri­ous signals that would normally
interfere with the precision partial dis­charge measurement or to isolate
signals of interest.

Additional Capabilities

• Partial discharge signal level graph­ing: Some power cable testing spe­cifications require a graph of the par­tial discharge level as a function of
test voltage. This capability is pro­vided by using the picocoulomb
channel analog output for one axis
and the Biddle kilovoltmeter analog
output for the second axis. The scale
of the plot may be calibrated to repre­sent any picocoulomb value.

• The Biddle Series 27000 Partial Dis­charge Detector with RS-232 port
permits creation of a computerized test
report. Microsoft



Windows-based
software that will generate a one-page
test report is optionally available. Two
test report formats are available by
menu selection. One format is for rou­tine testing of power cable; the other
format is for general-purpose use. The
test report includes an X-Y graph of
partial discharge level versus test volt­age. Menu-driven software permits the
operator to enter descriptive informa­tion, calibrate the system and initiate
data collection.

Upon completion of the test, the opera­tor can view the test data on the monitor
to check for compliance with the test
requirements before printing or saving.

• Interference control: Window gating,
overlimit trip functions and digital fil­tering all serve to minimize or eliminate
the effects of unwanted continuous and
sporadic signals. Additional shielding
and filtering techniques are optionally
available to augment this capability and
ensure accurate measurement of par­tial discharge.

As an example, common interference
from single-phase SCR noise occurs
as a pulse on every half-cycle of the
test voltage. If the pulse is stationary
with respect to the phase of the test
voltage, its effects may be completely
eliminated by setting the window
phase angles so that the pulse is
excluded from any measurements. Of­ten, however, the SCR pulse is not
stationary. In these cases, the interfer­ence is suppressed simply by
selecting, via front-panel controls,
the criterion of a specified number of
pulse repetitions per half-cycle. Suit­able settings for various types of
interference conditions must be deter­mined on an individual basis.

• Multiple passbands: The Biddle
Series 27000 detector includes the
capability to operate with different
passbands. Some test specifications/
applications define the passband
needed for the detector system. Some­times the interference to be expected
with a certain application will dictate
the pass-band requirement. Biddle
provides superior noise rejection by
designing specific passband amplifiers
with integrated filtering circuits for op­timum noise suppression. Three
standard passband amplifiers are
available: one for cable testing, one for
general purpose use and one for trans­former testing at test frequencies from
180 to 400 Hertz. Any two of the three
can be installed in the Series 27000
detector.

System Requirements

The Biddle Series 27000 detector is the
keystone of any partial discharge de­tection system. A fully operational
system requires, in addition to the de­tector, a power separation filter, a
bushing tap coupler or a bridge cou­pling unit to couple the detector to a
test circuit. A properly rated noise-free
test voltage source is also required for
a complete system.

To graph any of the output channels
as a function of test voltage and to op­erate the apparent power loss readout
channel, an optional Biddle kilovolt­meter with recording output is needed.

U

~

Power Separation Filter

OR

Bushing

~

OR

PARTIAL DISCHARGE DETECTION SYSTEMS

U

~

Bushing

Tap

Coupler

U

~

Bridge

Coupling

Unit

Schematic diagram showing basic partial discharge detection system configurations available with Series 27000 detector

APPLICATIONS

The keystone of all partial discharge
detection systems is the partial dis­charge detector. This unit provides all of
the instrumentation necessary for mak­ing partial discharge level
measurements when used with appro­priate auxiliary components. The Biddle
partial discharge detector combines cali­bration, amplification and oscilloscope
display sections in an attractive panel
suitable for rack mounting.

Electronic measurement circuitry
contained within the Series 27000
detector permits quantifying and
expressing partial discharge in objec­tive terms. This decreases the need for
reliance on subjective operator inter­pretations of test results, and
allows for consistent, repeatable evalu­ation and comparison of test data.

FEATURES AND BENEFITS

Five built-in types of data readout pro­vide a wide range of test data formats:

• CRT display

• Three simultaneous channels off
analog output suitable for graphic

(picocoulombs), average partial dis­charge (microamperes) and
apparent partial discharge energy
or power loss (milliwatts)

• Digital display of any of the above
selected data channels

• Programmable partial discharge
overlimit trip indicator

• RS-232C interface permits data
archiving and test report generation.

A standard computer interface unit
provides for archiving data and re­motely controlling detector sensitivity
and calibration.

Three built-in types of interference con­trol permit testing under adverse local
noise conditions:

• Fully adjustable partial discharge
inspection windows automatically
synchronized to the test voltage

• A partial discharge level detector
with programmable response for
partial discharge signal magnitude
level, signal repetitions per half­cycle and consecutive half-cycles

• A partial discharge measurement
circuit that employs digital filtering
for minimizing the effects of noise

Automatic synchronization of scope
display, calibration signals and window­gating circuits allows full function test­ing at frequencies from 50 to 500 Hertz.

Switchable passband options increase
interference control and expand the
range of testing applications.

Selectable, multiformat scope display
accommodates user preferences:

• Available baseline formats: sinusoi­dal, flat-line and elliptical. Baseline
phase verification is provided by 0
and 270° markers.

• Available partial discharge signal
formats: unrectified pulses, or posi­tive or negative polarity only

Built-in calibration signal generator
simplifies test data quantification.

Detector meets the requirements of IEC
270, IEEE 454-73; ASTM D-1868; IEEE
C57.113; ICEA T-24-380; AEIC CS5, CS6, CS7;
NEMA WC5, WC7, 502, 540; UL 1072; ICEA S
61-402, S 66-524, S 68-516; and MIL-T-27.

recording of peak partial discharge

PARTIAL DISCHARGE DETECTION SYSTEMS

DETECTOR CONTROLS

1. Power switch on/off

2. CRT display adjustments

3. CRT display mode - sine wave or
eliptical

4. Amplifier gain controls

5. Remote indication for external
control

6. Marker indicates zero or negative
peak on CRT display waveform

7. Automatic scope display synchro­nization indicators

8. Calibrator controls and indicators

9. LCD partial discharge display

10. Partial discharge display channel
selector

11. pC trip level adjustment

12. Trip indication lamp

13. Window gating controls

14. Markers on/off for window gat­ing

15. Pulse count per half cycle (for
noise control)

123 456789101112131415

SPECIFICATIONS
Input

Input Voltage

120/240 V (+10%, –17.5%), 47 to 500
Hz (selectable at the power input
receptacle)

Power Burden: 100 VA max.

Mechanical

Designed for 19-in. (48.3-cm) relay rack
mounting

Signal Connectors: BNC (MIL UG625)
Front-Panel Dimensions

7 H x 19 W in.

17.8 H x 48.3 W cm

Weight: 25 lb (11.3 kg)

Environmental

Storage Temperature Range

–40 to +149° F (–40 to +65° C)

Operating Temperature Range

32 to 122° F (0 to 50° C)

Relative Humidity

5 to 95% (noncondensing)

Maximum Altitude: 10,000 ft (3030 m)

CRT Display

3 x 4 in. (8 x 10 cm) with Z-axis modula­tion

Vertical Deflection Linear Range

0 to 2.7 in. (0 to 7 cm)

Display Synchronization Range

47 to 500 Hz

Display Synchronization Modes

Power line
Test voltage

Automatic Display Synch Switchover

(from power line to test voltage)

At approx 5% of rated voltage

Display Sweep Modes

Ellipse
Sine wave
Flat line

Display Sweep Phase Markers

At negative-going zero crossing
At negative voltage peak

Display Pulse Characteristics

(available by internal jumper)

Negative polarity only
Positive polarity only
Both polarities (unrectified)

Amplifier

Analog Output: 1-volt output per cm of

deflection on CRT to maximum of 8 V

General-Purpose Amplifier

Specifications

Bandpass: 40 to 200 kHz at –3 dB
Gain: 86 dB at midband

Cable Test Amplifier Specifications

Bandpass: 20 to 110 kHz at –3 dB
Gain: 92 dB at midband
Pulse Resolution Time: 5 ±1 µs
Negative Superposition: Less than
15%

Transformer Test Amplifier

Specifications

Bandpass: 75 to 290 kHz at –3 dB
Gain: 86 dB at midband

Analog Recording Outputs from

Evaluation Unit Channels

Peak partial discharge, average par­tial discharge, apparent partial
discharge power loss: 0 to 5 Vdc

Serial Interface: RS-232C, 1200 baud,

RTS/CTS handshake

Calibrator

Output Range: 0.1 to 999 pC in three

ranges, continuously variable

Output Impedance: 75 Ω
Accuracy

±1.5% full scale on 100-pC range
±4% full scale on 10- and 1000-pC

ranges

Modes Provided: Direct in accordance

with IEC 270, ASTM D-1868, method
3; indirect, ASTM D-1868, method 4;
average channel

PARTIAL DISCHARGE DETECTION SYSTEMS

Pulse Rise Time

Less than 100 ns (10 to 90%)

Pulse Repetition Rate: Once per half-

cycle of the test voltage

Repetition Synchronization Range

47 to 500 Hz

Pulse Phasing

Continuously adjustable

Evaluation Unit

Digital Display

1

/2 digits, 0.5 in. (13 mm) high, di-

3
rect reading (of selected channel)

Available Channels

Peak, average, power

Peak Partial Discharge Channel

Span: 1 to 1000 pC
Ranges: 0 to 5/10/50/100/500/1000 pC
Accuracy: ±3% of full scale

Rise Time

Analog Mode (10 to 90%) : 80 µs to

2.2 ms, variable

Digital Mode (0 to 100%): Less

than 1.0 s

Fall Time

Analog Mode (90 to 10%): 2 s
Digital Mode (100 to 0%): Less

than 1.0 s

Average Partial Discharge Channel

Span: 0.01 to 50 µA. in six ranges
Accuracy: ±3% of full scale
Averaging Time Constant: 1.3 s

Apparent Partial Discharge Power Loss

Span: 0.01 to 10,000 mW
Accuracy: ±5% of full scale

Trip Level Detector

Span: 0 to 100% of selected peak
partial discharge range

Trip Relay Contacts

1.0 A (max. carrying current)

0.25 A (resistive switching current)

Pulse Count per Half-Cycle Selector

Pulses per Half-Cycle: 1, 2, 3 or 5
Half-Cycle Logic Range: 1 to 8 half-

cycles of the test voltage (by
internal dip switches)

Display Windows

Synchronization Frequency Range:

47 to 500 Hz

Start Angle Range: 0 to 180°
Duration Angle Range: 5 to 180°

Item Cat. No.

Series 27000 Partial Discharge (Corona) Detector............... 6627000

Optional Accessories

Cable test amplifier ...................................................................... 25960

General-purpose amplifier ....................................................... 25960-2

Transformer test amplifier....................................................... 25960-3

Windows-based software package for test report generation,

including fiber-optic RS-232C interconnection cable,
486-class, IBM-compatible computer, 3.5-in., high-density
floppy drive, VGA color monitor and compatible dot

matrix printer ........................................................................... 33730

UNITED STATES

4651 S. WESTMORELAND ROAD
DALLAS, TX 75237-1017 USA
PHONE: [phone]
FAX: [phone]
EXPORT FAX: [phone]

ORDERING INFORMATION

510 TOWNSHIP LINE ROAD
BLUE BELL, PA 19422 USA
PHONE: [phone]
FAX: [phone]

CANADA

180 MIDDLEFIELD ROAD
SCARBOROUGH, ON M1S 4M6
CANADA
PHONE: [phone]
FAX: [phone]

© 1998 AVO INTERNATIONAL
