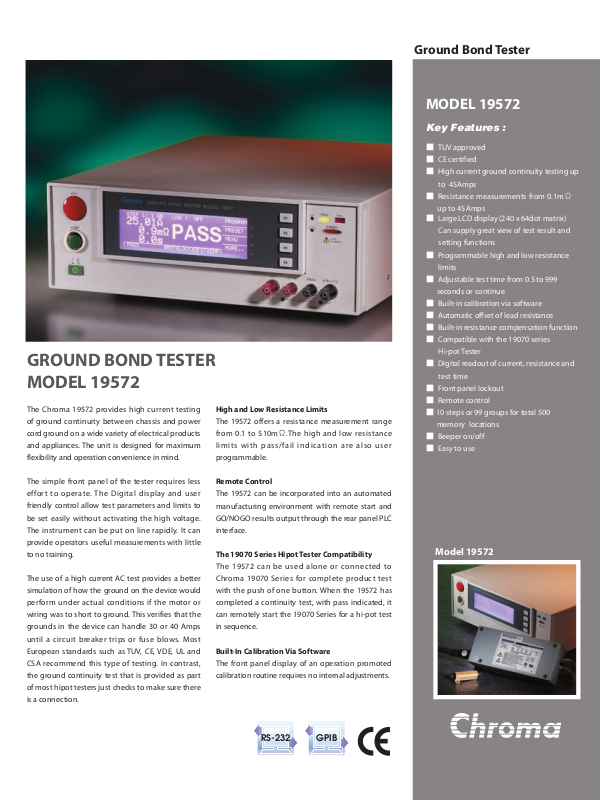

Atec 19572 User Manual

GROUND BOND TESTER

GPIB

RS-232

MODEL 19572

The Chroma 19572 provides high current testing

of ground continuity between chassis and power

cord ground on a wide variety of electrical products

and appliances. The unit is designed for maximum

flexibility and operation convenience in mind.

High and Low Resistance Limits

The 19572 offers a resistance measurement range
fro m 0.1 to 510mΩ.The high and low resist ance

lim it s with pa ss/f ail ind ic ation ar e also use r

programmable.

Ground Bond Tester

MODEL 19572

Key Features :

■ TUV approved

■ CE certified

■ High current ground continuity testing up

to 45Amps

■ Resistance measurements from 0.1mΩ

up to 45Amps

■ Large LCD display (240 x 64dot matrix)

Can supply great view of test result and

setting functions

■ Programmable high and low resistance

limits

■ Adjustable test time from 0.5 to 999

seconds or continue

■ Built-in calibration via software

■ Automatic offset of lead resistance

■ Built-in resistance compensation function

■ Compatible with the 19070 series

Hi-pot Tester

■ Digital readout of current, resistance and

test time

■ Front panel lockout

■ Remote control

■ 10 steps or 99 groups for total 500

memory locations

■ Beeper on/off

■ Easy to use

The simple front panel of the tester requires less

effo rt to opera te. The Dig ital dis pl ay and user

friendly control allow test parameters and limits to

be set easily without activating the high voltage.

The instrument can be put on line rapidly. It can

provide operators useful measurements with little

to no training.

The use of a high current AC test provides a better

simulation of how the ground on the device would

per form under actual conditions if the motor or

wiring was to short to ground. This verifies that the

grounds in the device can handle 30 or 40 Amps

until a circuit breaker trips or fuse blows. Most

European standards such as TUV, CE, VDE, UL and

CSA recommend this type of testing. In contrast,

the ground continuity test that is provided as part

of most hipot testers just checks to make sure there

is a connection.

Remote Control

The 19572 can be incorporated into an automated

manufacturing environment with remote start and

GO/NOGO results output through the rear panel PLC

interface.

The 19070 Series Hipot Tester Compatibility

Th e 19572 can be us ed alo ne or conn ect ed to

Chrom a 19070 Series for complete product tes t

with the push of one button. When the 19572 has

completed a continuity test, with pass indicated, it

can remotely start the 19070 Series for a hi-pot test

in sequence.

Built-In Calibration Via Software

The front panel display of an operation promoted

calibration routine requires no internal adjustments.

Model 19572

SPECIFICATIONS

Model 19572
Model Ground Bond

Grounding Resistance Test

Output Current AC : 3~45A
Load Regulation 1 % + 0.3 A
Resolution 3~30A 0.01A / 30.1~45A 0.1A
Current Accuracy ±(1.5% of setting + 0.5% of full scale)
Output Frequency 50Hz / 60Hz
Resistance Range 0.1 ~ 510 mΩ
Resistance Resolution (R display counts/ I display counts)≧0.2,Resolution : 1mΩ

Resistance Accuracy ± (2% of reading + 0.5% of full scale)
Offset ■A predetermined value can be subtracted from the measured value and the result of subtraction can

Offset Range 0~100.0mΩ
Test Time 0.5 ~ 999.0 sec., continue
Waveform Sine wave

GO/NG Judgment ■ A no-good judgment is made when a resistance greater than the high limit value Is detected.

Limit HI-LIMIT : 0.1 ~ 510.0mΩ

General

Operation Environment 0 to 40ºC (32 to 104ºF), ≦80% RH.
Power Consumption No load : < 100VA, With rated load : 880W MAX.
Power Requirement AC 100V, 120V, 220V-10%, 240V-10% ~ +5%
Weight < 16 kg.
Dimension(W x H x D) 320 x 105 x 400 mm

All specifications are subject to change without notice

(R display counts/ I display counts) < 0.2, Resolution : 0.1mΩ

be display

■The result of subtraction can be compared with a Good/NO Good judgment reference value,and the
result of comparison can be use for the Good/NO Good judgment

■ A no-good judgment is made when the output current is cutout and a no-good Alarm signal is
delivered.

■ If no abnormal state is detected during the test time, a good judgment is made and a good signal is
deliver.

LOW-LIMIT : OFF, 0.1mΩ ~ HI- LIMIT Value 510.0mΩ MAX.

PANEL DESCRIPTION

18

1. Line Switch

2. Start Key

3. Stop Key

4. Status List

5. Function Keys

6. Cal Enable

7. Update Enable

8. Pass indicator

9. Fail indicator

10. Test indicator

16

5 6 8 9

3

2

10

7

19

21

1

4 14 13 12 11

14 13 12 11

15 17

20

APPLICATION ORDERING INFORMATION

■ Verfying integrity of ground connection on appliances and instruments

which use 3 prong power cord

■ Tests for chassis to ground resistance

■ Electric of medical applications

■ Extensive coverage for the testing of UL,CSA,VDE,IEC and other

agency safety requirement

Developed and Manufactured by :

CHROMA ATE INC.

致茂電子股份有限公司

HEADQUARTERS

No. 66, Hwa-Ya 1st Rd.,
Hwa-Ya Technology Park,
Kuei-Shan Hsiang,33383
Taoyuan County, Taiwan
Tel: [phone]
Fax: [phone]
http://www.chromaate.com
E-mail: [e-mail]

CHINA
CHROMA ELECTRONICS
(SHENZHEN) CO., LTD.

8F, No.4, Nanyou Tian An
Industrial Estate, Shenzhen,
China PC: 518052
Tel: [phone]
Fax: [phone]

JAPAN
CHROMA JAPAN CORP.

472 Nippa-cho, Kouhoku-ku,
Yokohama-shi, Kanagawa,
223-0057 Japan
http://www.chroma.co.jp

E-mail: [e-mail]

U.S.A.
CHROMA SYSTEMS
SOLUTIONS, INC.

25612 Commercentre Drive,
Lake Forest, CA 92630-8830
Tel: [phone]
Fax: [phone]
Toll Free: [phone]
http://www.chromausa.com
E-mail: [e-mail]

19572 : Ground Bond Tester

A190701 : Remote Control Box

A195720 : GPIB Interface

A190510 : PRINTER Interface

EUROPE
CHROMA ATE EUROPE B.V.

Morsestraat 32, 6716 AH Ede,
The Netherlands
Tel: [phone]
Fax: [phone]
http://www.chromaeu.com
E-mail: [e-mail]

Distributed by:

Worldwide Distribution and Service Network

11. Drive (-)

12. Sense (-)

13. Sense (+)

14. Drive (+)

15. Remote I/O

16. Line Voltage Selector

17. Power Cord Receptacle

18. RTN/LOW

19. RS-232 Interface

20. Fan

21. Remote interface

19572-201108-500
