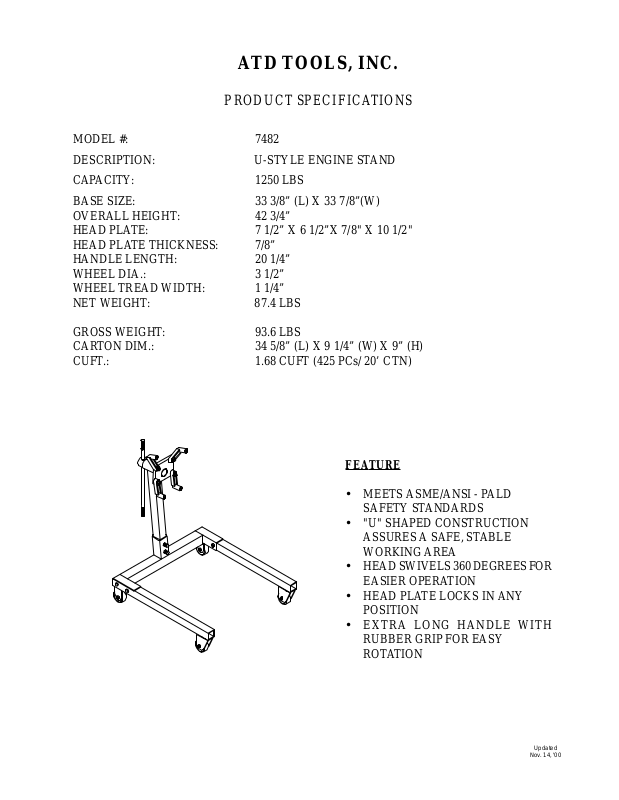

ATD TOOLS, INC.
PRODUCT SPECIFICATIONS
MODEL #: 7482
DESCRIPTION: U-STYLE ENGINE STAND
CAPACITY: 1250 LBS
BASE SIZE: 33 3/8” (L) X 33 7/8”(W)
OVERALL HEIGHT: 42 3/4”
HEAD PLATE: 7 1/2” X 6 1/2”X 7/8" X 10 1/2"
HEAD PLATE THICKNESS: 7/8”
HANDLE LENGTH: 20 1/4”
WHEEL DIA.: 3 1/2”
WHEEL TREAD WIDTH: 1 1/4”
NET WEIGHT: 87.4 LBS
GROSS WEIGHT: 93.6 LBS
CARTON DIM.: 34 5/8” (L) X 9 1/4” (W) X 9” (H)
CUFT.: 1.68 CUFT (425 PCs/ 20’ CTN)
FEATURE
• MEETS ASME/ANSI - PALD
SAFETY ST ANDARDS
• "U" SHAPED CONSTRUCTION
ASSURES A SAFE, STABLE
WORKING AREA
• HEAD SWIVELS 360 DEGREES FOR
EASIER OPERATION
• HEAD PLATE LOCKS IN ANY
POSITION
• EXTRA LONG HANDLE WITH
RUBBER GRIP FOR EASY
ROTATION
Updated
Nov. 14, '00
Page 2
SHINN FU COMPANY OF AMERICA, INC.
PRODUCT SPECIFICATIONS
OMEGA MODEL #: 31250
DESCRIPTION: U-STYLE ENGINE STAND
CAPACITY : 1250 LB
A: 34" E: 4 1/2 I: 33 5/8"
B: 34 5/8" F: 36 1/4" J: 7 3/4"
C: 3 1/2" G: 39 1/2" K: 6 5/8"
D: 6 3/4" H: 28 7/8" L: 10 1/4"
M: 7/8"
GROSS WEIGHT: 93.6 LB
CARTON DIM.: 34 5/8” (L) X 9 1/4” (W) X 9” (H)
CUFT.: 1.68 CUFT (425 PCs/ 20’ CTN)
FEATURE
• "U" SHAPE CONSTRUCTED FROM
HEAVY GAUGE WELDED SQUARE
TUBULAR STEEL
• HEAD SWIVELS 360 DEGREES FOR
EASIER OPERATION
• HEAD PLATE LOCKS IN EIGHT POSI-
TION
• EXTRA LONG HANDLE WITH RUB-
BER GRIP FOR EASY ROTATION
Updated
May 11, '99
Page 3
1250 LB "U" Type Engine Stand
Spare Parts List
ITEM PARTCODE DESCRIPTION QTY
1 * main post assembly 1
2 * side leg 1
3 * front leg 2
4 4720-0-0300000 head assembly 1
5 4720-0-0400000 mounting assembly 4
6 W30-0-0000-000 3 1/2" caster assy. 2
7 470-0-0000-003 handle 1
8 470-0-0000-004 handle grips 2
9 4720-0-0000002 wheel frame 2
10 4720-0-0000001 wheel 2
11 472-0-00000004 collar 2
12 GB5-7-8186-000 HCS M12X20 3
13 GB6-1-7586-000 hex. nut M12 2
14 GB8-5-9870-000 lock washer 12 2
Model # Atd-7482
ITEM PARTCODE DESCRIPTION QTY
15 GB5-7-8086-000 HCS M14X70 4
16 GB5-7-8086-000 HCS M12X75 4
17 GB5-7-8086-000 HCS M8X60 2
18 GB6-1-7586-000 hex. nut M8 2
19 GB5-7-8186-000 HCS M8X15 8
20 GB8-5-9870-000 lock washer 8 10
21 GB8-4-8850-000 spacer 12 4
22 GB6-1-7586-000 hex. nut M14 4
23 GB9-6-8500-000 spacer 14 4
24 GB5-7-8186-000 HCS M12X25 2
25 312-5-0110-000 hardware kits 1
* part is not available
Exploded Drawing
1st Edition © Feb. 2001
