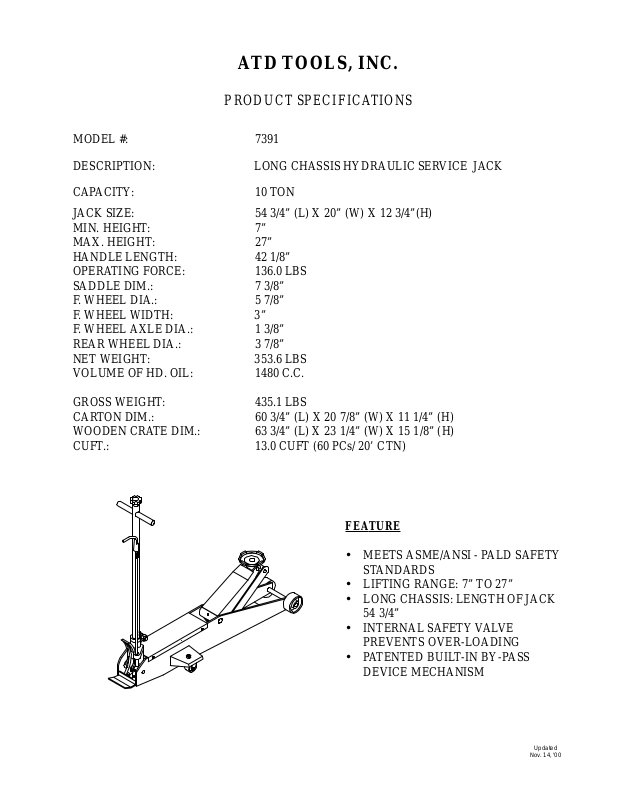

ATD TOOLS, INC.

PRODUCT SPECIFICATIONS

MODEL #: 7391
DESCRIPTION: LONG CHASSIS HYDRAULIC SERVICE JACK
CAPACITY: 10 TON

JACK SIZE: 54 3/4” (L) X 20” (W) X 12 3/4”(H)
MIN. HEIGHT: 7”
MAX. HEIGHT: 27”
HANDLE LENGTH: 42 1/8”
OPERATING FORCE: 136.0 LBS
SADDLE DIM.: 7 3/8”
F. WHEEL DIA.: 5 7/8”
F. WHEEL WIDTH: 3”
F. WHEEL AXLE DIA.: 1 3/8”
REAR WHEEL DIA.: 3 7/8”
NET WEIGHT: 353.6 LBS
VOLUME OF HD. OIL: 1480 C.C.

GROSS WEIGHT: 435.1 LBS
CARTON DIM.: 60 3/4” (L) X 20 7/8” (W) X 11 1/4” (H)
WOODEN CRATE DIM.: 63 3/4” (L) X 23 1/4” (W) X 15 1/8” (H)
CUFT.: 13.0 CUFT (60 PCs/ 20’ CTN)

FEATURE

• MEETS ASME/ANSI - PALD SAFETY

STANDARDS

• LIFTING RANGE: 7” TO 27”

• LONG CHASSIS: LENGTH OF JACK

54 3/4”

• INTERNAL SAFETY VALVE

PREVENTS OVER-LOADING

• PATENTED BUILT-IN BY-PASS

DEVICE MECHANISM

Updated

Nov. 14, '00

SPARE PARTS LIST

ITEM PARTCODE DESCRIPTION QTY

1 * base 1
2 601-4-0030-013 lock pin 1
3 551-7-0060-066 oil seal 1
4 649-1-0050-019 hex. bolt 1
5 G13-6-1701-105 release valve 1

6 # hyd. cartridge assy. 1
7 # air motor assy. 1
8 532-8-0050-024 filter 1
9 * o-ring 2
10 * o-ring 1

11 * back-up ring 1
12 G10-6-1812-103 reservoir 1
13 324-4-1900-208 filler screw 1
14 * cylinder 1
15 * u-cup 1

16 * back-up ring 1
17 G10-6-1209-100 ram bearing 1
18 * piston rod assy. 1
19 601-4-0050-019 lock pin 1
20 * top nut 1

21 * o-ring 1
22 421-4-1500-109 hyd. cartridge assy. 1
23 * packing 1
24 531-3-0270-021 washer 1
25 421-6-1401-604 pump cylinder 1

26 * u-cup 1
27 * back-up ring 1
28 * o-ring 1
29 * backup ring 1
30 421-6-1402-404 pump piston 1

31 G58-6-1358-105 pin 2
32 513-5-0018-012 retaining pin 2
33 521-2-0220-077 returning spring 2
34 G58-3-1309-104 piston link 1
35 # air inlet control valve 1

36 G24-3-1700-100 flex shaft assy. 1
37 421-6-2202-209 knob 1
38 601-4-0040-034 spring pin 1
39 G10-3-2500-101 connecting bar 1
40 506-9-0264-106 handle grip 2

41 605-3-0050-103 spring washer 2
42 609-1-0050-10911 screw 1
43 G10-3-2300-204 handle 1
44 A07-6-2204-102 washer 1
45 524-2-0138-019 compression spring 1

46 511-3-0105-011 washer 1
47 602-4-0025-017 cotter pin 1
48 620-1-0040-00811 securing screw 1
49 A07-6-2205-104 house clip 1
50 421-6-0100-100 grip 1

51 421-6-2107-306 lock bar 1
52 602-4-0025-026 cotter pin 1
53 421-6-2106-203 lock pin 1

Model # Atd-7391

ITEM PARTCODE DESCRIPTION QTY

54 421-6-9004-200 foot pedal 1
55 421-6-2404-100 foot pedal collar (II) 1

56 421-6-2403-108 foot pedal collar (I) 1
57 * handle fork 1
58 421-6-2102-104 handle fork collar 2
59 653-1-0100-078 bolt 3
60 605-3-0100-203 spring washer 5

61 651-2-0100-007 bolt 3
62 G10-6-1354-200 pedal axle 1
63 511-3-0192-012 washer 2
64 667-5-0180-009 retaining ring "C" 2
65 G10-6-3111-103 tie rod 4

66 605-3-0140-012 spring washer 8
67 651-2-0140-018 nut 8
68 * rod collar 1
69 G10-6-3112-105 tie rod 1
70 G10-6-3202-207 radius link axle 2

71 605-3-0180-014 lock washer 2
72 651-2-0180-010 nut 2
73 * parallel link 2
74 644-1-0060-044 bolt 2
75 * parallel link axle 1

76 521-2-0370-104 return spring 1
77 677-5-0240-018 retaining ring "E" 2
78 603-3-0330-013 washer 2
79 500-1-1500-309 front wheel 2
80 601-8-0006-001 grease nipple 6

81 G10-6-5102-203 front wheel axle 1
82 * saddle supporter 1
83 * saddle spindle 1
84 * saddle 1
85 677-5-0190-019 retaining ring "E" 2

86 G10-6-4303-107 saddle holder axle 1
87 * lift arm assy 1
88 * side plate - R. 1
89 * side plate - L. 1
90 421-6-5020-107 rubber pad 2

91 G10-6-3109-106 base clamp 2
92 G10-6-4120-118 cover 1
93 620-1-0050-304 screw 4
94 * nut 2
95 * spring washer 2

96 * spring washer 2
97 * nut 2
98 * bolt 2
99 * caster 2
100 * caster bracket 2

101 473-4-5000-103 caster assy. 2
102 G10-6-2403-101 grip 1
103 G10-1-1000-104

* part is not available
# part for optional

power unit (w/o air motor)1
