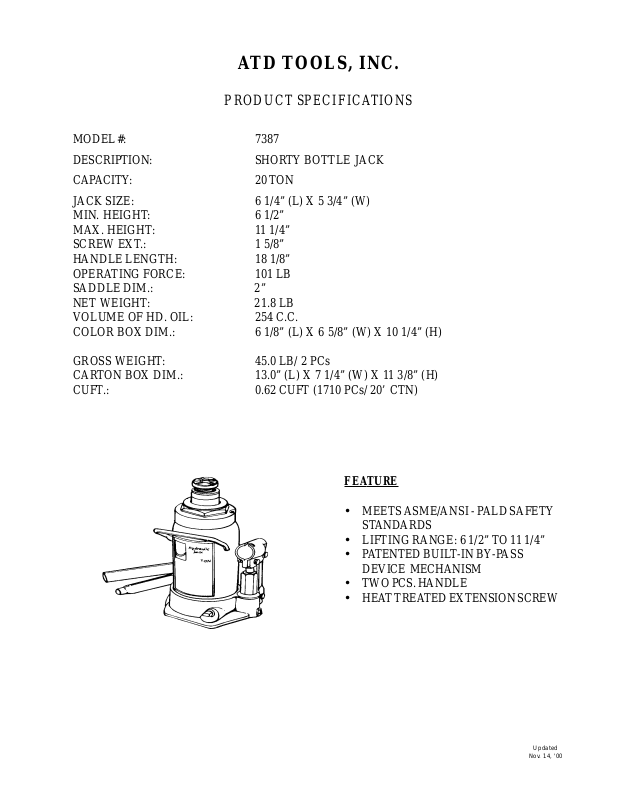

ATD TOOLS, INC.

PRODUCT SPECIFICATIONS

MODEL #: 7387
DESCRIPTION: SHORTY BOTTLE JACK
CAP ACITY: 20 TON
JACK SIZE: 6 1/4” (L) X 5 3/4” (W)

MIN. HEIGHT: 6 1/2”
MAX. HEIGHT: 11 1/4”
SCREW EXT.: 1 5/8”
HANDLE LENGTH: 18 1/8”
OPERATING FORCE: 101 LB
SADDLE DIM.: 2”
NET WEIGHT: 21.8 LB
VOLUME OF HD. OIL: 254 C.C.
COLOR BOX DIM.: 6 1/8” (L) X 6 5/8” (W) X 10 1/4” (H)

GROSS WEIGHT: 45.0 LB/ 2 PCs
CARTON BOX DIM.: 13.0” (L) X 7 1/4” (W) X 11 3/8” (H)
CUFT.: 0.62 CUFT (1710 PCs/ 20’ CTN)

FEATURE

• MEETS ASME/ANSI - P ALD SAFETY

STANDARDS

• LIFTING RANGE: 6 1/2” TO 1 1 1/4”

• P ATENTED BUIL T-IN BY-PASS

DEVICE MECHANISM

• TWO PCS. HANDLE

• HEA T TREATED EXTENSION SCREW

Updated

Nov. 14, '00

SPARE PARTS LIST

ITEM PARTCODE DESCRIPTION QTY

1 * extension screw 1
2 * o-ring 1
3 * top nut 1
4 * gasket (upper) 1
5 5905-00100-000 filler plug 1

6 B20S-14000-000 reservoir 1
7 * cylinder 1
8 * back-up ring 1
9 * o-ring 1
10 * ram piston 1

11 B200-13001-000 ram bearing 1
12 * back-up ring 1
13 * u-cup 1
14 * gasket 1
15 B020-10003-000 filter 1

16 B020-10005-000 release valve 1
17 * seal 1
18 5601-00635-000 steel ball 1
19 * screw 1
20 * base 1

Model # Atd-7387

21 B020-16000-000 hyd. cartridge 1
22 * seal 1
23 B020-15002-000 washer 1
24 B080-15001-000 pump cylinder 1
25 * u-cup 1

26 * back-up ring 1
27 * o-ring 1
28 B080-15101-000 pump piston 1
29 5405-07024-000 pin 2
30 5405-02018-000 snap ring 2

31 B080-14000-000 handle sleeve assy. 1
32 B080-20000-000 handle 1

* part is not available
