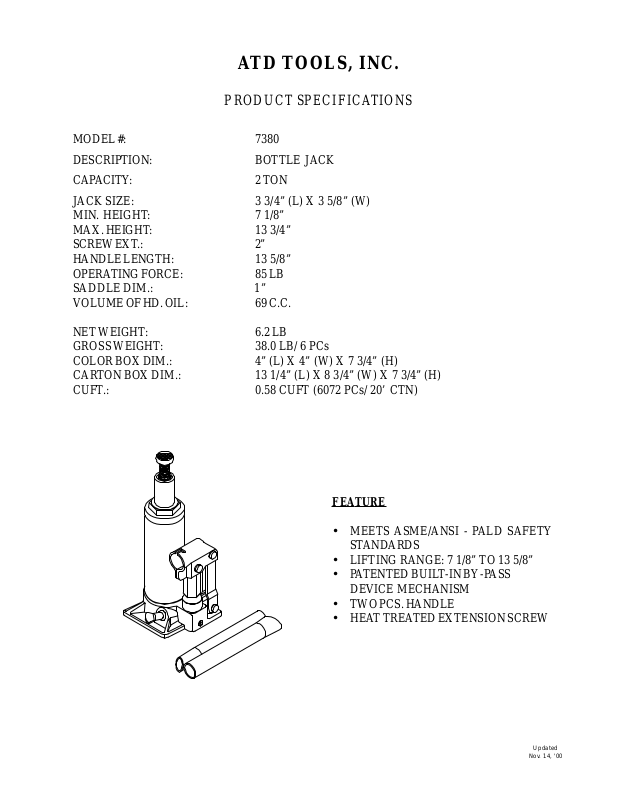

ATD TOOLS, INC.
PRODUCT SPECIFICATIONS
MODEL #: 7380
DESCRIPTION: BOTTLE JACK
CAP ACITY: 2 TON
JACK SIZE: 3 3/4” (L) X 3 5/8” (W)
MIN. HEIGHT: 7 1/8”
MAX. HEIGHT: 13 3/4”
SCREW EXT .: 2”
HANDLE LENGTH: 13 5/8”
OPERA TING FORCE: 85 LB
SADDLE DIM.: 1”
VOLUME OF HD. OIL: 69 C.C.
NET WEIGHT: 6.2 LB
GROSS WEIGHT: 38.0 LB/ 6 PCs
COLOR BOX DIM.: 4” (L) X 4” (W) X 7 3/4” (H)
CARTON BOX DIM.: 13 1/4” (L) X 8 3/4” (W) X 7 3/4” (H)
CUFT.: 0.58 CUFT (6072 PCs/ 20’ CTN)
FEATURE
• MEETS ASME/ANSI - PALD SAFETY
ST ANDARDS
• LIFTING RANGE: 7 1/8” TO 13 5/8”
• P ATENTED BUIL T-IN BY-PASS
DEVICE MECHANISM
• TWO PCS. HANDLE
• HEA T TREATED EXTENSION SCREW
Updated
Nov. 14, '00
SPARE PARTS LIST
ITEM PARTCODE DESCRIPTION QTY
1 * extension screw 1
2 * o-ring 1
3 * top nut 1
4 * gasket (upper) 1
5 5905-00100-000 filler plug 1
6 B020-10001-000 reservoir 1
7 * cylinder 1
8 * washer 1
9 * ram piston 1
10 * back-up ring 1
11 * u-cup 1
12 * gasket 1
13 B020-10003-000 filter 1
14 B020-10005-000 release valve 1
15 * seal 1
16 5601-00635-000 steel ball 1
17 * screw 1
18 * base 1
19 B020-16000-000 hyd. cartridge 1
20 * seal 1
Model # Atd-7380
21 B020-15002-000 washer 1
22 B020-15001-000 pump cylinder 1
23 * u-cup 1
24 * back-up ring 1
25 * o-ring 1
26 B020-15101-000 pump piston 1
27 5405-08024-000 pin 1
28 5405-02018-000 snap ring 2
29 B020-14000-000 handle sleeve assy. 1
30 5405-07024-000 pin 1
31 B020-20000-000 handle 1
* part is not available
