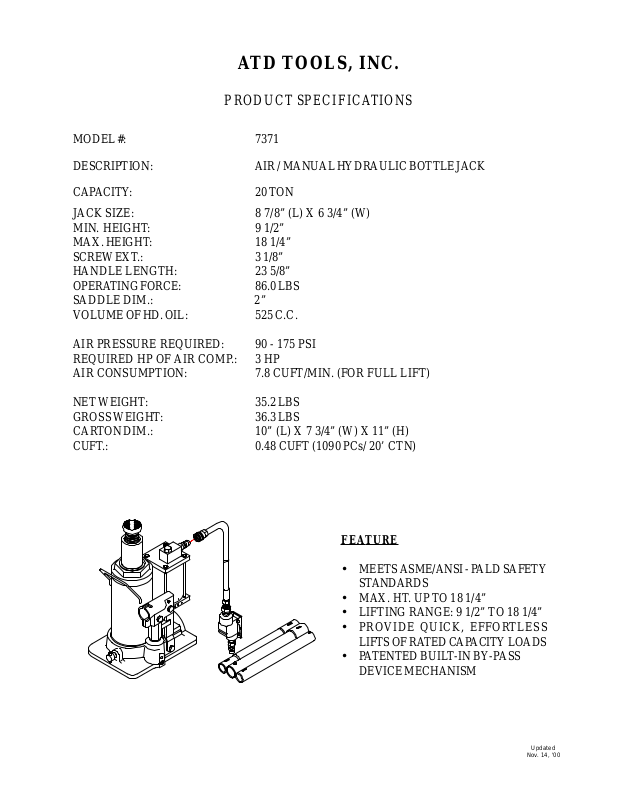

ATD TOOLS, INC.

PRODUCT SPECIFICATIONS

MODEL #: 7371
DESCRIPTION: AIR / MANUAL HYDRAULIC BOTTLE JACK
CAP ACITY: 20 TON

JACK SIZE: 8 7/8” (L) X 6 3/4” (W)
MIN. HEIGHT: 9 1/2”
MAX. HEIGHT: 18 1/4”
SCREW EXT .: 3 1/8”
HANDLE LENGTH: 23 5/8”
OPERA TING FORCE: 86.0 LBS
SADDLE DIM.: 2”
VOLUME OF HD. OIL: 525 C.C.

AIR PRESSURE REQUIRED: 90 - 175 PSI
REQUIRED HP OF AIR COMP.: 3 HP
AIR CONSUMPTION: 7.8 CUFT/MIN. (FOR FULL LIFT)

NET WEIGHT: 35.2 LBS
GROSS WEIGHT: 36.3 LBS
CARTON DIM.: 10” (L) X 7 3/4” (W) X 11” (H)
CUFT.: 0.48 CUFT (1090 PCs/ 20’ CTN)

FEATURE

• MEETS ASME/ANSI - P ALD SAFETY

STANDARDS

• MAX. HT . UP T O 18 1/4”

• LIFTING RANGE: 9 1/2” TO 18 1/4”

• PROVIDE QUICK, EFFORTLESS

LIFTS OF RA TED CAP ACITY LOADS

• P ATENTED BUIL T-IN BY-PASS

DEVICE MECHANISM

Updated

Nov. 14, '00

SPARE PARTS LIST

ITEM PARTCODE DESCRIPTION QTY

1 * ext. screw assy. 1
2 * o-ring 1
3 * top nut 1
4 * gasket (upper) 1
5 324-4-1900-208 oil filler screw assy. 1

6 A20-3-1812-200 reservoir assy. 1
7 * cylinder 1
8 577-7-0654-100 back-up ring 1
9 * piston rod 1
10 A07-6-1209-107 ram bearing 1

12 * back-up ring 1
13 * u-cup ring 1
14 * oil seal 1
15 * base 1
16 * filter 1

17 * oil seal 1
18 238-6-1701-403 release valve 1
19 101-6-1603-108 screw 2
20 601-7-0006-005 steel ball 2
21 A20-4-1500-106 hyd. cartridge assy. 1

Model # Atd-7371

22 137-4-1500-203 hyd. cartridge assy. 1
23 * oil seal 1
24 531-3-0190-014 washer 1
25 267-6-1401-105 pump cylinder 1
26 * oil seal assy. 1

27 * o-ring 1
28 A20-6-1306-102 pump piston 1
29 518-4-0070-307 pin 2
30 511-5-0012-016 snap pin 2
31 181-3-1300-409 handle sleeve assy. 1

32 181-3-2100-103 handle assy. 1
34-1 A27-3-2000-104 air motor 1
34-2 A20-3-1900-106 air inlet swivel 1
34-3 A24-6-8101-107 quick coupler - male 2

34-4 A24-3-8200-101 quick coupler - female 1
34-5 507-9-0064-013 hose assy. 1
34-6 A24-3-2050-108 air inlet control valve 1
35 A07-6-1209-208 ram bearing 1
36 * o-ring 1

37 511-7-0090-403 o-ring 1
38 324-6-1902-305 filler screw 1
39 * oil seal 1

* part is not available
