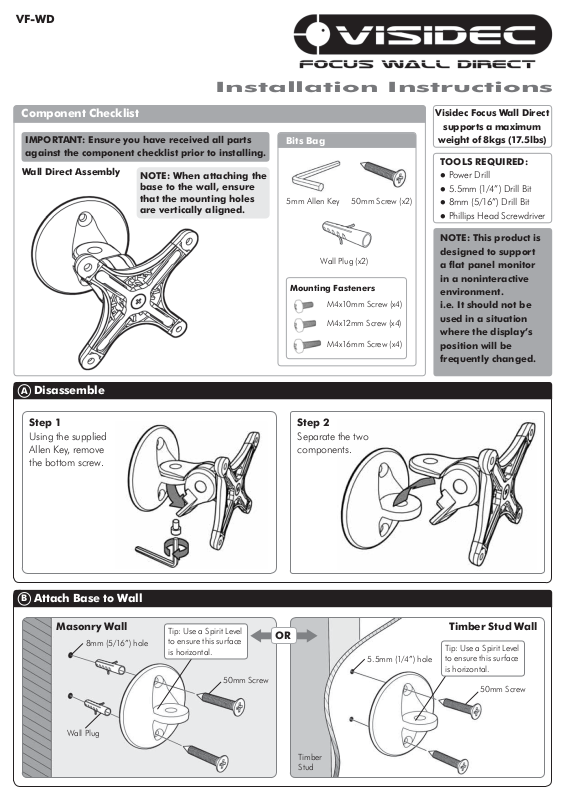

VF-WD
Installation Instructions
Component Checklist
Component Checklist
IMPORTANT: Ensure you have received all parts
against the component checklist prior to installing.
Wall Direct Assembly
NOTE: When attaching the
base to the wall, ensure
that the mounting holes
are vertically aligned.
Bits Bag
5mm Allen Key
Wall Plug (x2)
Mounting Fasteners
50mm Screw (x2)
M4x10mm Screw (x4)
M4x12mm Screw (x4)
M4x16mm Screw (x4)
Visidec Focus Wall Direct
supports a maximum
weight of 8kgs (17.5lbs)
TOOLS REQUIRED:
Power Drill
5.5mm (1/4”) Drill Bit
8mm (5/16”) Drill Bit
Phillips Head Screwdriver
NOTE: This product is
designed to support
a flat panel monitor
in a noninteractive
environment.
i.e. It should not be
used in a situation
where the display’s
position will be
frequently changed.
A
Component Checklist
Disassemble
Step 1
Using the supplied
Allen Key, remove
the bottom screw.
B
Component Checklist
Attach Base to Wall
Masonry Wall
8mm (5/16”) hole
Tip: Use a Spirit Level
to ensure this surface
is horizontal.
50mm Screw
Step 2
Separate the two
components.
OR
5.5mm (1/4”) hole
Timber Stud Wall
Tip: Use a Spirit Level
to ensure this surface
is horizontal.
50mm Screw
Wall Plug
Timber
Stud

C
Attach Head to Display
75mm
(3”)
75mm
(3”)
M4 screw
OR
M4 screw
75x75mm VESA 100x100mm VESA
Attach Display to Wall
D
Step 1
Position the
Display & Bracket
over the Base.
Step 2
Close the two halves of the Bracket
around the Base by firstly positioning
the top half and then the bottom half.
1
100mm
(4”)
100mm
(4”)
E
Adjust Display Position
2
Step 3
Reassemble the Wall Direct Assembly
ensuring the weight of the display is
supported until the screw is tightened.
Tip: This step can be made
easier by using two people.
Step 1
Adjust the display to
the desired viewing
angle then lock it in
place by tightening
the tilt screw in the
Step 2
Adjust the display’s
position between
landscape and portrait.
The display can rotate
through +/-95º.
direction shown.
+/-95 º
WARNING:
Do not
overtighten.
WARNING:
Tighten
No por tion of this document or any ar twork contained herein should be reproduced in any way without the express written consent of Atdec P ty Ltd.
Due to continuing product development, the manufacturer reser ves the right to alter specifications without notice. Published: 26.06. 12 ©
Do not
overtighten.
NOTE:
Screen does not
rotate 360°
