A General Features
Maximum Load:
8kg (17.5lbs)
Technical Specifications
Display Compatibility:
The Visidec Focus Micro is compatible with most Flat Panel
Displays between 12” and 24” (30cm and 61cm) that
feature either 75mm x 75mm or 100mm x 100mm VESA
mounting hole patterns.
Mounting Options:
Visidec Focus Micro package includes Bolt Through and
Desk Clamp mounting options.
• Bolt Through
Suits desktop thicknesses of 12mm - 40mm (0.5”-1.5”)
• Desk Clamp
Suits desktop thicknesses of 12mm - 38mm (0.5”-1.5”)
Included Hardware:
All fasteners and mounting hardware is included
Tools Required:
3
”) drill bit, Phillips Head screwdriver
Power drill, 9mm (
/
8
Cable Management:
Cable management system includes cable slot,
cable balls (x2) and cable management clips
4
5
1

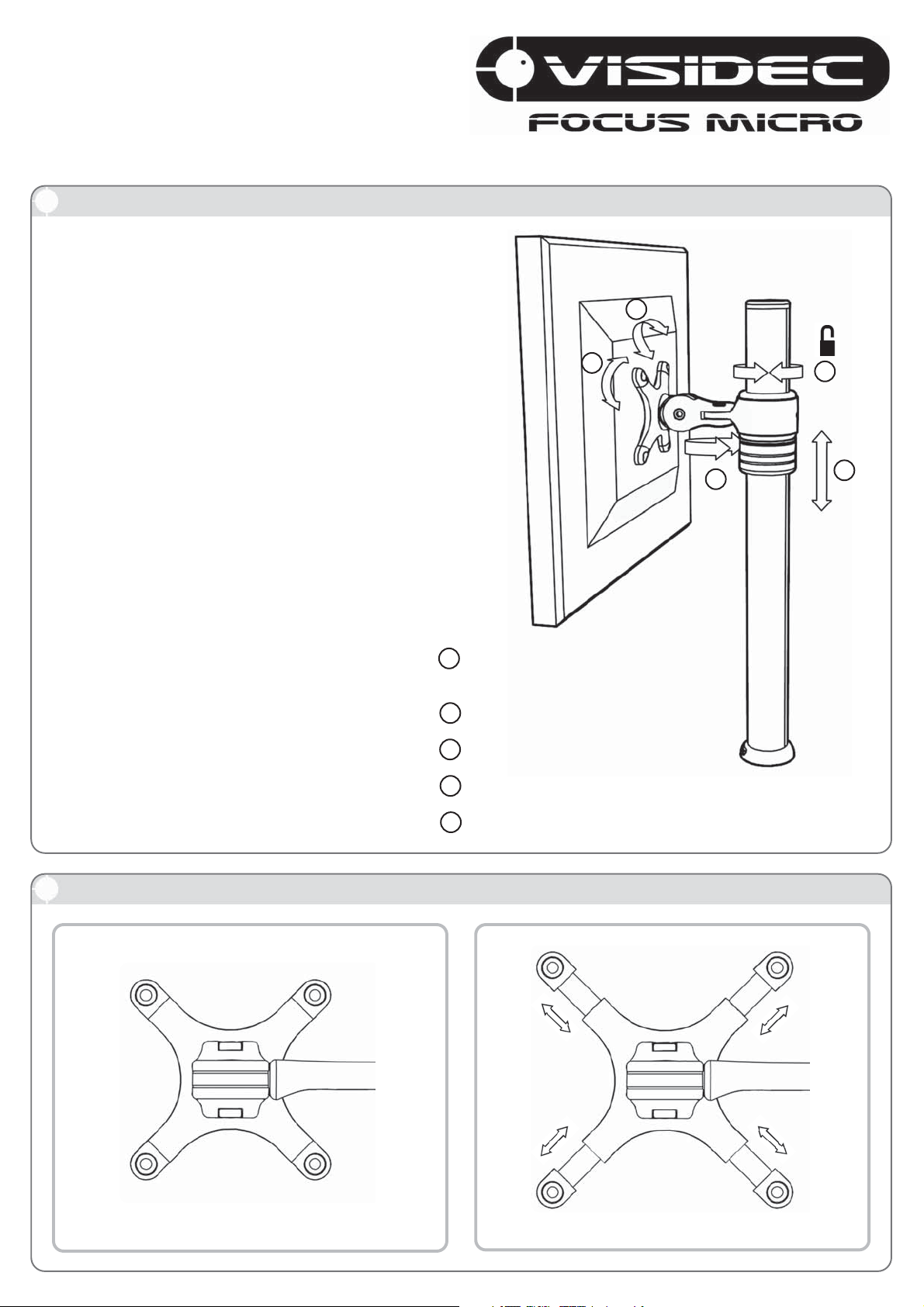

1. 360° rotation around mounting pole
(This Rotation can be locked)
2
345mm (13.5”) height adjustment range
1
3
2
Colour:
Polished Silver
Warranty: 10 years limited
B The FlexiStar™ mechanism
3
140° pan adjustment
4
±70° tilt adjustment
5
±95° portrait/landscape adjustment
75mm x 75mm
VESA hole pattern
100mm x 100mm
VESA hole pattern
Page 2

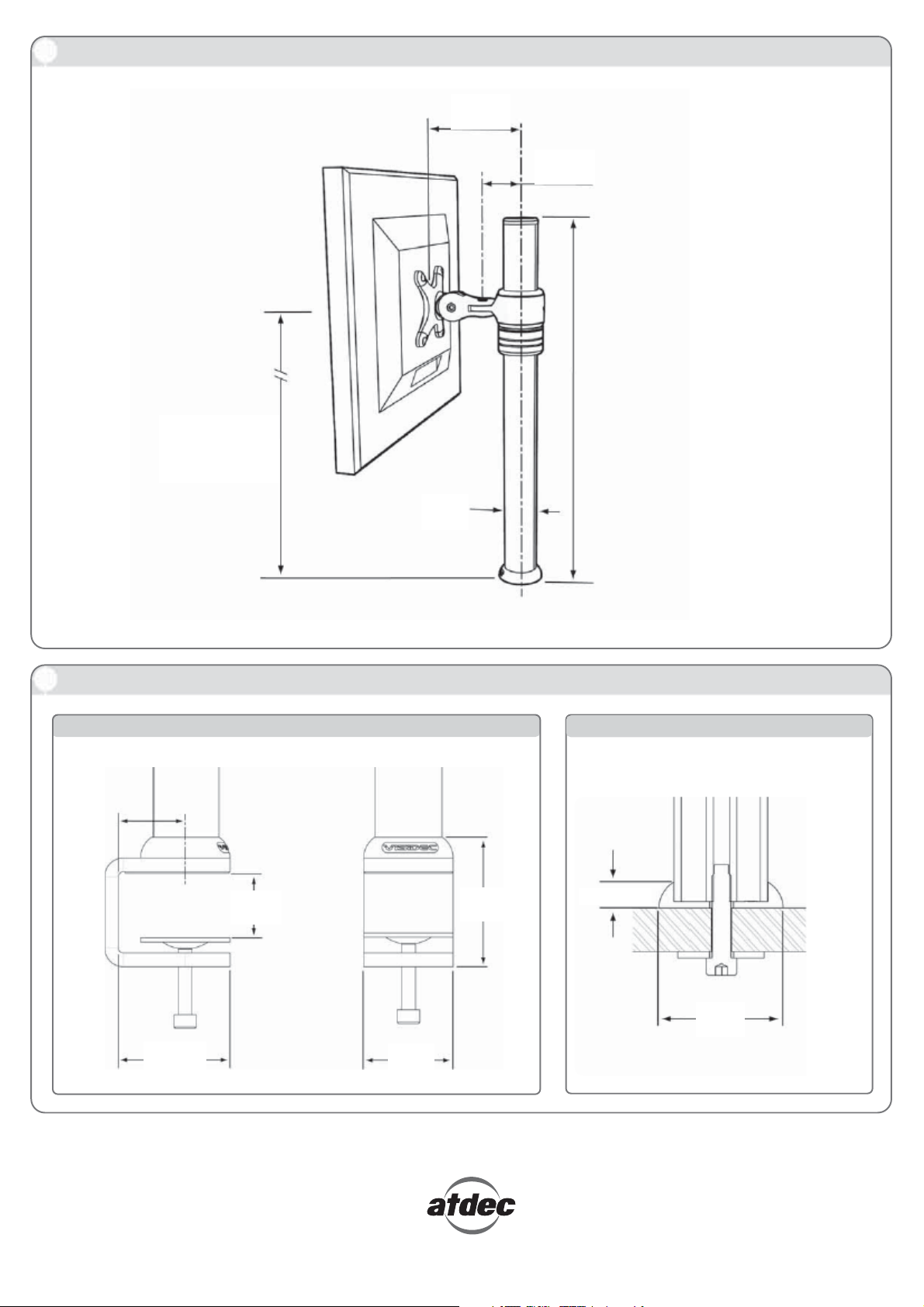

C Overall Dimensions
Maximum distance
to centre of diplay
413mm
(16.25”)
115mm
(4.5”)
46mm
(1.81”)
440mm (17.32”)
(450mm (17.75”) when
using Desk Clamp)
39mm
(1.5”)
D Desk Mounting Options
Desk Clamp
Desk Clamp suits desktop thicknesses of 12mm - 38mm (0.5”-1.5”)
39mm
(1.5”)
38mm
(1.5”)
65mm
(2.56”)
52mm
(2.05”)
75mm
(3”)
Bolt Through
Bolt Through suits desktop thicknesses of
12mm - 40mm (0.5”-1.5”)
12mm (0.5”)
DESK
52mm
(2.05”)
