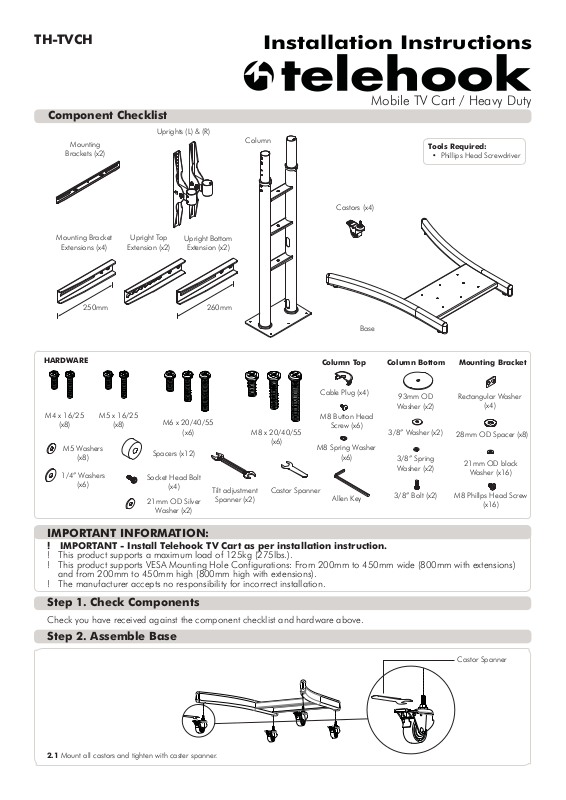

Page 1
TH-TVCH
Component Checklist
Mounting
Brackets (x2)
Uprights (L) & (R)
Installation Instructions
Mobile TV Cart / Heavy Duty
Column
Castors (x4)
Tools Required:
• Phillips Head Screwdriver
Mounting Bracket
Extensions (x4)
HARDWARE
M4 x 16/25
(x8)
M5 Washers
(x8)
1/4” Washers
(x6)
250mm
M5 x 16/25
Upright Top
Extension (x2)
(x8)
Upright Bottom
Extension (x2)
M6 x 20/40/55
(x6)
Spacers (x12)
Socket Head Bolt
(x4)
21mm OD Silver
Washer (x2)
260mm
Tilt adjustment
Spanner (x2)
M8 x 20/40/55
(x6)
Castor Spanner
Base
Column Top Column Bottom Mounting Bracket
Cable Plug (x4)
M8 Button Head
Screw (x6)
M8 Spring Washer
(x6)
Allen Key
93mm OD
Washer (x2)
3/8” Washer (x2)
3/8” Spring
Washer (x2)
3/8” Bolt (x2)
Rectangular Washer
(x4)
28mm OD Spacer (x8)
21mm OD black
Washer (x16)
M8 Phillps Head Screw
(x16)
IMPORTANT INFORMATION:
! IMPORTANT - Install Telehook TV Cart as per installation instruction.
! This product supports a maximum load of 125kg (275lbs.).
! This product supports VESA Mounting Hole Configurations: From 200mm to 450mm wide (800mm with extensions)
and from 200mm to 450mm high (800mm high with extensions).
! The manufacturer accepts no responsibility for incorrect installation.
Step 1. Check Components
Check you have received against the component checklist and hardware above.
Step 2. Assemble Base
Castor Spanner
2.1 Mount all castors and tighten with caster spanner.
Page 2
Step 3. Mount Column to Base
3.1 Line holes up
and secure column
to base.
M8 Button Head Screws
M8 Spring Washers
Holes
Step 4. Adjust Height Step 5. Attach Uprights
5.1 Remove fasteners and washers from the Column before attaching
Uprights. Secure fasteners loosely to allow for movement.
4.1 You can adjust the
height by moving the
tubes up or down before
fastening them.
3.2 Secure column
from beneath.
93mm OD Washer
3/8” Washer
3/8” Spring Washer
3/8” Bolt
Spanner
M8 Screws
Allen Key
M8 Curved Washer
Step 6. Choose Screen Orientation
6.1 The TV Cart supports both Landscape and Portrait orientations. The method of attaching
the screen will depend on the screen’s VESA hole configuration.
Before moving to the next step, measure dimensions X & Y as shown below.
VESA hole configuration
M8 Curved
Washer
M8 Button
Head Screw
Allen Key
YY
X
Landscape
X
Portrait
Page 3
Step 7. Attach Fixings to Screen
If dimension X is 200mm
Insert Socket Head Bolt
straight into the screen
ensuring that there is a
3-5mm gap.
If dimension X is from
300mm to 450mm
3-5mm
Screen back
Spacer
M5 or 1/4”
Washer
Mount the Brackets onto
the back taking note to
leave the bottom bracket
loose so that it can slide.
If dimension X is from
450mm to 800mm
Mount the Brackets with
extensions onto the back
taking note to leave the
bottom bracket loose
so that it can slide.
M4/5/6/8
Screw
3-5mm
Rectangular Washer
Extension Bracket
21mm OD M8
Flat Washer
M8 Phillips Head Screw
3-5mm
If dimension Y is from 200mm to 450mm skip Step 8 and go straight to Step 9
Step 8. Mount Upright Extensions
If dimension Y is from
450mm to 800mm
mount the Upright
extensions.
Extension Bracket
28mm OD Spacer
21mm OD
Black Washer
M8 Phillips
Head Screw
NOTE: Key holes
are on top, slots
are at the bottom.
Page 4
TIGHTEN
Step 9. Mount Screen
9.1 Align top
Socket Head bolts
to upright holes.
Top mounting Bracket
Uprights
9.2 Insert bolts through key holes and lower
to secure.
M8 Button
Head Screws
& Washers
9.3 Insert the remaining socket head bolts
and washers on to the bottom bracket before
fastening all of the screws.
Step 10. Adjust Tilt Step 11. Cable management
TIGHTEN
LOOSEN
Socket Head Bolt
21mm OD
Silver washer
Allen Key
Hold Tighten|Loosen
10.1 Using the provided
spanners to adjust tilt, hold
down the nut on the inside of the
upright whilst turning the bolt on
the outside.
Cable Caps
Routing Options
Installation Complete
No portion of this document or any artwork contained herein should be reproduced in any way without the express written consent of Atdec Pty Ltd.
Due to continuing product development, the manufacturer reserves the right to alter specifications without notice. Published 1.11.13 ©
